GPS Tracker User Manual

GT01

Table of Contents

Need help?

Do you have a question about the GT01 and is the answer not in the manual?

Questions and answers

Summary of Contents for BANGGOOD GT01

Page 1 GPS Tracker User Manual GT01...
Page 2: Table Of Contents
Ｄｉｒｅｃｔｏｒｙ LED Status ......................2 Work Mode......................3 Wiring connections..................3 Connect the Relay .................... 4 The Place of the tracker in the Vehicle ............. 4 Work Mode......................5 Tracker Default Work Mode ................. 5 Command ......................6 Specification.....................14 Special Command ..................15...
Page 3: Led Status

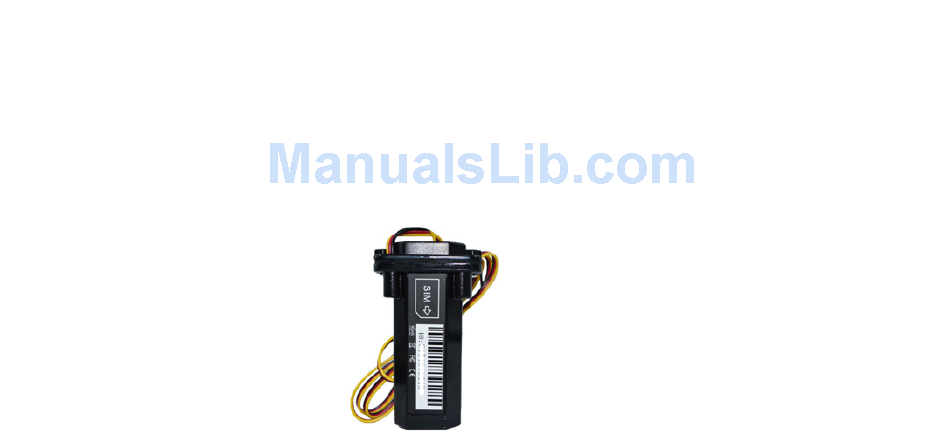

GPS/GSM Tracker is a vehicle remote positioning device with built-in GPS/GSM/GPR S technology in compact size. It can transmit the longitude and latitude coordinates to your cell phone by the SMS. User could use the coordinates to find its location on the Google maps or other map software.
Page 4: Work Mode
Work Mode This tracker have two work mode which is SMS and GPRS Mode. SMS mode is for off l ine tracking by Mobile phone. GPRS Mode is for on line tracking by computer and mobi le phone . Wiring connections Red - (+)12V -24V Black –...
Page 5: Connect The Relay
Connect the Relay The white cable is control the fuel of the car and connects pin 86 of relay which is a coil end. Pin 85 of the relay which is another coil end connects fuel channel to supply 12V po wer (please note working volt of the relay is consistent with working volt of the product).
Page 6: Work Mode
Work Mode This tracker have two work mode which is SMS and GPRS Mode. SMS mode is for off line tracking by Mobile phone. GPRS Mode is for on line tracking by computer and mobile phone Tracker Default Work Mode The Original password of the tracker is : 0000...
Page 7: Command
The Default battery switch is : OFF The Default work mode is : Sleep Mode The Default Voice is : ON About the Alarm information, The Tracker will send all of the alarm information to the first pre-saved number except the SOS Alarm that send it to all 1, 2 ,3 pre-saved number Command Set Controller phone number Command: * controller phone...
Page 8 SMS Mode Command:700+ user Reply: SET MODE OK, CURRENT MODE: SMS password Eg: 7100000 GPRS Mode Command：710+ Reply: SET MODE OK, CURRENT MODE: GPRS user password Change user password Eg: 77712340000 Command: 777+new password Reply: SET USER PASSWORD OK +old password (4 figures) eg: 6660000 Request the single position Reply: when the tracker receive the command, then...
Page 9 Close timing report: 665+user Eg: 6650000OFF password+OFF Reply : SET DAILY REPORT OFF Note: HH stands for hour with defined range of [00, 23]. MM stands for minute with defined range of [00, 59]. SOS Alarm When press the SOS button more Phone number , the information state is "STA TE: than 3 seconds, it will call and SOS"...
Page 10 While device detect internal battery is low power, it Battery low voltage alert will send the position message with STA TE: Power Low Alarm Eg : 9400000 Reply : POWER OFF OK Cut Fuel Open Cut Fuel Command: 940 + Close Cut Fuel command : 941 + user password user password Eg:9410000...
Page 11 Turn on tow truck alert: 181 + Reply : TOWED ALERT ON user password + TX Turn off tow truck alert: 180 + user password Eg: 1800000 Reply : TOWED ALERT OFF Note: X is the continuous time, the wide is 【15，100】, the unit is second Eg : 1420000 Reply : MILEAGE STATISTICS RESET OK Eg : 1420000M1000...
Page 12 TOTAL MILEAGE:XX. Note: M is delimiter, X is initial mileage value with unit of meter Eg: 8960000E08 Time Zone Reply : TIME ZONE SET OK, Command: 896 + user password + D + NN CURRENT：E8. Note: D takes E or W to indicate east or west time zone respectively. N takes a 2-digit number (1-12) to indicate time zone number.
Page 13 Open Defence Alarm : 125# Reply : OK Set Up Defence：712+password Eg：7120000 Reply：SF OK Set Defence Alarm ON/OFF Set Down Defence：713+password Eg： 7130000 Reply：CF OK Open Sleep Mode command :SLEEP,000000,1 Set Sleep Mode ON/OFF Close Sleep command : SLEEP,000000,0 Note: Explanation : Tracker will close gps/gsm/power in sleep mode for save power, once shake, tracker will work again...
Page 14 Voice ON/OFF Eg:1500000 Voice ON command : Reply : Voice: ON 150+password Voice OFF Command : 151+password Command1：#803#user Eg : 1510000 Reply : Voice : OFF password#APN## Note: Explanation : tracker will call and send message to pre-saved number in Voice on mode when take alarm, and will not call but only send message to pre-saved number in voice off when take alarm Eg: #803#0000#CMNET##...
Page 15: Specification
Reply: SET SERVER IP AND PORT OK Command：#804#user password# IP # Port ## Set the interval to upload Eg: #805#0000#20#1## Command Reply: SAMPLING TIME #805#user password# X #1# QUANTITY OK (ACC ON) Eg: #805#0000#300#1## Command：#809#user Reply: GPRS REPORT SAMPLING 2 OK password# X #1# (ACC OFF) Note: X is mean interval time, the unit is seconds，the wide is 【10，59999】...
Page 16: Special Command
GPS Chipset U-BLOX 7020 GPS sensitivity -162dB Hot start 1sec, average W arm start 30 sec, average Operating temperature -20°C－65°C Humidity 5%To 95% Non-condensing V oltage Average Current When stand-by <84mA Special Command Reset Command : *RESET#0000## Restart Command *RESTART#0000## Read the current setup information Command: *RCONF# and *RCONF1#...
