Summary of Contents for MASERMIC IFALL

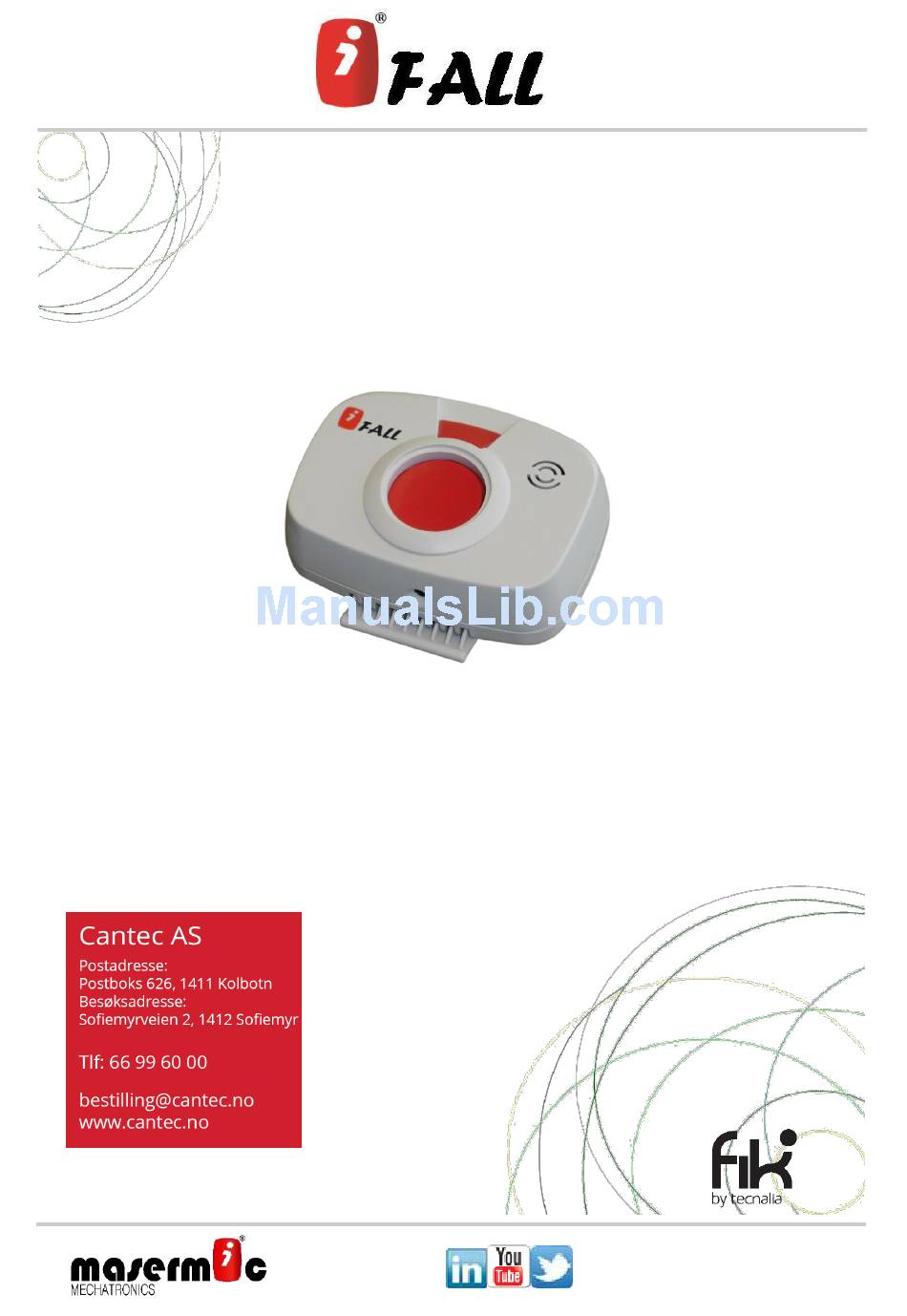

- Page 1 EN_MU_1502190 Fall detector with SMS / GSM / GPRS communications USER MANUAL EN_MU_15021900 www.masermic.com...
-
Page 2: Table Of Contents
4. GPS REPEATER FOR INDOOR LOCATION ____________________________________ 8 5. SMS COMMUNICATION ____________________________________________________ 9 5.1. SMS notifications from iFALL ____________________________________________ 9 6. iFALLDET-C APP FOR THE CONFIGURATION OF iFALL ________________________ 10 6.1. Installation process of iFALLDET-C APP __________________________________ 10 6.2. Configuration and use of iFALLDET-C ____________________________________ 12 7. -
Page 3: Product Description
1. PRODUCT DESCRIPTION iFALL is a mobile telecare device with an automatic fall detection system, voice/data communication capabilities and GPS positioning. It is worn at waist level being operative both indoor and outdoor. The fall detector is based on a patented algorithm (activated when the device is worn) that monitors constantly the status of the user and it has a panic button to send emergency alarms. -
Page 4: On/Off
ALARM mode. Use in bed: The fall detection is deactivated when using the device in bed. The system deactivates it when a lying position is detected and activates it back when a standing position is detected. www.masermic.com... -
Page 5: Panic Button Functionality
2.- After the pre-alarm period of 10 seconds, the generated alarm is sent periodically via SMS/GPRS. 3.- The alarm is only cancelled with: a. A call received on the iFALL device. b. A specific SMS command for cancellation. c. A maximum number of messages have been reached (optional). -
Page 6: Call Centre Notifications
The firmware new version will be installed when the device be connected to the charger and switched off. 2.12. Security The SMS communication is secured by the following mechanisms: a. Whitelist of phone numbers. Only the defined numbers can call the device. b. Password. www.masermic.com... -
Page 7: User Interface Specifications
Long press (2 - 3sg). Cancels the alarm during the pre-alarm mode or turns off the device if not worn. Note 1 If the user is not wearing the device, a tone will be generated (twice per day, avoiding tones at night) to remind the user to wear the device. www.masermic.com... -
Page 8: Gps Repeater For Indoor Location
It is advisable to use a GPS repeater to make easier the indoor positioning. The repeater on the picture consists of an antenna for satellite reception, an antenna for GPS positioning the iFALL device, a power cable and a LED indicating operation. www.masermic.com... -
Page 9: Sms Communication
Events and notifications from a iFALL device can additionally be made via GPRS. 5.1. SMS notifications from iFALL Next are listed the notifications and alarms sent by the iFALL device. The received message contains the following parameters: DEVICE_ID, GSM COVERAGE, ALARM/NOTIFICATION, DATE/TIME, POSITION: link Google Maps(*) I.e. -
Page 10: Ifalldet-C App For The Configuration Of Ifall
6.1. Installation process of iFALLDET-C APP This document describes the user interface App –for Android- used to configure iFALL devices. It allows to establish a SMS communication between a mobile phone and the iFALL and automates the configuration commands sent with configuration purposes. - Page 11 2.- Once there, search for the App “iFALLDET-C” and select it. 3.- When selected, we will find a description of the App, pictures and other information. 4.- To download, press INSTALL. The Privacy Advisor will be launched, simply ACCEPT and continue. www.masermic.com...
-
Page 12: Configuration And Use Of Ifalldet-C
The firs number to enter is the one associated to the iFALL device. To do this it is needed to press the field iFALL number and type it (including the international area code), confirm that it is a correct number and press NEXT. - Page 13 Then, the user can enter the telephone number that will receive the messages, following the same steps indicated for the iFALL number: press the field Phone number 1, type it, confirm and press Next. www.masermic.com...
- Page 14 www.masermic.com...
- Page 15 In the same way, it is possible to configure a second destination number or alternatively leave it blank. When left blank, the scream will show 123456789. www.masermic.com...
- Page 16 Finally, press the field Send SMS messaging charts The information exchange between the device and the App is carried out through SMS commands which are totally transparent for the user. The user can consult the chat on his mobile phone number. www.masermic.com...
- Page 17 BASIC configuration tab The BASIC tab consists of the following user configurable fields: 1- IFALL number: SIM card telephone number inserted in the iFALL device. 2- Phone 1 number: First telephone number that will receive alarm and info messages. 3- Phone 2 number: Second telephone number that will receive alarm and info messages.
- Page 18 1- Security perimeter: activates or deactivates the option of setting a security perimeter for the iFALL carrier. This can be used to detect when the user is crossing a defined geographical limit. 2- Perimeter center address: sets both the address for the security perimeter center and the authorized radius for the iFALL carrier to go around before the perimeter alarm triggers.
- Page 19 To enable the security perimeter, it is needed to tap on the option “Security perimeter”, the application asks for confirmation in order to enable it. www.masermic.com...
- Page 20 Once enabled, the user needs to determine a geographical centre and the radius in order to define the perimeter. www.masermic.com...
- Page 21 www.masermic.com...
- Page 22 Both the address and the radius can be modified later defining so a new security perimeter. To do it, the user only needs to enter new parameters again and press Accept. If one of the parameters remains the same, it is not necessary to re-enter them. www.masermic.com...
- Page 23 To disable, press on the phone restriction field and confirm the action. 5. - Shutdown device: Switches the iFALL device off provided it is neither in panic alarm nor in fall alarm state. To shut it down, tap with the finger on the field and confirm the action.
- Page 24 www.masermic.com...
-
Page 25: Specifications
INFO tab Here are shown the firmware version and Masermic contact details. 7. SPECIFICATIONS 7.1. HW Specifications Parameter Unit Value Battery voltage (lithium) Capacity Autonomy hours Channels GSM/GPRS Frequency of 900-1800 / 850-1900 7.2. SW Specifications Parameter Quantity Falls detected False falls considered www.masermic.com... -
Page 26: Dimensions And Usage Environment
Birth (modo envío) Turned off GPS active GSM in transmission GSM in reception 8. ANNEX 8.1. Contact for technical support For technical enquiries, you can contact our Aftersales Department: Telephone: +34 943 742 669 Fax: +34 943 743 077 e-mail: info@masermic.com www.masermic.com... -
Page 27: General Terms And Warranty Certificate
Microelectrónica Maser SL and designed specifically for this product. This warranty is not applicable in cases of accident, theft, vandalism or natural disasters. iFALL INFO Model: ________________________________________________________________ Please, consult this information on the label of your iFALL device (REF). IMEI: _________________________________________________________________ Serial number: __________________________________________________________ PURCHASING INFO... -
Page 28: General Conditions
The iFALL product is a technological tool to support monitoring, telecare and location actions. Due to the nature of the technologies used, the correct operation is conditioned, among others,...
