Summary of Contents for ID Tech SecureMag

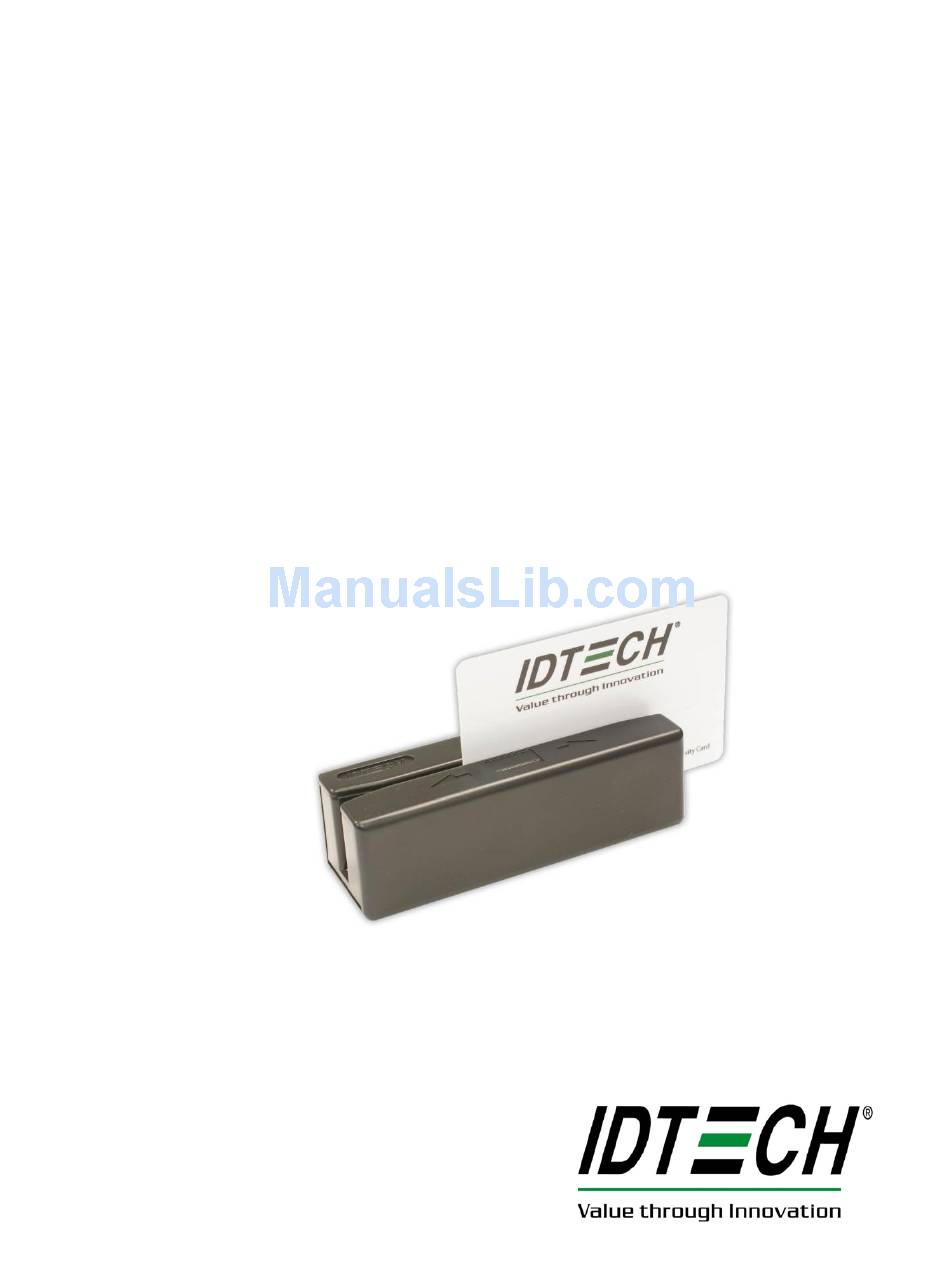

- Page 1 SecureMag Encrypted MagStripe Reader USB HID / USB Keyboard Interface QuickStart Manual...
- Page 2 Specifications for subpart B of part 15 of FCC rule for a Class A computing device. LIMITED WARRANTY ID TECH warrants to the original purchaser for a period of 12 months from the date of invoice that this product is in good working order and free from defects in material and workmanship under normal use and service.
- Page 3 While every effort has been made to ensure accuracy, ID TECH is not responsible for damages that might occur because of errors or omissions, including any loss of profit or other commercial damage. The specifications described herein were current at the time of publication, but are subject to change at any time without prior notice.
-
Page 4: Security Features
DESCRIPTION ID TECH SecureMag reader delivers superior reading performance with the ability to encrypt sensitive card data. The data encryption process prevents card holder information from being accessed when the data is stored or in transit, so the data remains secure from end to end. - Page 5 HOST CONNECTIONS & DRIVERS The SecureMag reader is connected to the host computer via a USB input port. Since USB devices are designed to be “plug and play,” the computer will search for a Human Interface Device (HID) driver when the SecureMag is first connected. If one cannot be found, the computer will prompt you to make a selection.
-
Page 6: Operation
OPERATION The SecureMag magnetic stripe reader is easy to operate. Just follow these simple steps: Make sure the reader is properly connected and is receiving sufficient power. To read a card, slide the card, in either direction, through the reader slot, with the magnetic stripe facing the magnetic head opposite LED side. - Page 7 MAGSWIPE CONFIGURATION UTILITY SecureMag data format can be configured when the encryption feature is off. The magnetically encoded data on the magnetic stripe can be decoded (read) by magnetic card readers. The stripe data has a fixed format defined by the ISO standards. The ISO fixed format is not always convenient or useful for card reading applications.
-
Page 8: Running The Utility
See the default settings table for details. The configuration software can be downloaded from the ID TECH website. From the website, download the Configuration Utility ZIP file into a tempo-rary file folder on your local hard drive. - Page 9 SPECIFICATIONS Power supplied by the host computer via the USB Power Requirements: port. Operating Current: 40 mA maximum for decoded magnetic stripe (3 tracks) with USB/HID interface. Operating Temperature: F to 131 F (0 C to 55 ° ° ° °...
- Page 10 ID TECH 10721 Walker Street Cypress, CA 90630 (714) 761-6368 80096502-001-D www.idtechproducts.com R08/14...
