Kingbird KB2000 User Manual

Data converter
Hide thumbs

Advertisement

Quick Links

Download this manual
Shenzhen Kingbird network technology CO.,LTD
Shenzhen Kingbird Network Technology CO.,LTD
Add: 12C/12D, Tower B, Haiwang Building, NanHai Road, Nanshan District, Shenzhen, Guangdong, China
TEL:+86-755-82556825 / 83239613
Web：http://www.kingbirdnet.com
MSN: kingbird_sales1@hotmail.com
KB2000 Data Converter
User's Manual
KB2000 Data Converter(for Internet)
Fax：+86-755-83239613 EXT.: 8012
EMAIL：sales@kingbirdnet.com
SKYPE: kingbird_sales1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the KB2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kingbird KB2000

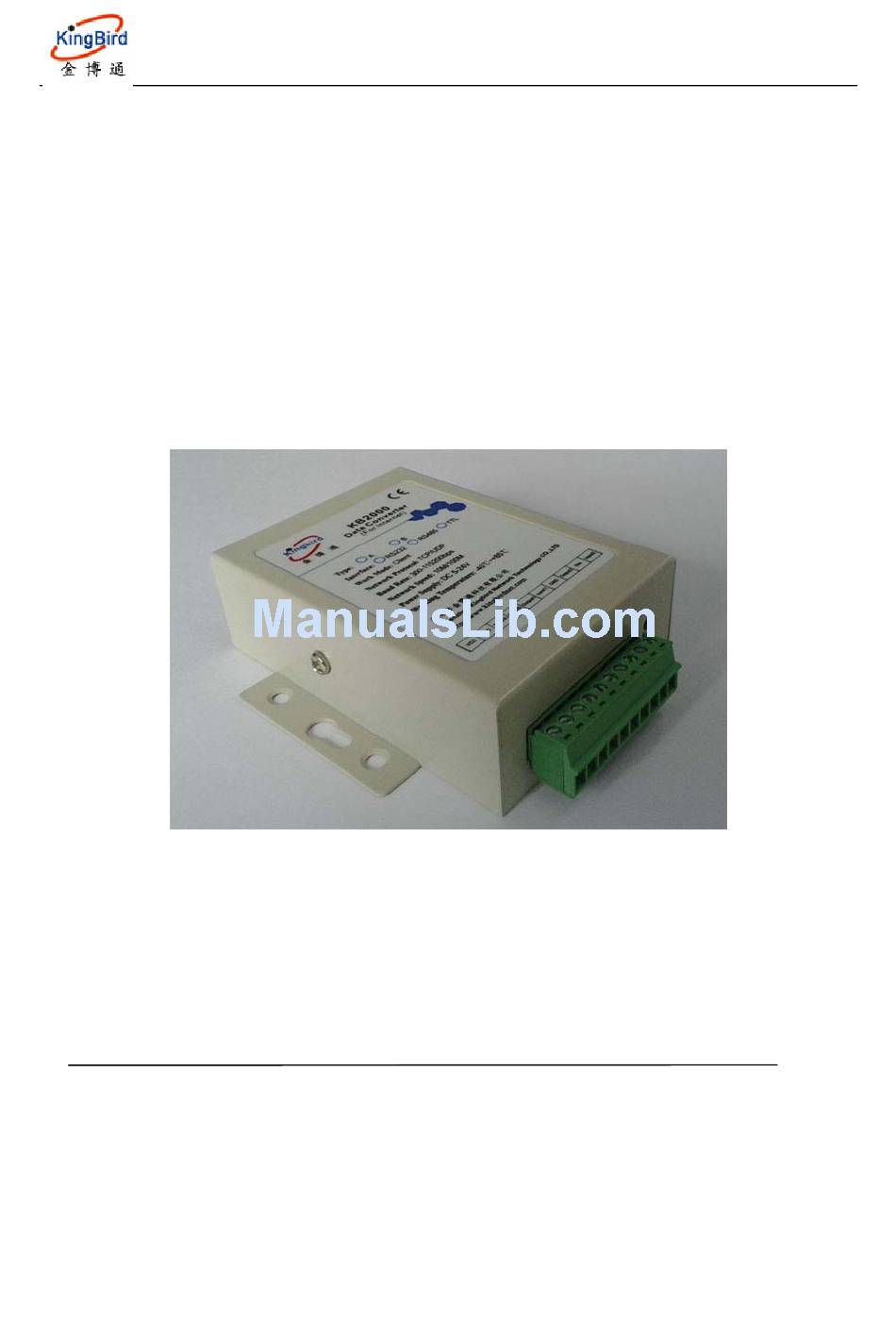

  • Page 1 Shenzhen Kingbird network technology CO.,LTD KB2000 Data Converter(for Internet) KB2000 Data Converter User’s Manual Shenzhen Kingbird Network Technology CO.,LTD Add: 12C/12D, Tower B, Haiwang Building, NanHai Road, Nanshan District, Shenzhen, Guangdong, China TEL:+86-755-82556825 / 83239613 Fax：+86-755-83239613 EXT.: 8012 Web：http://www.kingbirdnet.com EMAIL：sales@kingbirdnet.com MSN: kingbird_sales1@hotmail.com...
  • Page 2 KB2000 is data protocol converter which transmits the data between RS232/RS485 and TCP/IP network.It is special used for Internet network data transmission, also can be used in Local network. KB2000 will receive the data from converter’s RS232/RS485 COM Port and transmit the data to Network Data Server of TCP/IP network transparently;...
  • Page 3 Shenzhen Kingbird network technology CO.,LTD KB2000 Data Converter(for Internet) 2.3 COM interface: RS232 or RS485. KB2000 have 10 pins，from left to right : PIN1-PIN10 they are defined as follow: UTXD1/A URXD1/B Output1 Input1 Output2 status Input2 Pin No. Definition Description...
  • Page 4 ID: Current KB2000’s ID; Target ID: If the type of KB2000 is type A, this item just is used. When type A wants to communicate with type B, this item value is set to the ID of type B;...

  • Page 5: Operation And Management

    The bard rate of KB2000 support from 300pbs to 115200pbs; Data bits: In COM port asynchronous transmission, a group data real include data digit. KB2000 support 5-8Bits data bits. Data bits must be set the same as the PC or terminal device which connected. In general it is 8bits;...
  • Page 6 Shenzhen Kingbird network technology CO.,LTD KB2000 Data Converter(for Internet) 4.1 Search KB2000 User can find all KB2000 through “Search” in the subnet. Please chose File menu, then Search. Or you can click Search button on the toolbar. 4.2 View parameters Please double click the icon of KB2000 that searched, or after you searched KB2000, you can click Parameters button on the toolbar.
  • Page 7 Click Read button in this dialog, read the parameters again. 4.3 Set KB2000 If you want to amend parameters of KB2000, you can set them in the parameters setting dialog. Chose a KB2000 in the list, then click parameters button in the toolbar,...
  • Page 8 If you need to amend some parameters, Please click “Set” button after amendment, then the parameters will be set. Note: 1. When you set KB2000, you must input password, the default password is ‘000000’; 2. If you forget your password, please connect the PE pin to the GND pin when you set parameters, thus the password can not be required.
  • Page 9 6 . “plug and play” Solution 6.1 KB2000-A Work with KB2000-B KB2000 is used as Client-side, it is applied to single PC or multi-PC system. The single PC or multi-PC can communicate with remote equipments or devices. In this way, KB2000-A is used as Client-side. When the host machine needs to communicate with remote equipments or devices, KB2000-A will send TCP connection request to specified server and communicate after power on.
  • Page 10 Client-side. When the host machine needs to communicate with remote equipments or devices, KB2000-A will send TCP connection request to specified server and communicate after power on. At the same time KB2000-B which connect with equipments or devices send TCP connect request to server, after they are connected, the PC and the remote equipments or devices can be communicate each other.
  • Page 11 COM part and send the data to the remote KB2000-B. In this way, when a host needs to communicate with device, Appserver software send TCP connection request to designated server, then communication with it.
  • Page 12 Shenzhen Kingbird network technology CO.,LTD KB2000 Data Converter(for Internet) The Appserver interface as follow: The system schematic structure as follow:...
  • Page 13 7.1 If you choose manually (get IP from configuration), the IP must not have been used(other KB2000, network device or PC). 7.2 When the KB2000 connect with Switch or HUB, please use direct cable, when the KB2000 connect with PC, please use Cross cable.

  • Page 14: Technical Specifications

    Shenzhen Kingbird network technology CO.,LTD KB2000 Data Converter(for Internet) 8．Technical specifications Buffer size: 45K; COM baud rate: 300-115200bps Power supply: 6-24VDC Average working electric current: <60mA Power consumption: <500mW Working temperature: -30℃-80℃ Size: 82mm(L)*59mm(W)*25.2mm(H) Weight: 200g 9．Guarantee repair Our Company supplies “three guarantees” (for repair, replacement or compensation of faulty products).
