Promax EN-264 User Manual

Promax EN-264 User Manual

Dvb mpeg-4 hdtv encoder & transcoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN-264
DVB MPEG-4 HDTV ENCODER
& TRANSCODER
- 0 MI1720 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EN-264 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Promax EN-264

Summary of Contents for Promax EN-264

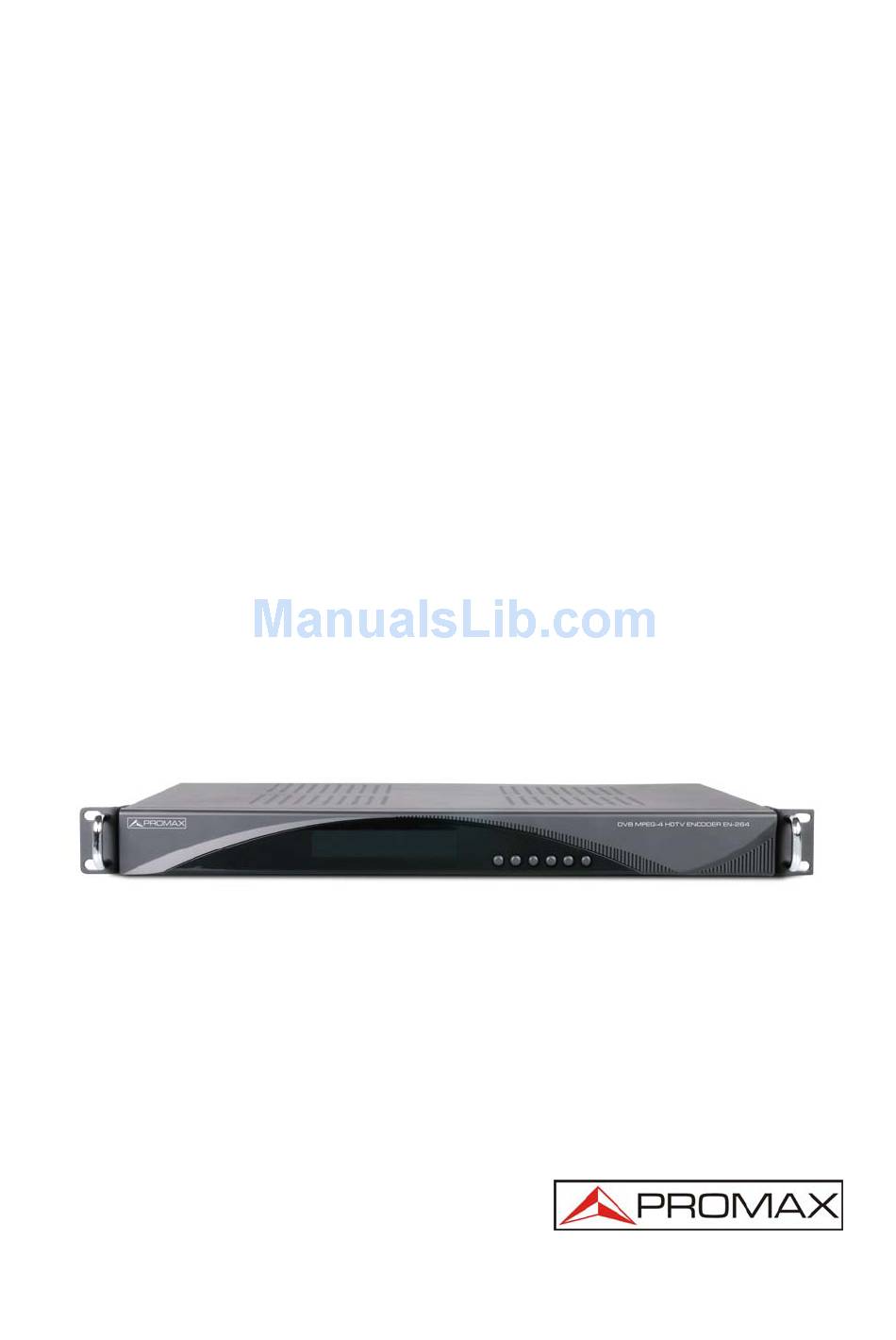

  • Page 1 EN-264 DVB MPEG-4 HDTV ENCODER & TRANSCODER - 0 MI1720 -...

  • Page 3: Safety Notes

    SAFETY NOTES Read the user’s manual before using the equipment, mainly " SAFETY RULES " paragraph. The symbol on the equipment means "SEE INSTRUCTION MANUAL". In this manual may also appear as a Caution or Warning symbol. Boxes of WARNING AND CAUTION may appear in this manual to avoid hazard or damage to people, to this product or other properties.

  • Page 5: Table Of Contents

    USER’S MANUAL. EN-264. T A B L E OF C O N T E N T GENERAL........................1 Description ......................1 Features ......................2 Especifications ....................2 SAFETY RULES......................5 General safety rules .................... 5 Descriptive Examples of Over-Voltage Categories ..........6 INSTALLATION ......................

  • Page 6: User's Manual. En

    USER’S MANUAL. EN-264.

  • Page 7: General

    GENERAL Description EN-264 is a HD Encoder & Transcoder which fully complies with H.264 standard. Integrated with the TSoIP board, the accepts TS over IP or ASI input for transcoding, or alternatively accepts HD-SDI, HDMI or YPbPr input for encoding, the final output is available in IP or ASI format.

  • Page 8: Features

    USER’S MANUAL. EN-264. Features • Conforms to H.264 High Profile 4.0 and Main Profile 4.0. • TS to TS Transcoding MPEG-2 HD to H.264 HD/SD, or MPEG-2 SD to H.264 • Supports TS multiplexing, which can re-multiplex encoded programs and ASI input programs into one TS stream.
  • Page 9 USER’S MANUAL. EN-264. TS over IP output 100Base-T RJ-45. Maximum output bit rate 70 Mbits/s. Transport protocols UDP/RTP, Multicast or Unicast. Multicast control protocol IGMPV2. ALIMENTATION Power supply 90~250V-50/60Hz. 19 W. Consumption OPERATING ENVIRONMENTAL CONDITIONS Altitude Up to 2000 m.
  • Page 10 USER’S MANUAL. EN-264. Page 4 05/2013...

  • Page 11: Safety Rules

    USER’S MANUAL. EN-264. SAFETY RULES General safety rules ∗ The safety could not be assured if the instructions for use are not closely followed. ∗ Use this equipment connected only to systems with their negative of measurement connected to ground potential.

  • Page 12: Descriptive Examples Of Over-Voltage Categories

    USER’S MANUAL. EN-264. ∗ Symbols related with safety: Descriptive Examples of Over-Voltage Categories Cat I Low voltage installations isolated from the mains. Cat II Portable domestic installations. Cat III Fixed domestic installations. Cat IV Industrial installations. Page 6 05/2013...

  • Page 13: Installation

    USER’S MANUAL. EN-264. INSTALLATION Front panel and rear panel instructions Front panel Figure 1.- POWER Power indicator, green light means power supply is good. ASI IN ASI input signal indicator, green light means ASI signal input is good, when the light is off means there is no ASI signal input.
  • Page 14 USER’S MANUAL. EN-264. Rear panel Figure 2.- TS/IP TS over IP output. ASI IN ASI input interface. B3-B4 ASI OUT ASI output interface B3 and B4 have same contents. HDMI HDMI input interface. HD/SD SDI IN HD/SD SDI input interface.

  • Page 15: Menu Structure And Operation Instructions

    USER’S MANUAL. EN-264. MENU STRUCTURE AND OPERATION INSTRUCTIONS. 05/2013 Page 9...
  • Page 16 USER’S MANUAL. EN-264. Figure 3.- Page 10 05/2013...

  • Page 17: Menu Operating Instructions

    USER’S MANUAL. EN-264. Menu operating instructions 2 row x 20 symbol LCD displays below information after being turned on. First row displays the name of the product; second row displays local IP address. Press ENTER to get in the main menu: Figure 4.-...

  • Page 18: Encoder Setup Menu

    USER’S MANUAL. EN-264. 4.1.2 Encoder Setup menu It includes 6 options which configure the encoder parameters. Menu format is shown as below: Figure 6.- Work Mode Menu It includes encode and transcode mode options. If you want to encode programs, please set it as Encode mode.
  • Page 19 USER’S MANUAL. EN-264. Video Bit Rate: Enter the menu to set the bitrate of the encoded video, then press ENTER to confirm the setting. Aspect Ratio: Enter the menu to set the video proportion 4:3 or 16:9. Press ENTER to confirm the setting.
  • Page 20 USER’S MANUAL. EN-264. Audio1 SDI EMS: Enter the menu to select: EMS1; EMS2; EMS3; EMS4. Press ENTER to confirm the setting. Note: this option is active only the audio1 Input Source is SDI audio. Audio2 Format: Enter the menu to select the audio format: MPEG1 Layer2.
  • Page 21 USER’S MANUAL. EN-264. Encoder Bit Rate Menu TS Bit Rate: Enter the menu to set the TS Bit Rate. Press ENTER to confirm the setting. Please be noted that the value of the TS Bit Rate should be larger than the sum of video bitrate and audio bitrate.

  • Page 22: Transcoder Setup Menu

    USER’S MANUAL. EN-264. Output Audio2 PID: Enter the menu to set the output Audio2 PID. Press ENTER to confirm the setting. The default is 8191, when set Audio2, please change the PID as required. Note: PID must be less than 8191 more than 31 and each PID are difference.
  • Page 23 USER’S MANUAL. EN-264. Video Setup Menu It includes: Video Rate Ctl, Format, Video Bit Rate, Aspect Ratio you can control Video bitrate, mode selection and Video bitrate setting. Video Rate Ctl: Enter the menu to select CBR or VBR. Press ENTER to confirm the setting.
  • Page 24 USER’S MANUAL. EN-264. Encode Audio2 Level: Enter the menu to set the volume of audio. Press ENTER to confirm the setting. Regulating range of volume: +6 dB ∼ -17 dB or mute. Encode Audio2 Source: Enter the menu to set the audio source , you can select SDI, HDMI, Composite2, Composite1.
  • Page 25 USER’S MANUAL. EN-264. Output PCR PID: Enter the menu to set the output PCR PID. Press ENTER to confirm the setting. Note: PID must be less than 8191 more than 31 and each PID are different. Output Service Name: Enter the menu to set the output Service Name.

  • Page 26: Ip Board Setup Menu

    USER’S MANUAL. EN-264. Transcoder Audio PID1 Menu Enter the menu to set the transcoding Audio1 PID. Press ENTER to confirm the setting. Note: PID must be less than 8191 more than 31 and each PID are different. Note: When choosing program to be transcoded in the Input Program List, here shows the corresponding Audio PID.
  • Page 27 USER’S MANUAL. EN-264. IP Board MAC Address Menu Enter the menu to examine the IP Board MAC Address. Protocol Menu Enter the menu to choose from UDP or RTP protocol. Press ENTER to confirm the setting. TS Pkts Per UDP Menu Enter the menu to set the number of TS packets per UDP, the number can be chosen from 1~7.

  • Page 28: Ip Board Setup Menu

    USER’S MANUAL. EN-264. 4.1.5 IP Board Setup Menu It includes 9 options which configure the encoder parameters. Menu format is shown as below: Figure 9.- IP Board IP Address Menu Enter the menu to set the TS/IP interface IP Address.

  • Page 29: Pid Processing Menu

    USER’S MANUAL. EN-264. 4.1.6 PID Processing Menu It includes 4 options, menu format is shown as below: Figure 10.- Program List Menu It includes ASI Input and Encoder options. ASI Input: Enter the ASI Input menu to look up the input program, the chosen program will shown with a “...

  • Page 30: Output Setup Menu

    USER’S MANUAL. EN-264. 4.1.7 Output Setup Menu It includes 1 option, menu format is shown as below: Figure 11.- Out Source Menu Enter the menu to choose output mode, you can select Encode/Transcode, MUX, ASI/IP. Press ENTER to confirm the setting.

  • Page 31: Installation

    USER’S MANUAL. EN-264. MAC Address: Enter the menu to set MAC Address. Press ENTER to confirm the setting. Remote Setting Menu Enter the menu to set the Trap IP Address. Press ENTER to confirm the setting. Unit Name Menu Enter the menu to set the Unit Name.
  • Page 32 USER’S MANUAL. EN-264. Page 26 05/2013...

  • Page 33: Maintenance

    USER’S MANUAL. EN-264. MAINTENANCE Replacing the fuse The fuse holder is located on the rear panel of the equipment. NOTE: Disconnect the power cord before replacing the fuse. Remove the fuse using a screwdriver. Replace the damaged fuse with a proper new one and put again the fuse holder in its place.
