Summary of Contents for InFocus INA-PTZ-4

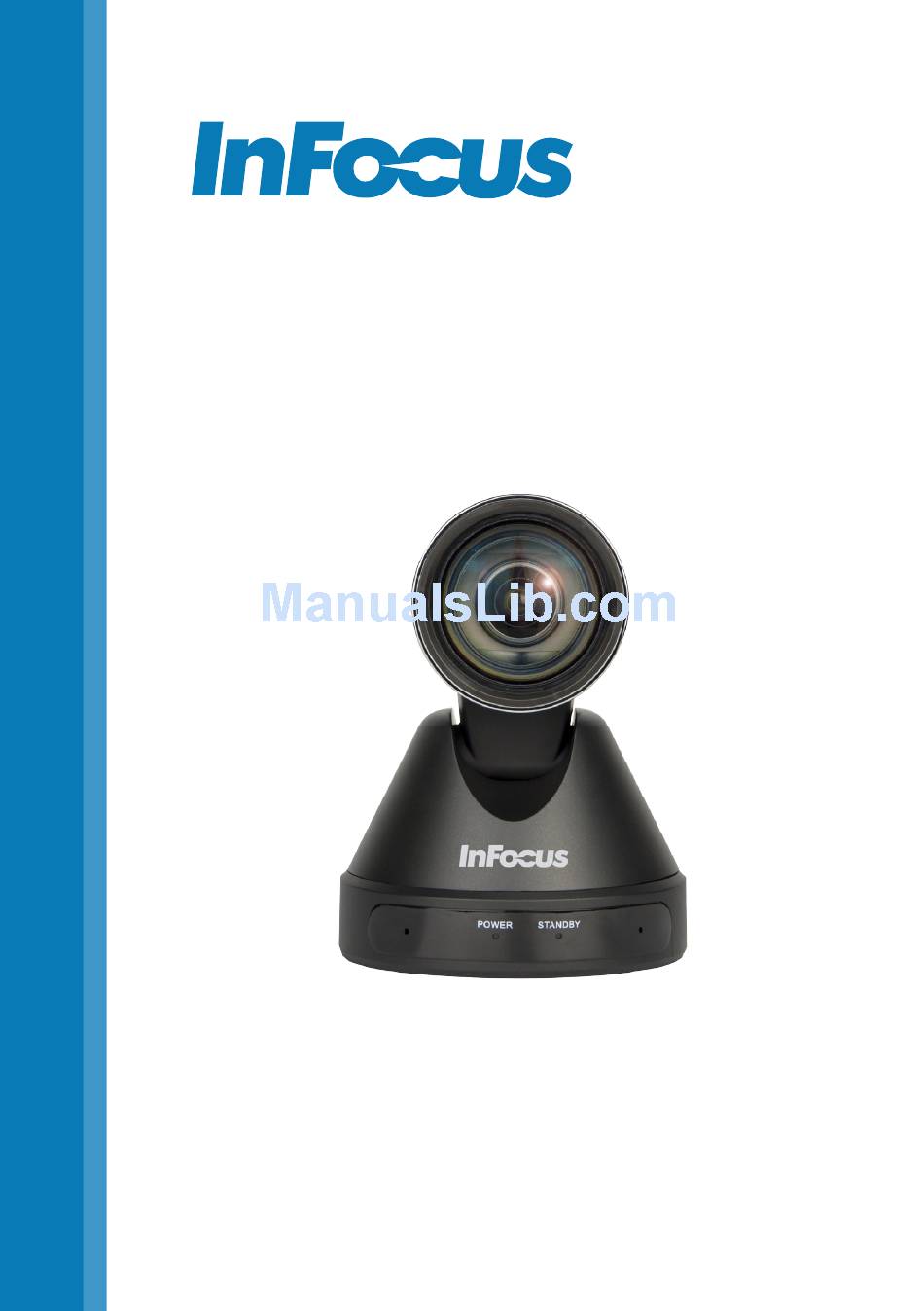

- Page 1 INA-PTZ-4 User Guide 009-1687-00...
-
Page 2: Table Of Contents
CONTENTS Declaration of Conformity ......................2 Safety ..............................3 What’s Included ..........................5 Setup ..............................6 Using the remote ..........................7 Remote shortcut combinations ..................10 On-screen display (OSD) menu ....................11 Exposure ..........................11 Color ............................12 Image ............................13 Pan/Tilt/Zoom (P/T/Z) ......................13 Noise reduction ........................14 Setup ............................14... -
Page 3: Declaration Of Conformity
HDMI Licensing LLC. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference. -
Page 4: Safety
Do not use the camera for long periods of time in extremely bright conditions. • Do not operate the camera near powerful electromagnetic radiation, such as televisions and radio transmitters. The specific frequency of electromagnetic fields may affect the image of the camera. INA-PTZ-4 RealCam User Manual Page 3... - Page 5 Refer all service to qualified service personnel. Do not remove the cover. Servicing your own camera can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. •...
-
Page 6: What's Included
WHAT’S INCLUDED • Camera • AC power adaptor • Power cord • RS232 cable • Remote control • User manual • USB3.0 cable INA-PTZ-4 RealCam User Manual Page 5... -
Page 7: Setup
SETUP USB Cable (supplied) 3.5mm Audio (not supplied) RS232 Cable (supplied) RS232 Cable (not supplied) AC Adapter (supplied) To AC jack To DC12V IN Power Line (supplied) Computer, TV, VCR with audio input jack Connect cables as outlined in the above illustration. Connect the power cord to a working electrical outlet. -
Page 8: Using The Remote
* # F1 in L/R SET BACKLIGHT P/T RST sequence. • To assign up to three additional cameras, AUTO NEAR MANUAL FOCUS use the same process using F2, F3, and INA-PTZ-4 RealCam User Manual Page 7... - Page 9 The pause/play feature is not available on this camera. Preset Saves a preset position. • Adjust the camera position, focus, and zoom as you like, and then press Preset and a corresponding number to save the settings to that number. •...
- Page 10 Press to switch from automatic to manual Focus focus. Press the Manual and then the Far button to focus on a far object. Press the Manual and then the Near button to focus on a near object. INA-PTZ-4 RealCam User Manual Page 9...
-
Page 11: Remote Shortcut Combinations
Remote shortcut combinations To activate one of the shortcut actions, press the combination keys in sequence starting from the left. Shortcut combinations Actions * # 1 Changes the defaulted OSD menu language to English. * # 3 Changes the defaulted OSD menu language to Simplified Chinese. -
Page 12: On-Screen Display (Osd) Menu
Adjusts intensity when Mode is set to Bright. Range: 0 - Iris Changes the aperture value when Mode is set to Manual or AAE. Options: F1.8, F2.0, F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6, F11.0. INA-PTZ-4 RealCam User Manual Page 11... -
Page 13: Color
Shutter Changes the shutter value when Mode is set to Manual or SAE. Options: 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000. Anti-Flicker Adjusts the anti-flicker feature when Mode is set to Auto or Bright. -
Page 14: Image
Adjusts the automatic focusing sensitivity. Options: Low, Normal, High L/R Set Adjusts the lens panning direction. Options: STD, REV. Display Info Enables display on-screen messages. Options: On, Off. Image Freeze This feature does not work on this camera. INA-PTZ-4 RealCam User Manual Page 13... -
Page 15: Noise Reduction
Noise reduction Use this submenu to adjust the image noise reduction. Submenu items Definitions NR2D-Level 2D noise reduction. Options: Off, Auto, 1 - 5. NR3D-Level 3D noise reduction. Options: Off, 1 - 8. D-HotPixel Enables and sets the sensitivity level of the dynamic dead pixel detection feature. -
Page 16: Communication Setup
Use this submenu to restore the camera back to factory default settings. Submenu items Definitions Restore? Restores the camera to factory default settings, including the IR remote address and VISCA address. Note: Press the Home button to confirm. Options: Yes, No. INA-PTZ-4 RealCam User Manual Page 15... -
Page 17: Maintenance
MAINTENANCE Unplug the camera if you need to clean it. Only use a soft dry cloth to clean the camera and camera lens. Never use alcohol, solvents or ammonia-based liquids on this camera. TROUBLESHOOTING Symptom Possible Solutions No power • Verify the power cord is properly connected to the power adapter and to the power outlet. - Page 18 The menu is in a • Use one of the remote shortcuts to change the menu different language. language to English or Simplified Chinese. See ”Remote shortcut combinations” on page 10 for more information. INA-PTZ-4 RealCam User Manual Page 17...
-
Page 19: Specifications
SPECIFICATIONS Camera Video system 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 Sensor 1/2.7’’, CMOS, Effective Pixel: 2.07M Scanning mode Progressive Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 Digital zoom 32x (optional) Minimal illumination 0.5 Lux @ (F1.8, AGC ON) Shutter 1/30s ~ 1/10000s White balance... - Page 20 MTBF >30000h Size 5.1 x 4.65 x 6.15” (128.5 x 118 x 156.2mm) Net weight 2 lbs. (0.91 Kg) InFocus reserves the right to alter product offerings and specifications at any time without notice. INA-PTZ-4 RealCam User Manual Page 19...
-
Page 21: Appendix
APPENDIX Camera dimensional drawings 4.65“ (118mm) 3.9“ (99mm) Page 20... -
Page 22: Serial Configuration
Note: When the camera is powered on, it goes through an initialization sequence. Once the initialization sequence is finished, users can control the camera using serial command codes. To obtain a detailed command list for the VISCA/Pelco-D/Pelco-P device, please contact the manufacturer directly. INA-PTZ-4 RealCam User Manual Page 21... -
Page 23: Rs232 Cable Map
RS232 cable map Function PIN location Camera Windows DB9 Mini DIN IR OUT Page 22...
