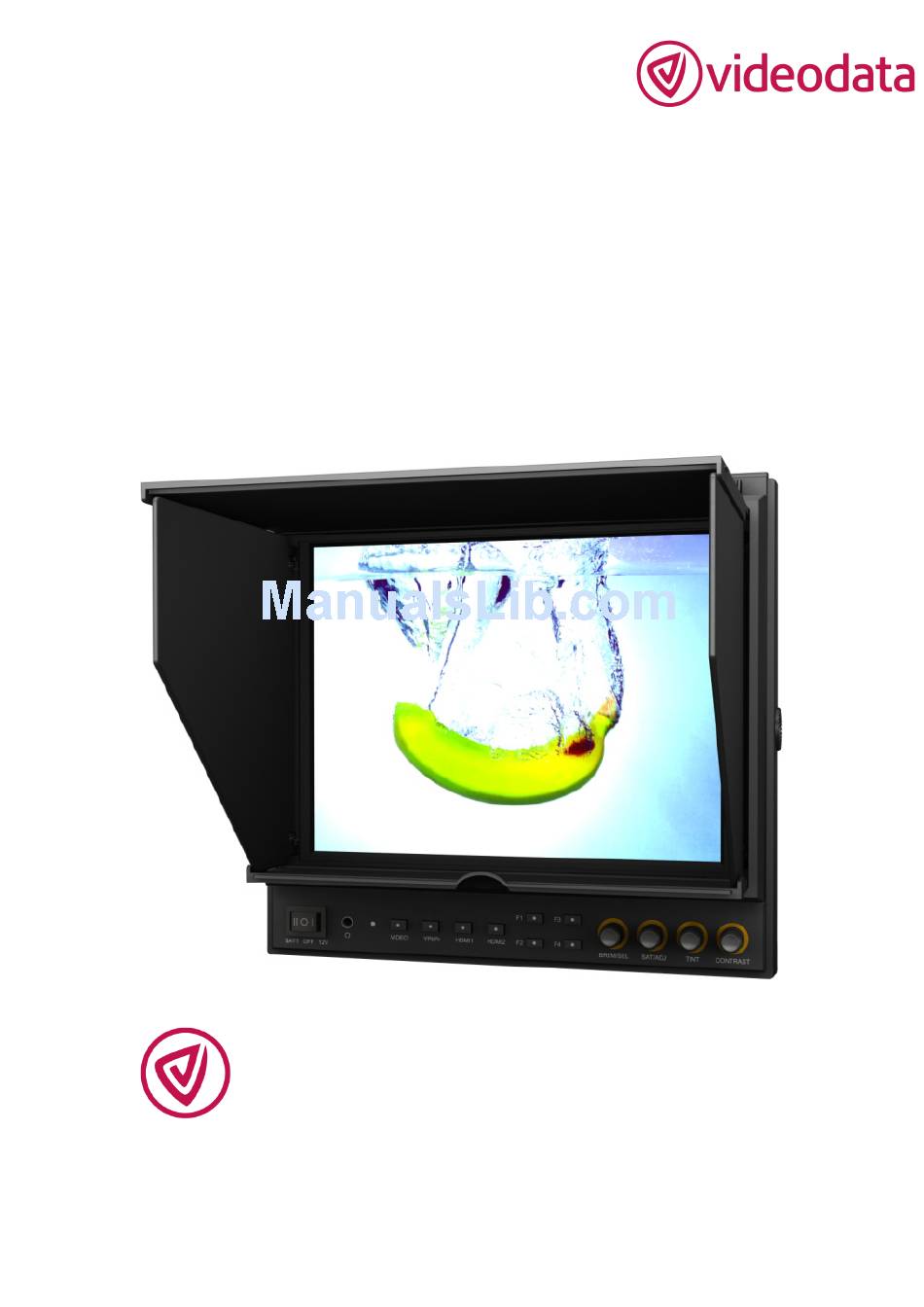

Page 1: User Manual
Lilliput 969 User Manual VDH Video Data Handels GmbH Kohlentwiete 14 22761 Hamburg www.videodata.de... -
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS: Please read manual before using this product. Please keep manual for future reference. Please read the cautions to prevent possible danger and loss of property Please enjoy the benefits of convenience, safety, and space-saving from this TFT LCD monitor in different ways. -
Page 3: Product Description
1. PRODUCT DESCRIPTION 1. TALLY (indicator light); 2. Battery power on/off switch: ‖” is battery power; “O” is power off; “|” is “ DC power; 3. Earphone jack; 4. Power indicator light; 5. VIDEO: Indicator lights up when signal switch to video state; (No use under the SDI mode);... - Page 4 ※ Optional: Without BNC interfaces 14. SDI signal input/ output (Optional); 15. Y signal and Video signal input / output; 16. Pb signal input / output; 17. Pr signal input / output; 18. Audio (L/R) input; 19. HDMI 1 signal input; 20.
-
Page 5: Installation Of Sunshade Cover
2. INSTALLATION SUNSHADE COVER Pushing to close / open sunshade from assigned round area when assembly / disassembly. （i.e. assembly instruction ② / disassembly instruction ①); otherwise assembly / disassembly failed, and even damaged. Assembly instructions Push to close Disassembly instructions Push to open... -
Page 6: Dv Battery Mount Plate
3. DV BATTERY MOUNT PLATE Standard mounts process Following three types of battery plates are suitable for this device, model F970, QM91D, DU21 & LP-E6 (choose 2 out of 4). MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6 DV Battery Mount Plate: DV Battery Mount Plate Specification: Model DU21 for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with... - Page 7 Model F970 for battery of SONY DV: DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C, HVR-V1C, FX7E F330. Model LP-E6 for battery of Canon DSLR: 5D Mark II/EOS7D/EOS60D； V-mount battery plate (optional): Please refer to GP-L130AB type battery specifications.
-
Page 8: Setting Menu
4. SETTING MENU Before setting the functions, please make sure the device is connected correctly. When power on, press BRI/M/SEL knob on the device, function menus will pop-up on the screen. After confirm the option value, then press BRI/M/SEL knob to return to the previous, and press the BRI/M/SEL knob again to exit the menu settings. - Page 9 ITEMS OPTIONS Language English /Chinese Small, Medium, Large, PBP, In small, medium and large interface can adjust the source, position, and swap; In PBP and POP interface can adjust the source and swap. Input Format 5s、10s、15s LOGO ON/ OFF Freeze Input ON/ OFF Peaking Mono/ Color...
-
Page 10: Accessories
5. ACCESSORIES: Standard accessories: 1. Flexible folding sun shade cover 1 piece 2. Battery plate bracket 1 piece 3. Battery plate (F-970/QM91D/DU21/LP-E6) 2 pieces (choose 2 out of 4) 4. HDMI type A –A 1 piece 5. DC 12V power adapter (XLR connector) 1 piece 6. -
Page 11: Parameters
6. PARAMETERS Panel 9.7” Physical Resolution 1024×768 Brightness 400cd/㎡ Contrast 600:1 Viewing Angle 178°/ 178°(H/V) Input Voltage DC 12V (XLR Connector) Power Consumption ≤18W Operating Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Dimension(LWD) 246×224×31mm / 167.5mm (with cover open) Weight 1068g / 1388g (with cover) 7. - Page 12 * It is normal to see some bright lines appear on the screen when turn off the device. Note: due to constant effort to improve products and product features, specifications may change without notice.
