Summary of Contents for SIGNATUR EF16-60
- Page 1 Fireplace User Guide MODEL#: EF16-60 ® SAVE THESE INSTRUCTIONS THIS PRODUCT WAS MANUFACTURED BY PAITE FOR ASHLEY FURNITURE INDUSTRIES, INC. All Rights Reserved. Page 1 of 15...
-
Page 2: Table Of Contents
Using the Remote Control ..............11 Using the Control Panel .............12 The Fireplace Remote Control ................13 Digital Display ..............14 CARE AND MAINTENANCE ..............14 Light Emitting Diode ..................14 Cleaning ............15 TROUBLE SHOOTING GUIDE ............15 Warranty & Return Policies EF16-60 MODEL#: Page 2 of 15... -
Page 3: Important Safety Information
If you have any questions regarding the use of this unit, or find that your fireplace unit needs service, please contact Ashley Furniture Industries at the below number. 1 (800) 477-2222 Customer Service EF16-60 MODEL#: Page 3 of 15... -
Page 4: Important Safety Instructions
15. Always plug fireplace directly into a grounded wall outlet/receptacle. Never use with an extension cord or power strip. SAVE THESE INSTRUCTIONS EF16-60 MODEL#: Page 4 of 15... -
Page 5: Parts And Assembly
Step 1: Put the unit in a non-abrasive surface. Turn both thumbscrews counter clockwise to loosen. The thumbscrews should not be removed from the outer frame. EF16-60 MODEL#: Page 5 of 15... - Page 6 Step 2: The front frame can be taken off when thumbscrews are completely loosened. Step 3: Glasses and Stones are options to put into bottom of fireplace unit. Optional stone pieces Optional glass pieces EF16-60 MODEL#: Page 6 of 15...
- Page 7 Turn clockwise for both left and right thumbscrews until tight to close front frame. Below picture show 2 options finished figure. To prevent the frame from falling forward, ensure that the thumbs WARNING screws are attached properly and fully tightened. EF16-60 MODEL#: Page 7 of 15...
-
Page 8: Preparation
A dedicated circuit will be required if, after installation, the circuit breaker trips or a fuse blows on a regular basis when the fireplace is operating. Additional appliances on the same circuit may exceed the current rating of the circuit breaker EF16-60 MODEL#: Page 8 of 15... -
Page 9: Site Preparation

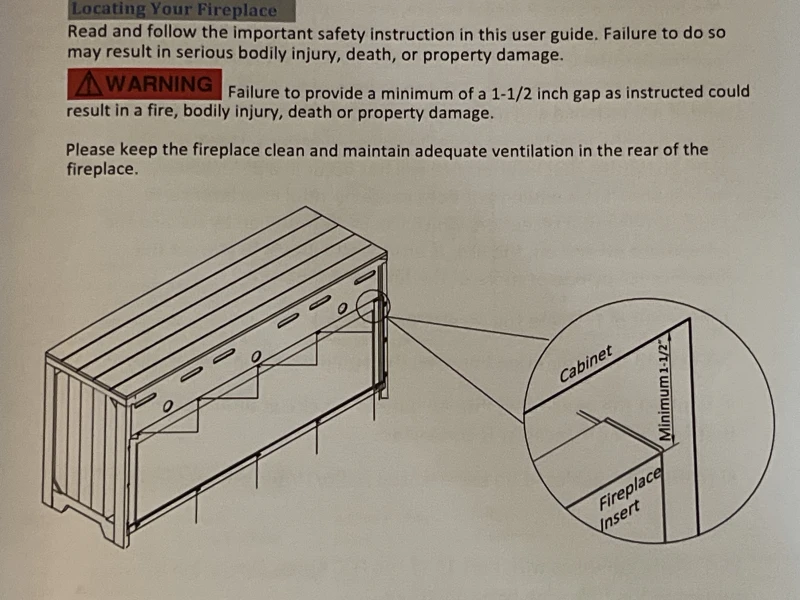

Please keep the fireplace clean and maintain adequate ventilation in the rear of the fireplace. Specification 1460.6x215x425mm Fireplace insert dimensions(W x D x H) Gross Weight 36 KGs/79.4 LBs 120V Voltage Frequency 60Hz 1500W Watts/Amps. 1250-1350W Heater Rating BTU/h 4608-5386 BTU/h EF16-60 MODEL#: Page 9 of 15... -
Page 10: Fcc Statement
1): This device may not cause harmful interference and 2): This device must accept any interference received, including interference that may cause undesired operation. Modifications not approved by the party responsible for compliance could void user's authority to operate the equipment. EF16-60 MODEL#: Page 10 of 15... -
Page 11: Operations And Features
ON, the different levels of flame Orange, shutoff on the (Fahrenheit) and system will load default ℉ ℃ brightness. Blue,Pruple, Auto fireplace. (Celsius) and back. factory settings. Cycle. EF16-60 MODEL#: Page 11 of 15... -
Page 12: The Fireplace Remote Control
Insert the battery with the button side into the battery bracket, making sure the battery is firmly seated. (figure 3) Figure3 Press the battery bracket into the remote control, making sure it snaps into position. (Figure 4) Figure 4 EF16-60 MODEL#: Page 12 of 15... -
Page 13: Digital Display
L4 being the brightest. NOTE Although the fireplace has been turned off , the fireplace may remain hot for several minutes after being turned off. The fan may still run to prevent overheating. EF16-60 MODEL#: Page 13 of 15... -
Page 14: Care And Maintenance
DAMAGES THAT EXCEED THE PURCHASE PRICE OF THE PRODUCT. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO THE PURCHASER. EF16-60 MODEL#: Page 14 of 15... -
Page 15: Trouble Shooting Guide
Warranty & Return Policies Please refer to the included warranty card. Be sure to keep this manual and warranty card for possible future reference. Manufactured by Zhongshan Paite Electric Appliance Co. LTD for Ashley Furniture Industries, Inc. EF16-60 MODEL#: Page 15 of 15...
