Summary of Contents for Clearline V210
- Page 1 Clearline Clearline Aura Wireless Solar Display Clearline V 2 1 0 viridian Clearline Aura V210, V212 s o l a r v1.0 80024...
- Page 2 The controller is supplied complete with a plug-in power cable. some installations (mains pressure cylinders) it will be necessary to bring power to the V210 unit via a Solar high-limit thermostat on the hot Pump water cylinder.
- Page 3 V 2 1 0 Connect the power supply to the micro-USB port on the Fix aerial onto V210 solar controller. base of the display. Clearline Aura can be either fixed to a wall or free standing. Touch the screen to start. Set date...
- Page 4 Clearline V210 Error Messages An error is indicated by the red light. The number of times the light blinks off per ten second period identifies the error. Blinks per Error Remedial Action 10 sec. Pump Error Check pump, check for airlock or blockage...
Need help?
Do you have a question about the V210 and is the answer not in the manual?
Questions and answers

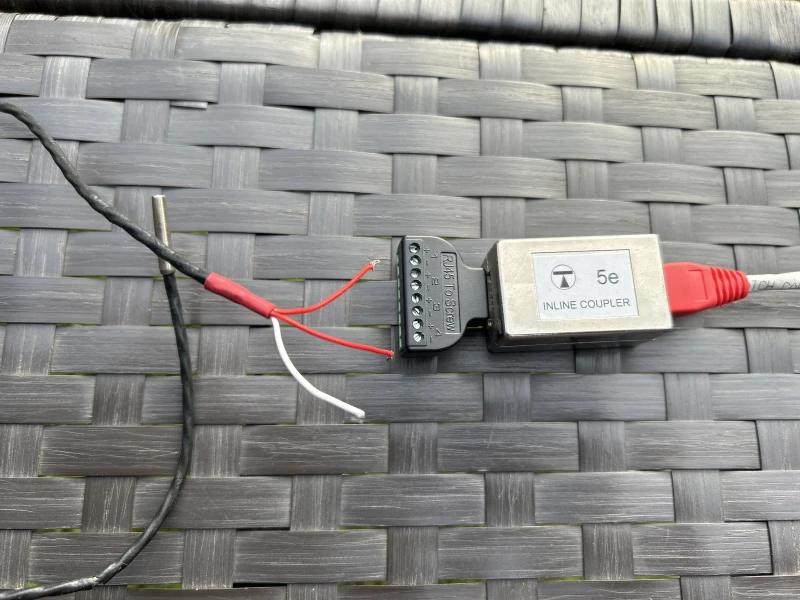

Panel sensor x3 cables have come out of rj 45 to screw plug connector could u plz tell me which ones they connect to
