Pama PNG125 User Manual

Bluetooth speakerphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
040712R2
PNG125 Bluetooth Speakerphone

Advertisement

Table of Contents
loading

Summary of Contents for Pama PNG125

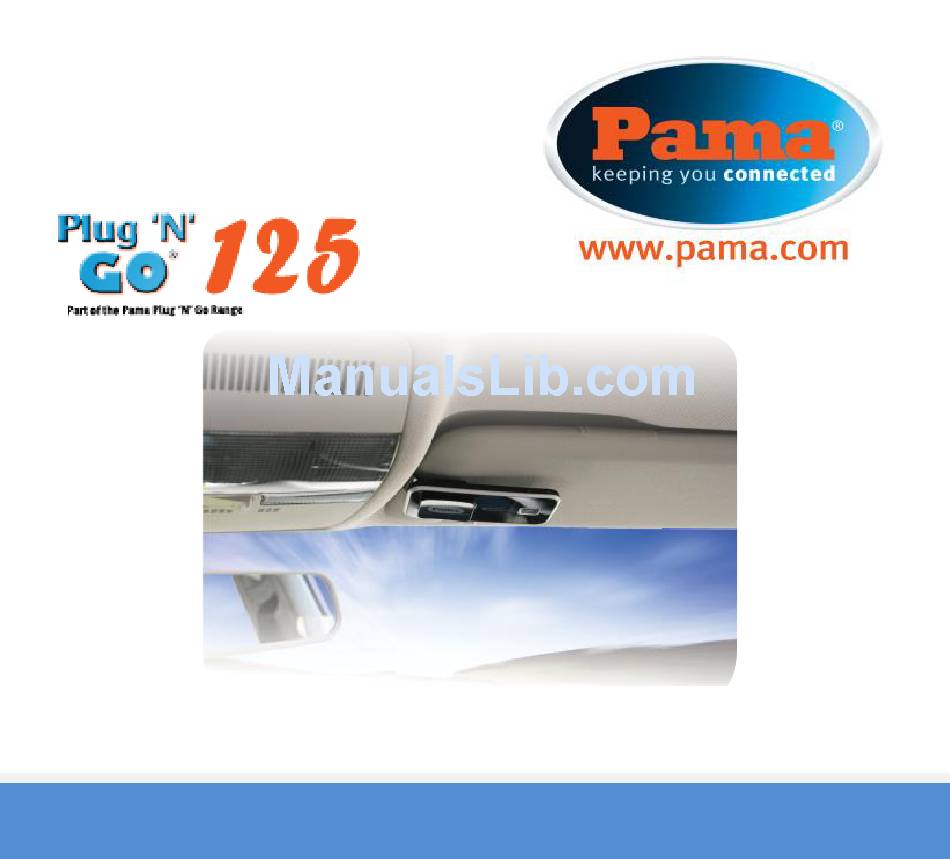

  • Page 1 User’s Manual 040712R2 PNG125 Bluetooth Speakerphone...

  • Page 2: Table Of Contents

    3 - Overview. 4 - Recommended installation position. 5 - Using the car charger. 6 - Turning on and off your PNG125 7 - Pairing your PNG125 8 - Connection/Link between PNG125 and Mobile Phone. 9 - Using the PNG125.

  • Page 3: Specification

    Specification Bluetooth Specification V2.1 +EDR Bluetooth Profiles Supported Headset, Handsfree Transmission Power Class2 Frequency Range Up to 10 Metres Battery Li-ion Polymer Built-in Rechargeable 3.7V / 340mAh 1.26Wh Charging Voltage DC4.75-5.25V Pairs up to 8 Devices Multipoint Charging Time (Car Charger) 2 Hours Talk Time* Up to 5 Hours...

  • Page 4: Getting To Know Your Png125

    Getting to know your PNG125. To use your Bluetooth PNG125, please follow these simple steps. Charge prior to using the PNG125, it is recommended you charge the battery fully for the first time. Normal full charge time is 2 hrs (approx).

  • Page 5: Overview

    Overview. Speaker. Microphone. Status indicator LED. Charging socket (Micro 5-pin USB). MFB Button (Multifunction Button). Volume increase (V+). Volume decrease (V-).

  • Page 6: Recommended Installation Position

    Recommended Installation Position. It is recommended that the PNG125 is positioned on to the top of the sun visor as shown in the picture below. Do not obscure your vision. WARNING: Do not place or store the PNG125 over the area of the car safety airbag deployment or it may cause serious injury if a safety airbag deploys.

  • Page 7: Using The Car Charger

    PNG125. Turning the PNG125 ON/OFF Power ON: When the PNG125 is turned off, press and hold the “MFB” for 3 seconds until you hear a short beep. The blue LED will start flashing indicating the PNG125 is in standby mode. The PNG125 will automatically connect to the mobile phone which has been paired already.
  • Page 8 Pairing Prior to using the PNG125 for the first time, you must pair it with a Bluetooth-enabled device. The steps below describe the pairing procedure for a typical Bluetooth-enabled mobile phone. Place the PNG125 and mobile phone no more than 1 metre apart.
  • Page 9 PNG125 will return to standby mode if no device is paired or connected within 2 minutes of activating pairing mode on the PNG125. Reconnecting When PNG125 is disconnected due to being out of range or switched off, just click the MFB once and it will be reconnected to the paired device (some models may require authorisation to connect to the PNG125 simply press OK or accept).

  • Page 10: Using The Png125

    PNG125 and in a vehicle when running with the radio off and windows closed. 5) Last Number Re-Dialling Press MFB twice to redial last number.

  • Page 11: Multipoint Feature

    MultiPoint Feature 1) Activate Multipoint Connection The default setting of the PNG125’s multipoint function is OFF. You can activate the multipoint function for connecting with two mobile phones at the same time. Follow the steps below to pair and connect your PNG125 with two of your mobile...
  • Page 12 Start with your PNG125 turned off, press and hold MFB for 5 seconds until blue and red lights flash alternately. b. On your mobile phone activate Bluetooth and search for devices when PNG125 is disconnected select PNG125 and enter pairing code '0000' c.
  • Page 13 After the multipoint function is activated, please follow the steps below to connect with two Bluetooth enabled mobile phones at the same time. When the power is on the PNG125, will automatically search and connect the last two mobile phones that have been connected before.

  • Page 14: Low Voltage Protection Of Battery

    Low Voltage Protection of Battery When the voltage of the battery has decreased to 3.3V, the red LED light will flash every three seconds, and the PNG125 will power OFF automatically when the voltage drops to 3.0V. Restore to Default Setting Please follow the steps below to reset the PNG125 to its original settings and remove all the previous pairing and connections.

  • Page 15: Led Light Indicators

    Note: If the PNG125 is connected with a mobile phone before restoring the default settings, it will enter pairing mode automatically after it is restored to default. If the PNG125 is not connected with the mobile phone before restoring the default settings, it will be in standby mode after restoring the default settings.
  • Page 16 This product is CE certified according to the provision of the R&TTE Directive (99/5/EC). This product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Please note that this product uses radio frequency bands not harmonized within EU.
  • Page 17 *This warranty gives you specific legal rights, and you may also have other rights which vary under local laws. Helpline: +44 (0) 161 494 4200 The Pama PNG range is an exclusive selection of Bluetooth Handsfree products.
  • Page 18 Manufactured to the highest possible standards, combining style with functionality to bring you the ultimate handsfree product. www.pama.com Made In China.
