Summary of Contents for Hydrover OXYMATIC smart

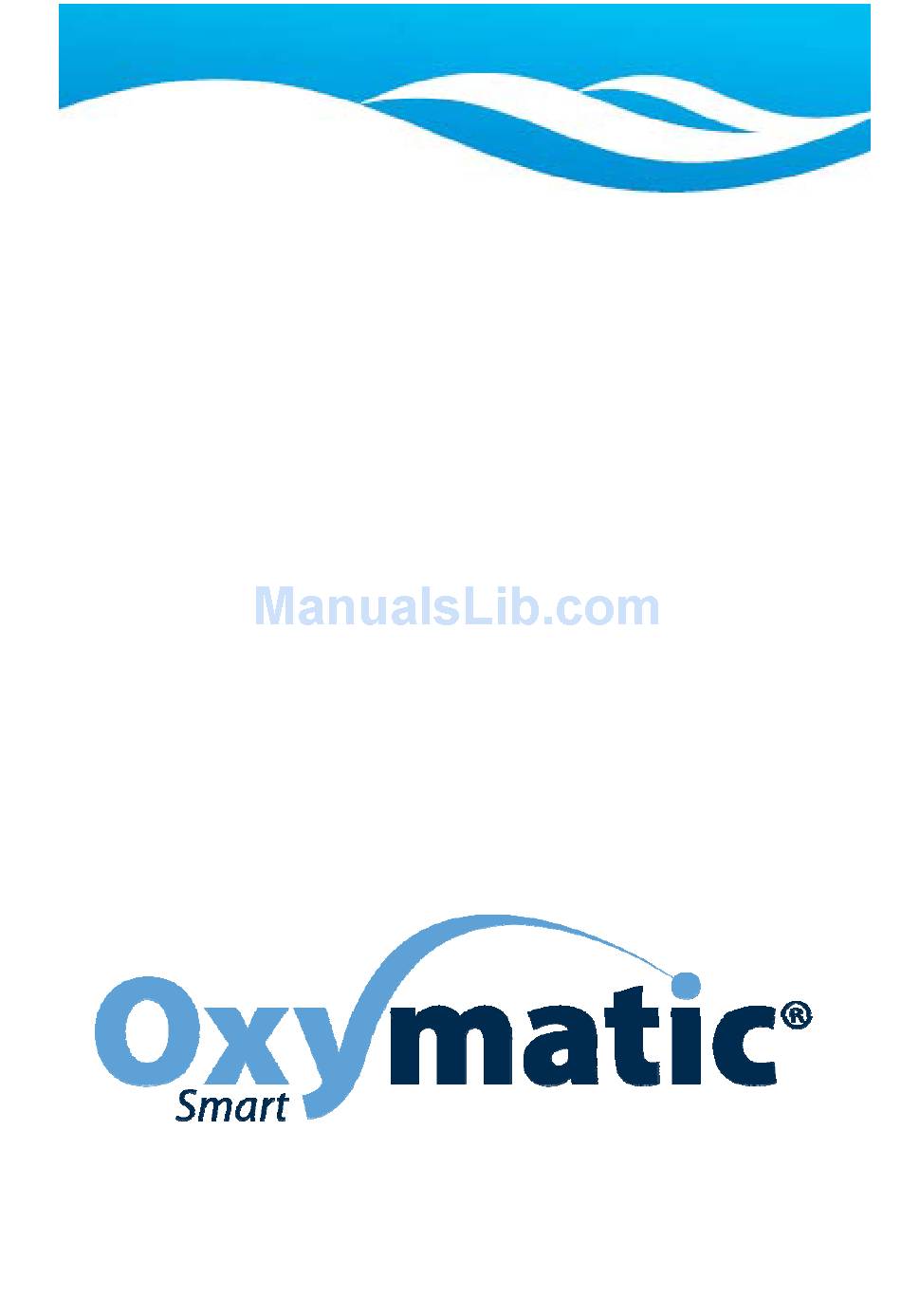

- Page 1 Pure water everywhere Installation, Programming and Maintenance User Guide...
-
Page 2: Table Of Contents
Imcompatibilites and possible problems with the Oxymatic system............. 38 11.1. Probes of Rx - copper-platinum amperometric probes................38 11.2. Flocculants and zeobrite filters........................ 38 Summary of maintenance of the Oxymatic Smart System ..............38 Problems and Solutions ........................... 39 Controller technical specifications......................40... -
Page 3: Important Safety Instructions
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 1. IMPORTANT SAFETY INSTRUCTIONS PLEASE READ AND FOLLOW THESE INSTRUCTIONS It is essential when installing a control and disinfection system at a pool to take certain precautions whilst handling equipment, also more generally while using the pool. -
Page 4: Introduction
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 3. INTRODUCTION OXYMATIC TECHNOLOGY OXYMATIC system generates the most powerful disinfectant after use of fluoride, which is not allowed in recreational waters. It is a thousand to three thousand times faster and more effective than chlorine. -
Page 5: Ionization
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 OXYMATIC circuits transform the standard electrical current (220 V, 50 Hz) DC low voltage and amperage. By its titanium electrodes (plated precious metals), creating ionized water, disinfectant chemical species. - Page 6 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 Copper (ppm) Copper (ppm) Chlorophyceane Protozoa Bursaria Cladophora 0.50 Ceratium 0.33 Closterium 0.17 Chlamydomonos 0.50 Coelastrum 0.05 - 0.33 Cryptomonas 0.50 Conferva 0.25 Dinobryan 0.18 Desmidium 2.00 Euglena 0.50...
-
Page 7: Oxymatic's Content
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 4. OXYMATIC’S CONTENT INCLUDED ITEMS... -
Page 8: Not Included Items
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 NOT INCLUDED ITEMS Not included are the materials needed for installation, such as: • Adhesives: • PVC pipes • By-pass valves • Motor Protection • Fastening screws Oxymatic • Tools •... - Page 9 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 CL¯ Regulator - Accesorio para regulación de Cloro Libre - Peristaltic pump - Cl probe - Accessories for free Chlorine regulation - Probe holder - Injector - Free chlorine Software...
-
Page 10: Oxymatic Dimensions
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 OXYMATIC DIMENSIONS Length: 345 mm Depth: 275 mm High: 110 mm Length: 456 mm Depth: 122 mm High 336 mm Length: 440 mm Depth: 440 mm High 340 mm 14 Kg. (It depends on the model and options) -
Page 11: Oxymatic's Systems Installation
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 5. OXYMATIC’S SYSTEMS INSTALLATION PLUMBING The plumbing is a very important aspect to consider for installing Oxymatic system, therefore a priority to have a good installation. As can be seen on the chart is important to install the camera after filtering circuit and heating. - Page 12 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 It is essential to consider the diameter of the recirculation pipe in relation to the time required for complete recirculation. We must instal the number of chambers required in order that all pool-water will pass through the chambers, and so that the circulation flow shall not fall below <10%, as a by-pass and in parallel.
- Page 13 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 5.1.1 Fix the control unit and dosing pumps to the wall close to the chamber, near the product deposits. 5.1.2 Screw titanium and copper electrodes in order input and output taking into the guides ( burrs ) on the bottom .
-
Page 14: Electricity
IMPORTANT: The Oxymatic can not work if the pump is stopped and the water is not recirculating. 5.3. INTERCONNECTIONS We show below the connections that can be made with OXYMATIC Smart. Firstly, a general view of the input terminals, then the detail of the various connections of the input and output signals. - Page 15 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 5.3.1. Electrodes Measure, Power and Alarms. 5.3.2. Performances Auxiliary Outputs...
-
Page 16: Connecting Up The Main Pump
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 5.4. CONNECTING UP THE MAIN PUMP Option no. 1. Recommended: Oxymatic controls and commands the main pump. Connect the power-supply cables for the control unit to the electric panel of the pump with shield. -
Page 17: Connections Of Titanium And Copper Electrodes
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 NOTE: All connections are free of tension except of the metering pumps which are 230 Vac. Once the control unit OXYMATIC is fixed, we will connect the wires to the various components. -
Page 18: Preparation Of The Water To Treat (Very Important!)
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 6. PREPARATION OF THE WATER TO TREAT (VERY IMPORTANT!) The steps for the initial treatment of water OXYMATIC ® system before installation are: 6.1. BALANCED WATER To carry out proper disinfection of water and ideal for your pool, regardless of system used (chlorine, bromine, oxygen, peroxide, ozone, etc ...) is necessary for the pool water to be balanced in order to avoid... -
Page 19: Pool Desinfection
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 6.2. POOL DESINFECTION VERY IMPORTANT Before treating the water of your pool whith the Oxymatic system make sure that the water is totally disinfected because this system, in normal use, is not capable of performing a shock treatment, that means it is not able to disinfect green water with algae. -
Page 20: Diagram Control Unit
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 7. DIAGRAM CONTROL UNIT Presentation of the Oxymatic and the chamber in the model with/without copper (Cu) Presentation of the Oxymatic and the chamber in the model with copper (Cu) -
Page 21: Programming
Plug OXYMATIC into a socket (110v-230v). Once plugged in, we can start to navigate by touching the screen. When starting up our OXYMATIC smart system, the first thing we see is the main screen. This screen will give us the starting point for our programming and starting up of the system. We inform you that the systems have been previously programmed by the factory. - Page 22 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 Check if the green box shows ON PER/CL, This will inform us about what option has our Oxymatic. If the option is Copper and in case it is not showing the adequate level, please see Section 9.2.2 of this manual.
-
Page 23: Private Swimming Pools
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 If our system has the option Redox, we need to calibrate the Redox probe. In the main screen, press the SET button and enter the password 1122. In the option Redox, go to CALIBRATE in order to calibrate the Redox probe. -
Page 24: Public Swimming Pools
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 SPRING / VERANO 7:45 hrs. Oxy - 10 min. Ion SUMMER / VERANO >20⁰C 10 hrs. Oxy - 10 min. Ion SUMMER / VERANO >25⁰C 12 hrs. Oxy - 15 min. Ion SUMMER / VERANO >28⁰C... -
Page 25: Other Programming
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 WARNING: At pools with a lining it is necessary to exercise caution, and to ensure that the pH does not exceed 7.6. It is from that point that copper begins to precipitate and, given the properties of the lining, blue stains - which are difficult to remove - may appear in the pool. - Page 26 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 Once the action is completed, we must return to the main screen with the BACK button. 8.4.2. Programming of the Heat Pump: hours and temperatures If we have a heat pump (or heat exchanger) and we want to program it through the Oxymatic, we can do it f rom the main screen by accessing the SET option / GENERAL SET TINGS.
- Page 27 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 We can modify the max. temperature that we want in our pool. e./g.: 26⁰, 30. We will activate the OK button and then the BACK button to return to the main screen.
- Page 28 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 8.4.3. Programming schedule for lighting and pool cover Like previous programming, we will access from the main screen to the SET option and we will go directly to the modifiable white space of the options Light or Cover.
- Page 29 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 8.4.4. Programming the pH Set Points In case youneed to change the pH or Rx set points, you must act as following : pH SET POINT , go to the SET option on the main screen, enter the password 1122 and press the...
-
Page 30: Oxymatic Start
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 9. OXYMATIC START 9.1. Automatic and manual position In the automatic position Oxymatic works automatically. The control unit performs all the functions that we have introduce in the programming. -
Page 31: Ph Check-Out
Therefore, we must go to the main screen (STATUS REPORT) and press the SET button Once we are in that screen, we go down and press StartUp Program button. Now we must decide how long Oxymatic Smart will need to ionise the pool before the appropriate treatment. -
Page 32: Internet Connection
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 9.1. INTERNET CONNECTION It is recommended to access the Internet service. Oxymatic is constantly evolving and in some cases we need to update the software for the proper functioning of the system as well as to handle and maintain all the information of our system through our computer or our mobile phone system, either Android or iPhone version. -
Page 33: Oxymatic Software Update
Once the WIFI option is enabled, select the Internet operator and enter your Internet password Once the internet connection is established, press the button We must now plug in (connect) OXYMATIC Smart (110-230V) and return to the main screen. The internet connection will now be working. - Page 34 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 This action will download the latest version of the system from the Oxymatic Smart server. Wait a few minutes (depending on the Internet connection speed). Once downloaded, the Install button will be activated .
-
Page 35: Maintenance Of The Oxymatic System
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 MAINTENANCE OF THE OXYMATIC SYSTEM 10.1. Maintenance and control table From now on, all you must do is maintain the equipment, checking the parameters detailed below: PARARAMETER INCREASE REDUCE CONTROL RECOMMENDED DATA Add pH reducer Liquid... -
Page 36: Change Of Polarity Of The Electrodes
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 10.3. Change of polarity of the electrodes: The electrodes change polarity automatically and have an estimated change time so that wear will be equal in each of the electrodes. Titanium electrodes change every 2 hours and the copper electrodes every 4 minutes NOTE: OXY and ION keys, have two green lights. - Page 37 Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 Here we can get full information on operation of the system. We can press any button; the relevant function will activate automatically. Once we have ensured that everything is working properly, we...
-
Page 38: Imcompatibilites And Possible Problems With The Oxymatic System
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 NOTE: A low electrical conductivity or low TDS (less than 1200 mS / cm or 600 ppm), means the electrodes can not develop at maximum intensity if the voltage applied is high (greater than 20 V), which makes the disinfection power decrease. -
Page 39: Problems And Solutions
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 PROBLEMS AND SOLUTIONS 13.1. VOLTAGE HAS RISEN > 9,5 V AND THE TITANIUM ELECTRODE S ARE COVERED WITH LIMESCALE , CLEAN THE ELECTRODES Disconnect the cables, then unscrew the electrodes from the chambers and immerse them for 30 minutes in a 50% vinegar/50% water solution. Brush down gently with a toothbrush in order not to scratch the electrode coating. -
Page 40: Controller Technical Specifications
Installation, Programming and Maintenance User Guide Oxymatic Smart V. 1.3.2. May 2015 CONTROLLER TECHNICAL SPECIFICATIONS. OXYMATIC - SMART 02 de Enero 2015 PLUS EQUIPMENT (Available March STANDAR EQUIPMENT 2015) * WORKING PARAMETERS Mains supply 100 to 250 Vca 50/60 Hz Max temp working Range +5 to +55 ºC (Avoid direct sunligth)
