Clearwater Enviro Technologies AG-150 Installation & Operation Manual

Electronic lime scale control system for agriculture applications

Advertisement

Quick Links

AG-150, AG-200, AG-300 & AG-400
Installation & Operation Manual
12/16
Electronic Lime Scale Control System
for Agriculture Applications
AG-150 for pipe sizes
up to 1 ½" (non-ferrous)
AG-300 for pipe sizes
up to 3" (non-ferrous)
Electronic Lime Scale Control System
115/230 VAC (Auto Selected)
AG-200 for pipe sizes
up to 2" (non-ferrous)
AG-400 for pipe sizes
up to 4" (non-ferrous)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clearwater Enviro Technologies AG-150

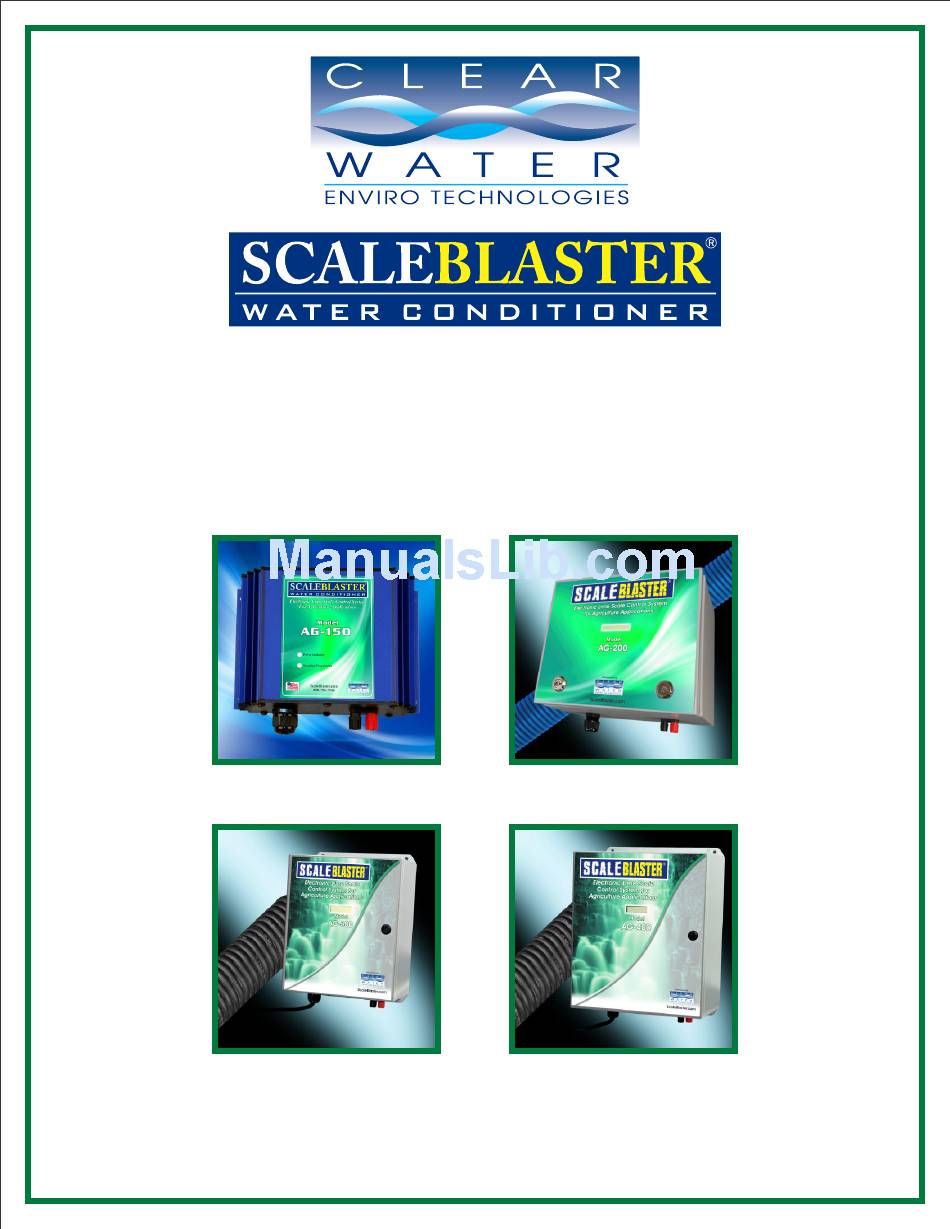

  • Page 1 Electronic Lime Scale Control System for Agriculture Applications AG-150, AG-200, AG-300 & AG-400 Installation & Operation Manual AG-150 for pipe sizes AG-200 for pipe sizes up to 1 ½" (non-ferrous) up to 2" (non-ferrous) AG-300 for pipe sizes AG-400 for pipe sizes up to 3"...
  • Page 2 Clearwater Enviro Technologies, Inc. • 8767 115th Ave. N. • Largo, FL 33773 Please be sure to also write the RMA number on the outside of the shipping box.
  • Page 3 AG-400) signal wire. (length to be determined by specific application, pipe size, and pipe material.) 3) Long nylon cable ties, 5 or 3. (5 for the AG-150) or (3 for the AG-200, AG-300 & AG-400) These ties aid in securing the cable to the pipe.
  • Page 4 18 inches, and a location to mount the control box that is near an electrical outlet. This signal cable must be within 10 feet of the control box – no matter what. AG-150, AG-200, AG-300 or AG-400 Power cable is 5 ½ ' long.
  • Page 5 Type of Pipe - This ScaleBlaster AG commercial model will work on PVC, CPVC, PEX or copper pipe up to: one and a half (1 ½) inch in diameter for the AG-150, two (2) inches in diameter for the AG-200, three (3) inches in diameter for the AG-300, four (4) inches in diameter for the AG-400.
  • Page 6 D.) Mounting the Power Box Mount the power box / computer to the wall after drilling the four holes in the determined location. Use the appropriate screws and anchors (if needed) depending on the surface (wood, stucco, etc.). This should be within 5 ½ feet of a power source and 10 feet of the location for the signal cable. If this is not possible, you may add an extension cord to the 115 VAC plug at the end of the power cord.
  • Page 7 IT IS IMPERATIVE TO WRAP THE COIL THE CORRECT NUMBER OF TIMES. PLEASE SEE CHART BELOW FOR CORRECT NUMBER OF WRAPS. UNIT TYPE Pipe Type Pipe Size Type of Coil Wire Gauge Wraps AG-150 Copper Pipe .75" Double* 50* wraps x 2 AG-150 Copper Pipe 1"...
  • Page 8 4.) Monitor the LCD screen from time to time to be sure of continuous operation. G.) LCD Indicator Screen OPERATIONAL The LED light on the front panel AG-150 top LED light, AG-200 far right LED) should light up on the after being plugged in. Figure B...
