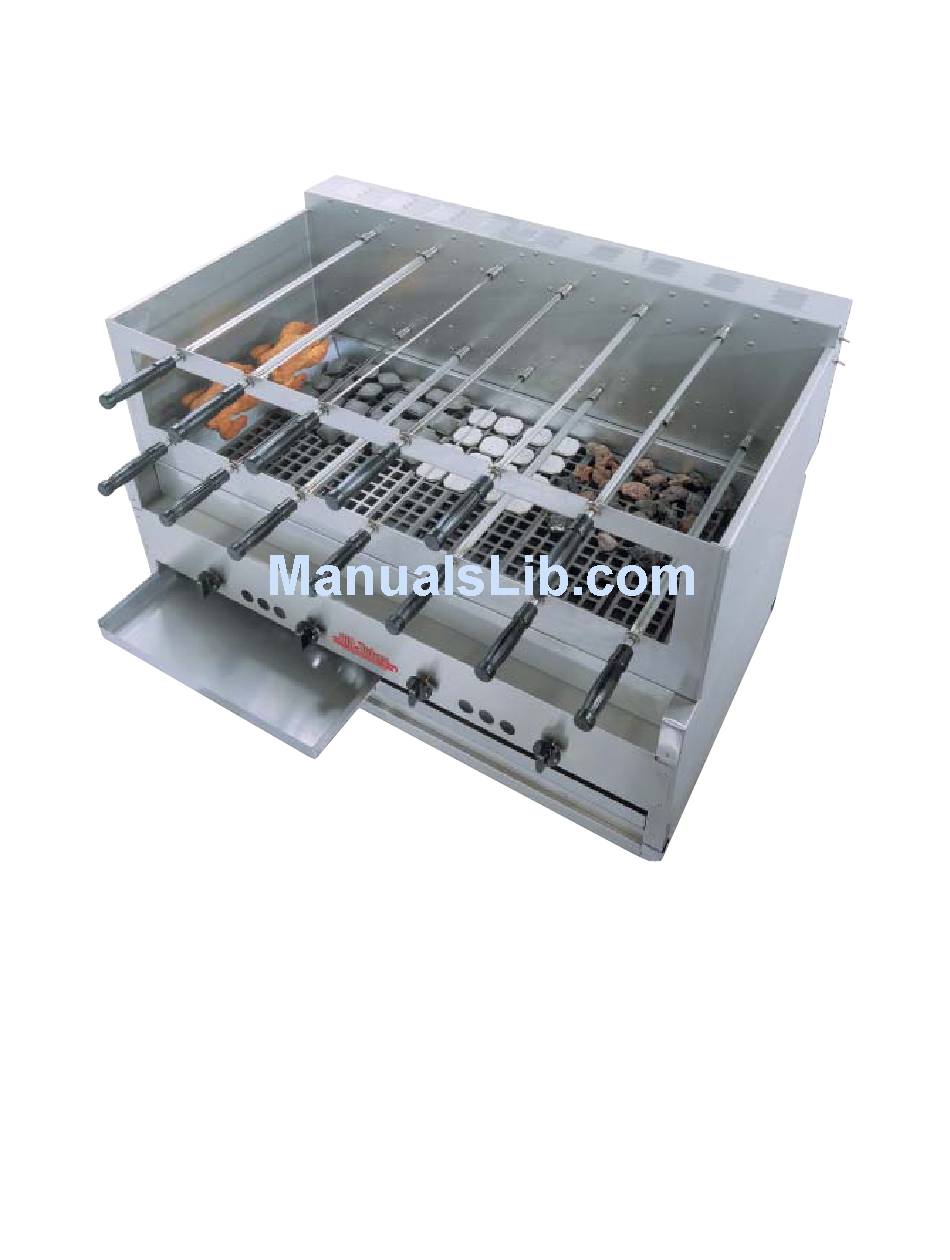

Churrasco/Grill
Manual
Models: 2ft, 3ft, 4ft, 5ft & 6ft (with or without motor driven spits)
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Hickory Industries, Inc.
4900 Westside Avenue, North Bergen, New Jersey 07047
Tel: 201 223-0050 Fax: 201-223-0950
Hickory Industries, Inc. 201 223-0050
Page 1 of 21
Revised 03/24/2008 r2
Advertisement
Summary of Contents for Hickory Churrasco
- Page 1 Models: 2ft, 3ft, 4ft, 5ft & 6ft (with or without motor driven spits) RETAIN THIS MANUAL FOR FUTURE REFERENCE Hickory Industries, Inc. 4900 Westside Avenue, North Bergen, New Jersey 07047 Tel: 201 223-0050 Fax: 201-223-0950 Hickory Industries, Inc. 201 223-0050 Page 1 of 21 Revised 03/24/2008 r2...
- Page 2 ( LEFT BLANK INTENTIONALLY) Hickory Industries, Inc. 201 223-0050 Page 2 of 21 Revised 03/24/2008 r2...
- Page 3 SHUT off the appliance shut-off valve. · From a safe location, call your local Gas Company 24 hours a day, seven days a week; or call 9-1-1. Hickory Industries, Inc. 201 223-0050 Page 3 of 21 Revised 03/24/2008 r2...
- Page 4 Fermez le robinet d'arrêt appareil. D'un endroit sûr , appelez votre compagnie de gaz locale 24 heures par jour , sept jours par semaine ; ou composez le 9-1-1. Hickory Industries, Inc. 201 223-0050 Page 4 of 21 Revised 03/24/2008 r2...
- Page 5 être fait dans un endroit bien ventilé . La surexposition aux fumées ou de vapeurs peut causer des nausées ou des vertiges. Hickory Industries, Inc. 201 223-0050 Page 5 of 21 Revised 03/24/2008 r2...
- Page 6 ANSI Z21.41 ou CSA- 6.9. Il doit également être installé avec moyens de retenue pour se prémunir contre la transmission de la souche au connecteur tel que spécifié dans les instructions du fabricant de l'appareil. Hickory Industries, Inc. 201 223-0050 Page 6 of 21 Revised 03/24/2008 r2...
- Page 7 électrique arrière ainsi que dans ce manuel. ENSURE YOU DISCONNECT THE POWER BEFORE OPENING REAR ENCLOSURE! ASSURER vous débranchez le AVANT OUVERTURE ARRIÈRE ENCEINTE ! Hickory Industries, Inc. 201 223-0050 Page 7 of 21 Revised 03/24/2008 r2...
- Page 8 à des pressions d'essai moins de 1/2 psi (3,5 kpa ) égale ou . Hickory Industries, Inc. 201 223-0050 Page 8 of 21 Revised 03/24/2008 r2...
-
Page 9: Table Of Contents
INSTALLATION ................10 GAS CONNECTION ............... 10 GAS SETTINGS ................11 PILOT LIGHTING INSTRUCTIONS ..........12 INITIAL SETUP ................12 CHURRASCO COOKING ..............13 CLEANING AND MAINTENANCE ..........13 PARTS LIST ................... 16 ELECTRICAL DIAGRAM ............... 17 GAS CONVERSION ............... 18 WARRANTY ........ -
Page 10: Installation
Natural gas to Propane gas or Propane gas to natural gas is required, please call Hickory at 800 732-9153. We will ship you instructions and the proper orifice size. These conversions should be done in accordance to the installation guidelines and by a qualified and licensed plumber. -
Page 11: Gas Settings
To shut down, turn burner valve “off”. If pilot shuts down is desired, turn pilot valve(s) clockwise until snug. Do not attempt to relight for 5 minutes after shut down. Hickory Industries, Inc. 201 223-0050 Page 11 of 21 Revised 03/24/2008 r2... -
Page 12: Initial Setup
Conversely, the lower the heat and lower the fat content, the less flare-up you will have. FLARE-UP CHART High Fat Low Fat Content Content High Heat High Moderate Low Heat Moderate Hickory Industries, Inc. 201 223-0050 Page 12 of 21 Revised 03/24/2008 r2... -
Page 13: Churrasco Cooking
Par boil your meats and then place them onto the spits. The Churrasco grill will finish off and provide the meats the “Churrasco Look”. If your using any flavored briquette, charcoal or wood, the Churrasco Grill will provide great results. Be sure to cook your meats and poultry to the recommended internal temperatures. - Page 14 The water level should be checked frequently during cooking. Properly disposed the grease. INNER PANELS - Your Churrasco has aluminized steel inside the unit. Please follow these simple rules to properly care for the aluminized finish. 1. Recommended cleaning method is to use a nylon green scrub pad and hot soapy water.
- Page 15 1. Replace all trays. Refill with water. 2. Replace fire pot. 3. Replace all of your grates and briquettes. Be sure that your briquettes are installed properly. Hickory Industries, Inc. 201 223-0050 Page 15 of 21 Revised 03/24/2008 r2...
- Page 16 Exploded Diagram of Churrasco Unit Note: Your unit may vary from this diagram. Hickory Industries, Inc. 201 223-0050 Page 16 of 21 Revised 03/24/2008 r2...
- Page 17 50 watt (.42 amp) gear motor 4’ Churrasco 13 Spit Drive Motors Churrasco Grill 120V, 60Hz, 6 Amp Date: November 02, 1998 Churrasco Grill 120V, 60Hz, 6 Amp Date: November 02, 1998 Hickory Industries, Inc. 201 223-0050 Page 17 of 21 Revised 03/24/2008 r2...
- Page 18 Gas Flow Table (Consumption) Gas Flow Heating Value in per Burner (40,000 BTU) in ft BTU/ft³ High Flame Setting Natural 1040 38.50 Propane 2500 16.00 Butane 2500 16.00 Hickory Industries, Inc. 201 223-0050 Page 18 of 21 Revised 03/24/2008 r2...
- Page 19 5.5" with an infra-red generator. The actual flow rate will vary depending on the Heating Value of the local gas and on the set gas pressure! Hickory Industries, Inc. 201 223-0050 Page 19 of 21 Revised 03/24/2008 r2...
- Page 20 1/8" Between rods and Burner surface 1/8" Between rods Propane / 11" 1/8" Between rods and Burner surface 1/8" Between rods Butane / 11" 1/8" Between rods and Burner surface Hickory Industries, Inc. 201 223-0050 Page 20 of 21 Revised 03/24/2008 r2...
- Page 21 Changing Gas Orifices First you will have to take out all of the inside parts in the churrasco. This will include the briquettes and grates, followed by the burner cover and burners. This will give you access to the orfices. With a wrench replace each orfice with the new orifice on each burner.
