Summary of Contents for QuietKat FATKAT 2017

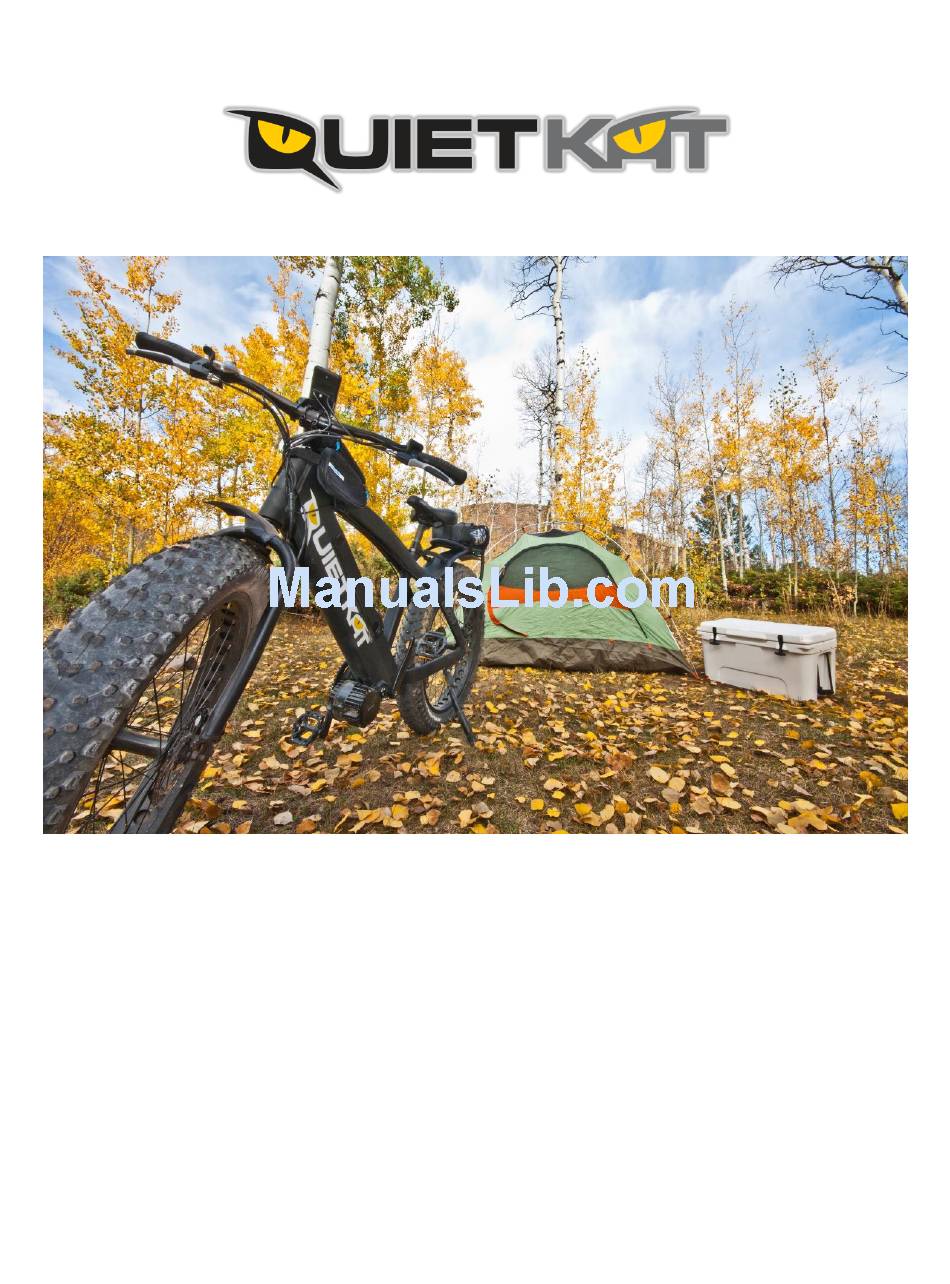

- Page 1 2017 FATKAT ELECTRIC MOUNTAIN BIKE OWNER’S MANUAL This manual contains important safety, performance and service information. Read it before you take the first ride on your new QuietKat, and keep it for future reference.
- Page 2 The FatKat is designed for off-road use, but can be ridden where other non-motorized bikes are allowed. Please check and obey all local laws. Quietkat may only be ridden in safe areas where all laws are being followed and all required permissions are given.
-
Page 3: Table Of Contents
INDEX Parts Descriptions Page 4 Unboxing Instructions Page 6 Battery Charging Page 8 Electronic Display and Controller Page 10 Tips for Riding the FatKat Page 13 Basic Maintenance Page 14 Battery power and savings tips Page 15 General Safety Tips Page 16 Warnings Page 17... -
Page 4: Parts Descriptions
PARTS DESCRIPTION... - Page 5 Specifications: Weight: 70-80 lbs (depending on model) Motor: BBSHD 48V mid drive advanced motor system Controller: Digital motor controller Throttle: Thumb throttle Display: Digital display with smart power mode motor communication Battery: 48V 11.6 Lithium-Ion Battery by Panasonic Cell Chemistry ...
-
Page 6: Unboxing Instructions
UNBOXING INSTRUCTIONS QuietKat recommends that the bike be inspected, assembled and adjusted by a certified bicycle mechanic before riding. For a more in-depth assembly guide, check out our FatKat Assembly video at http://www.quietkat.com/assembly-and-maintenance/ 1. Carefully remove bike from packaging box. - Page 7 5. Attach pedals. The pedals are designed for left and right foot specific use. Please find the L and R on the pedals before attaching. Use a bike pedal wrench to screw on pedals to cranks. *NOTE: The left pedal is reverse threaded. This must be screwed on the opposite direction of the right pedal.
-
Page 8: Battery Charging
BATTERY CHARGING Steps for Charging Battery: 1. Turn off the power with the switch on the side of the battery. “0” is off. “—“ is on. 2. Plug in the output lead of the charger into the socket on the side of the battery case. If the battery is in the bike, first move aside the rubber cover above the on/off switch to insert the lead into the charging port. - Page 9 When in use, the charger should not be covered as to prevent overheating, damage, or fire. The charger is only for indoor use. Please use in a dry and ventilated place. If you notice a smell coming from the charger, or it is too hot, stop charging immediately and contact QuietKat.
-
Page 10: Electronic Display And Controller
ELECTRONIC DISPLAY AND CONTROLLER The FatKat’s digital display and controller delivers all of the important information at a glance, and can be read in direct sunlight without difficulty. The handlebar controller gives good performance feedback and is easy to use. The power output to the motor is controlled by five levels (1-5). - Page 11 Average Speed Duration of Single Trip Distance of Single Trip Total Distance (Odometer) Backlight Watts output USB charging Five button keypad Power Button – turns power and display on and off Plus – increases power ...
- Page 12 Display Functions To scroll through the programming settings, click the “i” button twice to enter the menu, and then click it again to move to the next option. Double click again to save and return to the regular display mode. Programming Codes: ...
-
Page 13: Tips For Riding The Fatkat
TIPS FOR RIDING THE FATKAT In order to reduce battery usage and extend the motor lifespan, use the pedals often, especially during start-ups and hill climbs. On steep inclines, it is best to shift the gears down and the power level up to pedal up a hill. -
Page 14: Basic Maintenance
BASIC MAINTENANCE To ensure safe riding conditions you must properly maintain your bike. You should follow the basic guidelines below and see a certified local bike shop seasonally to ensure your bike is safe to use. Regular self-checks Tightening and correct operation of wheels, frame and front fork. ... -
Page 15: Battery Power And Savings Tips
BATTERY MAINTENANCE AND POWER-SAVING TIPS Under normal conditions, on flat, paved terrain, and on a medium power setting, the average rider can expect to travel between 15-and 20 miles on a full charge without much pedaling. With pedaling and using the power as an assist, the rider can use less power than just with the throttle alone. -
Page 16: General Safety Tips
GENERAL SAFETY TIPS Like any sport, bicycling involves risk of injury and damage. By choosing to ride a FatKat, you assume the responsibility for that risk, so you need to know – and to practice – the rules of safe and responsible riding and of proper use and maintenance. -
Page 17: Warnings
WARNING: ADULT SUPERVISION REQUIRED QuietKat is intended to be used by an operator 16 years or older. Adult supervision is required for any operator who is under the age of 18. Never allow a child to alter the settings or to ride without adult supervision. Instructing and practicing in a controlled situation will allow the child to learn how to operate the machine safely and under control. -
Page 18: Warranty
The owner may also return the unit to QuietKat to make the needed repairs, but will be responsible for shipping costs each way. -
Page 19: Return Policy
QuietKat will not accept the returns of products after 30 days. In the event of a product return, QuietKat will not accept the return of promotional items associated with that sale. The MSRP value of the promotional items will be deducted from the refund. - Page 20 through authorized retailers. All products sold through dealers must be returned to the original seller.
