Page 1 of 10
150Mbps Wireless Router
User Guide
SL-R6801 Series
l
1、Introduction
The 150Mbps Wireless-N Broadband Router is dedicated to Small Office/Home Office (SOHO) Wireless
network solution. It is 4 in 1 network device, which combines wireless access point, firewall, 4-port
Switch and the NAT-Router. It provides up to 150Mbps data transmission rate in 2.4GHz frequency,
complies with IEEE 802.11n, IEEE 802.11g and IEEE802.11b and backwards compatible with all IEEE
802.11n/g/b devices. And the router
lso supports wireless LAN up to 128-bit WEP, WPA/WPA2 encryption security. The 150Mbps Wireless-N
Broadband Router also provides WEB and Remote Management and system log so that network
administrators can manage and monitor the network in real time. The 150Mbps Wireless-N Broadband
Router also provides a hardware WPS (Wi-Fi protected setup) button, which helps you setup a secure
wireless network in a snap. The button lets you activate the wireless protection easily
2、login

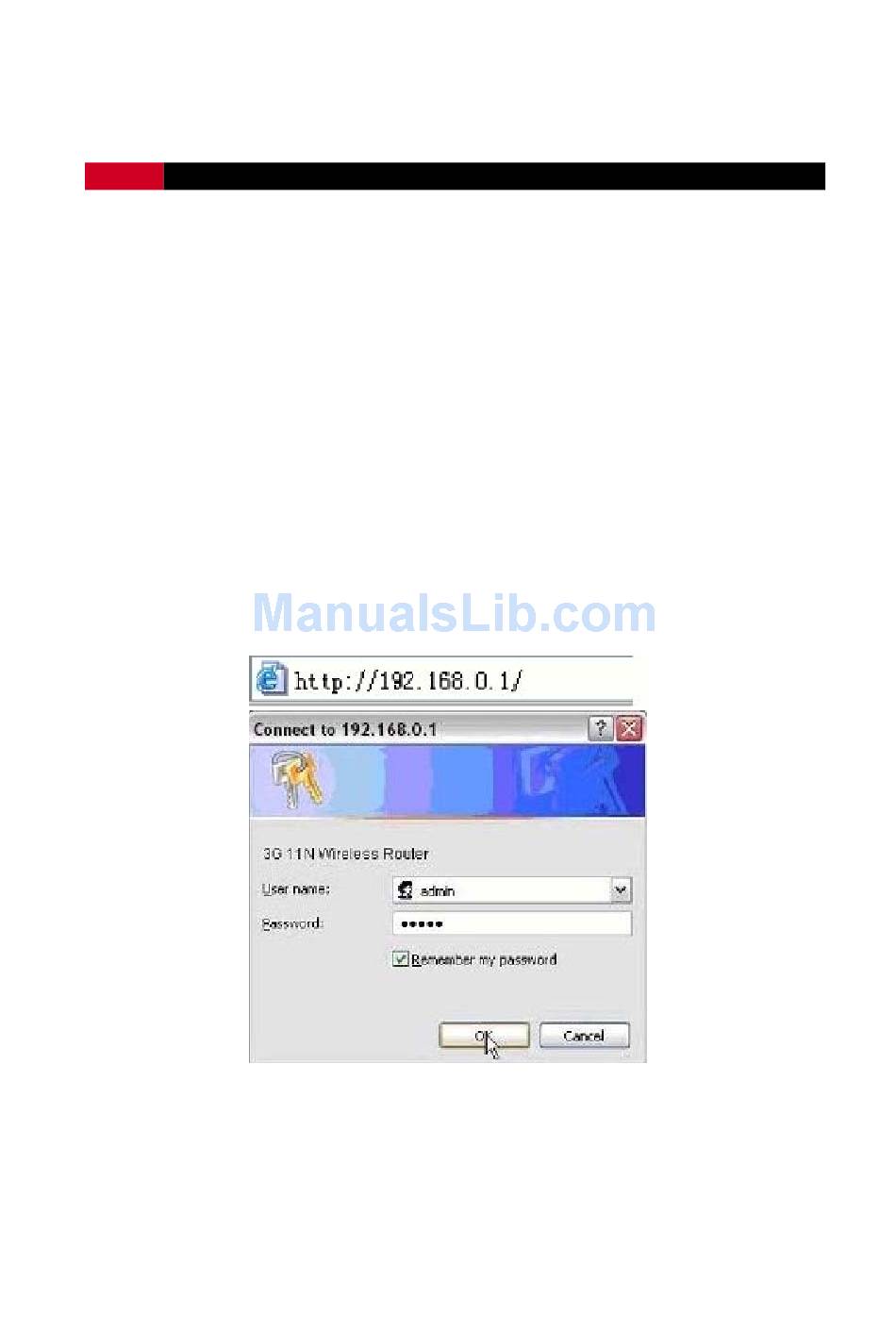

To access the Router's Web-based interface, launch a web browser such as Internet Explorer and enter
the Router's default IP address, http://192.168.0.1. Press "Enter".
Input the "admin" in both User Name
and Password. Click "OK".
User:"admin"
password:"admin"
3、 WAN Medium Type
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Generic SL-R6801 Series
- Page 1 Page 1 of 10 150Mbps Wireless Router User Guide SL-R6801 Series 1、Introduction The 150Mbps Wireless-N Broadband Router is dedicated to Small Office/Home Office (SOHO) Wireless network solution. It is 4 in 1 network device, which combines wireless access point, firewall, 4-port Switch and the NAT-Router.
- Page 2 Page 2 of 10 4、Wireless Basic Settings...
- Page 3 Page 3 of 10 5、Wireless Security Setting...
- Page 4 Page 4 of 10 6、Wireless Distribution System(WDS)
- Page 5 Page 5 of 10 7、DMZ Settings...
- Page 6 Page 6 of 10 一．Product features introduced Ø wireless AP, routers, 4 port switches, firewall function four-in-one bucket ; Ø Based on the latest IEEE802.11 n standards, compatibiliteIEEE802.11b IEEE802.11 g in back ward; Ø increases 6 times covered distance than the original 802.11 g standard , and effectively reduc e coverage of the area's blind spots;...
-
Page 7: System Requirements
Page 7 of 10 Ø support simple network time protocol (SNTP); Virtual server; Ø support DMZ host; Ø support WDS wireless network expansion; Ø support broadband control function 二、introduction of Product Parameters basic parameter The cable with Ethernet port or DSL modems configured Computer :Windows XP SP2 or Windows 2000 SP4 or Mac OS X （... - Page 8 Page 8 of 10 • Launch adjustable power； • Bridge mode； • Gateway mode； Work Pattern • Ethernet Converter mode； • AP Client mode； 19dBm （maximum） Power -29dB 135M:-70dBm@10% PER;65M:-72dBm@10% PER; Accept Sensitivity 54M:-75dBm@10% PER; 11M:-86dBm@10% PER; 13M: -85dBm@10% PER; 6M:-87dBm@10% PER; •...
- Page 9 Page 9 of 10 三．Software function profile 1. Wireless access Support 54/48/36/24/18/12/9/6M or 11/5.5/2/1-m rate adaptive; Support 64/128/152 a WEP encryption; Support 802.1 X, WPA, IEEE TKIP, AES encryption and security mechanism etc; Support SSID broadcasting control and based on the MAC address of access control; Using wireless Roaming (Roaming) technology, efficient wireless connection;...
-
Page 10: Fcc Warning Statement
Page 10 of 10 and other network anomalies. 6. Allocation and management (optional, routing mode use) Provide friendly all Chinese WEB interface, intuitive easy-using, function are rich; While still providing traditional CLI interface, function more enrichment; And, two ways are supported through the Internet for under simple, safe and remote management.
