Gilian LFS-113 Instruction Manual

Dual mode low flow air sampler 1–350 cc/min. constant pressure 5–200 cc/min. constant flow
Hide thumbs
Table of Contents

Advertisement

Quick Links

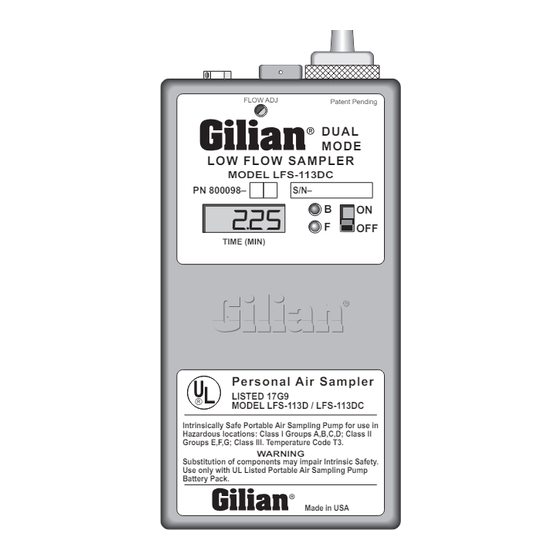

FLOW ADJ
Patent Pending
DUAL
MODE
LOW FLOW SAMPLER
MODEL LFS-113DC
S/N–
PN 800098–
B
F
TIME (MIN)
Personal Air Sampler
LISTED 17G9
®
MODEL LFS-113D / LFS-113DC
Intrinsically Safe Portable Air Sampling Pump for use in
Hazardous locations: Class I Groups A,B,C,D; Class II
Groups E,F,G; Class III. Temperature Code T3.
WARNING
Substitution of components may impair Intrinsic Safety.
Use only with UL Listed Portable Air Sampling Pump
Battery Pack.
Made in USA
Dual Mode Low Flow Air Sampler
1–350 cc/min. Constant Pressure
5–200 cc/min. Constant Flow
ON
OFF
INSTRUCTION MANUAL
LFS-113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LFS-113 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gilian LFS-113

  • Page 1 LFS-113 Dual Mode Low Flow Air Sampler 1–350 cc/min. Constant Pressure 5–200 cc/min. Constant Flow FLOW ADJ Patent Pending DUAL MODE LOW FLOW SAMPLER MODEL LFS-113DC S/N– PN 800098– TIME (MIN) INSTRUCTION MANUAL Personal Air Sampler LISTED 17G9 ® MODEL LFS-113D / LFS-113DC Intrinsically Safe Portable Air Sampling Pump for use in Hazardous locations: Class I Groups A,B,C,D;...

  • Page 2: Warranty/Service Information

    WARNING: This unit is designed specifically for use with Gilian LFS-113, UL, and SCS intrinsically safe battery packs and equipment. The unit should only be operated in environments that the unit's intrinsic safety labeling permits.

  • Page 3: Table Of Contents

    Operating manual for the LFS-113 Air Sampling System Includes models: LFS-113D, LFS-113DC Table of Contents S e c . Title P a g e WARRANTY/SERVICE INFORMATION Fig. 1 - Flow/Timing Capabilities/Approvals INTRODUCTION 1.1 Theory of Operation 1.2 General Description, nomenclature 6 Fig.
  • Page 4 See product labeling for specific intrinsic safety approvals. ® (Underwriters Laboratories, Inc.) All LFS-113 series pumps are UL approved intrinsically safe for use in hazard- ous locations Class I, Groups A, B, C, & D, Class II, Groups E, F, & G and Class III.

  • Page 5: Introduction

    1.0 INTRODUCTION The LFS-113 series sampler provides a rugged, reliable and compact sampling system for industrial hygiene and environmental sampling employment of single or multiple sorbent tubes and gas sampling bags. Two low flow modes of sampling allowconstant flows from 5-200 cc/min., as well as constant pressure for multiple sorbent tube sampling from 1-350 cc/min.

  • Page 6: General Description, Nomenclature

    1.2 General Description (see figures 2 and 3) Item Nomenclature Description Charging Jack Receptacle provides means of connecting charger for recharging internal battery pack. Pump Filter 10 Micron Nylon filter protects pump assembly from dirt. Discolora- tion indicates need for filter replacement. Mode Indicator Visually confirms mode engagement via Black or White indication.
  • Page 7 Figure 2 LFS-113 Air Sampler General Description, front, side & top Charging Jack Inlet Filter Assy. On/Off Switch Battery Check Indicator Fault Indicator Clock Display Flow Control Valve 10. Inlet Boss 11. Outlet Port/Cap 13. Belt Clip page 7...
  • Page 8 Figure 3 LFS-113 Air Sampler General Description, back & side Mode Position Indicator Mode Selector Switch 12. Bag Sampling Boss 14. Case Screws (4) 15. Battery Pack page 8...

  • Page 9: Set-Up

    Filter Assembly clockwise. Do Not Overtighten. 3.0 Operation The LFS-113 is a dual mode sampler, providing low flow air sampling in Constant Flow or Constant Pressure (multiple flow) modes. In the "Constant-flow mode, the unit is externally set from 5-200 cc/min.

  • Page 10: Constant Flow Sampling

    Look into the mode indicator window on the side of the sampler to see that the indicator is black or white, depending on the mode desired.Continue turning the selector switch counter- clockwise until the desired mode has been set. Now, lock the rotor into position by rotating the key clockwise - a half turn.Tighten Gently - Do Not Overtighten! The samplers mode indicator will have appeared either black for "Constant-Flow"...

  • Page 11: Multiple Flow Sampling

    Setting flow in the "Constant-flow" mode is accomplished by adjusting the flow adjust valve located on the front of the sampler. To set the flow, connect a piece of 1/8" ID tubing from the inlet of the Flow Controller Tube Holder, to the suction side of a low range rotameter, (see figure 4).

  • Page 12: Performance Checks

    Make sure that the pump is in the "Constant-flow mode, (refer to Section 3.1for complete mode selection procedure).A simple method of quickly checking constant flow performance is provided by Gilian's Low Flow Industrial Hygiene Calibrator Pack (LIHCP). Attach the pump into the LIHCP or similar calibration set-up, (see figure 6). If you are using the LIHCP calibrator: open the shut off valve (V1).

  • Page 13: Battery Performance Check

    Switch the sampler into the "Constant-pressure" mode,( see Section 3.1 for complete indexing procedure). Attach the pump into the test set-up as shown in figure 6. If you are using the Gilian LIHCP calibrator: close the shut off valve (V1). Close Load Valve (V2). Observe the O, ± 2%". Slowly open pressure on the magnehelic gauge (P1).

  • Page 14: Replacing The Battery

    scheduled to be used for long periods of time, (more than 2 months), it is recommended that the following procedure be followed on a periodic basis. a) Run pumps until they shut down on low battery. b) Recharge the battery overnight (16) hours and return the pumps into storage. 5.2 Replacing the Battery: (refer to figure 7) Place the sampler face down on a soft, level surface.
  • Page 15 Figure 4 "Constant-flow" mode set-up page 15...
  • Page 16 Figure 5 "Constant-pressure" mode for multi-tube sampling page 16...
  • Page 17 Figure 6 Pump calibration/diagnostics set-up page 17...
  • Page 18 Figure 7 LFS-113 Sampler N . o N . o N . o N . o 1 1 1 1 1 2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 5 5 5 5 5...

  • Page 19: Specifications

    Options: Elapsed timer clock module: (offered on DC models), LCD display and automatic instant-fault shut-down function, RFI shielding case. Warranty: The LFS-113 dual mode low flow sampler is guaranteed for one year against any defects in parts and/or workmanship. page 19...
  • Page 20 Sensidyne, Inc. 16333 Bay Vista Drive • Clearwater, FL 33760 800-451-9444 • 727-530-3602 FAX 727-539-0550 © 1999, Sensidyne, Inc. Document No. F-PRO-1725, Rev A...
