INSTALLATION INSTRUCTIONS
MRC-816 MULTI-ROOM CONTROLLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRC-816 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nexus MRC-816

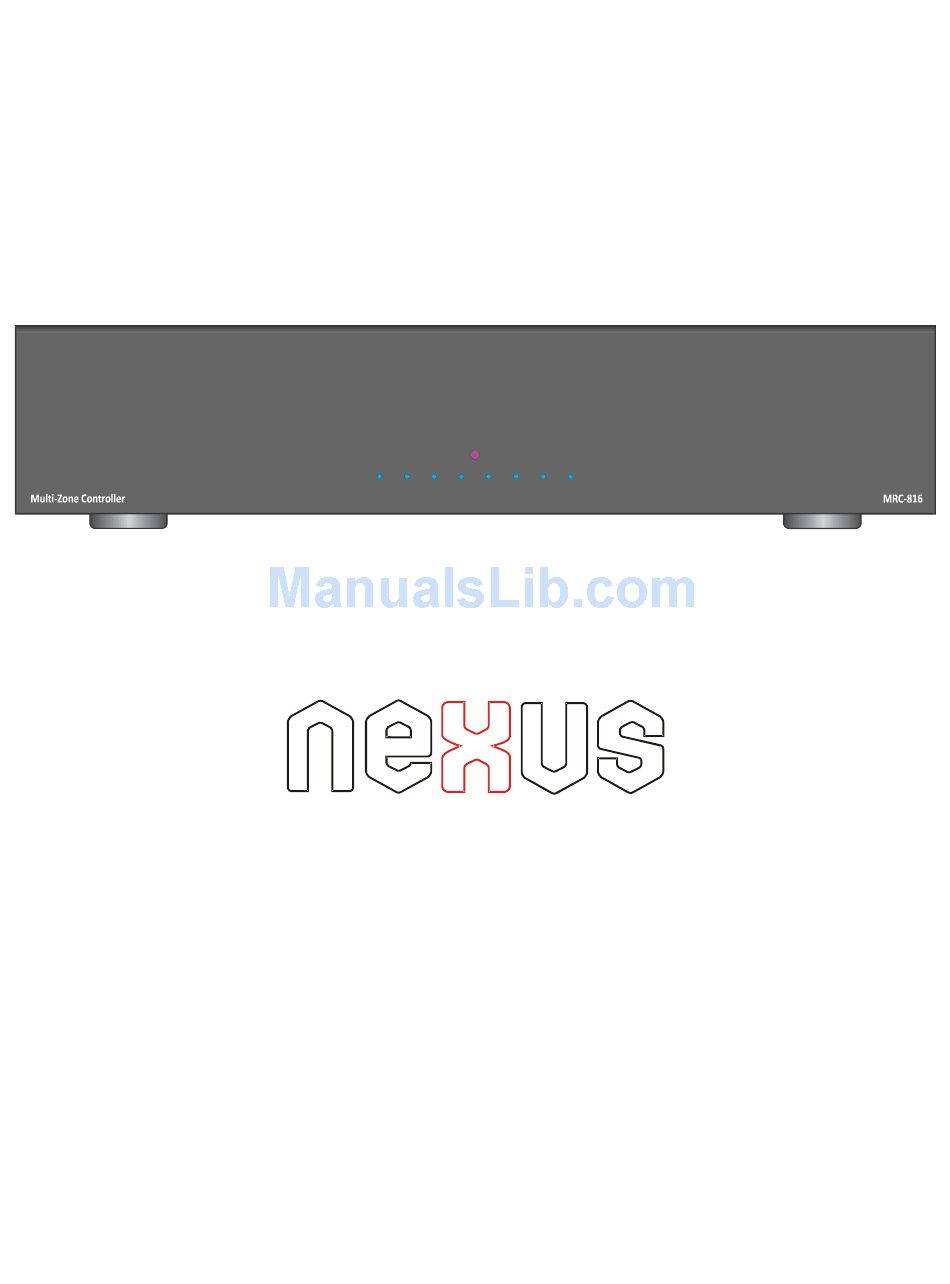

  • Page 1 INSTALLATION INSTRUCTIONS MRC-816 MULTI-ROOM CONTROLLER...
  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Read all of these instructions before operating and save instructions for later use. Read Instructions – All the safety and operating instructions should be read before the appliance is operated. Retain Instructions – The safety and operating instructions should be retained for future reference. Heed Warnings –...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS.........................2 INTRODUCTION............................4 SYSTEM OVERVIEW..........................5 MRC-816 Controller..........................5 Rear Panel..............................6 TP-2 touch panel............................7 DESIGNING AND INSTALLING A MRC-816 SYSTEM................9 System Design............................9 Head End Considerations.........................9 Zone Considerations..........................9 INSTALLATION............................9 Controller Location..........................9 Ventilation..............................9 Touch Panel Location & Mounting......................9 INSTALLING WIRING..........................9 Touch Panel wiring..........................10 Speaker wiring............................10...
  • Page 4: Introduction

    All aspects of the system setup are accomplished via a convenient web interface similar to what would be seen on a soho router. Just connect the MRC-816 to the home network, and navigate with a web browser to http://nexus816 The MRC-816 supports eight independently operated zones and infrared (IR) control of six external line level audio source components.
  • Page 5: System Overview

    SYSTEM OVERVIEW  Eight Zones (expandable to sixteen using two MRC-816 controllers).  20W/channel into 8 ohms, all zones driven.  Up to 6 stereo audio source inputs.  Fixed/variable line level outputs.  Mute input with 12V DC trigger.
  • Page 6: Rear Panel

    Figure 2a. MRC-816 Controller Rear Panel Rear Panel Touch Panel Ports – Eight RJ45 jacks, connect to MRC-816 touch panels via CAT-5 Cable. Zone control for power, source selection, tuning, tone controls, etc are communicated on these connections. Audio Inputs – Six stereo pair RCA jacks connect to the left & right line level audio outputs of up to six external source components using standard RCA patch cords.
  • Page 7: Tp-2 Touch Panel

    IR Receiver – Allows pass through of consumer remote controls to operate remotely located source components. Touch Panel Port – Run Cat5e cable from this port to a zone port on the rear of the MRC-816. Figure 4. TP-2 rear panel...
  • Page 8 Figure 6. MRC-816 Typical System Connections Page 8 of 21...
  • Page 9: Designing And Installing A Mrc-816 System

    (Tuner, CD, DVD, SAT, Music Server, etc) should also be installed at this location. The MRC-816 and source components can be placed on shelves in a wall unit in a media room, or rack mounted in a standard 19” rack mount system. Always provide convenient access for loading CDs and DVDs. Easy access for service should also be a consideration.
  • Page 10: Touch Panel Wiring

    (HDMI over CAT-5, etc), for video distribution, even though the MRC-816 does not switch video and the system will only initially be used for audio sources. Pull each wire or cable to an appropriate location for touch panels, speakers and video displays.
  • Page 11: Audio Page

    Figure 10. RS-232 Pin-Out Audio Page Audio – Pull quality audio cable from the telephone system line audio or paging output to the MRC-816 Controller location. Control - Pull two conductor stranded wire from the Contact Closure control output on the device that will trigger Audio Page to the MRC-816 Controller location.
  • Page 12: Zone Connections

    Using a properly configured 2.1mm coaxial plug, (see section: Wiring/Mute) connect the 2.1mm coaxial plug to the Mute jack on the MRC-816 rear panel. Terminate the other end as appropriate and connect to the 12VDC control output terminal on the device used to trigger audio mute. Be sure to maintain proper polarity from the trigger device control out to the 2.1mm coaxial plug.
  • Page 13: System Expansion To 16 Zones

    SYSTEM EXPANSION TO 16 ZONES Figure 14. Expanded MRC-816 System Page 13 of 21...
  • Page 14: Expanded Systems

    EXPANDED SYSTEMS Two MRC-816 Controllers can be linked together to expand a MRC-816 system to up to sixteen zones. The fundamental installation and connections are similar to those on a single controller system with a few minor changes: Nexlink Connection...
  • Page 15: System Power Up

    SYSTEM POWER UP After the system wiring is complete, it is time to power up the system. The power switch for the MRC-816 is on the rear panel of the unit above the power cord. This system is designed to remain powered up continuously. Turn the power switch on the rear panel to the on position.
  • Page 16: Firmware Updates

    The USB flash drive to be used for the upgrade can have other files on it, but if there are a lot of files, the MRC- 816 may take a long time to initialize before the upgrade begins. If the MRC-816 does not initialize or download the update, delete the extraneous files, or use another flash drive with less files on it.
  • Page 17 The RS-232 Port on the MRC-816 is a DB9 female jack. Tx (transmit) = PIN 2, Rx (receive) = PIN 3, Ground = PIN 5. Communication settings are 19200 baud, 8 bits, 1 stop bit, no parity. Figure 45. RS-232 Port Pin Out...
  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION Power System will not Power up a) Confirm the MRC-816 controller is plugged into an unswitched AC outlet. b) Confirm Power cord is plugged into MRC-816 Controller. Touch panels will not power up Confirm connections and configuration of CAT-5 cables from Controller to Touch panels.
  • Page 19: Specifications

    Source Inputs: 4 Audio inputs in addition to the built-in Tuner Up to 2 extra optional audio inputs using expansion bays. Expansion: Up to 18 Zones using another MRC-816 Controller. RS-232: 19200 Baud, Asynchronous, 8Bits,No Parity, No Handshake USB: Host port available for firmware updates...
  • Page 20: Warranty

    Number. In addition, the returned product is to be accompanied by a written description of the defect and proof of purchase. 4.Nexus Audio Systems Inc reserves the right to modify the design and specifications of any product at anytime, without obligation to advise the purchaser of previously manufactured products and to change the prices of any product without notice to any person.
  • Page 21 Fax (705) 792-3990 Monday through Friday, 8 am to 5 pm EST Email: info@nexusaudiosystems.com NEXUS AUDIO SYSTEMS INC. 20 Hamilton Road Barrie, Ontario L4N 8Y5 Canada Tel: 705.737.2629 866.303.2629 Fax: 705.792.3990 www.nexusaudiosystems.com © 2009 Nexus Audio Systems, Inc. Page 21 of 21...
