Summary of Contents for Durabook V10BBT1

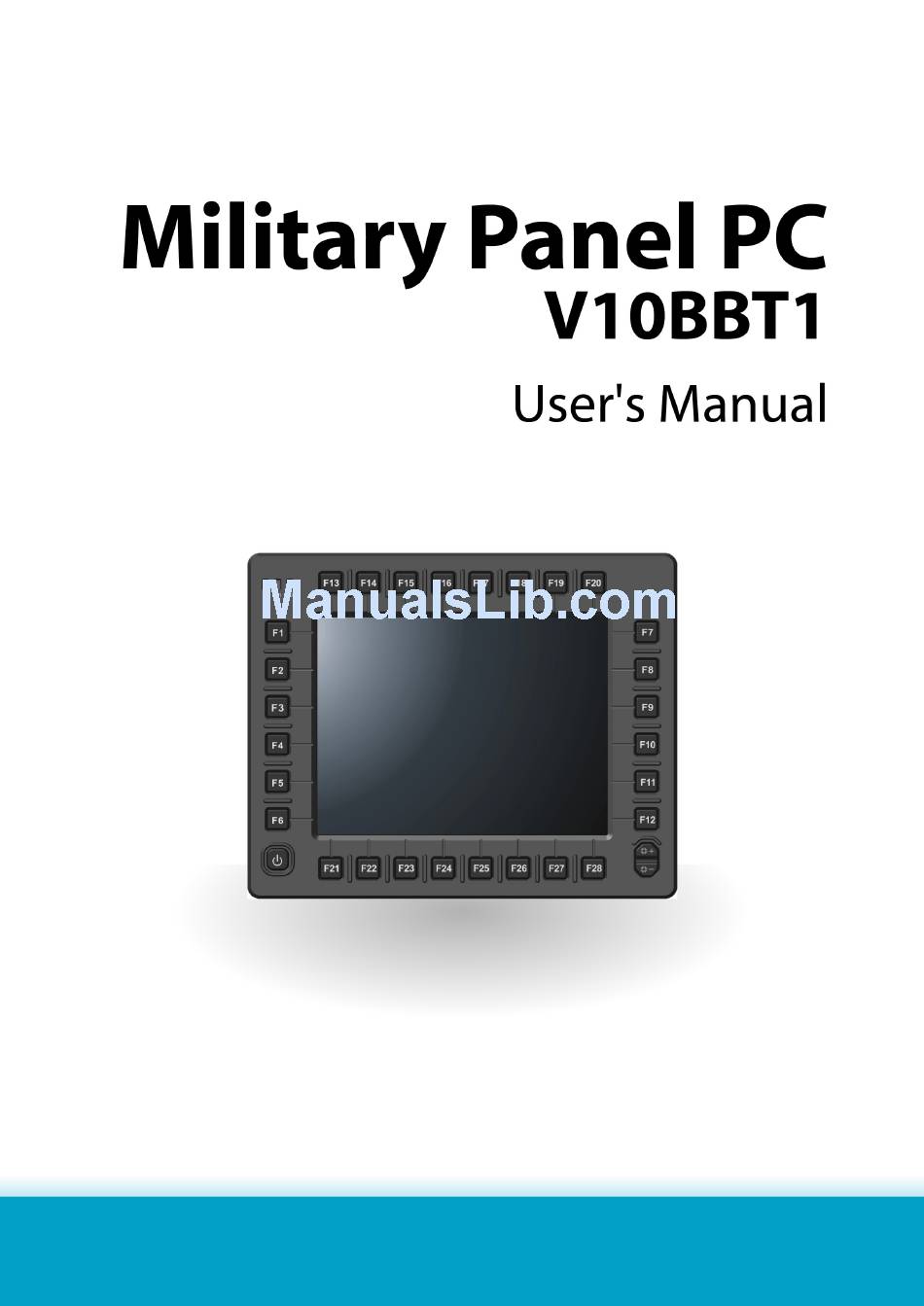

- Page 1 EN-1...
-
Page 2: Table Of Contents
Table of Contents PRODUCT OVERVIEW .............. 3 ....................3 RONT ....................4 ....................5 FUNCTION BUTTON DEFINITIONS .......... 6 PIN ASSIGNMENTS ..............8 EN-2... -
Page 3: Product Overview
V10BBT1 User’s Manual Product Overview This section describes the main components of your device. Front View Item Description Indicate the power and heater status: Power LED • Green: the system is running (active). • Red: the heater is on before the system booting complete. - Page 4 V10BBT1 User’s Manual Item Description Indicate the device status (user define). Programmable LED (Warning LED) Function buttons Refer to the “Function Button Definitions” section on page 6~7. Brightness buttons Press +/- to adjust the brightness level. Power button Press to turn the device on/off.
-
Page 5: Back View
V10BBT1 User’s Manual Back View Item Description Corner mounting holes Attach the corner mount bracket (Thread type: M5x0.8P, Length: 15mm, Quantity: 4-on the back side). Grounding receptacles Install the ground screw/wire to ensure proper grounding connection (Thread type: M6x1P, Length: 14mm, Quantity: 2). -
Page 6: Function Button Definitions
V10BBT1 User’s Manual Function Button Definitions The Function buttons work similar as any regular keyboard, with a few differences. To learn more about its respective function, refer to the table below: Button Description Press to emulate the F1 key. Press to emulate the F2 key. - Page 7 V10BBT1 User’s Manual Button Description Press to emulate the (right arrow) key. Press to emulate the (up arrow) key. Press to emulate the (down arrow) key. Press to emulate the Home key. Press to emulate the End key.
-
Page 8: Pin Assignments
V10BBT1 User’s Manual Pin Assignments Amphenol connector pins numbering V10BB System Connector Mating Connector Part No. Connector Part No. (Customer) AMPHENOL PT02A-18-32P AMPHENOL PT06A-18-32S AMPHENOL PT02A-18-32PW AMPHENOL PT06A-18-32SW AMPHENOL PT02A-18-32PX AMPHENOL PT06A-18-32SX AMPHENOL PT02A-18-32PY AMPHENOL PT06A-18-32SY AMPHENOL PT02A-18-32PZ AMPHENOL PT06A-18-32SZ... - Page 9 V10BBT1 User’s Manual Refer to the table below for the pinout with their relevant functions of Amphenol connectors. PT02A-18-32P PT02A-18-32PW Pin No. Signal Function Pin No. Signal Function DVI_VGA_RED USB3_VCC5 DVI_VGA_GREEN USB3_PN USB3 DVI_VGA_BLUE USB3_PP DVI_VGA_GND USB3_GND DVI_VGA_HSYNC USB2_VCC5 DVI_VGA_VSYNC...
- Page 10 V10BBT1 User’s Manual PT02A-18-32PX PT02A-18-32PY Signal Signal Function Function RS-232 RS-485 RS-422 RS-232 RS-485 RS-422 COM1_GND A COM4_GND COM1_RI# B COM4_RI# COM1_DTR# C COM4_DTR# D COM1_CTS# D COM4_CTS# COM1_SOUT COM1 E COM4_SOUT COM4 COM1_RTS# F COM4_RTS# G COM1_SIN D+ (A) RX+...
- Page 11 V10BBT1 User’s Manual PT02A-18-32PZ PT02A-18-32PZ Signal Signal Function Function RS-232 RS-485 RS-422 RS-232 RS-485 RS-422 COM7_GND U EXT_GPI0 COM7_RI# V EXT_GPI1 EXT GPI COM7_DTR# W EXT_GPI2 COM7_CTS# X EXT_GPI3 COM7_SOUT Y EXT_GPO0 COM7 COM7_RTS# Z EXT_GPO1 EXT GPO COM7_SIN D+ (A) RX+...
