Settop FRE207 User Manual

Dual slope laser level
Hide thumbs
Table of Contents

Advertisement

Quick Links

FRE207
FRE207
FRE
U s e r ' s M a n U a l
Dual Slope
laSer level

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRE207 and is the answer not in the manual?

Questions and answers

Related Manuals for Settop FRE207

Summary of Contents for Settop FRE207

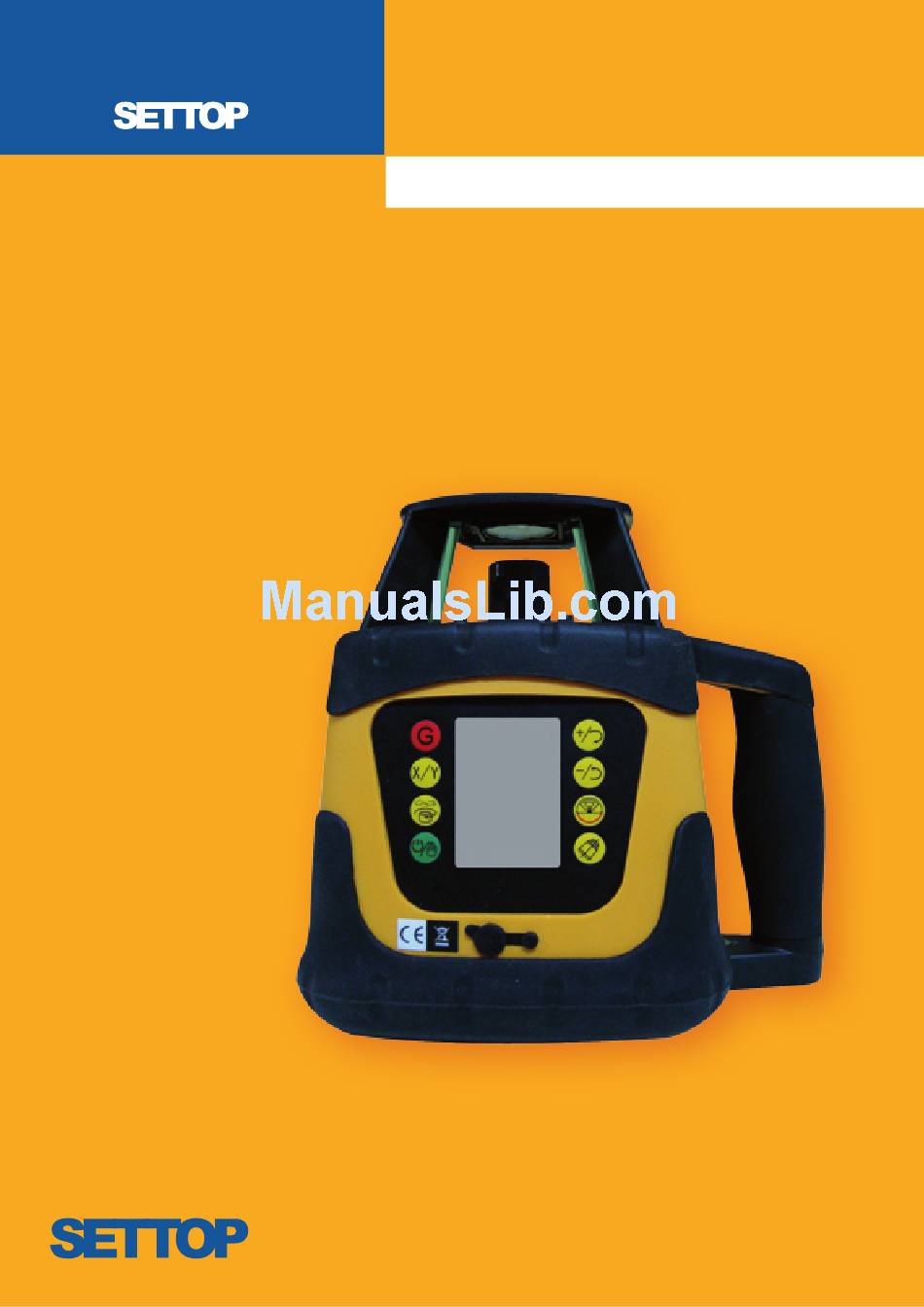

  • Page 1 FRE207 FRE207 U s e r ’ s M a n U a l Dual Slope laSer level...

  • Page 2: Table Of Contents

    FRE207 FRE207 U s e r ’ s M a n U a l Contents Equipment included in your FRE207 Settop Exterior composition of the FRE207 Settop Battery Charger Instructions Detector Specifications Safety Precautions...

  • Page 3: Equipment Included In Your Fre207 Settop

    FRE207 FRE207 U s e r ’ s M a n U a l equipment inCluded in your Fre207 settop Settop FRE207 FRE201 Remote Battery Settop Glasses control charger Target...

  • Page 4: Exterior Composition Of The Fre207 Settop

    FRE207 FRE207 U s e r ’ s M a n U a l exterior Composition oF the Fre207 settop Plumb Laser module Optic Protection Transport handle LCD Screen Key panel Bubble level Charger output...

  • Page 5: Battery Charger

    FRE207 FRE207 U s e r ’ s M a n U a l Battery Charger The instrument is normally already charged when you receive it; however, it is recommended that you charge the batteries before each use. Insert the charger inside the compartment of the laser level or turn it on through the battery pack.

  • Page 6: Instructions

    FRE207 FRE207 U s e r ’ s M a n U a l instruCtions AngulAr mode: press to enter vAlues x And y KeyboArd vAlues positive on slope: chAnge the direction of rotAtion KeyboArd vAlues negAtive on slope: chAnge the...

  • Page 7: Scanning Mode

    Once self-levelled the level will start to rotate. slope mode The FRE207 level allows you to work with slope values of up to 8% for axes x and y. Once the level is self-levelled in horizontal mode, press the G key.

  • Page 8: Detector

    FRE207 FRE207 U s e r ’ s M a n U a l deteCtor The detector has a sensor in the window that allows it to detect the beam when it is in rotation mode. The detector has three functions:...

  • Page 9: Specifications

    FRE207 FRE207 U s e r ’ s M a n U a l speCiFiCations Accuracy: +- 2 mm 30 m. Slope range: 10º Self-levelling range: 5º Type of laser: diode laser visible 635 nm Class: Class 2 m Measuring range: 500 m.

  • Page 10: Safety Precautions

    FRE207 FRE207 U s e r ’ s M a n U a l saFety preCautions Avoid direct eye exposure to the laser beam over a prolonged period. The laser has a diode and powers that are not harmful to eyesight.
  • Page 11 FRE207 FRE207 U s e r ’ s M a n U a l...
  • Page 12 Tel. 93 340 05 73 Fax 93 351 95 18 www.settop.es settop@settop.es Bofarull, 14, bajos 08027 Barcelona Tel. 93 340 05 73 Fax 93 351 95 18 www.settop.es settop@settop.es FRE207 FRE207 Bofarull, 14, bajos 08027 Barcelona Tel. 93 340 05 73 Fax 93 351 95 18 www.settop.es settop@settop.es...
