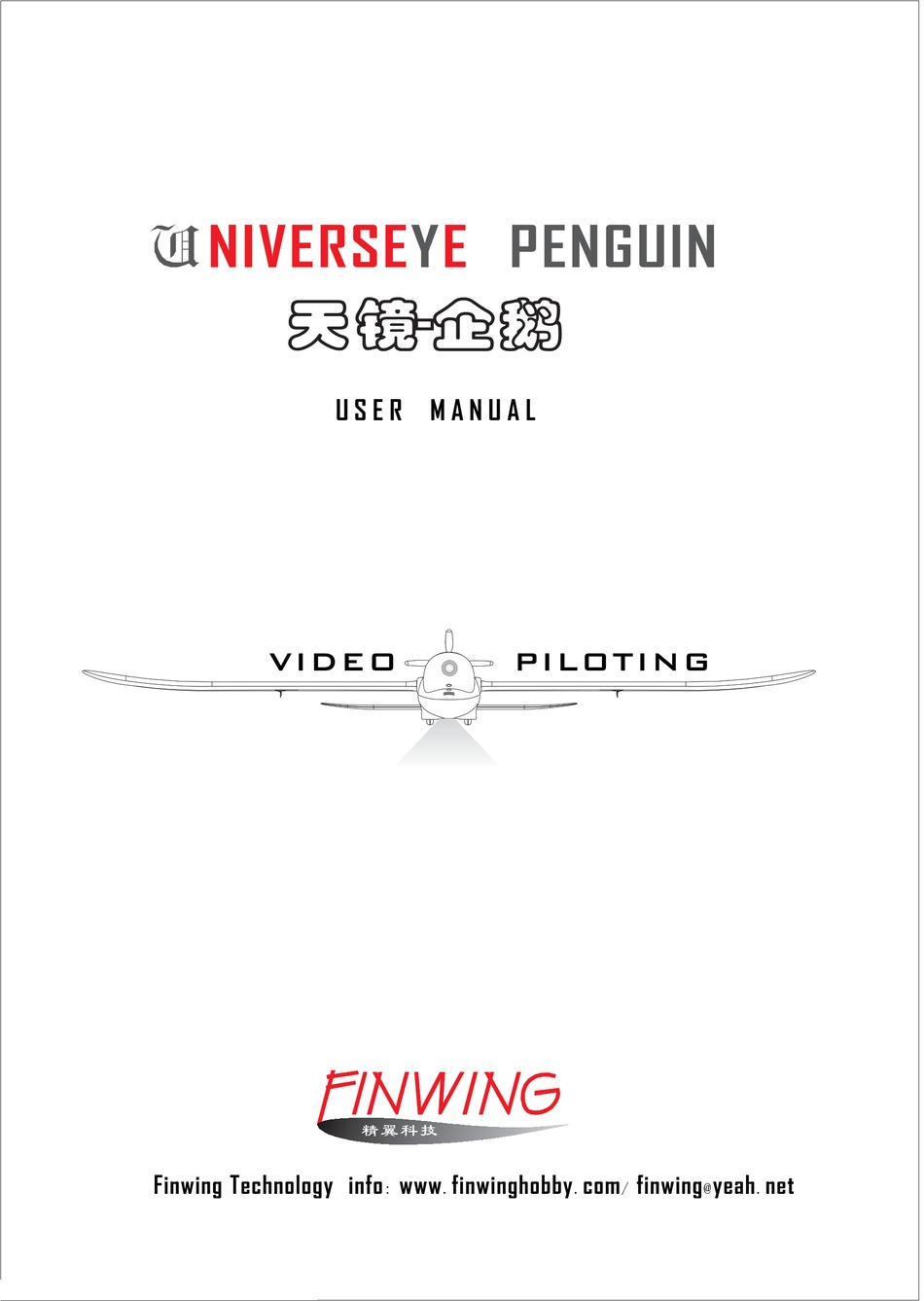

- Page 1 PENGUIN NIVERSE E U S E R M A N U A L VIDEO PILOTING Finwing Technology info www finwinghobby com finwing yeah net...
-
Page 2: Specifications
500-900G/17.7-31.8oz (Payload is the extra weight it can carry besides the standard ARF weight) Material EPO Wing and fuselage/ Wooden rib reinforcement/ aluminum alloy pipe Carbon Fiber Pipe Universeye penguin Brushless System Testing Data Record by Finwing 9050/ 3BLADE M2220 KV1350 M2815 KV1280... - Page 3 Airplane Construction What is FPV Camera Camera for Video piloting What is Video Camera Camera for Aerial Photography & FPV Camera Co Pilot Receiver Autopilot Battery VideoCamera OSD ESC & Video Camera How to control CG 3 3 5 inch Please set CG at 85MM initially Sometimes It may subject to change a little bit the adjust range is 80 9 MM for your reference...
- Page 4 Assembly Mainwing intallation Servo connection with extention cable Glue paper to fix it is necessary Install 17g Servo Hole Here Hole Here Fix Aileron servo horn Aileron servo Installation Rudder servo and Servo horn Installation Elevator servo Horn Installation Elevator Servo installation Remember only this servo s cable length is 450MM Fuselage left Side door open Available...
- Page 5 Assembly Be sure that the Motor Mount is here Be sure that these at right Position Glue on the back of Motor mount is required With little Glue on it is necessary Be sure that Two Wheel is here Be sure that the wodden Ring is here Glue on both side of Fuselage expeically the Left side should be have more Glue and the right side fuselage with less Glue...
- Page 6 How to fix you devices ESC Connection with Motor Use Magic Buckle to fix you Battery Receiver It s better to have glue paper on it Installation of Main wing Insert one of the Main Wings first Carbon Fiber Pipe Insert another Main Wings inside Insert one screw to keep the carbon piper irremovable Tighten the screw with Nut...
- Page 9 Flight Advice 1 Do Not Recommend Aerobatic Flight 3 Do not Recommend fly in strong wind day of the side wind 4 Airplane is relatively less sensitive to wind During high Altitude flight but should be careful during low Altitude flight Hight Altitude with 20 30 cruising is quite power saving 5 Ground running take off smooth and flat ground is required...
- Page 10 Please read the user manual carefully before assembly and fly Thanks for use finwing Model airplane This airplane is recommended to play for the intermediate and advance RC hobby pilots Warning: 1 This model airplane is not a toy not recommended for children under 14 years old not recommended...
