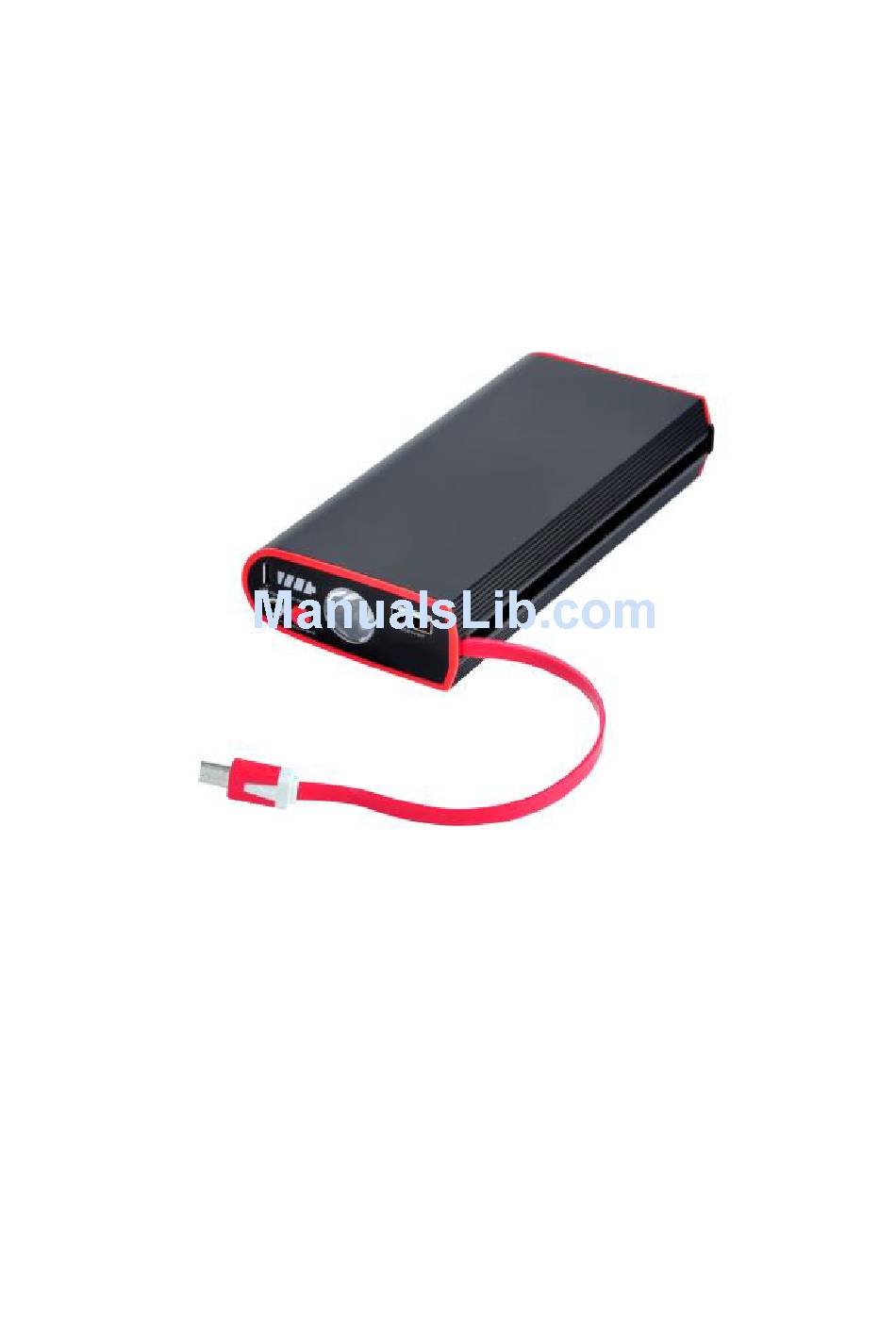

- Page 1 T203 Series Portable Multi-function Car Jump Starter User Manual □T203N:9000mAh □T203Z:10000mAh □T203T:12000mAh Please read this manual before using this product. Failure to do so can result in serious injury.
- Page 2 Thanks to choose our T203 series Portable Multi-Function Emergency car Jump Starter and before using it, please read this manual carefully for reference. SAFETY & MAINTAINANCE WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow all instructions listed below may Result in electric shock, fire, and/or serious injury.
- Page 3 the built-in battery as house refuse, which will cause blast and pollution. CAUTION: 1.The unit only can be used for jump-start car in emergency , it can’t replace the car battery. 2.Please connect the alligator clip to car battery correctly: red to red and black to black.
- Page 4 Product Introduction Part1 Diagram 1 Front and bottom side description 7.Micro USB Output 4.Battery Capacity indicator 1. /MODE 8.EC 5 Output 2. USB Output 5.Micro USB Charging input 9.Dust Cover 3. LED Light 6.DC 12V Charging input Part2 KEY and Function Description /MODE: Power Switch /LED light mode select Power ON: Please press the key /MODE shortly to power ON the unit.
- Page 5 Traffic Warning light means Red LED and Blue LED keep flash SOS means white LEDs keep flash for 3 short time-3 long time -3 short time. Part 3 How to Jump Start your car Warning: Jump-starting a car can cause serious injury if you are not careful.
- Page 6 Diagram 2 EC5 output clamps connect with car battery Part 4 How to Use discharging and charging function Unit discharging from USB output: ①The unit built in Micro USB output cable, Please use it charging your MP3, mobile, or others portable device. ②The unit built in Type A USB output port, output max 5V/2.1A current to charge for standard USB portable devices.
- Page 7 Part 6 Technical Parameters □9000mAh (33.3Wh) Li-polymer Battery Capacity □10000mAh (37Wh) Li-polymer □12000mAh (44.4Wh) Li-polymer Cycle life >300 times EC5 output 8-12V /300A(max) Peak Cranking Power USB output USB:5V/2.1A(max) Micro USB:5V/1A DC charging input DC :12V/1A Micro USB:5V/1A Charging time DC 12V:~4-5h(12V @ 1A charging current) Micro USB: ~9-10h(5V @1A charging current) LED light power...
