People & Print
Basic Technical Information of the Printing Machine

Advertisement

Table of Contents
loading

Summary of Contents for KBA-GRAFITEC KBA PERFORMA 74

  • Page 1 People & Print KBA PERFORMA 74 Basic Technical Information of the Printing Machine...

  • Page 2: Table Of Contents

    Equipment and systems of the KBA Performa 74 sheet-fed offset machines ......

  • Page 3: Introduction

    1. Introduction The KBA Performa 74 sheet-fed offset machines represent a machine type line for the printing of sheets of up to 520 x 740 mm. The assortment of the KBA Performa 74 machines allows the customer to choose from numerous variants of manufacturing and equipment.

  • Page 4: Equipment And Systems Of The Kba Performa 74 Sheet-Fed Offset Machines

    Basic Technical Information of the Printing Machine PERFORMA 74 2. Equipment and systems of the KBA Performa 74 sheet-fed offset machines Machine control Printing unit Machine drive Feeder Feeder head Ionization Conveyor Front lay Pregripper Dampening equipment Dampening aggregate Inking unit...
  • Page 5 Basic Technical Information of the Printing Machine PERFORMA 74...

  • Page 6: Description Of Kba Performa 74

    Basic Technical Information of the Printing Machine PERFORMA 74 3. Description of KBA Performa 74 sheet-fed offset machines 3.1 Technical description of machines 3.1.1 Machine control The machine is controlled mainly by a central touch screen located on the rotary bracket on the delivery. From this place, most impor- tant machine functions can be controlled.
  • Page 7 Depending on the square weight of the printed paper, the operators can choose from two modes of the automatic lifting of the feeder table. This selection is completed on the touch screen in the delivery. The KBA Performa 74 machines can also be equipped with a non-stop feeder.
  • Page 8 Basic Technical Information of the Printing Machine PERFORMA 74 The height of forwarding suckers can be adjusted while the machine is engaged in operation. The rotary valve that controls the pressure and vacuum mode of air distribution can be easily removed from the feeder head body and cleaned of collected paper dust.
  • Page 9 Basic Technical Information of the Printing Machine PERFORMA 74 3.1.10 Double sheet control This equipment indicates the loading of more than one sheet; the equipment does not require any adjustments. In the event of wrong loading, the feeding comes to a stop and improperly fed sheets are blocked on the feeding bar.
  • Page 10 +10°C (50°F), IPA dosing can be set within a range of 0 to 15 %. The TECHNOTRANS type alpha d20 is standard equipment for KBA Performa 74-4 and 74-5 machines. The TECHNOTRANS type alpha d30 is standard equipment for KBA Performa 74-6 machines.
  • Page 11 Basic Technical Information of the Printing Machine PERFORMA 74 3.1.18 Removal of impurities from the printing plate When printing selected kinds of paper that is prone to dusting the paper releases varying types of impurities. Most often, the impurities get stuck on the printing plate and subsequently devalue the quality of the print. As optional equipment, we offer a modifi ed drive of the dampening rollers called Removal of impurities from the printing plate;...
  • Page 12 PERFORMA 74 3.1.20 Temperation of the inking unit Upon a customer’s request, the KBA Performa 74 machines can be equipped with inking unit cooling and heating equipment (tempered inking unit). This equipment consists of three hollow stainless distribution rollers in the inking unit of each printing unit, distribution of a cooling solution through the machine, and TECHNOTRANS chiller, type Alpha.c.
  • Page 13 Punching machine and assembly and copying bars can be ordered for the systems MONTALOCH and BACHER CONTROL 2000. Bacher punching system Bacher copying bar Bacher assembly bar The KBA Performa 74 machines can also be fi tted with plate cylinders with remotely controlled diagonal cocking and semi-automatic plate insertion.
  • Page 14 Basic Technical Information of the Printing Machine PERFORMA 74 3.1.27 Remotely controlled diagonal cocking of printing plates It happens quite often during register setting that the printing plate on the plate cylinder has to be moved. If diagonal cocking is required, and if standard plate cylinders are used, the machine has to be stopped and the necessary procedure has to be carried out manually and the print is then resumed.
  • Page 15 Basic Technical Information of the Printing Machine PERFORMA 74 When inserting printing plates semiautomatically, only the fi rst of the above mentioned steps has to be completed manually. The others are carried out automatically without the operator’s interference. Go to the touch screen in the semiautomatic insertion menu to prese- lect the semiautomatic insertion mode and the numbers of the printing units on which this procedure will be completed.
  • Page 16 3.1.34 Delivery All KBA Performa 74 machines are equipped with a high-pile delivery. The delivery of printed sheets is ensured by seven independent gripper systems in the delivery chain. The grippers and their stops are fi...
  • Page 17 Basic Technical Information of the Printing Machine PERFORMA 74 3.1.36 IR infra-red drying When appropriate inks and infrared drying are used (IR), the drying of inks can be accele rated and printed sheets can be unloaded without or with minimal powdering. This advantage is ap- preciated mainly when printed sheets are to be laminated or coated.
  • Page 18 fi tted with air regulation and fi ltration. The pressure within the pneumatic distribution system is up to 0.6 MPa (87 psi). 3.1.42 Washing equipment The KBA Performa 74 machines are equipped with: - automatic washing of inking unit - automatic washing of offset blanket The automatic washing equipment is controlled from the touch screen located on the delivery panel.
  • Page 19 Basic Technical Information of the Printing Machine PERFORMA 74 3.1.44 Automatic washer of offset blanket This equipment is designed for the quick washing of ink, varnish, dust, and other print-generated impurities off the rubber coating of the blanket cylinder. This function is fulfi lled by means of a winding-off textile cleaning belt that cleans the offset blanket surface with the aid of a deter- gent and water that are sprayed onto this surface by a bar with nozzles.

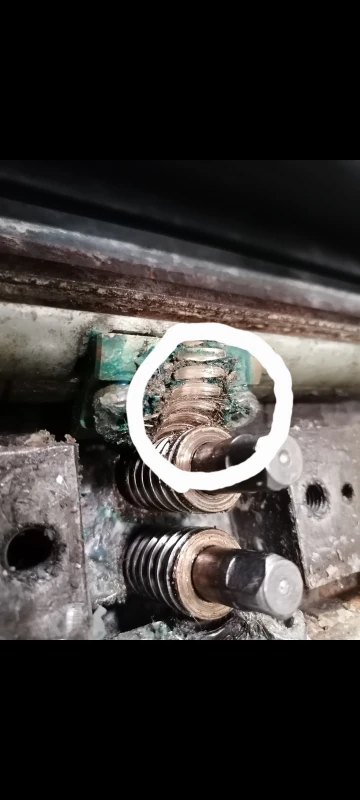

  • Page 20 PERFORMA 74 3.2 Technical description of options 3.2.1 Grafi Control remote control system The equipment of the KBA Performa 74 machines also includes a Grafi Control remote control system. Grafi Control remote control desk The basic version of Grafi Control allows for the remote setting of the color ink duct, color ductor inching, printing register and dampening pan roller revolutions from the remote control desk.
  • Page 21 Basic Technical Information of the Printing Machine PERFORMA 74 The following table compares the properties of these two densitometers. TECHKON X-RITE Simple, manually controlled device Sophisticated, fully automated device Enables the measurement of control stripes Enables the measurement of control stripes only and individual spots anywhere on a sheet Contact measurement method –...
  • Page 22 Basic Technical Information of the Printing Machine PERFORMA 74 3.2.2 CIP4 Interface The integration of CIP4 (Cooperation for Integration of Processes in Prepress, Press and Postpress) is an important element enhancing the quality of production and reducing costs. CIP4 is the name of an organization – www.cip4.org - that was established by an informal association of companies known as CIP3.
  • Page 23 Basic Technical Information of the Printing Machine PERFORMA 74 The use of user correction curves facilitates: Optimized printing machine setting with regard to printed paper • Optimized setting of each printing unit with regard to its printing characteristics • Easy introduction of a new correction curve with name used in the processed CIP4 data •...
  • Page 24 The KBA Performa 74 line machines can be equipped with a simple coating device. It is in-line coating for which the last printing unit of the KBA Performa 74 machine is modifi ed. This equipment is designed mainly for less demanding coating applications that are to protect fresh print from mechanical damage and to provide a more refi ned look. The last printing unit that does not differ –...
  • Page 25 Following the current trends in the refi ning of printed materials, a coating device was developed to provide top-notch, effi cient, in-line coating. This equipment is optional for the KBA Performa 74 machines and is designed for high quality all-area and partial dispersion coating.
  • Page 26 The coating unit design is based on the structure of the printing unit applied in the KBA KBA Performa 74 machines. The passage of the sheet through the coating unit – i.e. the struc- tural design and layout of the impression cylinder and the transfer cylinder – is identical with the passage of the sheet through the printing unit.
  • Page 27 Basic Technical Information of the Printing Machine PERFORMA 74 The following table provides the basic characteristics of several raster rollers. The indicated values are only approximate. They will differ with various raster rollers and depend, amongst others, on the type of applied varnish. Raster denisty Transferred lacquer volume Amount of wet lacquer transferred onto paper...
  • Page 28 Basic Technical Information of the Printing Machine PERFORMA 74 3.2.4.2 Varnish circulation system The chamber doctor blade block that is adjacent to the raster roller during coating operations is connected with the varnish circulation unit by means of hoses and an electrical cable; all of these components create a varnish circulation system that is manufactured by Harris&Bruno (www.harris-bruno.com).
  • Page 29 Basic Technical Information of the Printing Machine PERFORMA 74 The front drying box wall also offers a touch screen to control the drying equipment. In addition to the mutually independent setting of the IR radiators and the hot air units, the display also allows for saving various settings for different printed materials and printing conditions.

  • Page 30: Standard And Optional Equipment Of Kba Performa 74

    Basic Technical Information of the Printing Machine PERFORMA 74 3.3 Standard and optional equipment of KBA Performa 74 3.3.1 Standard press features PE 74-2 PE 74-4 PE 74-5 PE 74-6 Electronic control system B+R(Bernecker & Rainer) Grafi Control with 23 zones...
  • Page 31 Basic Technical Information of the Printing Machine PERFORMA 74 3.3.2 3.3.2 Optional press features and accessories Optional press features and accessories PE 74-2 PE 74-2 PE 74-4 PE 74-4 PE 74-5 PE 74-5 PE 74-6 PE 74-6 Cocking (remote control of diagonal adjustment of the printing plate and semi-automatic plate insertion, including bender Dampener coater including pump for circulation of varnish and dryer In-line coater (coating unit) including pump for circulation and dryer in extended delivery...

  • Page 32: Transport And Installation Of Machines

    Basic Technical Information of the Printing Machine PERFORMA 74 4. Transport and installation of machines 4.1 Weight and handling The machine is transported by parts. It can be packed and dispatched according to specifi c commercial arrangements with a customer. Types of packaging: On runners Runners are suitable for inland road transport directly to a customer’s site;...
  • Page 33 Basic Technical Information of the Printing Machine PERFORMA 74 KBA Performa 74-2 KBA Performa 74-4 KBA Performa 74-6 KBA Performa 74-5 KBA Performa 74-6+L...
  • Page 34 Basic Technical Information of the Printing Machine PERFORMA 74 4.2 Instructions for the moving of frames 1. The lifting device is designed to lift the bench of the 74 and 66 series machines. 2. Before using the lifting device make sure that its individual parts and welds do not bear any defects. 3.
  • Page 35 Basic Technical Information of the Printing Machine PERFORMA 74 Transport of the machine by the lifting device KBA Performa 74-2 KBA Performa 74-4 column lifting rod column brace grip support washer support M12x30 bolt – modifi cation column M12x80 bolt – modifi cation...
  • Page 36 Basic Technical Information of the Printing Machine PERFORMA 74 KBA Performa 74-5 KBA Performa 74-6 lifting rod column brace column support grip support washer column M12x30 bolt – modifi cation column M12x80 bolt – modifi cation...
  • Page 37 Basic Technical Information of the Printing Machine PERFORMA 74 KBA Performa 74-6L lifting rod column brace column support grip support washer column M12x30 bolt – modifi cation column M12x80 bolt – modifi cation...
  • Page 38 Basic Technical Information of the Printing Machine PERFORMA 74 Transport of machine by a high-lift truck KBA Performa 74-2 KBA Performa 74-4 KBA Performa 74-5 KBA Performa 74-6 KBA Performa 74-6L A suitable place has to be found for the fi nal installation of a printing machine. The location should be out of the reach of sunlight, heating radiators and stronger airfl...
  • Page 39 Basic Technical Information of the Printing Machine PERFORMA 74 Recommended minimal working area for the machines KBA Performa 74-2 KBA Performa 74-4 KBA Performa 74-4+L...
  • Page 40 Basic Technical Information of the Printing Machine PERFORMA 74 KBA Performa 74-5 KBA Performa 74-5+L KBA Performa 74-6...
  • Page 41 Basic Technical Information of the Printing Machine PERFORMA 74 KBA Performa 74-6+L The previous drawings feature the numerical markings of the additional equipment of the printing machine. These numbers are used in the following table to indicate the respective equipment with its installation data.
  • Page 42 Basic Technical Information of the Printing Machine PERFORMA 74 Additional equipment Equipment-machine Installation to machine Point of Connection connecting wiring distance (m) connection outside machine Standard Upon special order Remote control desk Electric cable 5 (16´5“) 5 (16´5“) Delivery Wiring installation Ethernet TECHNOTRANS Dampening solution...
  • Page 43 Basic Technical Information of the Printing Machine PERFORMA 74 4.4 Electrical network requirement Machine with INKDRY IR dryer Machine with INKDRY IR dryer KBA Performa 74-2 Basic version(21 kVA) (35 kVA) with dampener coater (38 kVA) Voltage Current Supply protection...
  • Page 44 Basic Technical Information of the Printing Machine PERFORMA 74 Machine with INKDRY IR dryer Machine with INKDRY IR dryer KBA Performa 74-6 Basic version(30 kVA) (44 kVA) with dampener coater (48kVA) Voltage Current Supply protection Current Supply protection Current Supply protection...
  • Page 45 Basic Technical Information of the Printing Machine PERFORMA 74 4.5 Additional interference elimination When using a protective switch a minimum actuating current of 100 mA is required along with characteristics G or S.Interference in basic version machine is eliminated so that the machine’s radiation does not exceed the limits applied to industrial zones. When using these machines in residential, commercial or light industry areas, the user placing an order must also remember to require the assembly of ad- ditional interference elimination according to EN 50081-1.
  • Page 46 Basic Technical Information of the Printing Machine PERFORMA 74 KBA Performa 74-2 The machine’s weight is 10,400 kg (22.930 lb). Its operational weight with paper in the feeder and delivery is 11,400 kg (25.140 lb). The machine stands on the fl oor by means of 18 adjustable feet.
  • Page 47 Basic Technical Information of the Printing Machine PERFORMA 74 KBA Performa 74-5 The machine’s weight is 20,900 kg (46.080 lb). Its operational weight with paper in the feeder and delivery is 21,900 kg (48.280 lb). The machine stands on the fl oor by means of 30 adjustable feet.
  • Page 48 Basic Technical Information of the Printing Machine PERFORMA 74 KBA Performa 74-6+L The machine’s weight is 28,600 kg (63,060 lb). Its operational weight with paper in the feeder and delivery is 29,600 kg (65,260 lb). The machine stands on the fl oor by means of 44 adjustable feet.

  • Page 49: Technical Parameters Of The Kba Performa 74 Machines

    PERFORMA 74 5. Technical parameters of the KBA Performa 74 machines Max. paper format ..............520x740 mm (20,5“x29,1“) Min.
  • Page 50 28.600 kg (63.060 lb) Weight of machine with coating unit KBA Performa 74 from KBA-Grafitec s.r.o. Text or illustrations contained in this documentation may not be reproduced in any from, either in part or full, without the prior permission of KBA- Grafitec.
