smart-e SDS-7000 User Manual

Rack mounted full hd presentation switcher & scaler with incorporated hdbaset in/out link

Advertisement

Quick Links

SDS-7000
Rack Mounted Full HD Presentation Switcher &
Scaler With Incorporated HDBaseT In/Out Link

USER MANUAL

Page 1 of 21
©Smart-e(UK) Ltd.
SDS-7000 User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDS-7000 and is the answer not in the manual?

Questions and answers

Summary of Contents for smart-e SDS-7000

  • Page 1: User Manual

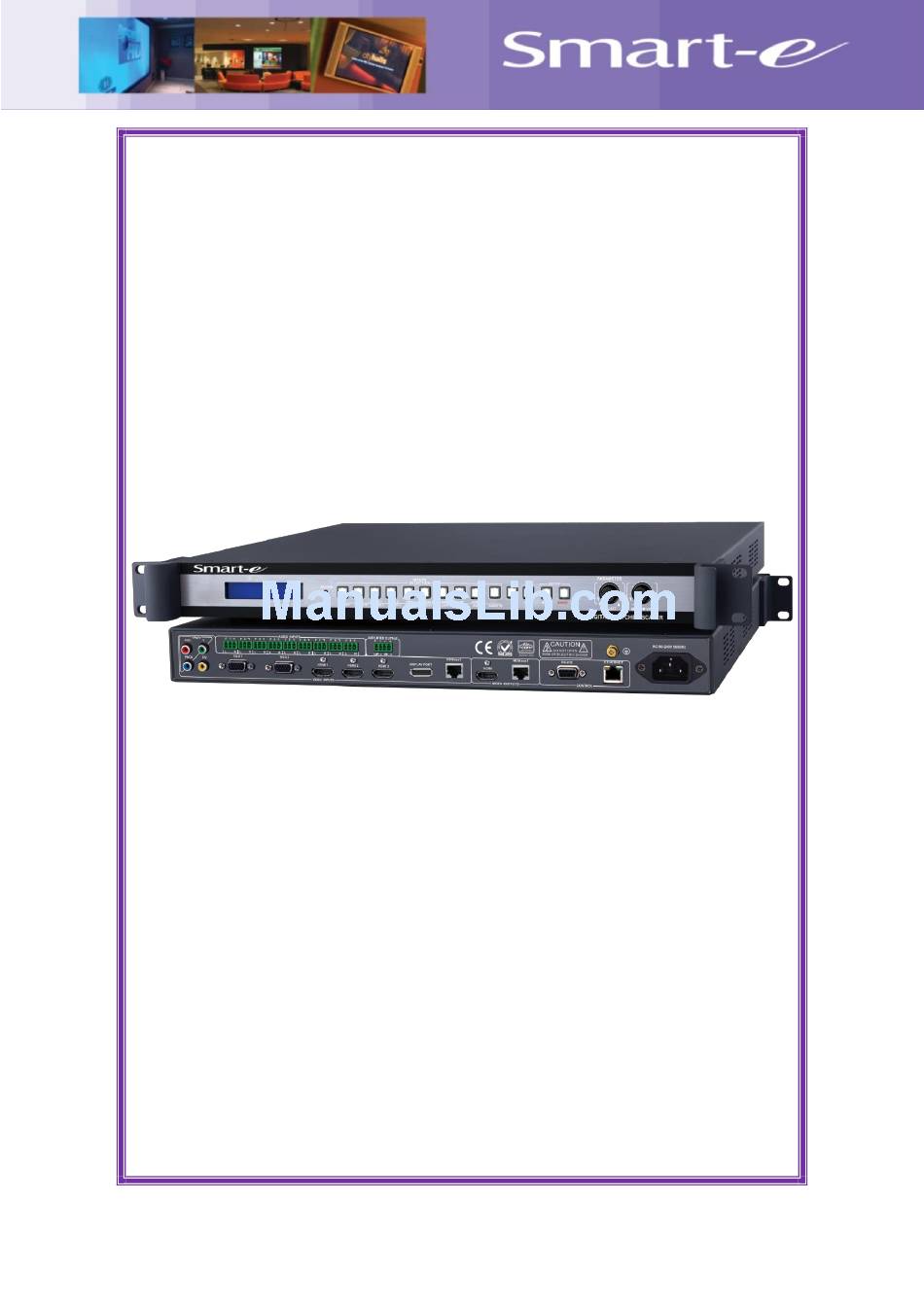

    SDS-7000 Rack Mounted Full HD Presentation Switcher & Scaler With Incorporated HDBaseT In/Out Link USER MANUAL Page 1 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 2 Notice The information contained in this document is subject to change without notice. Smart-e makes no warranty of any kind with regard to the material, including but not limited to implied warranties of merchantability and fitness for particular purpose. Smart-e will not be liable for errors contained inside this manual, or for incidental or consequential damage in connection with the furnishing, performance or use of this material.
  • Page 3 Thank you for purchasing the SDS Presentation Switch/Scaler. Your order should arrive to you in a Smart-e branded matrix box, if any obvious damage is visible to the package on arrival and the delivery has not been signed for as ‘damaged’ or ‘uninspected’ please contact Smart-e as soon as possible.
  • Page 4 This means the unit can be located in a convenient central location whilst still having the ability to retrieve content from and deliver it to the required locations with relatively inexpensive and easy to install CAT5E/6 cabling. Page 4 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 5: Ntsc,Pal,Secam

    Smart-e equipment connected. Once this has been verified the sources and outputs can be connected to the switch. Below is...
  • Page 6 Interface 20-pin DP interface, standard,1 DisplayPort input Supported DisplayPort 1.1 protocols Maximum transmission 500us delay Transmission The maximum transmission bandwidth is 10.8Gb/S bandwidth 640x480@60Hz;800x600@60Hz;1024x768@60Hz; 1280x720@60Hz;1280x800@60Hz;1280x960@60Hz; Supported 1280x1024@60Hz;1360x768@60Hz;1366x768@60Hz; resolution 1400x1050@60Hz;1440x900@60Hz;1600x1200@60Hz; 1680x1050@60Hz;1920x1080@50Hz;1920x1080@60Hz; 1920x1200@60Hz Page 6 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 7 Stereo separation >80dB@1 kHz Common-mode rejection ratio(CMRR) >75dB@:20 Hz ~ 20 kHz Signal type stereo Impedance input:>10 kΩ(Unbalanced) maximum input level +19.5dBu, Gain error ±0.1dB @ 20 Hz ~ 20 kHz Page 7 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 8 Once the screen displays a message (variations dependant on model): SDS-7000 V1.0 The unit has completed its boot up sequence and is now ready to accept switch commands and begin outputting video and audio Page 8 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 9 EXAMPLE OF SUCCESSFUL VIDEO CROSSPOINT CHANGE ON LCD SCREEN NOTE: The selected video input will be output on both the HDMI and HDBaseT outputs, the outputs cannot be independently switched. Page 9 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 10 HDMI input the audio being sent with the video can be passed directly to the installed speakers of the room rather than having to be routed from the source as a separate analogue audio input saving time, complexity and cabling. Page 10 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 11 LCD display will show the current output level in dB (decibels). To mute the audio output simply press the MUTE button located on the front of the unit, the LCD display will update to show the change, as shown below. Page 11 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 12 ENTER button, the screen should then display the message; ‘SETTING OK’ and the new output resolution with the change taking effect on the video output. EXAMPLE OF SUCCESSFUL OUTPUT RESOLUTION CHANGE ON LCD SCREEN Page 12 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 13 The LCD display will display the message, ‘SETTING OK’ showing the command has been sent and accepted EXAMPLE OF IMAGE SETTINGS BAR SEEN ON VIDEO OUTPUT EXAMPLE OF SUCCESSFUL IMAGE SETTINGS CHANGE ON LCD SCREEN Page 13 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 14 Now when looking at the video output settings of the sources (if available) the EDID seen should be that of the screen attached, when setting the EDID, to the HDMI output Page 14 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 15 The Protocol document for the SDS presentation switch can be found on the product page: www.smart-e.co.uk/product-range/sds-7000 The Smart-e control application can be downloaded from the Smart-e website: www.smart-e.co.uk/downloads/software When a successful command has been received and processed via the 232 port the system...
  • Page 16 192.168.1.190 Port 6666 The Protocol document for the SDS presentation switch can be found on the product page: www.smart-e.co.uk/product-range/sds-7000 The Smart-e control application can be downloaded from the Smart-e website: www.smart-e.co.uk/downloads/software Page 16 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 17 NOTE: Please be sure not to plug a cable connected to a network into either of the HDBaseT ports on the unit, this could cause severe damage to the unit and void warranty Page 17 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 18: Transceiver Options

    HDMI audio. Presented in a compact case with incorporated mounting lug solution for ease of installation. For more information please visit the product page: http://www.smart-e.co.uk/product-range/4k-900 Page 18 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 19 HDBaseT output carried via CAT5E/6 cable up to 100 meters. Presented in a compact case with incorporated mounting lug solution for ease of installation. For more information please visit the product page: http://www.smart-e.co.uk/product-range/4k-900 Page 19 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 20: Troubleshooting

    Ensure correct comm port / IP address is selected  Ask IT technician to ensure comm port is outputting data  Cycle power on unit to ensure IP address in obtained Page 20 of 21 ©Smart-e(UK) Ltd. SDS-7000 User Manual...
  • Page 21 Customer is responsible for maintaining proof of date of purchase. 2. Smart-e warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a.
