TJ Media TA-500 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TA-500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA-500 and is the answer not in the manual?

Questions and answers

Related Manuals for TJ Media TA-500

Summary of Contents for TJ Media TA-500

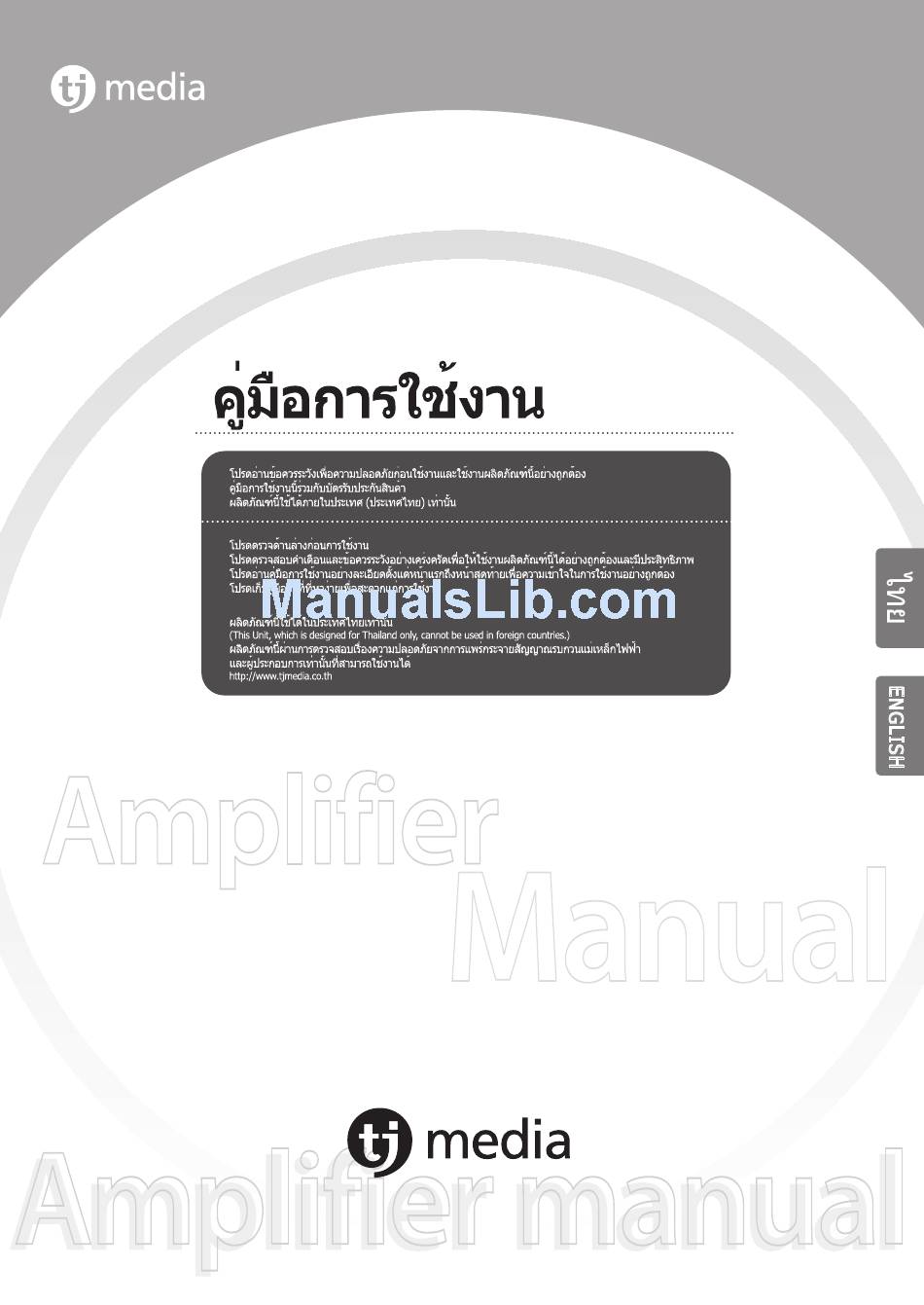

  • Page 1 TA-500...
  • Page 10 VIDEO IN -60Hz...
  • Page 11 DELAY...
  • Page 15 User Manual TA-500 Please read and comply with safety warningss before using. User manual includes product warranty card. Please check the following before using. Please read “Warning, precautions” to properly use the product. Please read the user manual thoroughly to fully utilize the functions of the product.

  • Page 16: Table Of Contents

    TA-500 Ampli er Features ........

  • Page 17: Ta-500 Ampli Er Features

    100W x 2CH/8 200W/8 Transistor. 3 Ch & 3 Mic Inputs Adopting 3Ch & 3 Mic Inputs, It’s convinient to adjust volume level and tone of each channel. SUPER BASE Adopting SUPER BASE circuit, you can enjoy the bass effect. FND LEVEL DISPLAY Adopting FND LEVEL DISPLAY, you can easily adjust the music volume.

  • Page 18: Safety Precautions

    Safety Safety Precautions Precautions are divided into “caution” and “warning”. Meaning of “caution” and “warning” are explained below. This sign brings attention to the user on operations or items that could cause hazard. Warning : when instructions are violated, there are possibilities of serious damage or death. Caution : when instructions are violated, there are possibilities of minor damage or hazard.
  • Page 19 Safety Precautions Safety Warning Do not use any other voltage than the speci ed 220V A.C. - Can cause malfunctioning or re. Do not insert clips or small metal objects inside the unit. - Can cause malfunctioning, re or electric shock. Never open the unit cover.
  • Page 20 Safety Safety Precautions Caution Remove all connected wires when moving the unit to prevent damages to wires/cords. - Damaged wire can cause re or electric shock. Do not place objects or sit on the unit. - Excessive weight applied on the unit can damage or wrap the unit. - Damages can cause malfunctioning, re or electric shock.

  • Page 21: Grounding Precautions

    Grounding precautions Safety Warning Make sure to connect the ground wire to the ground outlet. The unit not grounded or improperly grounded can cause re or electric shock. Also, the possibility of getting electric shocks from other devices(monitor, karaoke machine, microphone) connected to the amp.

  • Page 22: Power Cable Connection

    Connection Power cable connection Connecting power plug Connect the power cord at the back of the ampli er rst and insert it to the power outlet. About power This unit uses 220V A.C. In case of problem with the unit, do not open the cover as there is danger of electric shock and re.

  • Page 23: Descriptions And Overview

    Descriptions and overview Connection POWER SWITCH : Turn On / Off. 1. POWER MIC : Connection with microphone. HIGH : Adjust the high range sound of MIC. MID : Adjust the middle range sound of MIC. 2. MIC LOW : Adjust the low range sound of MIC. MIC 1,2,3 : Connect to microphone.

  • Page 24: Connecting The System

    Connection Connecting the system SPK TERMINAL This is for conneting to speaker system. (Caution: Please do not use the speaker system which is under 8ohm of impedance when conneting to 4 way speaker system.) VIDEO IN -60Hz AUDIO OUT MIC IN VIDEO OUT AUDIO OUT VIDEO OUT MUSIC A/B...

  • Page 25: How To Operate Ta-500

    How to Operate TA-500 Operation Check all auxiliary devices are connected properly. Adjust all volume knob to the center before when turning on TA-500. When you turn on, power indicator is on. After 2~3 seconds, Turn on you can hear clicking sound, then you can use TA-500.

  • Page 26: Proper Usage Of Microphone

    Operation Proper usage of Microphone - Proper distance between mouth and microphone is 10~15cm. - If the distance is too close, the sound may be distorted or howling. - Grab the microphone 2~3cm under the head of microphone. - If you grab the head of microphone. the sound may be distorted or howling.

  • Page 27: Troubleshooting

    Troubleshooting Other information Refer to the information below when problem within the unit is suspected. Problem can be from poor control or other devices connected to the unit, therefore check other units as well. If the same problem persists after following the troubleshooting methods, do not open the cover of the unit, but contact a service center or authorized dealer.

  • Page 28: Services

    - The unit is under warranty for 1 year. - Speci cations and appearance of the unit can change without notice for quality improvement. Other information Product specification Speci cations and appearance of the unit can change without notice for quality improvement. TA-500 Model name Input voltage ~220V/50-60Hz...
  • Page 32 Ampli er User Manual TJM-TE-201104-00...
