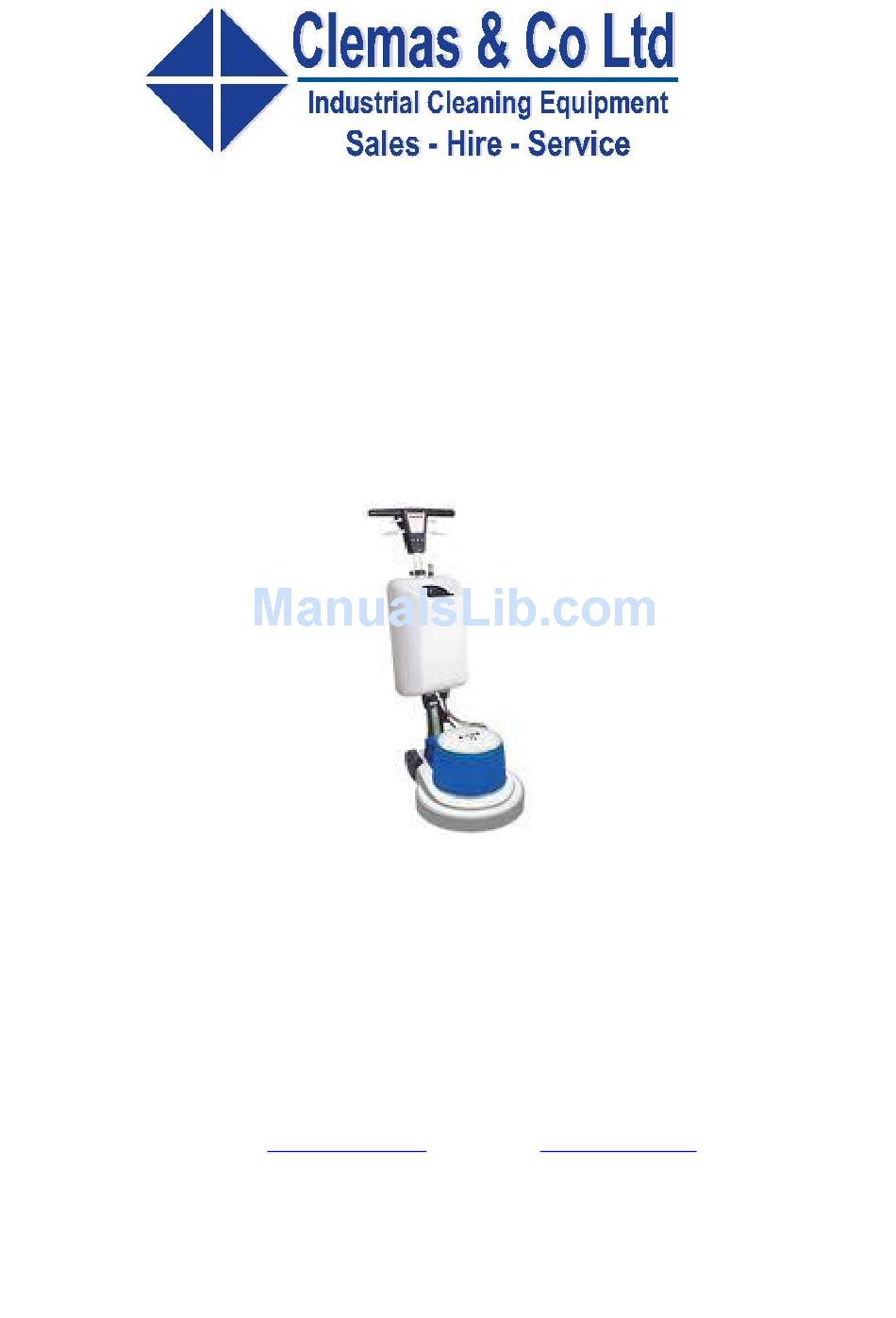

- Page 1 JOLLY 17 POLISHER OPERATOR MANUAL Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
-
Page 2: Prescribed Usage
Operating instructions and maintenance THIS MANUAL CONTAINS VITAL INFORMATION FOR THE SAFE USE AND EFFICIENT OPERATION OF THIS MACHINE. CAREFULLY READ THIS OPERATOR’S MANUAL BEFORE STARTING THE MACHINE, AND RETAIN FOR FUTURE REFERENCE. INSTRUCT ALL OPERATORS TO READ THIS MANUAL. FAILURE TO ADHERE TO THE INSTRUCTIONS COULD RESULT IN SERIOUS BODILY ANJURI OR PROPERTY DAMAGE. -
Page 3: Important Notes
- Any further national or internal company regulations are observed. - All users are acquainted with the safety regulations and trained in the use of the specific machine. - All users have read and understood the operatin instructions. - Responsabilities for the operation, maintenance and repair of the machine are clearly assigned and observed. - Page 4 AND “OFF” MASTER SWITCH IS OPERATED BY MEANS OF LEVERS IMMEDIATELY UNDER HANDLE GRIPS. WHEN TRANSPORTING OR STORING MACHINE, RAISE HANDLE TO VERTICAL POSITION. MAINTENANCE OF MACHINE WARNING: MAINTENANCE SHOULD BE PERFORMED BY QUALIFIED PERSONNEL ONLY. Lubrication: your machine has been completely lubricated at the factory before shipment to you. The gear unit is lubricated for 2 or 3 years (for normal work).
- Page 5 GOODS TO BE RETURNED In case of goods to be returned for warranty replacement, it is necessary to have a written acceptance from FIORENTINI technical department before sending them. All defective parts must be carefully packed in order to avoid further damages during transport. Goods must be shipped ex-warehouse and followed by : •...
- Page 6 JOLLY 17 PARTI DI RICAMBIO SPARE PARTS PIÈCES DETACHÉES ERSATZTEEILE...
- Page 7 JOLLY 17 TAV.1...
- Page 8 N.Position Code Num Qta Descrizione Description Description Bezeichnung ---------------------------------------------------------------------------------------------------------------------------- J17.01.001 CO069 1 COPERCHIO SPINA CAVO ELETTRICO C/IN PLUG COVER COUVERCLE DECKEL J17.01.002 VA224 4 VITE AUTOFILETT.4,8x19 UNI 6954/71 SCREW SCHRAUBE J17.01.003 LP010 1 LAMPADA SPIA ROSSA 220V RED PILOT LIGHT 220V LAMPE VOYANT ROUGE KONTROLLAMPE, ROT J17.01.004...
- Page 9 JOLLY 17 TAV. 2...
- Page 10 3 VITE SVASATA A CROCE M6X18 UNI 7688 SCREW SCHRAUBE J17.02.037 MV091 1 ZAVORRA PER MONOSPAZZOLA WEIGHT POIDS DER KORPERDRUCK J17.02.038 CA146 1 BASAMENTO PER JOLLY 17 CASE COUVERCLE BUERTENGEHAEUSE J17.02.039 BU013 1 BUMPER PER MONOSP. JOLLY17 BUMPER GARDE-BOUE PUFFER J17.02.040...
- Page 11 JOLLY 17 TAV. 3...
- Page 12 N.Position Code Num Qta Descrizione Description Description Bezeichnung ---------------------------------------------------------------------------------------------------------------------------- J17.03.001 VP028 2 VOLANTINO A 8 LOBI VPA25 M6x35 HANDWHEEL VOLANT HANDRAD J17.03.002 RO203 2 RONDELLA NORMALE DIAM. 6 UNI 6592/6 WASHER D6 RONDELLE SCHEIBE J17.03.003 ST093 1 STAFFA FISSAGGIO SUPP.SERBATOIO CASE BRACKET SUPPORT BUEGEL...
- Page 13 JOLLY 17 TAV. 4...
- Page 14 N.Position Code Num Qta Descrizione Description Description Bezeichnung ---------------------------------------------------------------------------------------------------------------------------- J17.04.001 LP010 1 LAMPADA SPIA ROSSA 220V RED PILOT LIGHT 220V LAMPE VOYANT ROUGE KONTROLLAMPE, ROT J17.04.002 PY280 1 PRESA 42RO4.2311 10A SOCKET PRISE DOSE J17.04.003 PY307 1 SPINETTA MASCHIO 250V 10A PLUG CONNECTEUR STECKER...
