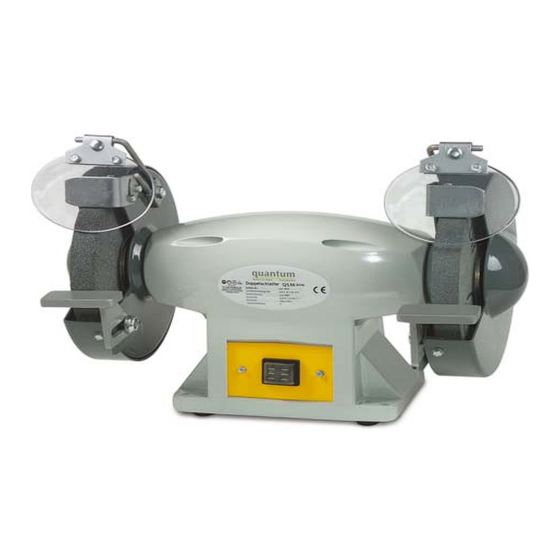

- Page 1 M A S C H I N E N - G E R M A N Y PERATING ANUAL Version 1.1 Bench grinder Type Q SM 150 Q SM 175 Q SM 200 Keep for future reference! 29 June 2005 Version 1.1...
-
Page 2: Table Of Contents
M A S C H I N E N - G E R M A N Y Table of contents Safety Safety warnings (Warning notes) ..............4 1.1.1 Classification of hazards ..............4 1.1.2 Other pictograms ................5 Proper use ......................5 Possible dangers caused by the grinder ............6 Qualification of personnel .................6... -
Page 3: Safety
Safety M A S C H I N E N - G E R M A N Y Safety Glossary of symbols gives additional indications calls on you to act • Enumerations This section of the instruction manual •... -
Page 4: Safety Warnings (Warning Notes)
Safety M A S C H I N E N - G E R M A N Y Safety warnings (Warning notes) 1.1.1 Classification of hazards We classify the safety warnings into various levels. The table below gives an overview of the classification of symbols (pictograms) and warnings for the specific danger and its (possible) consequences. -
Page 5: Other Pictograms
Safety M A S C H I N E N - G E R M A N Y 1.1.2 Other pictograms Warning - Activation Pull the mains Use protective Use ear flammable forbidden! plug! goggles! protection! substances! Use protective... -
Page 6: Possible Dangers Caused By The Grinder
Safety M A S C H I N E N - G E R M A N Y Possible dangers caused by the grinder The grinder has undergone a safety inspection (analysis of danger with assessment of risks). Design and construction based on this analysis were carried out with the latest technological advances. -
Page 7: Authorised Personnel
Safety M A S C H I N E N - G E R M A N Y 1.4.2 Authorised personnel WARNING! Incorrect use and maintenance of the grinder causes danger for personnel, objects and the environment. Only authorised personnel may operate the bench grinder! Personnel authorised to use and perform maintenance are the trained and instructed technical staff working for the operator and manufacturer. -
Page 8: Safety Devices
Safety M A S C H I N E N - G E R M A N Y Safety devices Use the grinder only with properly functioning safety devices. Stop the grinder immediately if there is a failure in the safety device and when the grinder is not being used. -
Page 9: Safety Check
Safety M A S C H I N E N - G E R M A N Y Safety check Check the bench grinder at least once per shift. Inform the person responsible immediately of any damage, defect or change in operating function. -
Page 10: Safety During Operation
Safety M A S C H I N E N - G E R M A N Y Safety during operation This operation manual will alert you to actual danger involved in operating the bench grinder. WARNING! Prior to activating the bench grinder please double-check whether this will •... -
Page 11: Mechanical Maintenance Work
Safety M A S C H I N E N - G E R M A N Y 1.10.2 Mechanical maintenance work Remove all protection and safety devices before beginning maintenance work and re-install them once the work has been completed. These include: •... -
Page 12: Technical Data
Technical data M A S C H I N E N - G E R M A N Y Technical data Characteristics plate Illustr.2-1: Characteristics plate Power connection The following information gives the dimensions and weight and is the manufacturer's authorised service information. -
Page 13: Ambient Conditions
Technical data M A S C H I N E N - G E R M A N Y Ambient Conditions Temperature 5-35 °C Humidity 25 - 80% Emissions State-of-the-art acoustic protection methods are used. The level of acoustic intensity is below 73 dB(A). -
Page 14: Assembly 3.1 Parts List
Assembly M A S C H I N E N - G E R M A N Y Assembly INFORMATION Before the machine is first used the transparent spark-guards and the supports for tools must be fitted on the bench grinder. -
Page 15: Assembly
Assembly M A S C H I N E N - G E R M A N Y 3.3.2 Assembly “Qualification of personnel“ on page 6 Check the horizontal orientation of the base of the grinder with a spirit level. -
Page 16: Operating
Operating M A S C H I N E N - G E R M A N Y Operating Only operate the bench grinder when the following conditions have been met: • The bench grinder is in perfect technical condition. -
Page 17: Maintenance
Maintenance M A S C H I N E N - G E R M A N Y Maintenance In this chapter you will find important information about • Inspection • Maintenance • Repairs of the bench grinder. ATTENTION ! Properly-performed regular maintenance is an essential prerequisite for •... -
Page 18: Changing The Grinding Wheels
Maintenance M A S C H I N E N - G E R M A N Y 5.2.1 Changing the grinding wheels The grinding wheel must be replaced whenever the distance between the external diameter of the wheel and the edge of the grinding wheel cover is greater than 6 mm. -
Page 19: Repair
Maintenance M A S C H I N E N - G E R M A N Y Repair Ask Optimum Maschinen GmbH's technical service to send a technician to perform any repair or send us the bench grinder. -
Page 20: Exploded View
Exploded view Illustr.5-4: Exploded view... -
Page 21: Spare Parts List
Maintenance M A S C H I N E N - G E R M A N Y Spare parts list Article Name Article number Name number Stator Left protective cover Cable lug Snap ring Rubber cover for cable lug... -
Page 22: Appendix 6.1 Copyright
Appendix M A S C H I N E N - G E R M A N Y Appendix Copyright © 2004 This document is copyright. All derived rights are also reserved, especially those of translation, re-printing, use of figures, broadcast, reproduction by photo-mechanical or similar means and recording in data processing systems, whether partial or total. -
Page 23: Warranty
Appendix M A S C H I N E N - G E R M A N Y Warranty Within the term of warranty, the company Optimum warrants for a perfect quality of its products and will reimburse any cost for overhaul or exchange of defective parts in case of construction error, fault in material and / or defect of fabrication. -
Page 24: Product Follow-Up
Appendix M A S C H I N E N - G E R M A N Y Product follow-up We have a follow-up service for our products which extends even after shipment. We would be grateful if you could send us the following information: •... -
Page 25: Ec Declaration Of Conformity
M A S C H I N E N - G E R M A N Y EC Declaration of Conformity The manufacturer / Optimum Maschinen Germany Dr.-Robert-Pfleger-Str. 26 retailer: D-96103 Hallstadt hereby declares that the following product Type of machine:... -
Page 26: Index
Index M A S C H I N E N - G E R M A N Y Index Accident report ......... 11 Assembly ..........14 Connection -Power ..........12 Copyright ..........22 Declaration of Conformity ......25 EC Declaration of Conformity ....25 Electrical system Safety ..........
