GlobalTop SC-200 Installation Manual

Speed camera advisor
Hide thumbs

Advertisement

Quick Links

Download this manual
Rev.A01

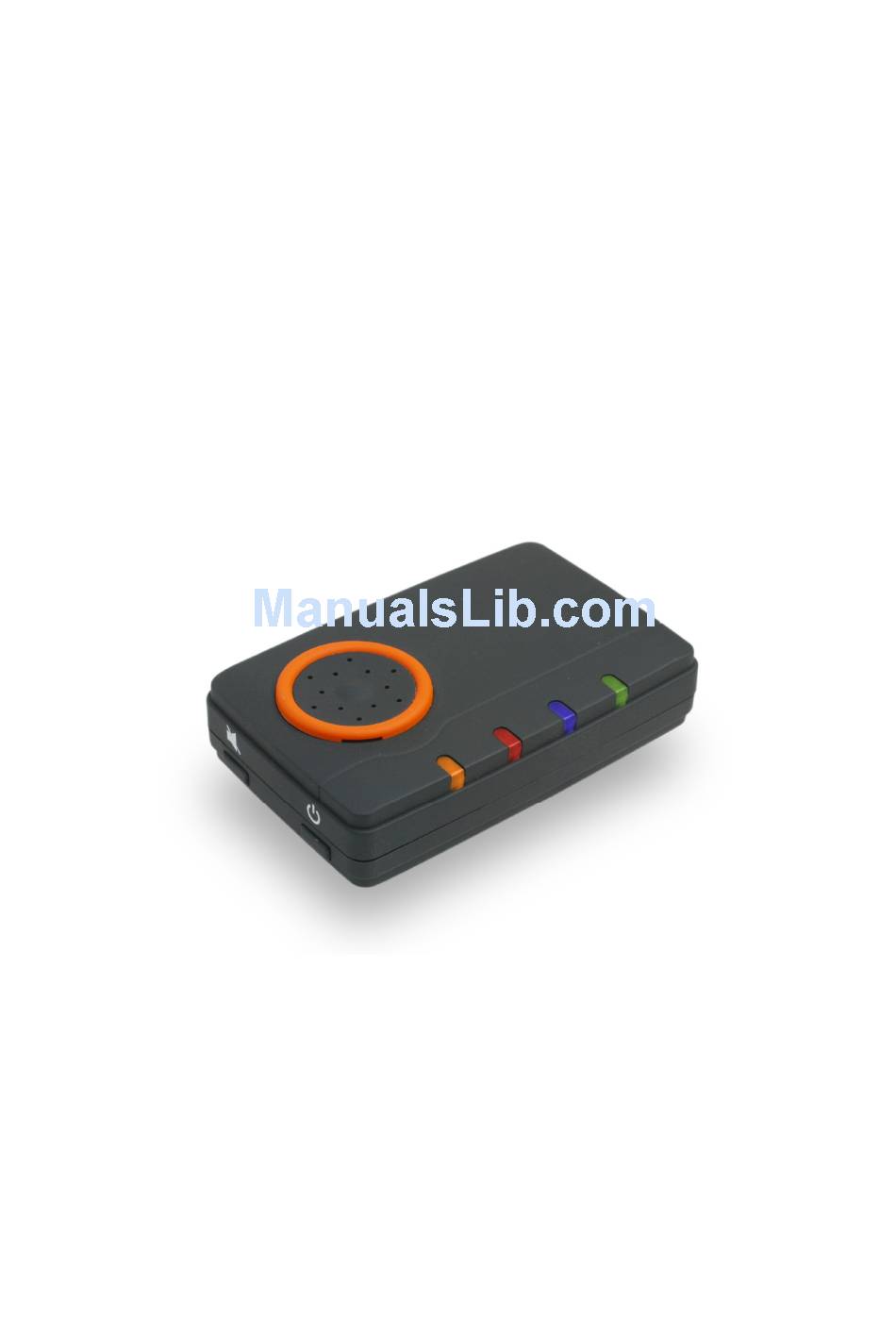

SC-200 Speed Camera
Advisor
Installation Guide
GPS 66 Channel
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for GlobalTop SC-200

  • Page 1 Rev.A01 SC-200 Speed Camera Advisor Installation Guide GPS 66 Channel...

  • Page 2: Table Of Contents

    Step II: Download the update database............. 10 Step III: Install Advisor USB driver ..............13 Step IV: Install the Advisor application tool in your PC ........18 Step V: Upgrade your database of the SC-200 by application tool ....25 Troubleshooting ......................32 Reversion History：....................33 (The document and application tool are change without notice, please update the latest version at http://www.scdb.info/)

  • Page 3: How To Update Your Data Base

    Rev.A01 How to update your data base The SC-200 is able to be updated speed camera change. Please link the service website to do the update, it is easy to download the database and update it to your device. http://www.scdb.info...

  • Page 4: Step I : Register Scdb And Download The Database

    Rev.A01 Step I : Register SCDB and download the database Please login http://www.scdb.info/ and select the language you need...
  • Page 5 Rev.A01 Fill in your information and check the agreement box The SCDB will send a mail to your E-mail address with further instructions (Activation user account) for step 2, you must active you account to click the hyper-link; you will watch the message window when you follow the further instructions.
  • Page 6 Rev.A01 After login your account, you will enter step 3 to make a payment, you also can check the payments status by click “Private “, and it will show the “still no payments received “... Please click “Make payment “, the website will list payment method, please choose to use a voucher code for payment and click >>...
  • Page 7 Rev.A01 Please fill in the voucher code on your CD cover and check the item “I hereby accept the General terms and conditions of scdb.info. “ “Press “Send “button.
  • Page 8 Rev.A01 You will get finish message for your download area on scdb website.
  • Page 9 Rev.A01 You also can check the “Payment list” to know the payment history. You can check “ Private “to know the service schedule.

  • Page 10: Step Ii: Download The Update Database

    Rev.A01 Step II: Download the update database Please choose the “Plug-ins “the web page You will find the overview about all Plug –ins , please choose Gtop logo...
  • Page 11 Rev.A01 Please refer to the installation guide and click “Download “button to download the update database. Please check “I accept the terms of use “item and press “send “button.
  • Page 12 Rev.A01 Please press “Download “button Please download the database file to your computer after you click the “Download” button. You also can click the “Installation Guide” to download latest installation guide and application tool . Next time, you just need to login the website by your register account and password for database download.

  • Page 13: Step Iii: Install Advisor Usb Driver

    Rev.A01 Step III: Install Advisor USB driver Please link the SC-200 and PC via USB cable, the system will detect the new hardware “GPS receiver “ The system will request the “GPS USB Serial Interface Driver “and the hardware wizard message window will pop up.
  • Page 14 Rev.A01 Please choose item 2: “Install from a list or specific location “. Please select the item “Include this location in the search “and browse the driver in your CD (or DVD) drive.
  • Page 15 Rev.A01 Please check your system O.S. and then choose the proper driver for your device. For example; WinXP O.S, then click “OK “. And then press “Next “...
  • Page 16 Rev.A01 The system will install the driver and request an agreement to do the installation, please choose “Continue Anyway “...
  • Page 17 Rev.A01 The driver installation is finished. You can start to use the device...

  • Page 18: Step Iv: Install The Advisor Application Tool In Your Pc

    Rev.A01 Step IV: Install the Advisor application tool in your PC Please choose the setup.exe for Advisor application program installation.
  • Page 19 Rev.A01 Press “OK “to install the program and follow steps to finish the installation.
  • Page 20 Rev.A01 Press “continue “button The installation is finished.
  • Page 21 Rev.A01 About the Advisor application program When you run the Advisor Ap., you can watch the outline of application program , it is divided three parts , and the related description about each page is described below : 1. GPS status 2.
  • Page 22 Rev.A01 GPS status page: The page supplies the PC link and GPS status function: a. Status: (include satellites and C/N status chart ) It shows current GPS status and some information when you link and enable OpenGPS function. b. Com Port: the current port for connection. c.
  • Page 23 Rev.A01 Database Upgrade page Current Database Version: The Ap. will check the current database version of the device when you want to update the database. (Ps: the default version is Pre-Installation Ver.) The New Version Database: Please browse the target directory of your new database; it will get the database and version for upgrade.
  • Page 24 Rev.A01 About Page The about page show company information and version.

  • Page 25: Step V: Upgrade Your Database Of The Sc-200 By Application Tool

    Rev.A01 Step V: Upgrade your database of the SC-200 by application tool About upgrade the database , the procedures are divided into four steps ,please follow related description to finish the database upgrade. Step I: Connection via USB cable by auto scan Please connect your device after install the Advisor USB driver (please install the USB driver when you will link device to PC at first time.) and execute the application...
  • Page 26 Rev.A01 The message window will show “Found the device at [COMX] “; request to click [OpenGPS] to enable the COM port. Notice: it is not necessary to receive the GPS signal when you upgrade the database.
  • Page 27 Rev.A01 Step II: Upgrade the database After Enable the OpenGPS, the database upgrade will can be accessed, you will find the current database version.
  • Page 28 Rev.A01 Please click the “Browse … “to the target directory which saved the new database. And choose the database you want to upgrade...
  • Page 29 Rev.A01 Please click the “Upgrade “button to start upgrade, the progressing bar will show the upgrade status, and the leds of the device will be blinking by turns until the upgrade is finished.
  • Page 30 Rev.A01 Under upgrading It would take couple minutes to complete this update entirely. Don’t take this as error case. If the upgrade process is terminated by something wrong or system unstable, please upgrade again when you solve the unstable problem. Please refer to the detail in troubleshooting item.
  • Page 31 Rev.A01 The database upgrade is finished .

  • Page 32: Troubleshooting

    Rev.A01 Troubleshooting Q1: Why the system requests to restart the computer during install the application program? (Please refer to the message window) Ans: Because the application needs to use some new components, you need to update the patch for the application installation, please restart the program and install again.

  • Page 33: Reversion History

    Rev.A01 Reversion History： History Date Rev. Description 2008/06/20 First Release 2008/08/15 Add Picture about Ap tool and document update in Page 12...
