Panasonic TH-50PV80D Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Plasma TV
  5. TH-50PV80D
  6. Service manual

Panasonic TH-50PV80D Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TH-50PV80D
Model No.
TH-50PV80H
TH-50PV80HM
TH-50PV80M
TH-50PV80MR
TH-50PV80MS
TH-50PV80MT
GPH11DA Chassis
© 2008 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO.MD0805043CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-50PV80D

Summary of Contents for Panasonic TH-50PV80D

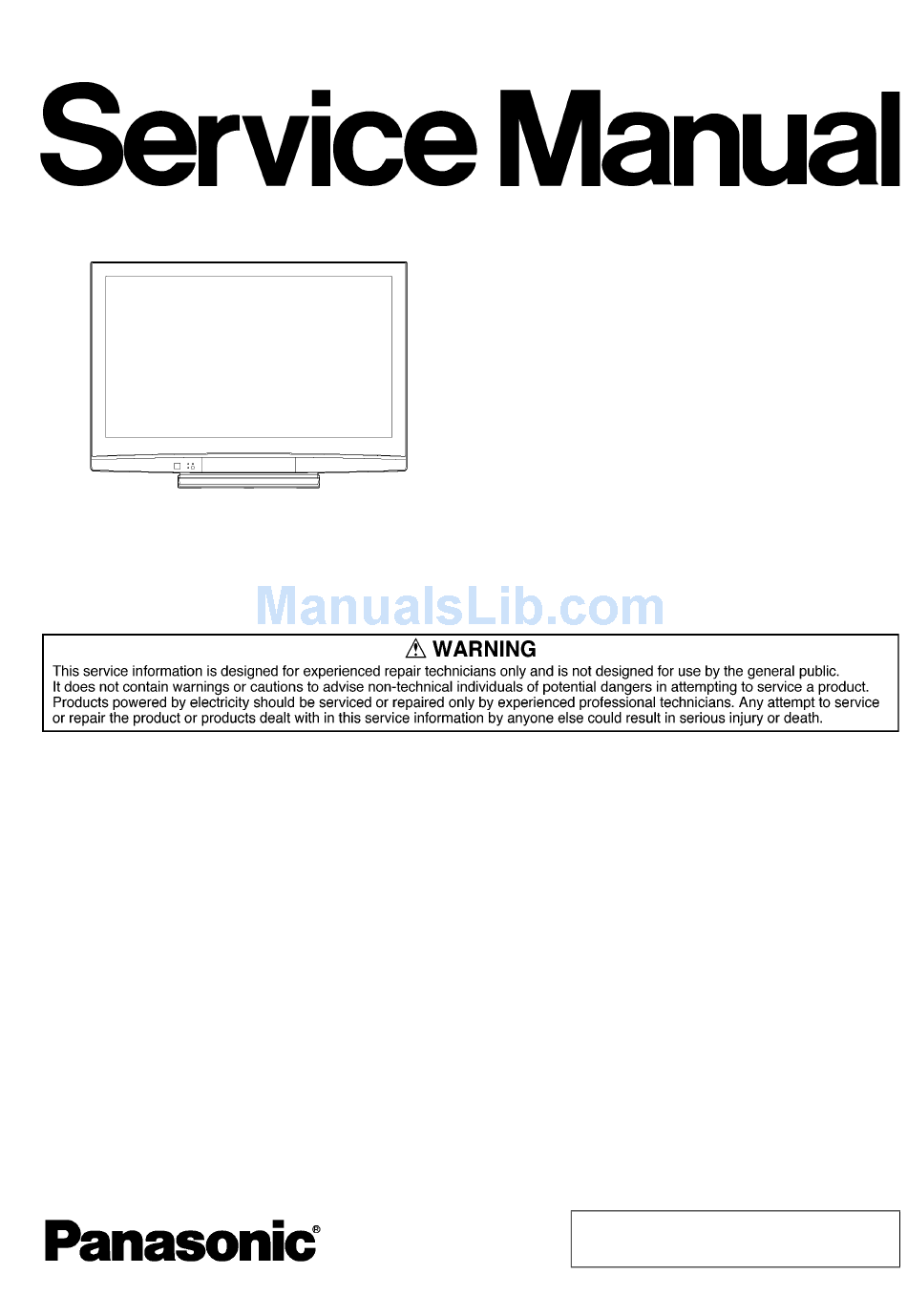

  • Page 1 ORDER NO.MD0805043CE Plasma Television TH-50PV80D Model No. TH-50PV80H TH-50PV80HM TH-50PV80M TH-50PV80MR TH-50PV80MS TH-50PV80MT GPH11DA Chassis © 2008 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribu- tion is a violation of law.

  • Page 2: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 3: Prevention Of Electrostatic Discharge (Esd) To Electrostatically Sensitive (Es) Devices

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi- tive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 4: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 5: Service Navigation

    3 Service Navigation 3.1. Service Hint Board Name Function Board Name Function Power Supply Data Driver (Lower Right) DC-DC Converter Data Driver (Lower Center) Speaker out, Sound Processor Data Driver (Lower Left) AV Terminal, AV Switch Scan Drive Digital Signal Processor, Micon, HDMI Interface Scan out (Upper) Peaks Lite 2p Scan out (Lower)

  • Page 6: Applicable Signals

    3.2. Applicable signals...

  • Page 7: Specifications

    4 Specifications Power Source AC 220 - 240 V, 50/60 Hz (D/H/HM/M/MR/MT) AC 110 - 240 V, 50/60 Hz (MS) Power Consumption Average use 500 W (D/H/HM/M/MR/MT) 519 W (MS) Standby condition 0.5 W Plasma Display panel Aspect Ratio 16:9 Visible screen size 127 cm (diagonal) 1,106 mm (W) ×...
  • Page 8 Y:1.0 V [p-p] (75 Ω) C:0.286 V [p-p] (75 Ω) S VIDEO Mini DIN 4-pin Monitor Output RCA PIN Type × 2 AUDIO L - R 0.5 V [rms] (high impedance) RCA PIN Type × 1 1.0 V [p-p] (75 Ω) VIDEO Others HDMI1 / 2 / 3 Input...

  • Page 9: How To Enter Into Service Mode

    5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [i] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...

  • Page 10: Contents Of Adjustment Mode

    5.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 5.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

  • Page 11: Service Tool Mode

    5.2. Service tool mode 5.2.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.2.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

  • Page 12: Hotel Mode

    5.3. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode ON/OFF In order to display the Hotel mode setup menu, please Initial INPUT Select input signal modes. enter the following command (within 2 second).

  • Page 13: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 14: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
  • Page 15 6.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
  • Page 16 6.4. No Picture...

  • Page 17: Local Screen Failure

    6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 18: Remove The Tuner Unit

    7 Disassembly and Assembly Instructions 7.1. Remove the Back cover 7.4. Remove the Tuner unit 1. See Service Hint (Section 3) 1. Unlock the cable clampers to free the cable. 2. Disconnect the connectors (A1, A7, A11, A12, A25, A31, 7.2.

  • Page 19: Remove The Su-Board

    7.6. Remove the SU-Board 7.7. Remove the SD-Board 1. Remove the flexible cables (SU1, SU2, SU3 and SU4) 1. Remove the flexible cables (SD1, SD2, SD3 and SD4) connected to the SU-Board. connected to the SD-Board. 2. Remove the flexible cable (SU11-SD11) and the bridge 2.

  • Page 20: Remove The Sc-Board

    7.8. Remove the SC-Board 7.10. Remove the SS3-Board 1. Remove the SU-Board and SD-Board. (See section 7.6. 1. Disconnect the connector (SS03) and disconnect the flex- and 7.7.) ible cable (SS57). 2. Unlock the cable clampers to free the cable. 2.

  • Page 21: Remove The Stand Brackets

    7.12. Remove the Stand brackets 7. Remove the screws (×4 ) and remove the C2-Board. 1. Remove the Plasma panel section from the servicing stand and lay on a fiat surface such as a table (covered) with the Plasma panel surface facing downward. 2.

  • Page 22: Remove The G-Board

    7.17. Remove G-Board, 7.19. Remove the Plasma panel sec- Board and GS-Board tion from the Cabinet assy (glass) 1. Remove the front bracket and the front shield unit assy. (See section 7.16.) 1. Remove the stand brackets (left, right) fastening screw 2.

  • Page 23: Remove The S-Board

    3. For leaving the plasma panel from the front frame, pull the bottom of the cabinet assy forward, lift, and remove. Caution: • Please confirm the installation place of BC hook (L, R) Spacer and Spacer Ring when you exchange the Plasma panel, and install BC hook (L, R) Spacer and Spacer Ring in an original installation place after exchanging the Plasma panel.

  • Page 24: Remove The K-Board

    7.21. Remove the K-Board 1. Remove the Cabinet assy. (See section 7.19.) 2. Remove the S-Board. (See section 7.21.) 3. Remove the screws (×2 4. Disconnect the connector (K1) and Remove the K-Board. 7.22. Remove the plasma panel (fin- ished) 1.

  • Page 25: Measurements And Adjustments

    8 Measurements and Adjustments 8.1. Adjustment Procedure 8.1.1.2. Adjustments Adjust driver section voltages referring the panel data on the 8.1.1. Driver Set-up panel data label. Check or adjust the following voltages with the multimeter. 8.1.1.1. Item / Preparation 1. Input a white signal to plasma video input. Name Test Point Voltage...
  • Page 26 8.1.3. Adjustment Volume Location 8.1.4. Test Point Location...

  • Page 27: Block Diagram

    MAIN+9V SENSE G_LED_ON +5V(S) SUB+5V SENSE +3.3V(M) MAIN+3.3V SENSE +3.3V(S) SUB+5V SENSE from +15V(SOUND) +5V(STB) +15V(F_STB) FOR FACTORY USE ALL OFF BT+30V +9V(P) +30V(BT) DIGITAL MAIN FOR FACTORY USE FOR FACTORY USE TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT Block (1/5) Diagram Block (1/5) Diagram...
  • Page 28 SOS8_SS SUSTAIN CONTROL SUSTAIN CONTROL VIDEO DATA SCAN OUT (LOWER) DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT Block Diagram (2/5) Block Diagram (2/5)
  • Page 29 STB_RST (+5.6V) MAIN9V DTV9V Q5606,07 +1.2V STB+3.3V F+15V DET SUB5V_SENSE Norm:Low IC4811 Ab:high STB5V DTV_9V_SENSE STB5V STB3.3V IIC SW AI_SENSOR MAIN9V_SENSE RMIN +3.3V G_LED_ON BT30V Q2027 TUNER_SUB_ON IC1102 R_LED_ON ECO_ON BT30V BUFFER TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT Block (3/5) Diagram Block (3/5) Diagram...
  • Page 30 +1.2V IC9806 P2.5V FOR FACTORY USE +2.5V JK7701 SUB+3.3V SD CARD SLOT 4bit SD DATA IC9802,03 LEVEL SHIFTER D2520 POWER LED G_LED_ON R_LED_ON AI_SENSOR PC2511 AI SENSOR RMIN SUB+5V RM2501 STB+3.3V REMOTE TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT Block (4/5) Diagram Block (4/5) Diagram...
  • Page 31 ERROR DET IC14961-63 D607 5V_F_A SCAN CONTROL F002 F001 PHOTO COUPLER VSCN TPSOS7 T8AH 250V T8AH 250V Q16875,79 D16718 16V_F VSET D16717 COLD ERROR DET VSET (LED:7TIMES) SCAN OUT (LOWER) AC CORD TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT Block (5/5) Diagram Block (5/5) Diagram...

  • Page 33: Wiring Connection Diagram

    10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 10.2. Wiring (1)

  • Page 35: Schematic Diagram

    11 Schematic Diagram 11.1. Schematic Diagram Note...
  • Page 36 SUFFIX JW C3816 C3812 R3831 0.1u K-BOARD C2524 0.01u JS2512 R3810 R3809 1000p R3834 49.9 TXN/K1RRTM *ZA3801 *ZA3802 K4AD01D00005 K4AD01D00005 A-BOARD GH11 (A11) GH-BOARD TXNGH1RRTM TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT G, GH, GS and K-Board Schematic Diagram G, GH, GS and K-Board Schematic Diagram...
  • Page 37 Dig/Ana Tu. IC4510 IC4800 IC2106 IC3001 Ana Tu. IC8601 IC1100 ADV7495 TMP_SENSOR ADAV4622 AV-SW LITE2p-EEP GenX5 GenX-EEP TO 9/19 TO 18/19 TO 11/19 TO 8/19 TO 4/19 TO 6/19 TO 6/19 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (1/19) Schematic Diagram A-Board (1/19) Schematic Diagram...
  • Page 38 C8033 C8034 C8080 IC8001 IC8001 AE25 IC8001 AGAVDD IC8001 LVVDD12 IC8001 IC8001 0.1u 0.1u 0.1u CLOCK GEN C8074 IC8001 AGAVSS IC8001 IC8001 AF21 C8076 C8075 0.1u IC8001 IC8001 AF24 0.1u TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (2/19) Schematic Diagram A-Board (2/19) Schematic Diagram...
  • Page 39 11.5. A-Board (3/19) Schematic Diagram A-BOARD (3/19) TP8745 TZTNP01RQTM (D/H/HM/M/MR/MT) AA_XRST SUB3.3V TZTNP01RQTQ (MS) R8711 R8712 AA_ESZ1 AA_ESZ0 SUB3.3V L8551 J0JHC0000075 C8555 0.1u R8564 IC8554 TVRP798-2 NOR FLASH R8566 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (3/19) Schematic Diagram A-Board (3/19) Schematic Diagram...
  • Page 40 TO 9/19 CH0PSYNC CH0VAL R8900 AA_SBI0 SBI0 DUBUG/JIG CH0DATA R8901 AA_SBO0 SBO0 INT.PU TO 9/19 R8959 AA_SBI1 IS1VAL SBI1 Hi-Z R8960 AA_SBO1 IS1PSYNC SBO1 Hi-Z *R8328 VI2P10 VI2CLK R8861 R8657 JTAG TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (4/19) Schematic Diagram A-Board (4/19) Schematic Diagram...
  • Page 41 SUB5V C5607 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u R5604 SUB5V LSAT 220p D5605 D5600 MA22D3900L ILIM OUT-2 B0BC4R000002 R5607 TO 9,14/19 R5611 R5605 +INC PGND 12.7k D_PCB_MODE -INC R5612 R5603 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (5/19) Schematic Diagram A-Board (5/19) Schematic Diagram...
  • Page 42 AG_PANEL_ARARM (PANEL_SOS) AG_PANEL_STBY/VCC_ON AG_PANEL_STBY/VCC_ON TO 5,11/19 AG_KEY1(CON-PANE) AG_KEY1(CON-PANE) TO 5/19 HQ1L/CN to HFD AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON AG_R_LED_ON TO 9/19 AG_R_LED_ON AG_G_LED_ON AG_GRAB_MODULE_IIC/PWM_POWER_ON AG_GRAB_MODULE_IIC/PWM_POWER_ON AG_G_LED_ON AG_AI_SENSOR AG_AI_SENSOR AG_CONFIG_DONE R4327 TO 5,14/19 AG_RMIN AG_RMIN TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (6/19) Schematic Diagram A-Board (6/19) Schematic Diagram...
  • Page 43 DDCSCL1 DDCSDA1 L4500 D4513 DDCG B0BC5R6A0275 VJUMP1608-P L4502 N.C. J0JYC0000068 R4508 RXC_CN CLK- CLKG R4509 RXC_CP CLK+ R4510 RXC_0N R4511 RXC_0P R4512 RXC_1N R4513 RXC_1P R4514 RXC_2N R4515 RXC_2P R4552 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (7/19) Schematic Diagram A-Board (7/19) Schematic Diagram...
  • Page 44 AG_HDMI_5V_DET1 AG_HDMI_5V_DET1 AG_HDMI_CEC AG_HDMI_CEC AG_EDID_WP AG_EDID_WP C4595 C4598 0.01u TO 6,11/19 AG_ADV_XRST AG_ADV_XRST *A11 A-BOARD (8/19) GH-BOARD TZTNP01RQTM (D/H/HM/M/MR/MT) (GH11) *R4641 *R4721 DDCA_SCL TZTNP01RQTQ (MS) MAIN3.3V MAIN5V *R4720 *R4643 DDCA_SDA TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (8/19) Schematic Diagram A-Board (8/19) Schematic Diagram...
  • Page 45 MAIN3.3V GenX5 GenX6 TEMP SENSOR IC4800 GenX6 Lite2p IIC1 SDA0 R4821 TO 1/19 C1ZBZ0003775 GenX5 TMP-SENS_SDA C4807 STB3.3V TMP-SENS_SCL 0.1u GenX5 ALERT R4835 TO 6/19 R4833 AG_GRAB_MODULE_IIC/PWM_POWER_ON Q4811 2SD0601ASL R4834 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (9/19) Schematic Diagram A-Board (9/19) Schematic Diagram...
  • Page 46 2SD0601A0L RCA_AUDIOOUT_L_ RCA_AUDIOOUT_L E_PC_RIN/A_AV1_RIN_ L3015 J0JCC0000100 R3019 RCA_AUDIOOUT_R_ 2.2k MONITOR OUT A_VOUT C3002 C3003 Q3000 560p 560p 2SD0601A0L RCA_AUDIOOUT_R RCA_AUDIOOUT_L_ R3024 R3025 MONITOROUT_MUTE 100k 100k RCA_AUDIOOUT_R_ R3021 2.2k *JK3100 K1U932A00002 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (10/19) Schematic Diagram A-Board (10/19) Schematic Diagram...
  • Page 47 E_QLINK_AV1 QLINK_AV3 GND_C FRONT_AV_V FRONT_AV_VGND TP3018 R3210 FRONT_AV_C R3096 R3216 VARAY405 A-BOARD (11/19) TZTNP01RQTM (D/H/HM/M/MR/MT) FRONT_AVS_Y TZTNP01RQTQ (MS) FRONT_AVS_YGND R3211 FRONT_AVS_CGND R3209 FRONT_AVS_C AVSW,REAR TERMINAL R3088 VARAY405 R3215 R3214 CRNo.3000-.3399 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (11/19) Schematic Diagram A-Board (11/19) Schematic Diagram...
  • Page 48 C5512 C5511 +15V 0.01u A-BOARD (12/19) FL5511 TP5510 F1J1E104A148 TZTNP01RQTM (D/H/HM/M/MR/MT) 0.1u C5516 C5517 TZTNP01RQTQ (MS) 0.1u TO 13/19 R5510 DCDC_PA PANEL_MAIN_ON PANEL_MAIN_ON R5511 SOS4_PS SOS4_PS CRNo.5400-5599 R5512 VDATA_DET VDATA_DET TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (12/19) Schematic Diagram A-Board (12/19) Schematic Diagram...
  • Page 49 R9848 EXB2HV470JV CPH1 R9110 SOS6_SC1 SOS6_SC1 R9142 SOS7_SC2 SOS7_SC2 SC_LAT CERS SC_CEL SC_CBK SC_DRV_RST SC_DRV_RST SC_CSL SC_CSH SC_CML SC_CMH R9849 EXB2HV470JV +15V P15V_MOTO +15V PA9900 K5H5022A0023 +15V C9858 C9859 0.01u TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (13/19) Schematic Diagram A-Board (13/19) Schematic Diagram...
  • Page 50 R9206 C0JBAZ002301 STB5V R9207 C9055 STB_SDA01 0.1u A-BOARD (14/19) C9050 R9200 R9171 D9017 AD_SDA0 TZTNP01RQTM (D/H/HM/M/MR/MT) C9049 R9170 B0BC3R3A0273 D9018 0.1u B0BC3R3A0273 0.1u TZTNP01RQTQ (MS) C9051 R9172 D9019 B0BC3R3A0273 0.1u TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (14/19) Schematic Diagram A-Board (14/19) Schematic Diagram...
  • Page 51 FP_UML UML_C2 FP_UMH UMH_C2 R9610 EXB2HV470JV R9385 DD_LED2 D-LED2 4.7k DD_PCD3 D-PCD3 DD_PCD4 D-PCD4 DD_ODED2 D-ODED2 DD_CLRD2 D-CLRD2 R9608 EXB2HV470JV DD_LED1 D-LED1 DD_PCD1 D-PCD1 DD_PCD2 D-PCD2 DD_ODED1 D-ODED1 DD_CLRD1 D-CLRD1 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (15/19) Schematic Diagram A-Board (15/19) Schematic Diagram...
  • Page 52 XOUT IC9900 P3.3V R9370 TP9010 Q9302 Q9301 2SD0601A0L 2SD0601A0L R9369 4.7k R9391 100k C9468 R9371 100k 0.01u R9116 FL9300 F1J1E104A148 FL9301 F1J1E104A148 K1MN68BA0266 K1MN55BA0266 DOWN_RIGHT DOWN_LEFT C1-BOARD C2-BOARD (C11) (C21) TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (16/19) Schematic Diagram A-Board (16/19) Schematic Diagram...
  • Page 53 IC9901 DQ28 L8DR_DQ29 IC9901 IC9901 DQ29 C9951 0.1u L8DR_DQ30 IC9901 IC9901 VREF IC9901 DQ30 L8DR_DQ31 IC9901 DQ31 L8DR_DQS0 R9938 IC9901 DQS0 L8DR_DQS1 IC9901 DQS1 L8DR_DQS2 IC9901 DQS2 L8DR_DQS3 IC9901 DQS3 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (17/19) Schematic Diagram A-Board (17/19) Schematic Diagram...
  • Page 54 << SPDIF_IN, OUT>> MA3X704A0L 0.047u X2010 H0J245500089 DVDD1.8V R2211 1.8V IC2107 R2172 JS2311 C0DBFFD00003 SUB3.3V C2189 C2187 R2075 6.3V 158k 2.2u A-BOARD (18/19) R2111 R2074 TZTNP01RQTM (D/H/HM/M/MR/MT) C2188 TZTNP01RQTQ (MS) 470p TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (18/19) Schematic Diagram A-Board (18/19) Schematic Diagram...
  • Page 55 D2302 D2301 0.1u B0HCMM000014 B0HCMM000014 REG5V_IN AH_HDMI_BCLK AH_HDMI_BCLK R2096 R2097 HDMI_BCLK STB3.3V STB3.3V_OUT AH_HDMI_SDIN AH_HDMI_SDIN C2408 HDMI_SDIN GND1 L2300 C2427 0.1u AH_HDMI_LRCK AH_HDMI_LRCK J0JYC0000068 Vref1 STB_RST HDMI_LRCK HDMI_SPDIF HDMI_SPDIF C2413 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-Board (19/19) Schematic Diagram A-Board (19/19) Schematic Diagram...
  • Page 56 C1_5V C1_5V C17113 C17111 C17112 C17131 C17132 C17114 C17133 C17134 250V 250V 250V 250V 0.15u 0.15u 0.15u 0.15u R17116 R17117 R17136 R17137 PANEL DATA PANEL DATA DRIVER VDA_75V VDA_75V DRIVER TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C1-Board (1/2) Schematic Diagram C1-Board (1/2) Schematic Diagram...
  • Page 57 SIDE C2-BOARD (C20) ZA17102 ZA17103 ZA17104 K4AD01Z00001 K4AD01Z00001 K4AD01Z00001 ZA17101 C1_5V K4AD01Z00001 C17153 C17151 C17152 C17154 250V ZA17106 ZA17105 250V 0.15u K4AD01Z00001 0.15u K4AD01Z00001 R17156 R17157 PANEL DATA VDA_75V DRIVER TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C1-Board (2/2) Schematic Diagram C1-Board (2/2) Schematic Diagram...
  • Page 58 Vda 75V Vda 75V R17226 R17227 Vda 75V Vda 75V Vda 75V PANEL DATA VDA_75V DRIVER C2_5V C17213 C17211 C17212 C17214 250V 250V 0.15u 0.15u R17217 R17216 PANEL DATA VDA_75V DRIVER TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C2-Board (1/2) Schematic Diagram C2-Board (1/2) Schematic Diagram...
  • Page 59 Vda 75V Vda 75V Vda 75V Vda 75V Vda 75V Vda 75V SIDE C3-BOARD (C32) C2_5V C17233 C17231 C17232 250V C17234 0.15u 250V 0.15u R17237 R17236 PANEL DATA VDA_75V DRIVER TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C2-Board (2/2) Schematic Diagram C2-Board (2/2) Schematic Diagram...
  • Page 60 LE_C3 VDA_75V Vda 75V Vda 75V Vda 75V Vda 75V Vda 75V Vda 75V C3_5V C17323 C17321 C17322 C17324 250V 250V 0.15u 0.15u CB10 R17326 R17327 PANEL DATA VDA_75V DRIVER TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C3-Board (1/2) Schematic Diagram C3-Board (1/2) Schematic Diagram...
  • Page 61 10 GND R17378 EXB38V470JV R17391 4.7k C3_5V C17333 C17331 C17332 C17334 250V 250V 0.15u 0.15u CB11 R17336 R17337 PANEL DATA VDA_75V DRIVER ZA17301 ZA17302 K4AD01Z00001 K4AD01Z00001 ZA17304 ZA17303 K4AD01Z00001 K4AD01Z00001 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C3-Board (2/2) Schematic Diagram C3-Board (2/2) Schematic Diagram...
  • Page 62 A_+INPUT D16480 B_-INPUT C16582 R16584 MA2J11100L 8.2k B_+INPUT R16476 R16586 4.7k AA_DRV_RST 1.8k MAIN_STOP R16593 1.2k TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 C16480 0.1u IC16472 C0JBAA000377 AND GATE TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SC-Board (1/3) Schematic Diagram SC-Board (1/3) Schematic Diagram...
  • Page 63 100k MA2J11100L Q16663 2SB0709ASL AA_DRV_RST C16806 160V 100u COLD FLOATING GND 16V_F R16670 R16657 AA_SCSU 6.8k D16659 B0HCMM000014 D16668 MA3X152D0L PC16710 Q16665 B3PBA0000223 B1ABCF000231 R16667 Q16664 B1HFPFA00001 D16669 R16672 MA2J11100L TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SC-Board (2/3) Schematic Diagram SC-Board (2/3) Schematic Diagram...
  • Page 64 R16856 D16830 D16839 MAZ80560HL SCNR_PRO B0ECKP000047 C16832 VF_GND 3900p D16838 D16836 L16801 B0BC027A0234 MAZ81500ML R16886 TP51 G0ZZ00002183 220k SC42 R16887 220k SD-BOARD R16888 (SD42) 220k TP59 TP60 TP61 TP62 TP63 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SC-Board (3/3) Schematic Diagram SC-Board (3/3) Schematic Diagram...
  • Page 65 AD_577 AC_641 C14907 630V 1000p Vscn C14932 C14933 C14938 C14931 C14936 C14937 C14939 C14940 C14941 C14942 250V 250V 0.1u 0.1u 220p 220p 220p 220p 1000p 220p 220p 1000p D14902 MAZ80560HL TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SU-Board (1/2) Schematic Diagram SU-Board (1/2) Schematic Diagram...
  • Page 66 AF_451 AF_510 AG_387 AG_446 AE_514 AF_450 AG_386 AE_513 AF_449 AG_385 Vscn C14923 C14924 C14934 C14935 250V 250V 250V 250V 0.1u 0.1u 0.1u 0.1u SC-BOARD SU41 (SC41) ZA14901 K4AD01Z00002 ZA14902 K4AD01Z00002 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SU-Board (2/2) Schematic Diagram SU-Board (2/2) Schematic Diagram...
  • Page 67 AD_195 AD_254 AB_322 AC_258 AD_194 AB_321 AC_257 AD_193 C14350 630V 1000p C14974 C14975 C14984 C14985 C14977 C14978 250V 250V 250V 250V 250V 250V 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u Vscn TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SD-Board (1/2) Schematic Diagram SD-Board (1/2) Schematic Diagram...
  • Page 68 MA2J11100L VSET2_O Q14962 ZA14952 C14986 K4AD01Z00002 2SD0601A0L 100p R14971 C14943 R14949 R14950 4.7u SU-BOARD R14972 R14970 R14969 AA_CHA (SU11) 4.7k 3.3k R14944 SD11 SIDE D14959 Q14961 MA2J11100L D14976 MA2J11100L 2SD0601A0L TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SD-Board (2/2) Schematic Diagram SD-Board (2/2) Schematic Diagram...
  • Page 69 R16254 C3-BOARD 8.2k (C33) B_+INPUT AA_UMH R16231 R16221 R16256 4.7k 4.7k 1.8k TP22 TP37 AA_SOS8 IC16251 R16251 1.2k C16243 C0BBBA000024 0.01u TPSOS8 ERROR DET TP33 TP34 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SS-Board (1/2) and S-Board Schematic Diagram SS-Board (1/2) and S-Board Schematic Diagram...
  • Page 70 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 120k VOUT VR16000 C16312 D16311 4700p MAZ81500ML SS23 R16317 SS34 SS22 C16313 ZA16003 K4CD01000011 R16315 1.24k TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram...

  • Page 71: Printed Circuit Board

    C2521 C2512 R2507 D2512 SW2500 RM2501 R M 2 5 0 1 R2519 R2517 R2554 R2542 R2516 R2565 R2520 D2530 Q2510 TNPA4524 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT G-BOARD TXN/G1RRTM G-BOARD TXN/G1RRTM K-BOARD TXN/K1RRTM K-BOARD TXN/K1RRTM S-BOARD TXN/S1RRTM S-BOARD TXN/S1RRTM GS-BOARD TXNGS1RRTM GS-BOARD TXNGS1RRTM...
  • Page 72 CL9249 CL9252 CL9255 CL9258 CL9261 CL9264 TP3018 CL9052 CL9056 CL9166 CL9171 CL9174 CL9177 CL9180 CL9183 CL9186 CL9190 CL9193 CL9199 CL9206 CL9213 CL9219 C5730 C3124 TP3017 FL3008 CL3185 R5732 TH-50PV80D/H/HM/M/MR/MR TH-50PV80MS TH-50PV80D/H/HM/M/MR/MR TH-50PV80MS A-BOARD TZTNP01RQTM A-BOARD TZTNP01RQTQ A-BOARD TZTNP01RQTM A-BOARD TZTNP01RQTQ...
  • Page 73 TP3009 Q9808 TP5500 IC9011 TP3013 Q9809 TP5510 IC9013 TP3014 TP5600 IC9805 TP3015 TP5601 IC9806 TP3017 TP5602 TP3018 TP5603 TP3019 TP5604 TP3020 TP5605 TP3021 TP5606 TP4500 TP5607 TP4501 TP5608 TP4502 TP5660 TP4503 TP5700 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT A-BOARD PARTS LOCATION A-BOARD PARTS LOCATION...
  • Page 74 L5611 C5733 C5732 R3030 R8834 FL5733 L3007 L3006 R8818 FL9300 FL9301 R3072 CL9275 TP4840 Q8801 A 3 2 FL5734 ZA0001 ZA0002 A 5 2 C5731 L5735 D5692 CL9278 TH-50PV80D/H/HM/M/MR/MR TH-50PV80MS TH-50PV80D/H/HM/M/MR/MR TH-50PV80MS A-BOARD TZTNP01RQTM A-BOARD TZTNP01RQTQ A-BOARD TZTNP01RQTM A-BOARD TZTNP01RQTQ...
  • Page 75 D 1 2 1 D 1 3 1 C 1 3 5 C 1 4 5 D 1 4 1 C 1 5 5 D 1 5 1 O R D E R N O . TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C1-BOARD TXNC11RQTM C1-BOARD TXNC11RQTM...
  • Page 76 R 2 3 7 R 2 1 7 ZA203 D 2 1 1 C 2 1 5 D 2 2 1 C 2 2 5 C 2 3 5 D 2 3 1 ZA204 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C2-BOARD TXNC21RQTM C2-BOARD TXNC21RQTM...
  • Page 77 R 3 7 2 R 3 1 6 R 3 2 7 R 3 3 6 CB10 C 3 2 5 C 3 3 5 D 3 1 1 C 3 1 5 D 3 2 1 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT C3-BOARD TXNC31RQTM C3-BOARD TXNC31RQTM...
  • Page 78 T P 2 6 T P 3 6 T P 1 8 T P 2 2 T P 5 2 T P 3 7 T P 7 0 T P 1 0 T P 2 7 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SC-BOARD TXNSC1RQTM SC-BOARD TXNSC1RQTM...
  • Page 79 Q16876 VOLUME TP29 TP92 Q16879 Q16601 TP30 VR16600 TP93 Q16602 Q16881 TP31 VR16601 TP94 Q16882 Q16603 TP32 VR16602 TP95 Q16604 TP33 TP96 Q16605 TP34 Q16606 TP35 Q16607 TP36 Q16608 TP37 TP38 TP39 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SC-BOARD PARTS LOCATION SC-BOARD PARTS LOCATION...
  • Page 80 R 5 8 7 R 5 3 1 D 4 7 2 D 5 8 5 R 5 2 2 R 5 2 1 R 5 8 5 R 5 8 0 R 5 8 9 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SC-BOARD TXNSC1RQTM SC-BOARD TXNSC1RQTM...
  • Page 81 H . V . D A N G E R H . V . D A N G E R SU41 R 9 0 9 R 9 1 7 R 9 1 9 R 9 2 0 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SU-BOARD TXNSU1RQTM SU-BOARD TXNSU1RQTM...
  • Page 82 H . V . D A N G E R D 9 7 5 TNPA4398 R 9 5 0 C 9 4 3 O R D E R N O . I C 9 6 3 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SD-BOARD TXNSD1RQTM SD-BOARD TXNSD1RQTM...
  • Page 83 S S 5 5 A S S 5 6 A L 1 0 3 S S 5 4 S S 5 3 S S 5 5 S S 5 6 T P 2 7 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SS-BOARD TXNSS1RQTM SS-BOARD TXNSS1RQTM...
  • Page 84 L 1 0 4 L 1 0 2 S S 5 3 S S 5 6 S S 5 5 S S 5 4 T P S S 1 Z A 0 0 2 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SS-BOARD TXNSS1RQTM SS-BOARD TXNSS1RQTM...
  • Page 85 S E E R E V E R S E F O R O R D E R N O . O R D E R N O . S S 5 7 S S 5 7 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT SS2-BOARD TXNSS21RQTM SS2-BOARD TXNSS21RQTM...
  • Page 86 C 8 1 4 C 8 1 2 R 8 1 9 C 8 2 2 R 8 4 4 R 8 2 0 R 8 0 9 Z A 8 0 1 R 8 1 0 TH-50PV80D/H/HM/M/MR/MS/MT TH-50PV80D/H/HM/M/MR/MS/MT GH-BOARD TXNGH1RRTM GH-BOARD TXNGH1RRTM...

  • Page 87: Exploded View And Replacement Parts List

    13 Exploded View and Replacement Parts List 13.1. Exploded View and Mechanical Replacement Parts List 13.1.1. Exploded View...
  • Page 88 13.1.2. Packing...

  • Page 89: Mechanical Replacement Parts List

    13.1.3. Mechanical Replacement Parts List...
  • Page 90 Ref. Safety Part No. Part Name & Description Q'ty Remarks EAS16S06A SPEAKER K2CN3DH00006 AC CORD 1 MR K2CT3DH00018 AC CORD 1 H/HM/M K2CT3DH00025 AC CORD 1 MS K2CZ3YY00004 AC CORD 1 MT K2CZ3YY00006 AC CORD MD50H11A1J PLASMA DISPLAY PANEL N2QAYB000226 REMOTE CONTROL TBLA3652 STAND POLE RIGHT...
  • Page 91 Ref. Safety Part No. Part Name & Description Q'ty Remarks TMXX041 AC CORD CLAMPER TMXX045 AC CORD HOLDER TMZX5123 STAND BRACKET (LEFT) 1 PAVCSG TMZX5124 STAND BRACKET (RIGHT) 1 PAVCSG TPCC39001 CARTON BOX TOP 1 M PAVCSG TPCC39002 CARTON BOX TOP 1 MR PAVCSG TPCC39003 CARTON BOX TOP...
  • Page 92 Ref. Safety Part No. Part Name & Description Q'ty Remarks TXAJS01RQTH AC INLET ASSY 1 D/H/HM/MT PAVCSG TXAJS01RQTM AC INLET ASSY 1 M/MR/MS PAVCSG TXFKY01RQTM CABINET ASSY 1 PAVCSG TXFPE01RLTU CLEANING CLOTH ASSY TXJA12RRTB SPEAKER LEAD(A12-SP) TXJSWRRVTB SPEAKER LEAD (SP-SPR/L) 2 PAVCSG XSB3+6FJ SCREW (LCD MTG)

  • Page 93: Electrical Replacement Parts List

    13.2. Electrical Replacement Parts List 13.2.1. Replacement Parts List Notes...
  • Page 94 13.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2101 F1J1A106A043 C 0.010UF, K, Description C2102 F1G1C104A116 C 0.10UF, K, 16V K1KA11A00178 11P CONNECTOR C2105 F1G1C104A116 C 0.10UF, K, 16V K1KY22A00003 22P CONNECTOR...
  • Page 95 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2251 F1J1A106A043 C 0.010UF, K, C2525 ECJ1VB1H102K C 1000PF, K, 50V C2526 ECJ1VB1H102K C 1000PF, K, 50V C2261 D0GDR00Z0002 M 0 OHM, 1/10W C2527 ECJ1VB1H102K C 1000PF, K, 50V...
  • Page 96 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C3145 F1G1C104A116 C 0.10UF, K, 16V C4605 F1H1A1050032 C 10UF, 50V C3146 F1J1A106A043 C 0.010UF, K, C4606 F1J1A475A039 C 4.7UF, K, 10V C4607 F1J1A475A039 C 4.7UF, K, 10V C3147...
  • Page 97 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C5621 F1G1E103A123 C 0.010UF, K, C8029 F1G1C104A116 C 0.10UF, K, 16V C8030 F1H0J1050012 C 1UF, K, 16V C5622 F1J1A475A039 C 4.7UF, K, 10V C8031 F1H0J1050012 C 1UF, K, 16V...
  • Page 98 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C9062 F1J1A475A039 C 4.7UF, K, 10V C9911 F1G1C104A116 C 0.10UF, K, 16V C9063 F1G1C104A116 C 0.10UF, K, 16V C9912 F1G1C104A116 C 0.10UF, K, 16V C9064...
  • Page 99 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C14908 F1J1C1050030 C 1UF, Z, 16V C16252 F1K1E105A029 C 1UF, Z, 25V C14910 F1J1C1050030 C 1UF, Z, 16V C16261 F2A2A471A072 E 470UF, 100V C14912...
  • Page 100 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C16756 F1L1E4750012 C 4.7UF, 25V C17322 F1H1A1050032 C 10UF, 50V C16773 F1L1E4750012 C 4.7UF, 25V C17323 F1L2E154A009 E 1500UF, 25V C16775 F1L1E4750012 C 4.7UF, 25V C17324...
  • Page 101 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D3815 EZJZ0V120JA VARISTOR D14975 MA2J11100L DIODE D4502 EZAEG2A50AX DIODE D14976 MA2J11100L DIODE D4503 EZAEG2A50AX DIODE D16001 B0FBCN000005 DIODE D4504 EZAEG2A50AX DIODE...
  • Page 102 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D16632 MAZ82400ML DIODE FL5511 F1J1E104A148 C 0.10UF, Z, 25V D16641 B0HCKS000002 DIODE FL8801 J0HAAA000013 LC FILTER D16642 B0HCKS000002 DIODE FL8802 J0HAAA000013 LC FILTER D16643...
  • Page 103 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description IC14961 C0JBAZ000994 IC JS3713 D0GDR00Z0002 M 0 OHM, 1/10W IC14962 C0JBAZ000994 IC JS7701 D0GBR00Z0002 M 0 OHM J 1/16W IC14963 C0JBAA000377 IC IC16131...
  • Page 104 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description L8001 J0JHC0000045 CHIP INDUCTOR N0AC6JL00001 CIRCUIT BOARD P D/H/HM/ L8002 J0JHC0000045 CHIP INDUCTOR PAVCSG L8003 J0JHC0000045 CHIP INDUCTOR TXNC11RQTM CIRCUIT BOARD C1 PAVCSG...
  • Page 105 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q16161 B1HFPFA00001 TRANSISTOR R009 ERJ2GEJ103 M 10KOHM, J,0.063W Q16171 B1ABRD000003 TRANSISTOR R1013 ERJ2GEJ473 M 47KOHM, Q16172 B1ADRD000001 TRANSISTOR J,0.063W Q16181 B1ABRD000003 TRANSISTOR...
  • Page 106 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R1224 ERJ2GEJ103 M 10KOHM, R2096 ERJ2GEJ473 M 47KOHM, J,0.063W J,0.063W R1225 ERJ2GEJ103 M 10KOHM, R2097 ERJ2GEJ105 M 1MOHM, J,0.063W J,0.063W R1230...
  • Page 107 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3001 ERJ6GEYJ223 M 22KOHM,J,1/10W R3133 ERJ2GEJ820 M 82 OHM, J,0.063W R3002 ERJ6GEYJ223 M 22KOHM,J,1/10W R3134 ERJ2GEJ820 M 82 OHM, R3003 ERJ6GEYJ223 M 22KOHM,J,1/10W...
  • Page 108 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3808 ERJ2GEJ100 M 10 OHM, R4528 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R3809 ERJ2GEJ102X M 1K OHM J 1/4W R4530 ERJ2GEJ103 M 10KOHM,...
  • Page 109 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4702 ERJ2GEJ473 M 47KOHM, R5634 D1BB2802A055 M 28KOHM, 1/10W J,0.063W R5635 ERJ2GEJ223 M 22KOHM, R4703 ERJ2GEJ473 M 47KOHM, J,0.063W J,0.063W R5636...
  • Page 110 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8039 D0YAR0000007 M 0 OHM 1/4W R8107 ERJ2GEJ101 M 100 OHM, J,0.063W R8056 ERJ2GEJ470 M 47 OHM, J,0.063W R8108 ERJ2GEJ223 M 22KOHM,...
  • Page 111 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8861 ERJ2GEJ103 M 10KOHM, R8917 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W R8865 EXB2HV680J RESISTOR ARRAY R8918 ERJ2GEJ680 M 68 OHM, J,0.063W R8866 EXB2HV680J...
  • Page 112 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9122 EXB38V103JV RESISTOR ARRAY R9358 EXB2HV470JV RESISTOR ARRAY R9123 ERJ2GEJ102X M 1K OHM J 1/4W R9359 EXB2HV470JV RESISTOR ARRAY R9124 ERJ2GEJ470 M 47 OHM,...
  • Page 113 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9893 D1BB4302A055 M 43KOHM, 1/10W R14911 D0GD103JA036 M 10KOHM,J,0.25W R9894 D1BB2002A055 M 20KOHM, 1/10W R14912 D0GD103JA036 M 10KOHM,J,0.25W R9895 ERJ2GEJ104 M 100KOHM,...
  • Page 114 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R14988 ERJ6GEYJ222V M 2.2K OHM J 1/ R16230 ERJ6GEYJ470V M 47 OHM,J,1/10W R16231 ERJ6GEYJ472V M 4.7K OHM J 1/ R14989 ERJ6ENF1502 M 15KOHM, 1/10W...
  • Page 115 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16336 ERJT08J1R0V M 1.8OHM,J, R16567 EXB38V472JV RESISTOR ARRAY 0.33W R16568 EXB38V472JV RESISTOR ARRAY R16338 ERJT06J101V M 100 R16580 ERJ6GEYJ222V M 2.2K OHM J 1/ OHM,F,0.25W R16339...
  • Page 116 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16666 ERJ6GEYJ104V M 100KOHM,J,1/ R16778 ERJ6GEYG182 M 1.8KOHM,J,1/ R16667 ERJ6GEYJ471 M 470 OHM,J,1/ R16781 ERJT06J470V M 47 OHM,F,0.25W R16782 ERJ6GEYF473 M 47KOHM,J,1/10W...
  • Page 117 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R17157 D0GZ6R8JA020 M 6.8 OHM,J, R17380 EXB38V471J RESISTOR ARRAY 0.5W R17390 ERJ6GEYJ224 M 220KOHM,J,1/ R17161 D0GDR00Z0002 M 0 OHM, 1/10W R17162 EXB38V220JV RESISTOR ARRAY...
  • Page 118 Safety Ref. No. Part No. Part Name & Pcs Remarks Description ZA0001 K4AZ01D00004 TERMINAL ZA0002 K4AZ01D00004 TERMINAL ZA0003 K4AZ01D00004 TERMINAL ZA0004 K4AZ01D00004 TERMINAL ZA0007 K4AZ01D00004 TERMINAL ZA0008 K4AZ01D00004 TERMINAL ZA3701 K4CZ01000027 AV TERMINAL ZA3801 K4AD01D00005 TERMINAL ZA3802 K4AD01D00005 TERMINAL ZA14901 K4AD01Z00003 TERMINAL ZA14902 K4AD01Z00003 TERMINAL...
