Summary of Contents for Bolide Technology DR-8000

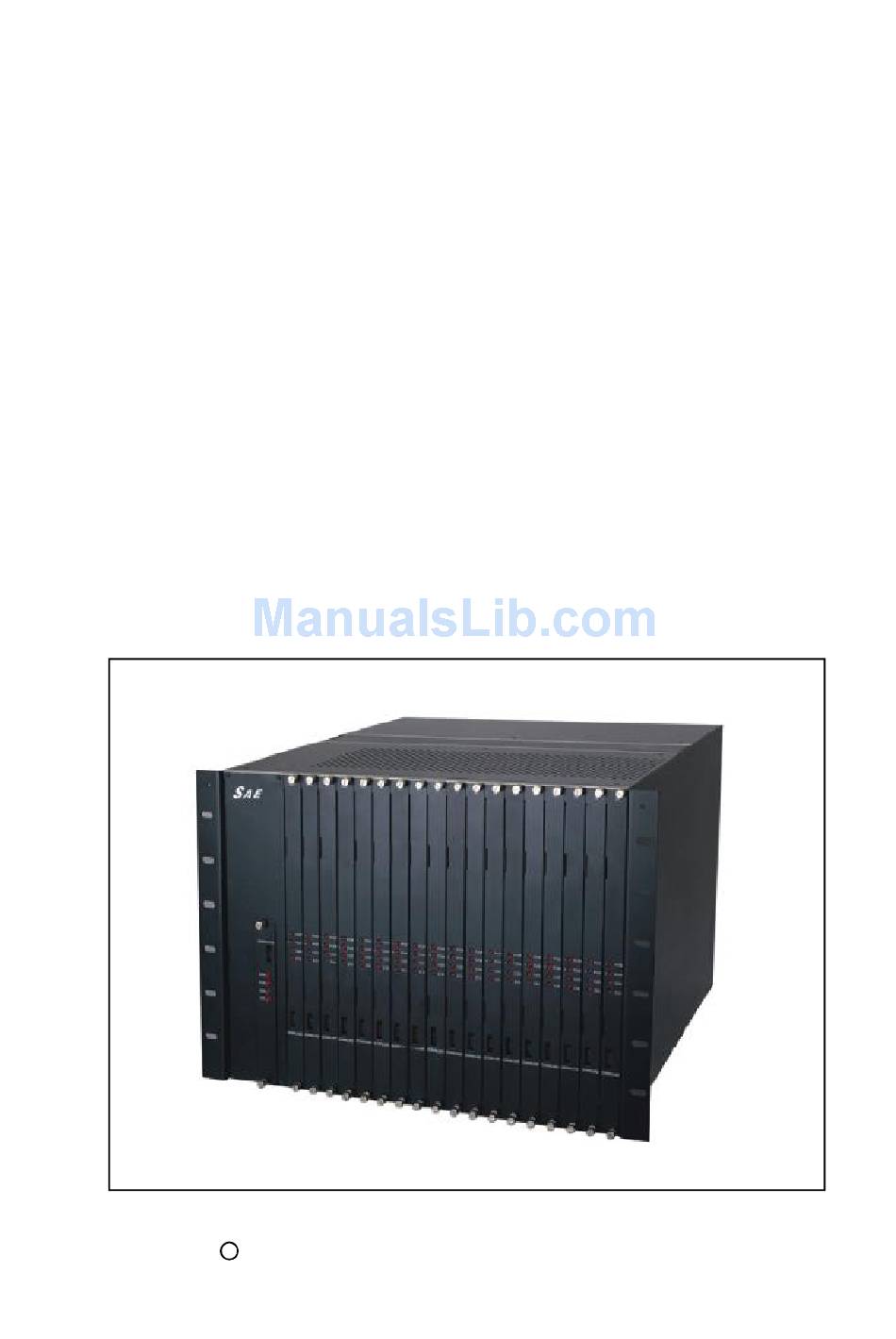

- Page 1 Installation Manual DR-8000 Video Switching Matrix Before use the product, please read this manual carefully.
-
Page 2: Table Of Contents
6.9 Video output connection board ........................24 7. DR-8000 matrix system ....................25 7. 1 DR-8000 matrix system’s camera connection ..................7.2 DR-8000 matrix system’s monitor connection ..................26 7.3 DR-8000 single bay matrix system application ..................27 7.4 DR-8000 matrix analog/digital combination application ................ 28... -
Page 3: Preface
8000 could work independently or expand up to 4 bays when lager volume is needed. In addition to video switching function, DR-8000 can link to various accessories like alarm input box, alarm output box, multi-function keyboard, RS485 distributor, PC, etc. DR-8000’s dimension is fit to interna- tional standard rack. -
Page 4: Feature
DR-8000 Video Switching Matrix Feature 1. Modularized MPU and high compact configuration. 2. Ethernet port technology, online and remote control. 3. Video input and video output support hot swap. Facilitate the installation and maintenance. 4. Single matrix bay configuration: Max 272 video inputs; 64 video outputs Max input setup: 272X16;... -
Page 5: System Structure
DR-8000 Video Switching Matrix System structure Mechanism features For 19 inch EIA rack； Single bay dimension：312（H）X 483（W） X 470（D）mm（H: 7U） ； Modularized MPU and high compact configuration ； Connect accessories via Ethernet RJ-45 port. （e.g. alarm input box, alarm output box, keyboard, RS485 distributor, etc）... -
Page 6: System Schematic Figure
DR-8000 Video Switching Matrix BNC jack for system setting. It also has power synchronization signal generator and 10M network card transformer； Video input switching board a）With independent power supply module（DC/DC，input 24V，output 5V，-5V） ； b）Independent Single Chip Microcomputer control； c）16X64 full cross matrix switching；... -
Page 7: Dr-8000 Component Modules And Expansion
Single bay configuration One DR-8000 has 1 power supply, 1 pair special slots, 18 pairs standard slots. User can use any pair of standard slots, but please make sure each board is with its corresponding board. Single bay configuration is... -
Page 8: Three Bays Configuration
6.9 Video output connection board ........................24 7. DR-8000 matrix system ....................25 7. 1 DR-8000 matrix system’s camera connection ..................7.2 DR-8000 matrix system’s monitor connection ..................26 7.3 DR-8000 single bay matrix system application ..................27 7.4 DR8000 matrix analog/digital combination application ................ 28... -
Page 9: Dr-8000 Matrix Installation
DR-8000 Video Switching Matrix DR-8000 matrix installation It is recommended to install DR-8000 matrix in 19 inch standard rack. Please do not leave any thing block the ventilation holes, otherwise the matrix may become malfunctioned because of overheat. DR-8000 matrix structure... - Page 10 DR-8000 Video Switching Matrix Picture 5 DR-8000 matrix mother board view 01, Mother board 02, Standard industrial 24V switching power supply module 03, Control board 04, Control output connection board 05, Video input switching board 06, Video input connection board...
-
Page 11: Mother Board
DR-8000 Video Switching Matrix Table 5 corresponding board board corresponding board Control board Control output connection board Video input switching board Video input connection board Video output character screen overlay board Video output connection board Matrix front side Mother board, power supply module, Front cover, Control board, Video input switching board and Video output character screen overlay board are on the matrix’s front side. - Page 12 DR-8000 Video Switching Matrix Picture 6, Mother board installation -10-...
-
Page 13: Power Supply Module
DR-8000 Video Switching Matrix Power supply module Notes for power supply module Standard industrial 24V switching power supply module(24V/6.25A 150W),self adaptive for 220V/50 Hz and 110V/60 Hz. There are second +5V/-5 DC/DC power adapters in each function modules for enhancing system reliability. - Page 14 DR-8000 Video Switching Matrix ( 1 ) ( 4) ( 6) ( 7 ) ( 8 ) ( 9 ) Picture 8, Cables connection 3. fix the fan inside the box then fix the power supply module with the upper cover to the box.
-
Page 15: Control Board
DR-8000 Video Switching Matrix Picture 11, Power supply module installation Control board Control board installation Picture 12, control board installation a) Put in the control board as picture 12 shows； b) Tighten the irremovable screws； c) Note: control board is not hot swappable. - Page 16 DR-8000 Video Switching Matrix Notes for control board Picture 13, control board schematic picture 1. Programming port It is for matrix software update 2. LED The four LED should light when control board works properly. The meanings of LED are showed in...
- Page 17 DR-8000 Video Switching Matrix Table 8 control board DIP SW2 setting Matrix ID setting Protocol BIT5 BIT4 BIT3 BIT2 BIT1 Remark BIT8 BIT7 BIT6 Remark Matrix ID is 1 Matrix ID is 2 Factory Matrix ID is 3 Matrix ID is 4...
-
Page 18: Control Output Connection Board
DR-8000 Video Switching Matrix Control output connection board Control output connection board installation Picture 14, Control output connection board installation a) Put in the control output connection board as picture 14 shows； b) Tighten the irremovable screws； c) Note: control output connection board is not hot swappable. -
Page 19: Video Input Switching Board
DR-8000 Video Switching Matrix Video input switching board Video input switching board installation Picture 16, Video input switching board installation Put in the Video input switching board as picture 16 shows； b) Tighten the irremovable screws； c) Note: Video input switching board is hot swappable. - Page 20 DR-8000 Video Switching Matrix 1. DIP (SW2) This is to set the board function. Please set it according to table9. Table 9 Video input switching board function setting BIT1 BIT2 BIT3 BIT4 BIT5 BIT6 BIT7 BIT8 2. DIP (SW1) This DIP sets the Video input switching board’s I. table 10 shows the detail: Table 10 Video input switching board ID setting DIP （...
- Page 21 DR-8000 Video Switching Matrix DIP （ SW1 ） Board ID BIT1 BIT2 BIT3 BIT4 BIT5 BIT6 BIT7 BIT8 input chanel 625-640 641-656 657-672 673-688 689-704 705-720 721-736 737-752 753-768 769-784 785-800 ON: master OFF: slaver 801-816 817-832 reserved There should be only one...
-
Page 22: Video Input Connection Board
DR-8000 Video Switching Matrix Video input connection board Video input connection board installation Picture 18, Video input connection board installation a) Put in the Video input connection board as picture 18 shows； b) Tighten the irremovable screws； c) Note: Video input connection board is hot swappable. -
Page 23: Video Output Character Screen Overlay Board
DR-8000 Video Switching Matrix Video output character screen overlay board Video output character screen overlay board installation Picture 20, Video output character screen overlay board installation a) Put in the Video output character screen overlay board as picture 20 shows；... - Page 24 DR-8000 Video Switching Matrix 1. DIP Switch (SW1) This is for board setting. Table 12 Video output character screen overlay board DIP (SW1) setting BIT 1 BIT 2 BIT 3 remark BIT 4 BIT 5 BIT 6 BIT 7 BIT 5...
- Page 25 DR-8000 Video Switching Matrix Table 15 Video channel switching (A) BIT1 BIT2 BIT3 BIT4 BIT5 BIT6 BIT7 BIT8 Board ID SW10 SW10 Table 16 Video channel switching (B) BIT1 BIT2 BIT3 BIT4 BIT5 BIT6 BIT7 BIT8 Board ID SW10 SW10 7.
-
Page 26: Video Output Connection Board
DR-8000 Video Switching Matrix Video output connection board Video output connection board installation Picture 22, Video output connection board installation a) Put in the Video output connection board as picture 22 shows； b) Tighten the irremovable screws； c) Note: Video output connection board is hot swappable. -
Page 27: Dr-8000 Matrix System
DR-8000 Video Switching Matrix DR-8000 matrix system DR-8000 matrix system’s camera connection Note Video Coaxial Cable Video Coaxial Cable Video Coaxial Cable Picture 24, cameras connection Use coaxial video cable to connect the camera to BNC #1-16 of video input switching board (marked IN on the top). -
Page 28: Dr-8000 Matrix System's Monitor Connection
DR-8000 Video Switching Matrix DR-8000 matrix system’s monitor connection Note Video Coaxial Cable Video Coaxial Cable Video Coaxial Cable Picture 25, Monitor connection Use coaxial video cable to connect the monitor to BNC #1-16 of video input switching board (marked OUT on the top). -
Page 29: Dr-8000 Single Bay Matrix System Application
DR-8000 Video Switching Matrix DR-8000 single bay matrix system application Picture 26, DR-8000 single bay matrix system application -27-... -
Page 30: Dr-8000 Matrix Analog/Digital Combination Application
32 Channals In PC #1～64 32 Channals Out Video Signal Communication Signal RS485 Signal Alarm Input Signal Matrix Alarm Output Signal Monitor #1～32 Picture 27 DR-8000 matrix analog/digital combination application（A） Analog System Digital System 1～1024 1～1024 1～64 Internet AO16 AI64 CD64 #1～4...
