Summary of Contents for JUN KARRI HJ M 10
-

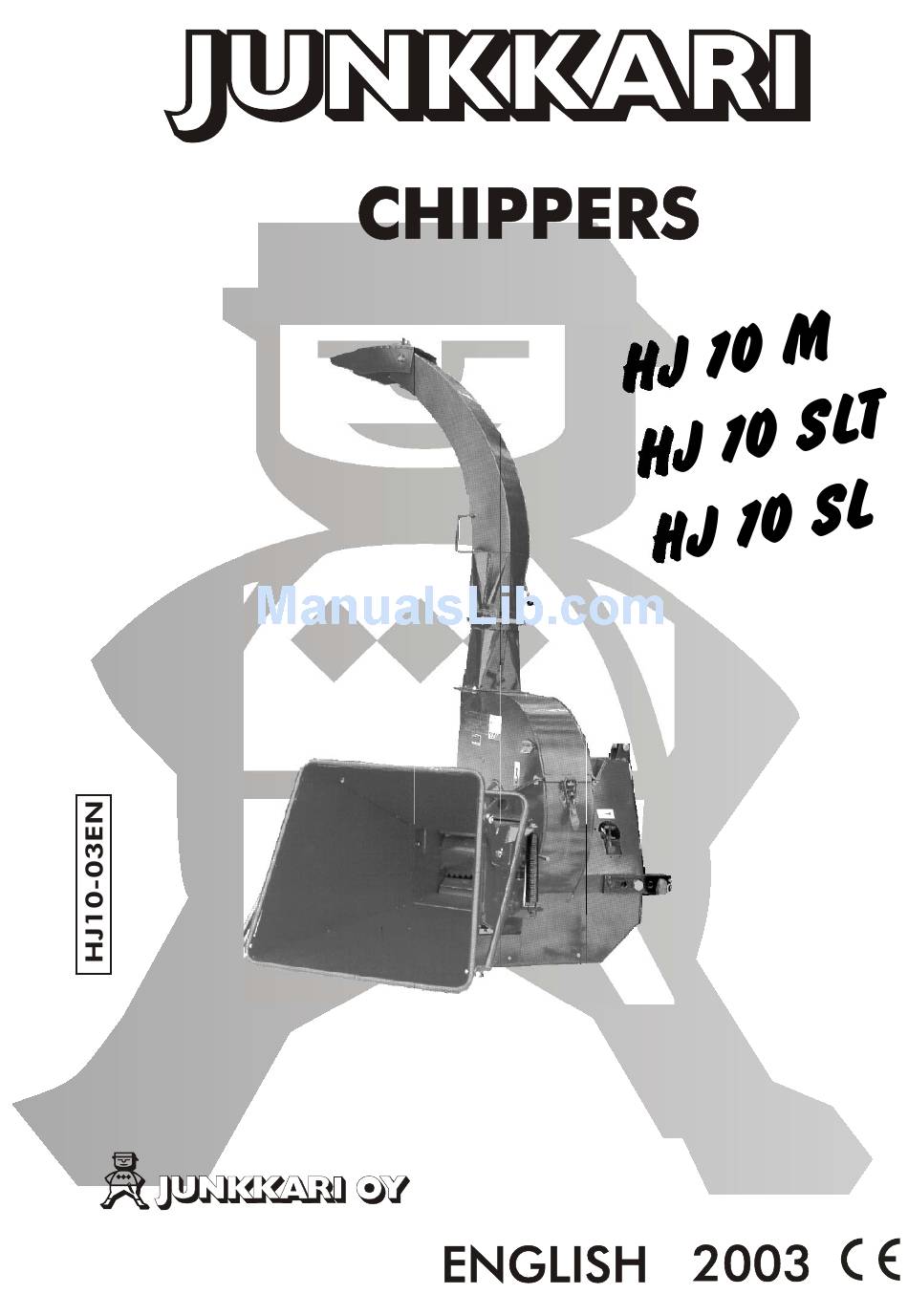

Page 1: Operating Instructions
OPERATING INSTRUCTIONS SPARE PARTS LIST 62375 YLIHÄRMÄ FINLAND TEL. +358-(0)6-4835111 +358-(0)6-4846401... -
Page 2: Table Of Contents
1 CONTENTS PAGE FOREWORD THE SIGN OF CAUTION TECHNICAL SPECIFICATIONS SAFETY PRECAUTIONS GENERAL SAFETY TRANSPORT AND SITE-CHANGING MAINTENANCE AND REPAIRS HYDRAULIC SYSTEM LOCATION OF SAFETY DECALS AND COMPONENTS, SERIAL NUMBER PLATE OPERATING ENVIRONMENT OBJECT OF USAGE APPLICATIONS LIMITATIONS OF USE AND PROHIBITED USES PRINCIPLE OF OPERATION TRANSPORTATION, HANDLING AND... -
Page 3: Foreword
2 FOREWORD We thank you for your confidence in our product and also take this opportunity to wish you every success in your profession. We would ask you to read and to memorize the operating hints and instructions outlaid in this manual. -
Page 4: Safety Precautions
4 SAFETY PRECAUTIONS 4.1 GENERAL SAFETY NOTES -CLOTHING: For the sake of personal safety use well-fitting clothing without any loose or hanging projecting sleeves etc. which might be caught in the running machinery. -OPERATING: Before attempting to operate the machine, acquaint yourself fully with the attachment, controls and the operation of the machine. -
Page 5: Maintenance And Repairs
Take care to note the allowed maximum axle weights, total weights and transportinq dimensions of the combination. All accessories and equipment used for moving the chipper (chains, drawbars, tie-rods (etc.) must be attached and placed in such a way that any inadvertent movements cannot affect them in any manner when the machine is either operating or being transported. - Page 6 PROTECTING ONESELF AGAINST OIL AND GREASE Always wear suitable protective clothing and oilresistant gloves when handling oil or grease. Avoid skin contact with oil or grease as this may lead to skin damage. Never use oil or grease for cleaning any part of your skin. These substances may contain minor metallic particles which may cause scratching of hands, further aggravated by the action of the oil.
- Page 7 5. SAFETY DECALS AND COMPONENTS AND SERIAL NUMPER PLATE MAX. ROUNDING NORM. 1000 MAX . 540 rpm VARUSTA NIVELAKSELI VAPAAKYTKIMELLÄ JA YLISUOJAKYTKIMELLÄ 100 kpm UTRUSTA LÄNKAXELN MED FRIKOPPLING OCH ÖVERSKYDDSKOPPLING 100 kpm EQUIP THE ARTICULATED SHAFT WITH A FREE CLUTCH AND A OVERPROTECTOR CLUTCH 100kpm DIE GELENKACHSE MIT EINER FREIEN KUPPELUNG UND MIT EINER...
- Page 8 FEED MECHANISM STARTED AND LIFTING BRACKET EMERGENCY STOP HANDLE 4 - 6 3 5 0 3 USE EAR PROTECTOR 1 4 1 6 2 15070 4 - 1 4 1 2 2 BEWARE OF THE FEED ROLLERS THE AREA OF DANGER IS 20 m FOR SPRAYING SERIAL NUMBER PLATE OPERATING INSTRUCTIONS SERIAL NUMBER PLATE...
-
Page 9: Operating Environment
6. OPERATING ENVIRONMENT 6.1 OBJECT OF USAGE The purpose of a chipper is to produce chips from trees, which due to their diameter and other measurements are suitable for feeding into the chipper's feed orifice. The in-fed material must be clean. Dust, sand or soil ingredients accelerate wear on the knives very quickly. Metal bits, nails e.g., cause denting of the knives. -
Page 10: Transportation, Handling And Storage
8 TRANSPORTATION, HANDLING AND STORAGE (DISTRIBUTOR/DEALER) 8.1 TRANSPORTATION Terms of delivery is free at the factory gate unless other terms are mutually agreed upon. The Distributor shall agree with the Manufacturer on the date upon which the product in question is ready for delivery at the factory. The Manufacturer shall take care of the loading of the product onto the goods vehicle arranged to fetch the product. -
Page 11: Taking A New Machine Into Use
9. TAKING A NEW MACHINE INTO USE 9.1 PREPARATIONS PRIOR TO OPERATING A new machine must be brought into a proper operating condition by the operator prior to the machine's first use. If the chipper is delivered with its discharge spout independently packed, the attach the spout to the machine as follows: Place the spout on its mountings in such a manner that the guide lug on the spout lines up with recess in the mounting adaptor. -
Page 12: Pto Shaft
9.4 PTO SHAFT TYPE OF PTO SHAFT The universal drive shaft should have the capacity of trans-mitting power at a rate of 67 kW at a nominal speed of 540 rpm and to sustain a torque of 1300Nm. The shaft should be fitted with overload and ratchet clutches. -
Page 13: Adjustments
10 ADJUSTMENTS PLEASE READ THESE INSTRUCTIONS VERY CAREFULLY AS THE MOST IMPORTANT POINT IN THE OPERATION OF THE CHIPPER IS THE CONDITION OF THE KNIVES AND THEIR CORRECT ADJUSTMENT. 10.1 ADJUSTMENT OF KNIFE SETTINGS The knife setting may be adjusted within the range of 3 to 15 mm. The smaller the setting, the smaller the chips the chipper produces. -
Page 14: Operating
10.2 FEED RATE ADJUSTMENT The rotational speed of the feed rollers in chipper models HJ 10 SL and HJ 10 SLT must be synchronized with the cutting speed of the cutting knives. If the feed roller rpm is too high in relation to the knife cutting speed, the roller tend to dig into the stems being fed in. -
Page 15: Maintenance
12 MAINTENANCE READ THE SAFETY INSTRUCTIONS CAREFULLY 12.1 SHARPENING THE CUTTING KNIVES The cutting angle of factory-new cutting knives is 30.5°. This is he optimum angle which should always be used when re-sharpening the knives. A smaller angle will result in chipping in the knife edges, while a greater angle will reduce the knife edge's clearing angle causing a reduction in the ability of the knives to draw in the material. -
Page 16: Fault Finding Chart
13. FAULT FINDING CHART FAULT CAUSE REMEDY The chipper does not draw Dull knives Sharpen and refit in material Knife cutting as per instructions angle faulty given in the manual Knife fitted the wrong way round Uneven chip size Knife gap ('B') Adjust as per too large instructions given... -
Page 17: Terms Of Warranty
14 TERMS OF WARRANTY TERMS OF WARRANTY: The manufacturer warrants the product for a period of 12 (twelve) months in agricultural use and used in the purpose to which the product is intended. In communal, industrial, contract work or equivalent the warranty period is 6 (six) months.
