Summary of Contents for Shenzhen Tozed Technologies M60
- Page 1 Getting connected with your device...
-
Page 2: Legal Information

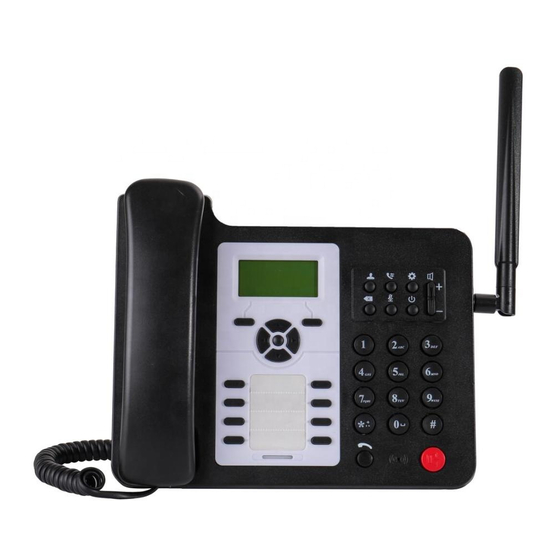

LEGAL INFORMATION Copyright © 2016 TOZED CORPORATION. All rights reserved. We reserve the right to amend the technical parameters of the user manual. We will improve this user manual and adjust the printing errors in time without notification in advance. - Page 3 Knowing the appearance and key functions of your device 1.Left Key 7.Call History 13.Delete 2.Direction Key 8.Configuration 14.Number Key 3.Select Key 9.Volume Up 15.Quick Key 4.Screen 10.Volume Down 16.Microphone 5.Right Key 11.Power On/Off 17.Handfree Key 6.Contact 12.Mute 18.Dial Key...
-
Page 4: Connecting Your Device
Connecting your device To start using your device, connect your device as the following schematic diagram. - Page 5 Note: ❶ means computer that should be connected with M60 by network cable. ❷ means DC adaptor. ❸ means wireless devices (e.g. phone, pad, laptop) Install SIM: push the SIM from SIM slot. After hearing a “click” sound, the SIM card is fixed right.
-
Page 6: Configuring Your Pc
Configuring your PC The following steps shows how to configure the Internet protocol in Windows10 system for WIFI connection. Go to Control Panel and find Network and Internet, and then go into Network and Sharing Centre. Select Change adapter settings. - Page 7 Find Wireless Network Connection and right click it, and then click Properties. In WiFi Properties, double-click Internet Protocol Version 4(TCP/IPv4), or select Internet Protocol Version 4(TCP/IPv4) and then click Properties.
- Page 8 Select Obtain an IP address automatically, and Obtain DNS server address automatically. Click OK to confirm.
-
Page 9: Wireless Connection
Wireless connection Method 1: Normal Connect Select the SSID on computer or mobile phone and click Connect. After inputting password, the WiFi can be used (default SSID and password can be seen on M60 sticker). - Page 10 Method 2: WPS Connect PC: Select the SSID on computer and click Connect as above. Press WPS Connect in M60 WPS Setting menu, and then your computer will connect to the SSID automatically without inputting password. Mobile Phone: Press WPS Connect in M60 WPS Setting menu, and then operate phone WLAN...
-
Page 11: Standby Status
Standby status Network signal strength Battery label WIFI signal Current network type 4G Calling forward open Connect power supply Missing calls In charging VoLTE active (if no, VoIP active) -
Page 12: Web Configuration
Web configuration The device supports standard internet cable or WLAN wireless way to connect with computer or wireless devices. No matter what way to connect, please make sure to set the mode: obtain IP address as automatically. Please enter “192.168.8.1” in the IE browser after the computer obtain the IP address. -
Page 13: Main Features
Main features 1. Main features on phone menu 1) Voice Call Calls Method#1. Pick up the handset or press the Handfree Key, then dial the number and wait for a few seconds or press the “ ”key. Dial Method#2. Dial the number then press the “ ”key. -
Page 14: Call History
Down Key to change the volume. Press the Mute Key so that other side cannot hear your voice, press Mute Key again to cancel mute. In idle screen, press Configuration Key Select Call Call setting Setting. 2) Call History Press Call History Key to enter the Call History Menu as follows. Top level menu Secondary menu Remark... - Page 15 3) Contact Press Contact Key to enter the Contact menu as follows. Top level menu Secondary menu Remark Browse Browse contacts Create contacts Contact Search Search contacts Delete All Delete all contacts Memory Space Contacts details...
- Page 16 4) Configuration Press Configuration Key to enter the Contact menu as follows. Secondary menu Remark Top level menu LCD setting Setting backlight Set volume, ring type, ring Sound setting volume etc. Time setting Set update time and time format Configuration Network setting Select Network and set APN Sip config, Auth config, call...
-
Page 17: Router Functions
5) Router functions Secondary menu Remark Top level menu WiFi status WiFi Status Set SSID, password, WPS WiFi setting Router functions setting etc. Setting local IP, DHCP DHCP setting switch, senior setting 6) System Info Secondary menu Top level menu Software Version Voice status System Info... -
Page 18: Quick Dial
Mobile Counter 7) Quick Dial M60 provides 8 quick keys to make quick dial. Before using this function, please setting quick key number as follows. * If you have not set quick key number before, you can press the Quick Key ... - Page 19 the quick key that you want to edit. You can press Delete Key to delete the number and set a new number. 2. Main features on WEB UI 1) Port Forwarding Log into the WEB UI. Select Port Forwarding in Firewall Settings menu, and then set port forwarding.
- Page 20 2) DDNS Settings Log into the WEB UI. Select DDNS Settings in Route Function menu, and then set DDNS parameters.
-
Page 21: Warning And Notice
Warning and notice Do not insert SIM card when the device is powered up. Please power off the phone if long time non use the phone. Use original power adapter and battery, or accessories that authorized by Tozed, otherwise it may damage the device or cause dangerous. ... - Page 24 Customer Service Hotline: 117 100 100 Email: techsupport@dialog.lk General Office Dialog Broadband Networks (Pvt) Ltd. (PV 261) No. 475, Union Place, Colombo 02 Sri Lanka Tel +94 117 100 100 / FAX + 94 117 100 701 www.dialog.lk...
Need help?
Do you have a question about the M60 and is the answer not in the manual?
Questions and answers

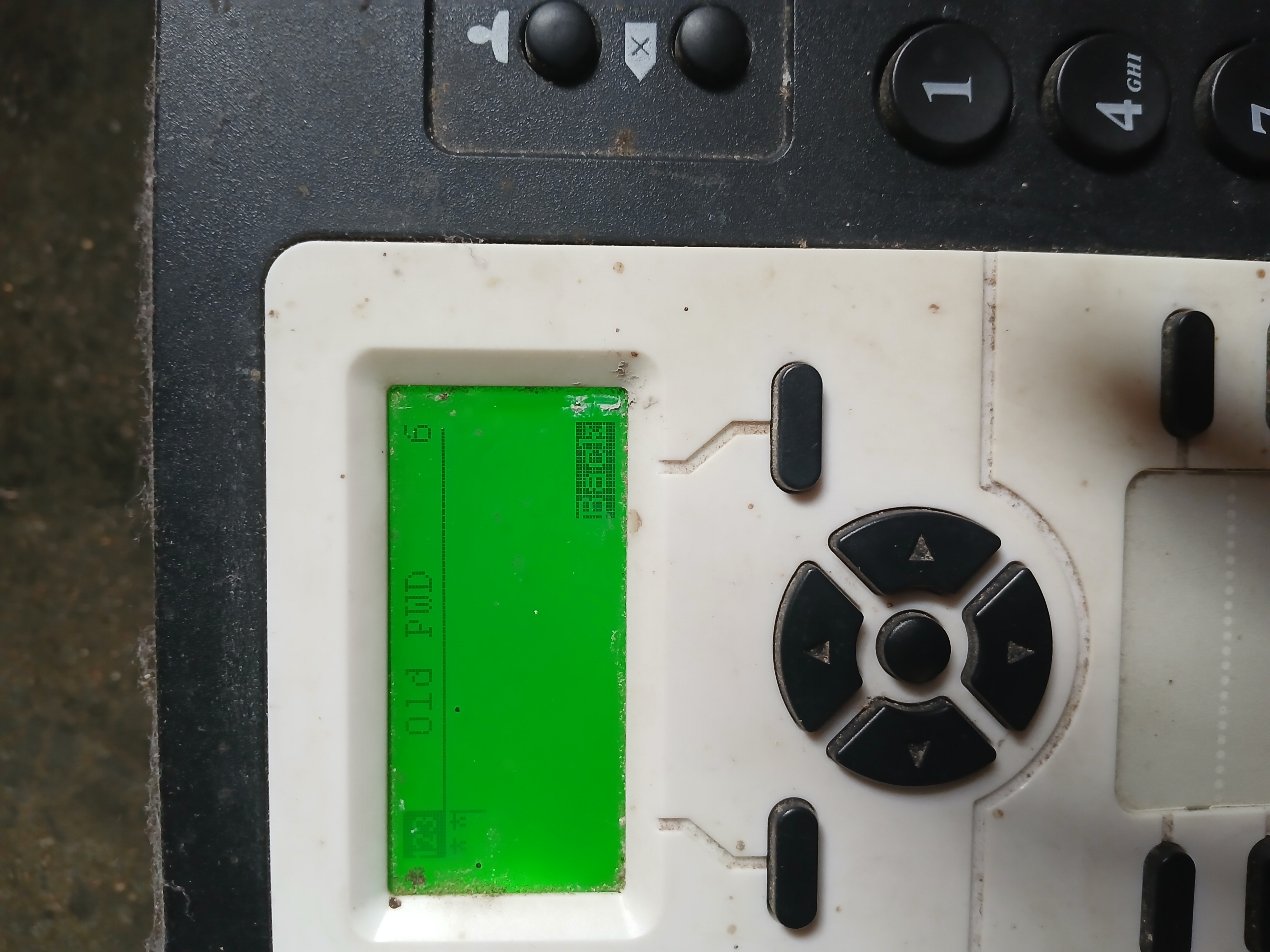

In password change How to change neric to alphabet
