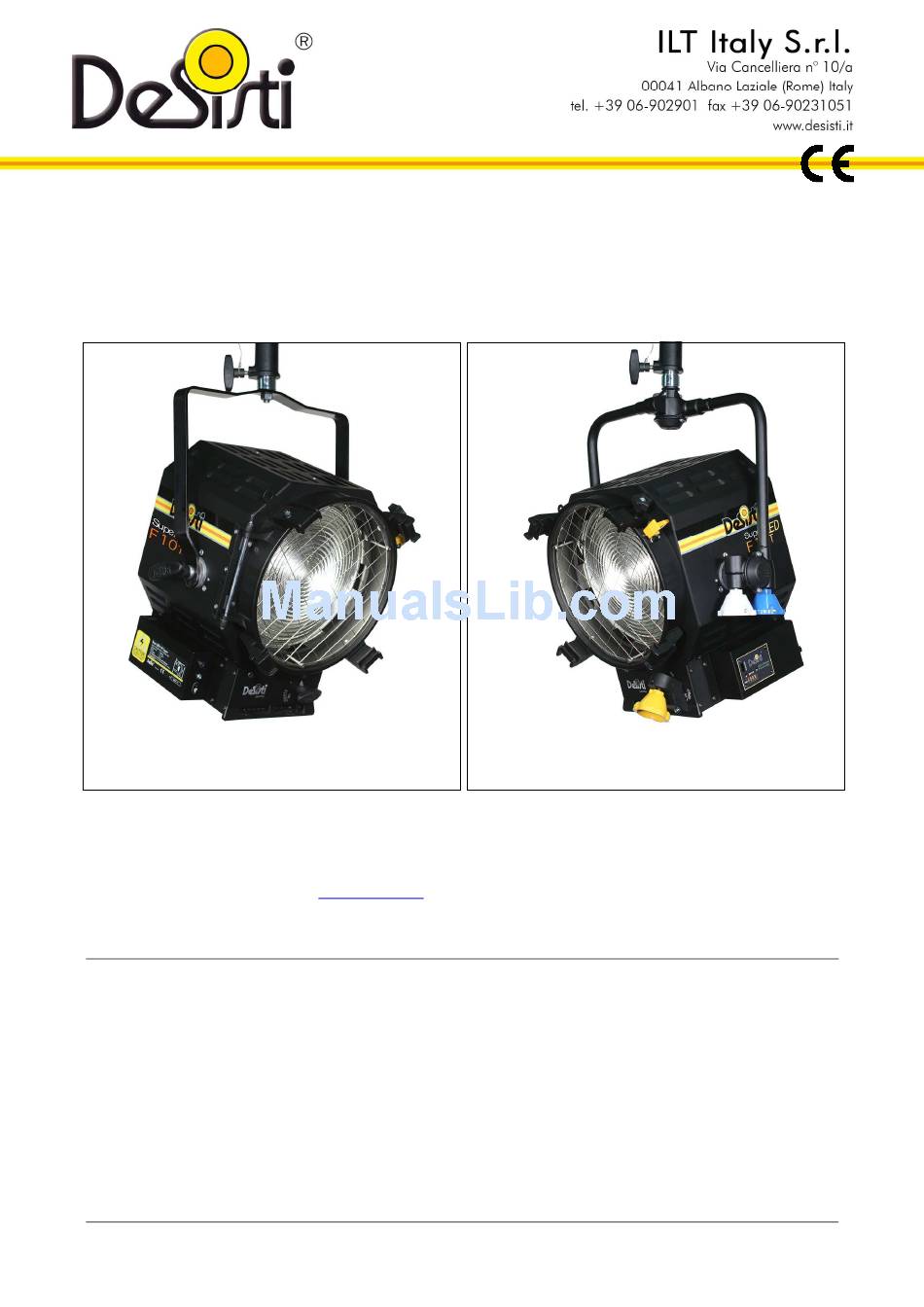

SUPER LED F10 VW Vari-White
200W Vari-White from 2.750 to 6.900 °K - Enhanced CRI > 94
White light, with Adjustable Correlated Colour Temperature
INSTRUCTION MANUAL
Manual Operated
Pole Operated
MANUFACTURER
REPRESENTATIVE
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
desisti@desisti.it
U.R.L.: www.desisti.it
E-mail:
1. INTRODUCTION
Congratulations on your purchase of a SUPER LED F10 Vari White lighting fixture.
Our commitment to Total Customer Satisfaction and our consolidated experience and leadership in design
innovation and manufacturing of lighting products for the professional Entertainment Industry means you can
depend upon the quality of this product.
The SUPER LED F10 is a compact, highly efficient Fresnel lens spotlight using a LED ARRAY combined with
the DE SISTI Patented optical system to optimize the photometric performances of LED ARRAYS when
utilized in combination with either Fresnels or Plano Convex lenses.
The Lighting Fixture is DMX Controlled and includes a number of parameters that can be set locally, it is
equipped with power supply for AC universal feed 90/240V 50/60Hz and feature variable CCT from Tungsten
to Daylight with high power and high CRI.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as Barndoor,
Colour Frame, Cones, scrims.
This Manual is applicable to
Revised January 18th 2017
Pag 1.
De Sisti SUPER LED F10 Vari White
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Desisti SUPER LED F10 VW Vari-White
Summary of Contents for Desisti SUPER LED F10 VW Vari-White
- Page 1 SUPER LED F10 VW Vari-White 200W Vari-White from 2.750 to 6.900 °K - Enhanced CRI > 94 White light, with Adjustable Correlated Colour Temperature INSTRUCTION MANUAL Manual Operated Pole Operated MANUFACTURER REPRESENTATIVE ILT Italy S.r.l. Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
- Page 2 2. YOKE AND ACCESSORIES ASSEMBLY SUPER LED F10 (MANUAL OPERATED) SUPER LED F10 (POLE OPERATED) 3. POWER AND DMX DAISY CHAIN The SUPER LED F10 permits both POWER and DMX DAISY CHAIN. In fact each Fixture is respectively equipped with: For DMX: •...
-
Page 3: Safety Instructions
4. CHARACTERISTICS AND PERFORMANCE DATA DESCRIPTION VALUE DESCRIPTION VALUE IP 22 LED Power 200 W Protection Type Power 220W @ 230 V 70 °C Housing temperature Consumption 230W @ 120 V M.O. P.O. This product uses a 5-pin XLR for DMX input and output. -
Page 4: Installation Instructions
C. Before hanging the luminaire ensure that the suspension point (or the stand) is properly rated to accept the luminaire weight. D. In case of pole operated use, fit only a P.O. stirrup from De Sisti Lighting. E. A suitable secondary safety suspension device (safety cable, chain or equivalent) must be fitted between the suspension point and the eyelet at the front of the body . -
Page 5: Dmx Address
DEFAULT SETTINGS ARE INDICATED IN BOLD LETTERS ON THE FOLLOWING TABLE: The following are the BASIC FUNCTIONS and COMMANDS that are provided on the LOCAL MENU of the LED FRESNEL. The unit is provided with a USER MENU accessible instantly on the product. 1st MENU 2nd MENU Explanation of Each MENU FUNCTION... - Page 6 1st MENU 2nd MENU Explanation of Each MENU FUNCTION Displayed Displayed LOCAL OR REMOTE CONTROL SETTINGS The LED Fresnel has the facility to block the LOCAL DIMMING and CCT SETTING and maintain it when the POWER is turned first OFF and than ON again.
-
Page 7: Periodic Inspection & Maintenance
9. PERIODIC INSPECTION & MAINTENANCE This product requires very little routine maintenance, if any, but has special cleaning instructions: Disconnect fixture from power and allow it to cool for 10 min. 1. Vacuum or gently blow away any dust from fan blades and grills 2.
