Summary of Contents for Audiovox Prestige PEQ-200

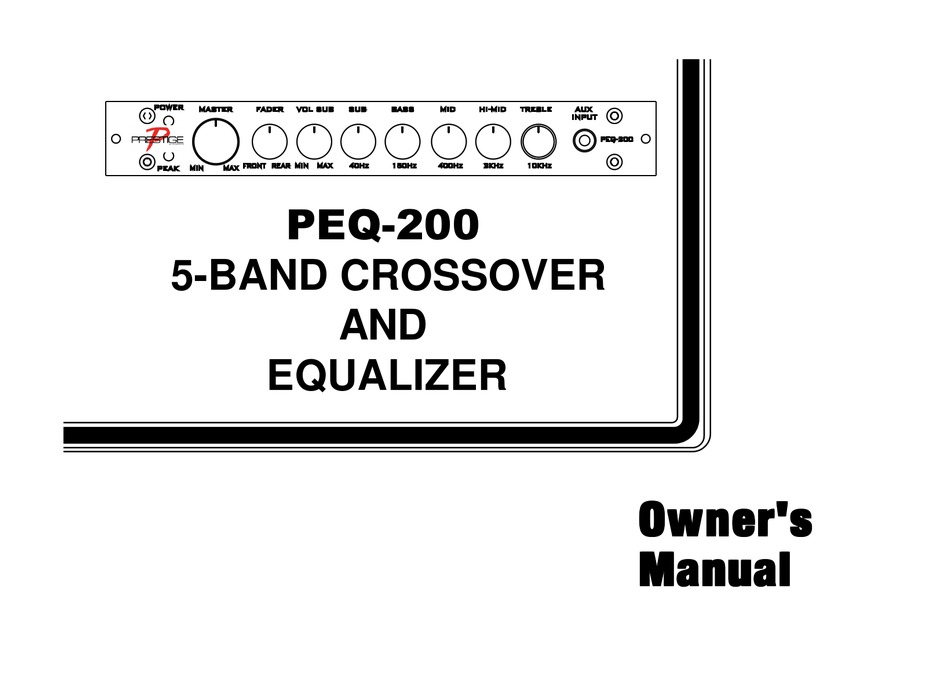

- Page 1 5-BAND CROSSOVER EQUALIZER Ow ne ne ne ne ne r's Manual Manual Manual Manual Manual...
-
Page 2: Table Of Contents
CONTENTS Precautions/Specifications... 3 Installation Procedures... 4 Wiring Instructions... 4 Typical System Wiring Diagram...6 Operating Instructions... 7-9 Warranty...11... -
Page 3: Precautions/Specifications
PRECAUTIONS IMPORTANT - READ THIS SECTION CAREFULLY 1. This unit does not contain a power amplifier and must be used with a compatible external amplifier. The output of this unit is not designed for, and is not capable of driving speakers directly. 2. -
Page 4: Installation Procedures
INSTALLATION PROCEDURES The PEQ-200 should be easily accessible to the operator, and is intended for in-dash (if a location is available), console, or under-dash mounting as shown. To install the unit, proceed as follows: 1. Carefully choose a favorable mounting location prior to wiring the unit. -
Page 5: Wiring Instructions
Silicone over the screw and bare metal to prevent rust and corrosion. 3. Remote Turn-On Connection ( Orange wire ) The PEQ-200 is turned on by applying +12 volts to the remote turn-on terminal (REM) of the cable 4-Pin connector harness. The wire lead to this terminal should be connected either to the "Auto-Antenna"... -
Page 6: Typical System Wiring Diagram
TYPICAL WIRING MIDRANGE/TWEETERS (RIGHT) DIAGRAM HIGH FRONT AMPLIFIER CAR STEREO CAR COMPACT DISC PLAYER OPEN ACD-83 ACD-83 TRACK TRACK ROCK ROCK MUTE Tune Tune MONO CLAS CLAS Audio Audio /Seek /Seek Control Control LOUD LOUD /Track /Track LOUD DISC RND DISC RND SCAN SCAN... -
Page 7: Operating Instructions
R/L jacks (item 12) on the rear panel as shown on the wiring diagram. 5. Output Connections Connect the low-level output jacks from the PEQ-200 to the low-level inputs of the amplifier(s) in the system as shown on the wiring diagram. For 2-way systems, use the SUBWOOFER OUT R/L and HIGH PASS OUT REAR R/L jacks. - Page 8 FADER FRONT/REAR CONTROL Rotate this control clockwise (REAR) or counterclockwise (FRONT) to favor the output from the rear or front speakers, respectively; the sound output from the front or rear speakers is thereby subdued. The control is detented at the center position which provides equal front and rear speaker outputs.
- Page 9 REAR PANEL INPUT INPUT HIGHPASS SUBWOOFER LEVEL FRONT REAR SUBWOOFER REAR FRONT 50Hz FULL FULL 80Hz 80Hz 100Hz 100Hz 100Hz 150Hz 120Hz 150Hz 200Hz CROSSOVER-EQUALIZER HIGH PASS OUT FRONT R/L CONNECTORS These connector ports provide the high-pass crossover stereo output signal to the front speaker amplifier. The crossover equalization frequency of this signal is selected by the FRONT crossover selector switch (item 19).
- Page 10 IN-LINE POWER FUSE The circuitry of the PEQ-200 is protected from damage by a 1-Amp automotive-type fuse in-line with the constant +12V dc power input, and housed within the fuse box of the power harness assembly.
-
Page 11: Warranty
CD changers, power amplifiers, equalizers and accessories. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 12 © 2001 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 Printed in China 128-5802 -12-...
