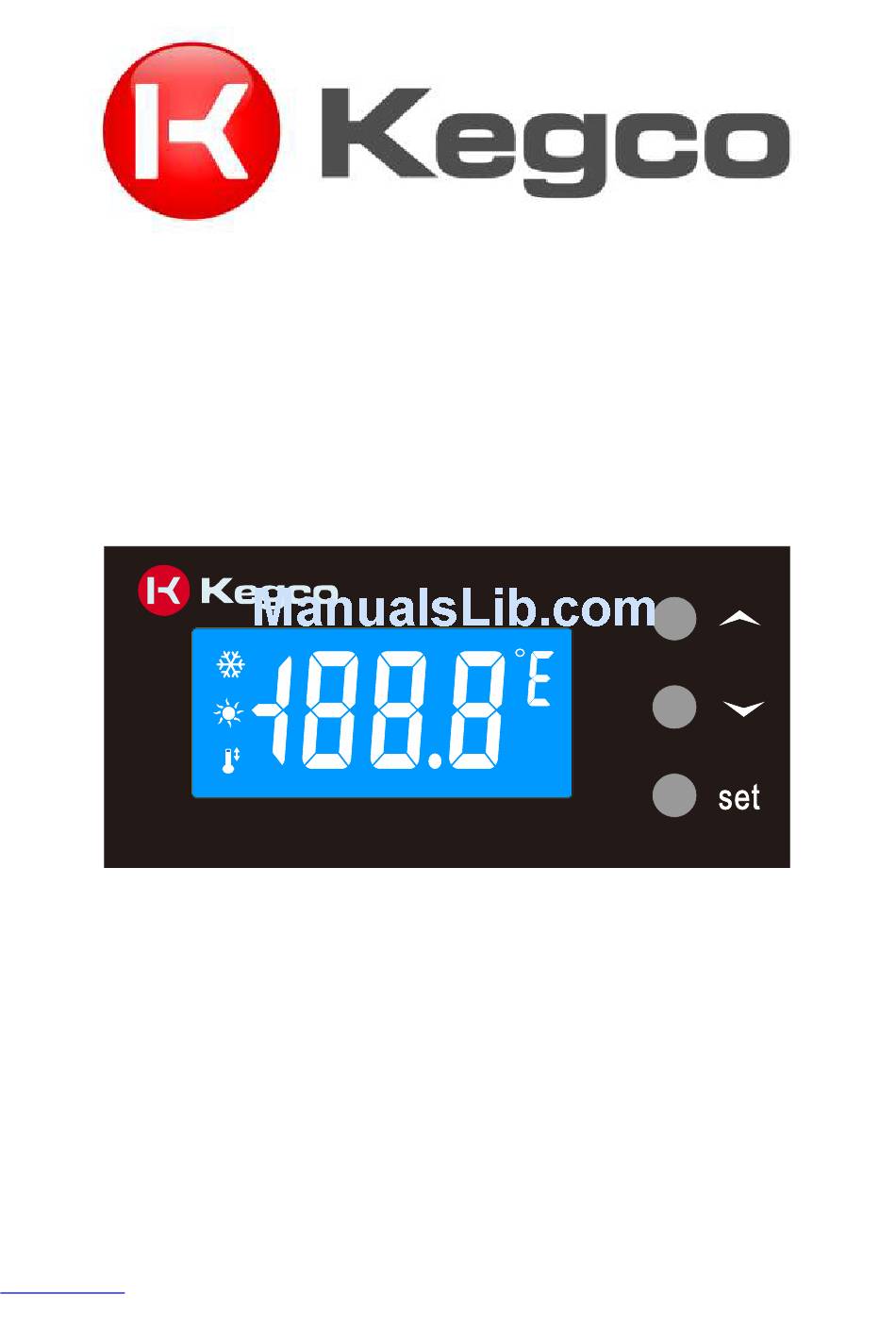

Instruction Manual
MODEL: RTC-2
:
MODE
COOL
HEAT
RT
SET
COOL DIFF
HEAT DIFF
ALARM
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Kegco has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice
KEGCO
8510 Miralani Dr., San Diego, CA 92126
www.kegco.com
1-888-980-4810
Advertisement
Table of Contents
Related Manuals for Kegco RTC-2
Summary of Contents for Kegco RTC-2
- Page 1 HEAT DIFF ALARM BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Kegco has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice KEGCO 8510 Miralani Dr., San Diego, CA 92126 www.kegco.com...
- Page 2 Diagram and Description: 6. Plug Wire 1. Display Panel 7. Button 2. Data Wire 8. Sensor 3. Plug 9. Suction Cup 4. Hook 10. Adhesive Tape 5. Plug Panel www.kegco.com 1-888-980-4810...
- Page 3 The Kegco RTC-2 is a digital temperature power control device that overrides an appliances' thermostat. Common applications include using the RTC-2 to control the power to a freezer to prevent it from getting too cold, or to control the power to a terrarium to prevent it from getting too hot and maintaining a stable environment. It regulates the amount of electricity getting to the appliance allowing you precise control over the temperature settings.
- Page 4 Press for 3 System goes into hidden menu, press again to switch Normal operating seconds between COOL DIFF, HEAT DIFF and ALARM Press once Data adjusted up Under Menu setting Press once Data adjusted up Under Menu setting www.kegco.com 1-888-980-4810...
- Page 5 22 and click off. When it got up to 42, it would click back on again allowing the unit to run less often using less power but with much more temperature fluctuation. www.kegco.com 1-888-980-4810...
- Page 6 Plug panel sensor short circuited causing Change the sensor non-stop working of COOL equipment Warning symbol flashing and buzzing Plugged wrong (Plugged into HEAT) Plug into COOL When it’s under COOL Mode Wrong Mode setting (HEAT Setting) Change the setting to COOL www.kegco.com 1-888-980-4810...
- Page 7 Temperature Adjustment Step 0.5F Temperature Difference ±2F Power ≤3W Electrical Relay Capacity 10A/110V Type of Sensor Cooper nicked probe Length of Sensor Wire 78 4/5 inch Length of Data Wire 78 4/5 inch Length of Power Wire 78 4/5 inch www.kegco.com 1-888-980-4810...
