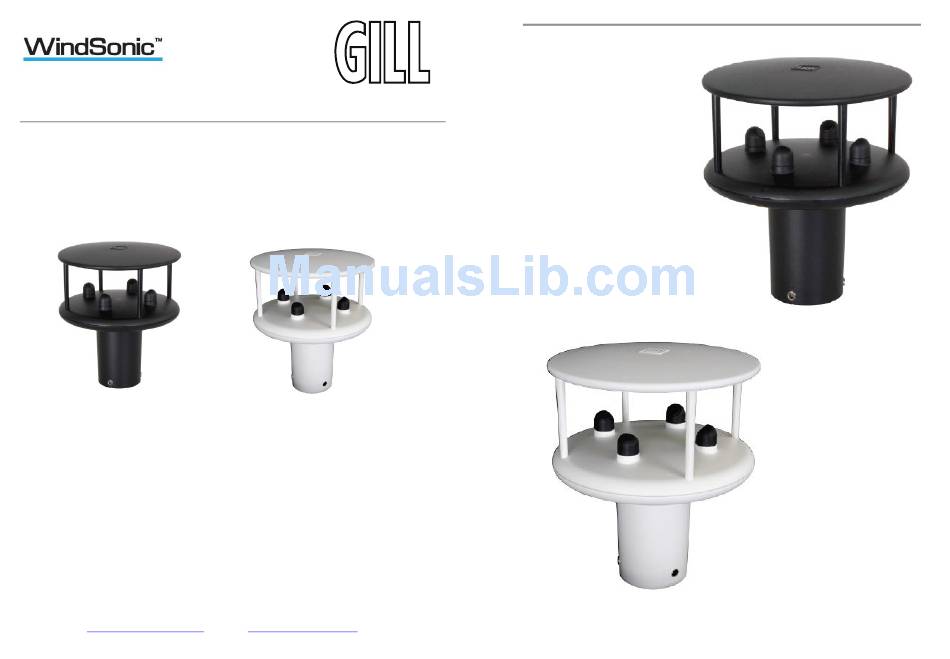

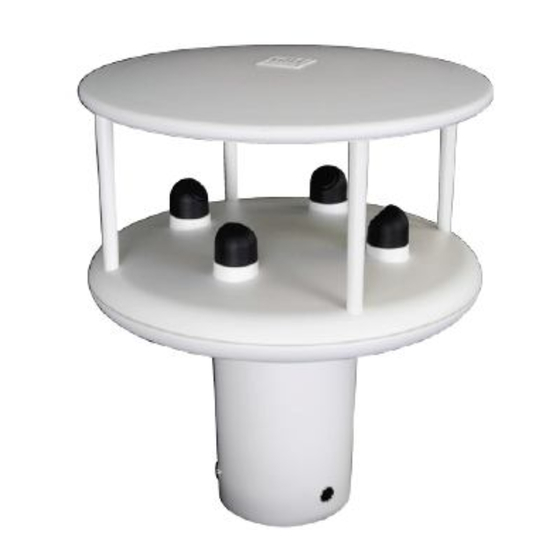

WindSonic
Doc No 1405 PS 0019 Issue 25
February 2017

User Manual

Ultrasonic Anemometer
Doc No: 1405-PS-0019
Issue 25
APPLIES TO WINDSONIC OPTION 1-3 UNITS SUPPLIED FROM MARCH 2016
WITH SERIAL NUMBERS 16110001 ONWARDS AND
WITH FIRMWARE 2368-110-01 ONWARDS.
APPLIES TO WINDSONIC 75 OPTION 1, 2 and 3 UNITS
SUPPLIED WITH FIRMWARE 2368-107-01
APPLIES TO OPTION 4 SDI-12 UNITS FROM JUNE 2011
WITH SERIAL NUMBERS 11220007 ONWARDS.
Gill Instruments Limited
Saltmarsh Park, 67 Gosport Street, Lymington,
Hampshire, SO41 9EG, UK
Tel: +44 1590 613500, Fax: +44 1590 613555
Email:
anem@gillinstruments.com
Website:
www.gillinstruments.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GILL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WindSonic GILL

  • Page 1: User Manual

    User Manual Ultrasonic Anemometer Doc No: 1405-PS-0019 Issue 25 APPLIES TO WINDSONIC OPTION 1-3 UNITS SUPPLIED FROM MARCH 2016 WITH SERIAL NUMBERS 16110001 ONWARDS AND WITH FIRMWARE 2368-110-01 ONWARDS. APPLIES TO WINDSONIC 75 OPTION 1, 2 and 3 UNITS SUPPLIED WITH FIRMWARE 2368-107-01 APPLIES TO OPTION 4 SDI-12 UNITS FROM JUNE 2011 WITH SERIAL NUMBERS 11220007 ONWARDS.
  • Page 2: Table Of Contents

    HECKING THE CONFIGURATION PRE-INSTALLATION 10.7 HANGING A SETTING QUIPMENT SUPPLIED 10.7.1 Command List 6.1.1 WindSonic Part Numbers Bx - Baud rate ACKAGING Cx - Analogue settings NSTALLATION REQUIREMENTS Dx - Diagnostic and Configuration Command (See Section 10.8) ABLE SSEMBLY Ex - Communications Protocol...
  • Page 3: Foreword

    SDI-12 (V1.3) and described in Section 14 SDI-12 COMMANDS. 3 FAST TRACK SET-UP If you are in a hurry to try out the WindSonic (options 1, 2 or 3) and are familiar with Gill equipment and coupling to a PC using RS232, go to the following sections: ...
  • Page 4: Principle Of Operation

    February 2017 4 PRINCIPLE OF OPERATION The WindSonic measures the times taken for an ultrasonic pulse of sound to travel from the North transducer to the South transducer, and compares it with the time for a pulse to travel from S to N transducer. Likewise times are compared between West and East, and E and W transducer.
  • Page 5: Specification

    This Specification relates to WindSonic Option 1, 2 and 3 WindSonic Sensors fitted Moisture protection IP66 with a Red Tab and WindSonic 75 Option 1, 2 and 3 fitted with an Orange tab (fitted Temperature Operating -35C to +70C Storage -40C to +80C adjacent to the North Marker arrow).
  • Page 6: Pre-Installation

    6.2 Packaging 6 PRE-INSTALLATION Whilst the WindSonic is being moved to its installation site, the unit should be kept in its 6.1 Equipment supplied inner packaging. All the packaging should be retained for use if the unit has to be returned at any time, or if a self-test is performed.
  • Page 7: Cable Assembly

    Please note there will be some resistance. Open the pack of parts provided with the WindSonic or as 1405-PK-069 Trim back the screened cable outer and screen sleeves 40mm.
  • Page 8 Now screw the cable-clamping nut into place. Fit the connector to the WindSonic so that you can finish assembling the connector. The connector can now be removed from the WindSonic. NOTE: To disassemble the connector, reverse this procedure.
  • Page 9: Installation

    (preferably utilising the final cable length). The required data format, units, output rate, and The WindSonic has been designed to meet and exceed the stringent standards listed in its other options should also all be set up at this stage.
  • Page 10: Power Supply

    WindSonic Option 1 and 2 Units; Require a DC supply of between 5V – 30 V DC (30V DC max). WindSonic Option 3 Units; Require a DC supply of between 7V– 30 V DC (30V DC V supply - –...
  • Page 11: Connecting To A Gill Winddisplay

    Pin no's pairs Signal Signal Ground Meteorological Display Marine Display Ground The WindSonic is designed to interface with the Gill WindDisplay unit to provide a Do NOT Screen and drain Chassis complete wind speed and direction system. connect wires ground...
  • Page 12: Connecting To A Pc Using Rs422 (Option 2 Or

    V supply - – (See Para 7.3.2) Default Settings The WindSonic Option 2 and 3 unit is factory configured with the following default settings: NOTE: M2, U1, O1, L1, P1, B3, H1, NQ, F1, E2, T1, S4, C2, G0, K50 Analogue Outputs are also simultaneously available from the Option 3 unit.
  • Page 13: Using The Analogue Output (Option

    4 Nm.) It is the responsibility of the customer to ensure that the WindSonic is mounted in a position clear of any structure, which may obstruct the airflow or induce turbulence. V supply +...
  • Page 14: Alignment

    Doc No 1405 PS 0019 Issue 25 February 2017 9 MESSAGE FORMATS On applying power to the WindSonic, it will provide wind measurements in one of the following formats:  Gill – Polar, Continuous (default format)  Gill - UV, Continuous ...
  • Page 15 WindSonic node address This indicates either The default setting is ‘Q’. If required the WindSonic M can be configured to show a different alphabetical node letter (A to Z), so as to identify the WindSonic M. Correct operation Code 00 and A (NMEA).
  • Page 16: G Ill Format – Uv, C Ontinuous

    ‘U’ (= South – North) axis and the ‘V’ (= East – West) axis. When in the Polled mode, an output is only generated when the host system sends a Poll signal to the WindSonic consisting of the WindSonic Unit Identifier – that is, the relevant letter A – Z.
  • Page 17: Nmea F Ormat (Nmea Status C Odes

    Direction is indicated by a 0 or 1. details. STX> Q, 001.59, 1, 00, M, <ETX> 2D The WindSonic can also be set for the alternative start of string NMEA format WIMWV (Mode 14, which is a Mnemonic for: - WindSonic...
  • Page 18: A Nalogue O Utputs And O Ptions

    9.7.1 Voltage or Current output The Wind Speed output can be configured such that full-scale output represents 5, 10, 20, The WindSonic (Option 3) can be configured for either Voltage (0 – 5 V) or Current (0 – 30, 40, 50 or 60 metres/sec.
  • Page 19: Low Wind Speeds (Below 0.05 M/S

    Y3 nnn setting Analogue Output cycles to a user determined level in an error mode. NOTE: The Y command is not applicable to WindSonic 75 Analogue output units. Under data error conditions the analogue outputs will switch back and forth between a user WindSonic 75 units will report Error conditions as though set for Y1 below.
  • Page 20: Configuring

    Y2 150. Wind software is available on the supplied CD or to download, free of charge, from the Gill For instance if the unit is set for 0-5v analogue outputs and it is required to report a Instruments Limited website http://gillinstruments.com/main/software.html...
  • Page 21 WindSonic Doc No 1405 PS 0019 Issue 25 February 2017 To review and change the WindSonic configuration click on Tools/Wizard Typical Screen is shown following:- If you wish to review the Sensor Settings click on Tools/Report Config. When selected a similar message to that below will be seen.
  • Page 22: Windview

    To change a setting i.e. change from M2 (Polar) to M1 (UV), select M1 from the Wizard 10.2 WindView drop down list then click on Next. Gill WindView software is available on the supplied CD or as a download, free of charge from the Gill Instruments Limited website http://gillinstruments.com/main/software.html WindView features include: - ...
  • Page 23 WindSonic Doc No 1405 PS 0019 Issue 25 February 2017 WindSonic Doc No 1405 PS 0019 Issue 25 February 2017 Select the required COM Port from the drop down list. Clicking on the Anemometer 1 Windsock button gives the following display.
  • Page 24 WindSonic Doc No 1405 PS 0019 Issue 25 February 2017 WindSonic Doc No 1405 PS 0019 Issue 25 February 2017 For Logging Facilities. Click on Settings/Logging to reach the logging screen. If segmented logging is required this will create and save individual files of length set by the To Start Logging select File/Log/Start.
  • Page 25: E Ntering C Onfiguration Mode

    To change a setting, refer to the sections below, enter the command of the new setting From Continuous mode From Polled mode required, followed by ENTER. The new setting will be sent as a message by the WindSonic. Type * Type * then <N>...
  • Page 26: Command List

    Type Q and press ENTER, data will scroll at the new baud rate. ASCII Output format Output rate MEASUREMENT MODE Cx - Analogue settings Analogue output range The following command is only valid for the WindSonic Option 3: Analogue output type Item Options Command Select Units...
  • Page 27 If the checksum repeatedly fails after power on – contact your NMEA, WIMWV (NMEA status code) supplier. NMEA, WIMWV (Gill status code) NOTE: The exact message above may vary. NMEA, IIMWV (Gill status code) Nx - Node Address...
  • Page 28 See Section 10.5. Item Options Command Full Scale level toggling Output Level Fixed Steady level Y2 nnn Pre-Set level toggling Y3 nnn Where nnn =000 to 200 see Para 9.7.10. NOTE: This command is not applicable to WindSonic 75 analogue output units.
  • Page 29: Maintenance & Fault-Finding

    Opening the unit or breaking the security seal will void the warranty and the calibration. Unit M2,U1,O1,L1,P1,B3,H1,NQ,F1,E2,T1,S4,C2,G0,K50, In the event of failure, prior to returning the unit to your authorised Gill distributor, it is configuration recommended that: All cables and connectors are checked for continuity, bad contacts, corrosion etc.
  • Page 30: Returning Unit

    If the status code is other than 00 or A, refer to Section 11.5 Status (error) codes. Check that there are no visible obstructions or damage to the unit before contacting Gill or Use an office fan or similar to check that the unit is sensing wind, turning the unit to your authorised distributor for further advice.
  • Page 31 WindSonic Doc No 1405 PS 0019 Issue 25 February 2017 WindSonic Doc No 1405 PS 0019 Issue 25 February 2017 13.3 WindSonic Options 1, 2, 3 and 4 APPENDICES Electrical Conformity 13.1 Glossary & Abbreviations Item Meaning Calibration Carriage Return...
  • Page 32: Connecting To An Sdi-12 Interface (Option 4)

    WindSonic Doc No 1405 PS 0019 Issue 25 February 2017 14 SDI-12 WindSonic 14.2 Cable Type WindSonic option 4 SDI-12 is factory configured in SDI-12 mode and complies with SDI-12 Batt electronics Application No. of pairs Gill ref. Belden ref.
  • Page 33 Gill Output 14.5 SDI-12 Commands U and V values from the ARC3! a<U_vectorav><V_vectorav><U_from_scalarmax>< WindSonic Option 4 complies with SDI-12 Interface Standard V1.3 averaged vector (UV) data. V_from_scalarmax><status><checksum><CR><LF> We advise that you download the full SDI-12 specification from www.sdi-12.org Scalar magnitude maximum and direction associated with All other commands not defined below respond with a ‘zero data values ready’...
  • Page 34: Gill Output Message Format

    Under error conditions e.g. blocked paths error code 04 the unit will pad the wind data Not Applicable AR4! Zero Data values ready e.g. 0<CR><LF> with 9’s as follows (Gill Fixed Field setting):-. Not Applicable ARC4! Zero Data values ready e.g. 0AP@<CR><LF>...
  • Page 35: Sdi-12 Safe Mode

    This should place the WindSonic into Safe Mode. Note: Once the unit is turned off and back on again it will return to SDI-12 mode. If you need to get back into Gill continuous data then you have to perform the safe mode steps again.
