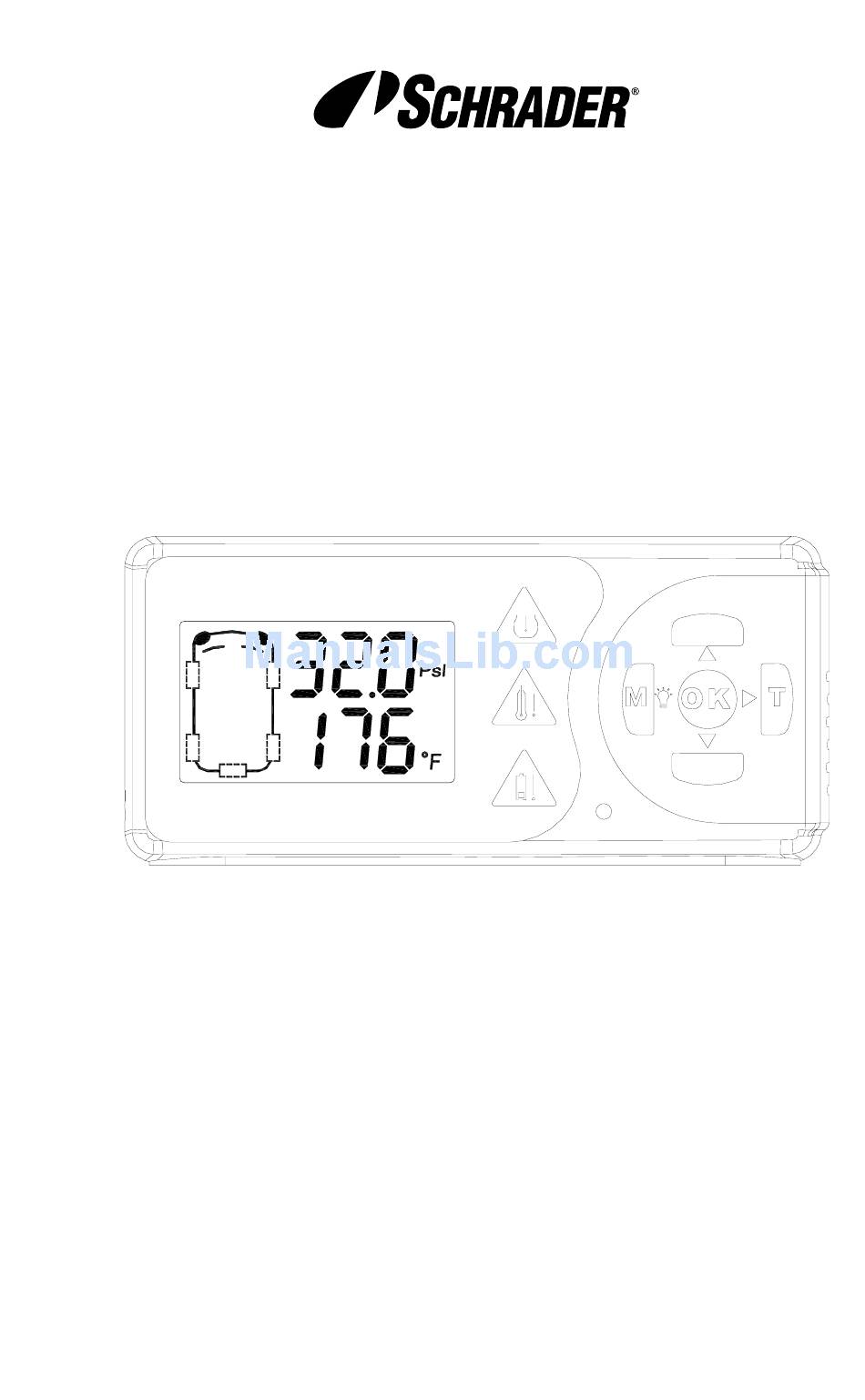

- Page 1 Battery Operated Tire Pressure Monitoring System (TPMS) Owner’s Instructions Part No: SCH-BRK- 4PC Page 1 of 12...
- Page 2 FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 Programming Press and hold the “M” button for 3 or more seconds (when receiver is on) to enter programming mode. Use the “UP” or “DOWN” buttons to select, then use the button to enter the selection. The programmable options are: •...
- Page 4 ID Learn When new sensors or receiver is installed, the receiver needs to learn each new sensor. Enter programming mode and select ID LEARN. Press the button to learn the first sensor (Left Front). The front left tire icon will start to flash along with it’s ID digit. Deflate the tire by at least 1 PSI (8.25kPa).
- Page 5 Spare Tire If a sensor is fitted to the spare tire, it can be monitored during normal TPMS usage. Enter programming mode and select spare tire mode. Press the button to enable change to be made (spare tire icon flashes). The only selection is either ON or OFF.
- Page 6 Front Panel Legend Pressure Warning Over-temperature Counter- Warning Clockwise / UP Save Settings Sensor Low Menu / Toggle Battery Warning Backlight Rotation / Toggle Accept Battery Full Clockwise / Battery Half DOWN Battery Low Normal User Features ▲ Rotate displayed tire counter-clockwise ▼...
- Page 7 Technical Specifications - Sensor Operating Temperature Range -40 to 212°F (-40 to 100°C) Operating Humidity Weight 32 grams 2.25 x 0.91 x 0.51 in Size (LxWxH) (57 x 23 x 13mm) Battery Life (Projected) 10 years normal use Transmitter Frequency 433.920MHz (+/- 100kHz) Pressure Change or Transmitter Activation...
-
Page 8: Troubleshooting Guide
Troubleshooting Guide Symptoms Possible Cause(s) Solution • Check battery • No Power polarity • Replace batteries No display on LCD • Faulty Unit • Replace receiver Strike the receiver with minimal force, OR press Not powering up No Shock Detected and hold the “OK”... - Page 9 Glossary Pressure in kilo Pascals Pressure in pounds per square inch Pressure in BAR °C Temperature in degrees Celsius °F Temperature in degrees Fahrenheit Recommended tire pressure at an ambient Cold Pressure temperature of approximately 72°F (22°C) (See tire placard or vehicle’s Owners Manual) Display / Receiver Internal electronic unit with built-in display and buzzer Wheel mounted (internally) measuring and...
- Page 10 Tire Pressure Reading & Translation Nominal Pressure Alarm (PSI) High 26.1 19.58 39.15 21.75 43.50 30.45 22.84 45.68 31.9 23.93 47.85 33.35 25.01 50.03 34.8 26.10 52.20 36.25 27.19 54.38 37.7 28.28 56.55 39.15 29.36 58.73 40.6 30.45 60.90 42.05 31.54 63.08 43.5...
- Page 11 °C to °F Conversion Table °C °F °C °F °C °F Parts List Description Part Number Sensor (complete) 20154 Receiver (display) 20213 Wheel Sensor (Snap-in) 20214 Torx Screw (individual) 20562013 Valve (individual) 20522044 Hardware bag, inc. 20215 Cleaning Swab 20216 Top Dash Adhesive Strip 20217 Windscreen Adhesive Strip...
- Page 12 Battery Fitment Remove battery cover screw. Remove battery cover & fit 2 x AA batteries as shown. Re-fit battery cover and screw. WARNING: DO NOT DISPOSE OF IN FIRE, recharge, put in backwards, mix with used or other battery types – may explode of leak and cause personal injury.
