Summary of Contents for Kuhnke Ventura Vico

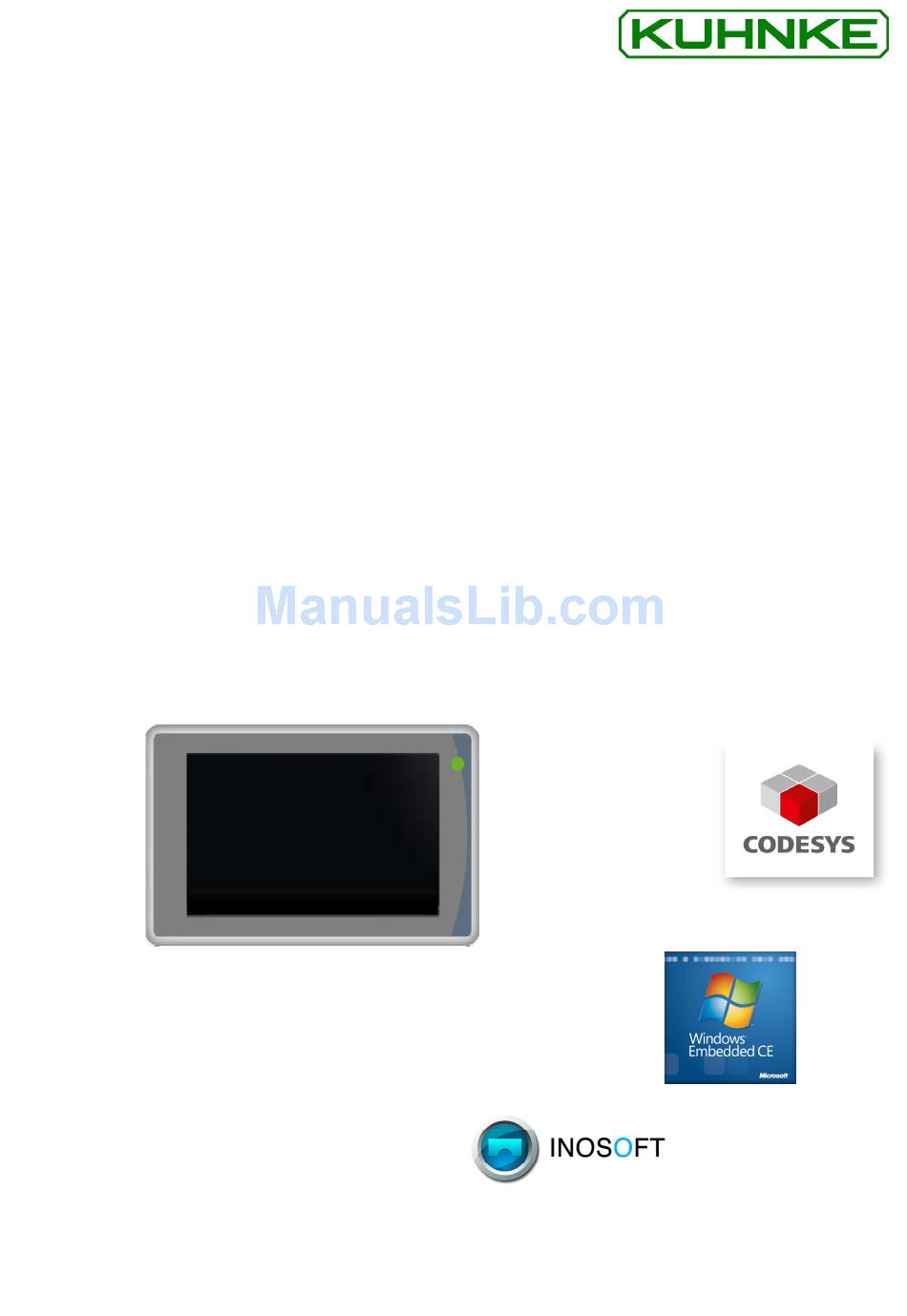

- Page 1 Kuhnke Electronics Instruction Manual Ventura Vico / Scout 401 Toucht Terminal / Panel PLC E 802 GB 10 December 2013...
- Page 2 This technical information is directed primarily to specialists involved in the conception, design and construction of machines. It does not indicate any information about availability of products. The technical specifications stated herein are only of descriptive nature and do not represent a guarantee as to the ability or usability of a product in a legal sense. Such specific assurances are subject to individ- ual contractual agreements.
-
Page 3: Table Of Contents
USB - Host (X12) ......................18 USB - OTG........................19 External USB - OTG (X14) ......................19 Speaker (X9/X10)......................19 Keypad/SPI (X16) ........................19 Standard: Keypad/SPI......................19 Option: Keypad/SPI/I²C ......................20 Protective Earth Conductor ....................21 5 Product geometry ........................27 Ventura VICO / Scout 401 ....................27 6 Appendix............................28 Safety instructions......................28 Disposal ...........................29... - Page 4 KUHNKE Automation Trademarks and service marks..................30 Technical Data .........................31 Specifications ........................31 6.5.1 Basic Units ........................31 6.5.2 Accessories ........................31 Index ................Fehler! Textmarke nicht definiert. Sales & Service........................32 6.7.1 Malente Headquarters....................32 6.7.2 Customer Service............Fehler! Textmarke nicht definiert.
-
Page 5: Introduction
With the Ventura Vico KUHNKE Automation now offers a very cost ef- fective way to use a comfortable operation panel which is directly fitted on the machine. Your small machine or automatic system will immedi- ately receive an added value. -
Page 6: Reliability, Safety
KUHNKE Automation 2 Reliability, Safety 2.1 Intended Use Ventura Vico/Scout is a HMI with for the control of operating and monitoring actions in industrial areas. For other applications, please consult us. KUHNKE is not liable for any possible damages resulting from use in other than the designated applications. -
Page 7: Danger
KUHNKE Automation 2.4.1 Danger This symbol warns you of dangers which may cause death or grievous bodily harm if operators fail to implement the precautions described. 2.4.2 Attention This symbol draws your attention to information you must take a look at to avoid malfunctions, possible material damage or dangerous states. -
Page 8: Project Planning And Installation
This applies to section 8 (Admissible deviations when working on parts) in particular. Repairs must be carried out by specially trained Kuhnke staff • only (usually in the main factory in Malente). Warranty expires in every other case. -
Page 9: Electromagnetic Compatibility
KUHNKE Automation 2.6 Electromagnetic Compatibility 2.6.1 Definition Electromagnetic compatibility is the ability of a device to function satis- factorily in its electromagnetic environment without itself causing any electromagnetic interference that would be intolerable to other devices in this environment. Of all known phenomena of electromagnetic noise, only a certain range occurs at the location of a given device. -
Page 10: Electrical Immission Safeguard
KUHNKE Automation 2.6.4 Electrical Immission Safeguard To bleed electromagnetic interference, connect the controller to opera- tive earth and ensure best-practice wiring. Susceptibility to noise Electromagnetic Compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments (IEC 61000-6-2:2005); 2.6.5 Cable Routing and Wiring... - Page 11 KUHNKE Automation ments. Their rating should conform to the specifications provided by the manufacturer or supplier of the actuators.
-
Page 12: System Description
System Description KUHNKE Automation 3 System Description VENTURA VICO is an Embedded System used as human machine in- terface (HMI) in various applications. Please refer to Appendix for fur- ther information. The system is equipped with a large number of in- dustrial interfaces. -
Page 13: Technical Properties
KUHNKE Automation System Description 3.2 Technical Properties Type Freescale ARM926EJ-S i.MX27 Clock/Frequency 400 MHz Specifications 32 bit with MMU Memory 256 MB NAND-Flash 128 MB DDR-SDRAM Storage Card Slot 4 bit MMC/SDIO/SD/SDHC up to 4 GB Graphics Controller Programmable LCD controller... - Page 14 System Description KUHNKE Automation Digital I/O 1x Digital Out (0.7 A) Power Supply and Consumption Supply Nom. 12/42 V DC Consumption t.b.d. t.b.d. t.b.d. t.b.d. t.b.d. t.b.d. Type 3 V Li-Ion Type CR1220 Internal Backup Battery (RTC) Lifetime >10 years, depending on application Display specification may vary due to customization.
-
Page 15: Mechanical Properties
KUHNKE Automation System Description Mechanical properties Housing Metal parts 1.4016 high quality steel Thickness 0.75 mm Surface treatment Polished Front (boxed versions only) Frame Material 4 mm AlMg Surface treatment Natural anodized, E6/EV1 Décor cover Material Polyester film with antiglare coating... -
Page 16: Internal Battery
Danger of explosion when replaced with wrong type of battery. Replace the battery only with a Lithium battery that has the same or equivalent type recommended by KUHNKE Automation. Do not dispose of used CMOS batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e. -
Page 17: Connectors
KUHNKE Automation System Description 4 Connectors Pos. Description Pos. Description Ethernet (X8) USB - OTG (X14) Power/Digital out (X1) Speaker (X5/X6) RS-232/RS-485 or CAN (X9) Line out (X20) USB - Host (X12) S/PDIF (X7) 4.1 Ethernet/PoE (X8) Name Description Level... -
Page 18: Rs-232/Rs-485 Or Can (X9)
System Description KUHNKE Automation 4.3 RS-232/RS-485 or CAN (X9) 4.3.1 Option: RS-232/RS-485 Name Description Level Ground RS232_TXD1 Port#1: Transmit data (Output) RS232_RXD1 Port#1: Receive data (Input) RS232_RTS1 Port#1: Request-to-send (Output) RS232_CTS1 Port#1: Clear-to-send (Input) Vref Vref out Ground RS485_Y RS485_Z... -
Page 19: Usb - Otg
KUHNKE Automation System Description Header: USB Type A 4.5 USB - OTG This interface can be used either as external OTG port or as second USB - Host port for internal use. External USB - OTG (X14) Name Description Level... -
Page 20: Option: Keypad/Spi/I²C
System Description KUHNKE Automation KP_ROW7_SLK Keypad row 7 SPI Serial Clock KP_COL7_SS0 Keypad column 7 SPI Slave Select 0 Ground Ground Ground Ground Header: JST SM20B-SRDS-G-TF, side entry, RM = 1.00 Plug: JST SHDR-20V-S-B, crimp contact: SSH-003GA-P0.2 Option: Keypad/SPI/I²C Description... -
Page 21: Protective Earth Conductor
KUHNKE Automation System Description 4.7 Protective Earth Conductor The Ventura Vico is designed for installation in a switching cabinet whose IP 20 housing provides sufficient protection against direct contact. Attach a protective earth conductor to provide for protection against indi- rect contact in case of a fault to frame. - Page 22 System Description KUHNKE Automation 5 Services and utilities The standard OS image includes several useful services for flexible appli- cation handling. Some of them are just run-once services directly after the OS has been started, others are available permanently. 5.1 Services 5.1.1 Autocopy...
- Page 23 KUHNKE Automation System Description To disable the serial debug output means to operate the COM1 as serial interface. After changing the mode, a reset is required. After that, the COM1 is ready for use as serial interface. To turn on the debug messages again, repeat the procedure with “No”.
- Page 24 System Description KUHNKE Automation Close port: SysComClose By default, the system assigns COM 5 to the first serial interface you add. FTDI Chip has a range of various converters in a variety of designs. Further information at: http://www.ftdichip.com 6 CODESYS CODESYS is a complete development environment for your PLC.
- Page 25 KUHNKE Automation System Description Following successful installation, "KUHNKE PC Control Ventura" appears in column "Installed target systems. The programming system can now ac- cess the Ventura controller. 6.2 CODESYS Programming PC Setup 6.2.1 Ethernet Connections of Ventura IPC To directly connect the IPC with the programming PC, please use a •...
- Page 26 System Description KUHNKE Automation 6.2.1.2 CODESYS Program Communication Parameter Setup Use the 'Communication Parameters' dialog you access from the 'Online' menu to select and configure the communication channel. Pick 'Online' from the menu to display the 'Communication Parameters' • dialog.
-
Page 27: Product Geometry
7 Product geometry The drawings on the following pages are non-binding and shall provide a first impression of the original size and construction of the products. For all products we provide 3D CAD models. 7.1 Ventura VICO / Scout 401... -
Page 28: Appendix
Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Kuhnke Automation GmbH Co. KG embedded system have been built and tested by us and left the company in a perfectly safe condition. -
Page 29: Disposal
KUHNKE Automation When purchased core or basic versions without protecting • back cover, don’t touch the PCB directly with your fingers. Es- pecially these products need to be handled with very carefully. Don’t operate or handle the unit without typical ESD protection •... -
Page 30: Trademarks And Service Marks
There are a number of proprietary logos, service marks, trademarks, slogans and product designations("Marks") used in this document. By making the Marks available in this document, Kuhnke Automation GmbH Co. KG is not granting you a license to use them in any fash- ion. -
Page 31: Technical Data
Web Terminal, 4,3" TFT Widescreen mit LED Backlight Flash disk 256 MB, Micro SD (HC) up to 2GB Windows CE, VisiWinNET mit 250 Tags Ventura Vico 401 V3 HMI 677 700 04 Touch Terminal, 4,3" TFT Widescreen mit LED Backlight... -
Page 32: Sales & Service
Feel free to also contact us at our headquarters in Malente/Germany: 8.6.1 Malente Headquarters Kendrion Kuhnke Automation GmbH Lütjenburger Straße 101 D - 23714 Malente Tel. 04523 / 402 0...
