Summary of Contents for Technical Pro EQ5300

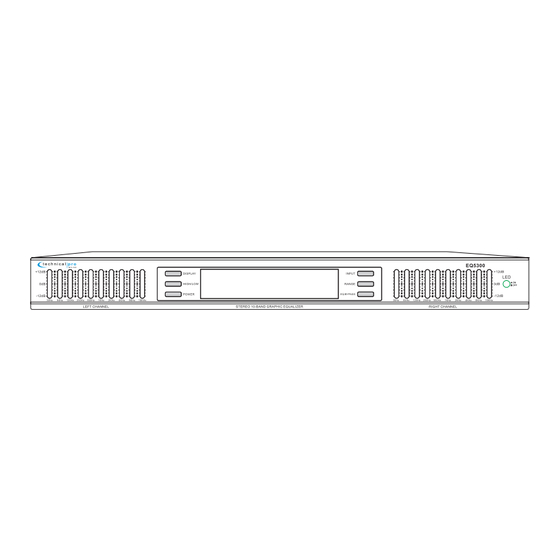

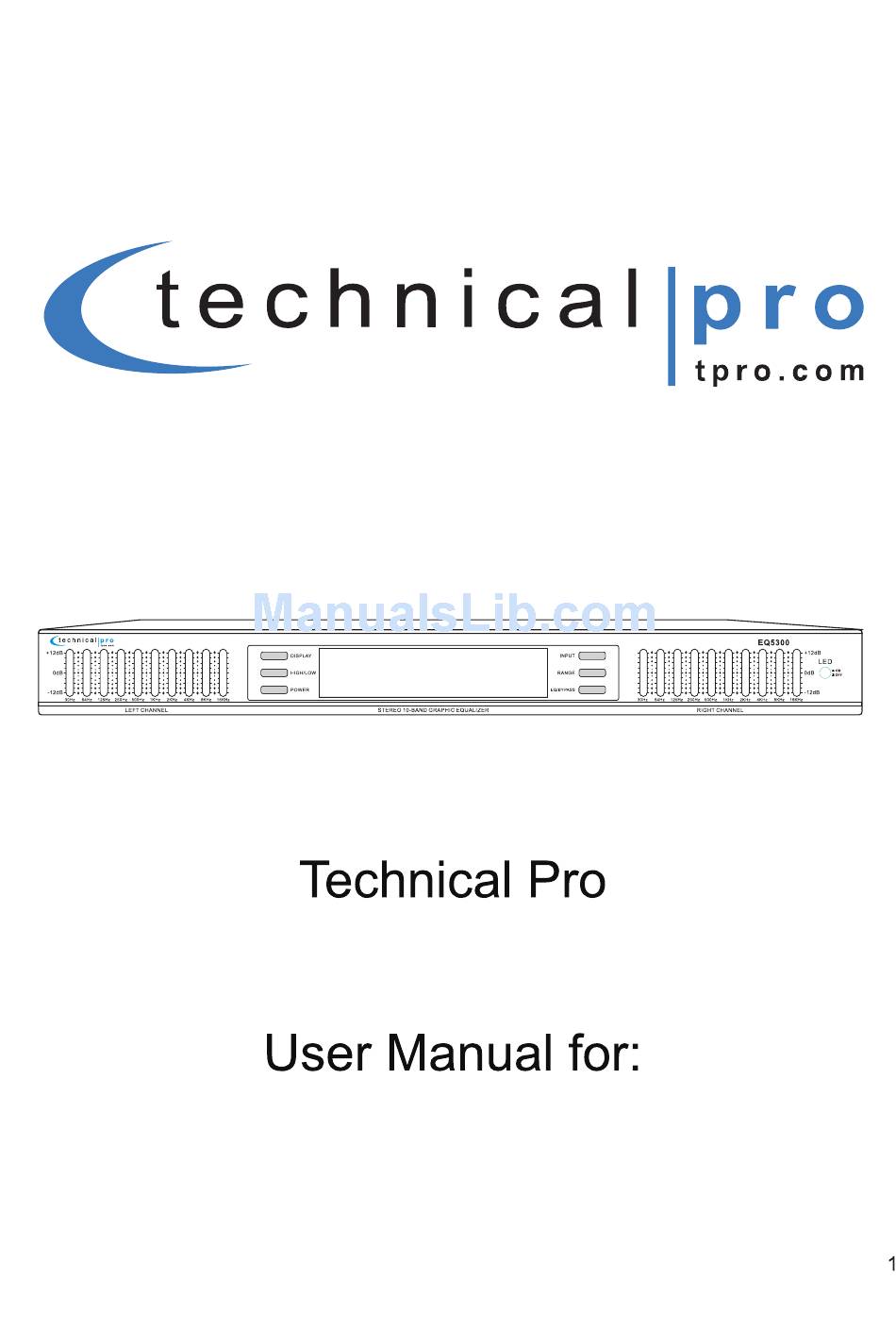

- Page 1 Dual 10 Band Equalizer EQ5300...
- Page 2 If you've spent any time at all in professional audio, you know the name Technical Pro and what it stands for — incredible performance & sound, and the ultimate in reliability under harsh conditions. And now, Technical Pro offers the same technology in a series of professional...
- Page 3 2.Input: Press this button to switch among all the input modes. The default input is TAPE input mode. 3.EQ/BYPASS: Press this button to disable the EQ effect on the EQ5300. Press it again to activate. When the EQ effect is activated, the signal passing through the EQ5300 will be changed depending on the position of the EQ sliders.
- Page 4 EQ5300 Rear Panel 1.Power Supply: Use the power cord to provide with the unit. Before connecting it to the outlet, be sure the power of the EQ5300 is off. 2.Voltage Selector: Select between 230V AC 50Hz / 115V AC 65Hz.
- Page 5 In the typical setup, a user should wire from the output of the signal source directly to one of the RCA inputs on the rear of the EQ5300. Once the input signal source is connected to the EQ5300, connect the amplifier to the EQ5300’s LINE outputs. Pictured above is a TV and DVD player connected to the EQ5300’s inputs.
- Page 6 Connecting the Signal Source to the EQ5300 (DVD/MIXER/MP3 etc.) The EQ5300 has three input jacks on the rear of the unit which is designed to receive the signal directly from your DVD, mixer or any of your other 2 Channel signal sources. To ensure that you have correctly connected your DVD player (other sound sources) to the unit ,make sure that the DVD player has a RCA cord coming from it’s output and that this cord is plugging into the RCA Input on the rear of the...
