Summary of Contents for Bodytastic SpinTastic II PRO

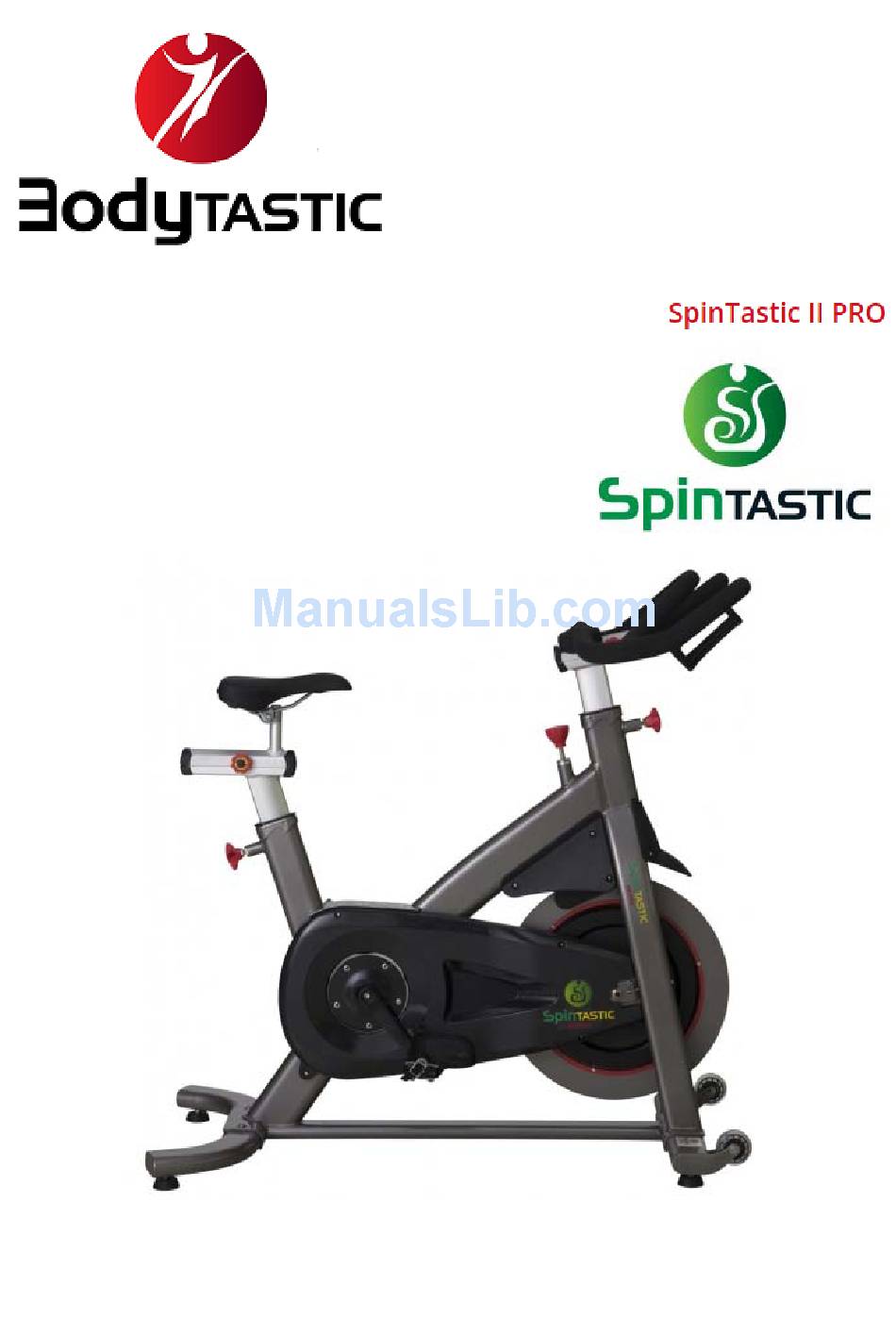

- Page 1 V1.0 2017 / 04 / 08 ...
-
Page 2: Troubleshooting
Troubleshooting 【Belt loose, adjust the belt】 Adjustment steps： Use a hex wrench to loosen the chain cover screws。 Remove the outer chain cover Loosen the flange nuts on both sides Turn the screws clockwise to move the flywheel forward. Each time turn 1/4 circle tighten until the belt will not slip. - Page 3 Troubleshooting 【Crank and pedal loose】 Pedal adjustment steps： Use M15 open wrench to lock the pedal. (At right side pedal, lock clockwise direction to tighten. At left side pedal, lock counterclockwise direction to tighten. ...
- Page 4 【Bike is Wobbling or Uneven While Riding】 Steps: 1. Check the foot levelers on the bottom of the stabilizers 2. Adjust the levelers and the bike until it is square on the floor 【Metal scraping sound from brake】 Steps: Use a Phillips screwdriver to remove the left and right sweat cover and remove the front cover with a hexagonal wrench.
- Page 5 Use the adjustment tool to insert to the brake fixing plate (as red circle) from the bottom. Visual check the magnet brake assembly at the front to adjust brake fixing plate 4. After adjusting the brake fixing plate, test with riding to see if the brake magnet assembly is off from the aluminum ring.
- Page 6 3. Use a Phillips screwdriver to remove sensor screw.(If your bike is equipped with electronic) Use a hexagon wrench and open wrench to release screw and nut of brake assembly. 5. Remove screw of brake assembly and remove the brake assembly set 6.
- Page 7 【Belt split, need to replace the new belt】 Steps: 1. Use a Phillips screwdriver to remove the left and right sweat cover and remove the front cover with a hexagonal wrench.1. Use a hex wrench to loosen the chain cover screws 3.
- Page 8 Use the M15 open wrench to loosen the flange nuts on both sides to allow the flywheel to retreat 6. Remove the belt from pulley 7.Use the M15 open wrench to completely remove the flange nuts and remove the adjust blocks on both sides 8.Use the hex wrench to release the top plate screw and inner chain cover screw, remove the top plate and the inner chain cover...
- Page 9 9. Remove flywheel and place it flat. Replace with a new belt on flywheel. Place the flywheel back to the flywheel bracket on the frame. Hang the new belt on the pulley, the other hand rotate the flywheel counterclockwise direction to put the belt, so that the belt completely hung on the pulley (belt to be completely inside of the pulley) (Belt need to be inside of idle arm) (Belt need to be inside of pulley)
-
Page 10: Maintenance Schedule
Adjust the belt tension value, lock the flywheel flange nut on both sides. (Tighten torque at 450kgf-cm) 16. Assemble back the chain cover, sweat cover and front cover. MAINTENANCE Maintenance Schedule The safety level given by the design of Series 2 PRO Spin Bikes can be maintained only when the bike is regularly checked for wear and damage. - Page 11 MAINTENANCE Wipe down to remove Soap & water, diluted non- Horizontal Slider mositure- Swear, water… abrasive cleaning liquids Check and ensure that the pedals are tight in the crank. Pedal All screws on pedal are tight. Toe clip cage and strap are not damaged and frayed Brake Knob Release the brake to ZERO...
- Page 12 MAINTENANCE Monthly mintenance This should be comprehensive checking of the overall frame, main assembly components Part Recommended Action Cleaner Lubricant Chain 1. Lubricate drive chain with bicycle Lubricant ® lubricant containing PTFE (Teflon ) from containing ® the hope in top of the chain guard. PTFE (Teflon 2.
