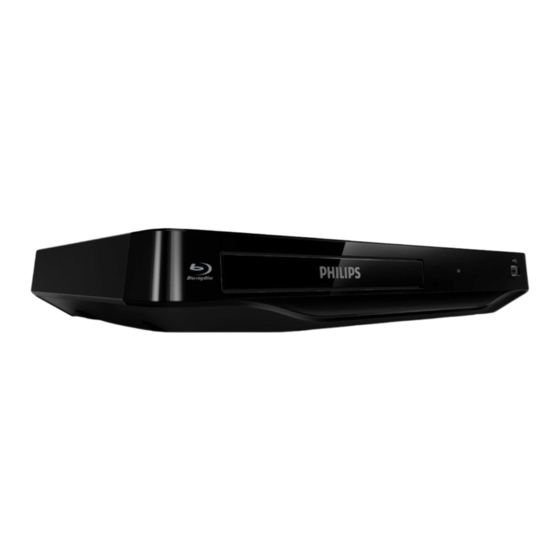

Philips BDP2982/12 Service Manual

Hide thumbs

Advertisement

Quick Links

Blu-ray Disc Player
TABLE OF CONTENTS
Technical Specification, PCBs Location....................... 1
Safety Instruction ...................................................... 2
Instruction for Use...................................................... 3
Mechanical and Dismantling Instructions...................... 4
Service Modes, Troubleshooting.................................. 5
Overall Block Diagram, Wiring Diagram......................... 6
Electrical Diagram...................................................... 7
Exploded View Diagram & Service Part List....................8
Revision List............................................................. 9
Copyright 2012 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
©
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Published BG AVM Printed in The Netherlands
Version 0.0
Version 1.0
Subject to modification
BDP2982/12
BDP2980/12/98/05
Chapter
3141 785 37980

Advertisement

loading

  Summary of Contents for Philips BDP2982/12

  • Page 1 Electrical Diagram……………………………………………… 7 Exploded View Diagram & Service Part List………………..8 Revision List……………………………………………………. 9 Copyright 2012 Philips Consumer Electronics B.V. Eindhoven, The Netherlands © All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2 - Support HDD (a portable hard drive disc): an external power source may be needed. Main unit - Power supply rating: AC 220-240V~ , 50Hz - 60Hz BDP2980/12 BDP2982/12 - Power supply rating: AC 110-127V~, 50Hz - 60Hz BDP2980/98 - Power consumption: 11 W - Power consumption in standby mode: <...
  • Page 3 1.1 PCBs Location PSU PCBA MAIN BOARD VERSION VARIATIONS Type/Versions: BDP2982/BDP2980 Service policy Board in used: MAIN BOARD PSU PCBA *TIPS: C -- Component Lever Repair. M -- Module Lever Repair X -- OCX...
  • Page 4 6) Restart the set. B) Update software via USB Flash Drive: 1) Go to www.philips.com/support to check if the latest software version is available for this player. 2) Download the software onto a USB flash drive' s root DIR named "UPG_ A L L " .
  • Page 5 2.0 Safety instruction 1. General safety 2. Laser safety Safety regulations require that during a repair: This unit employs a laser. Only qualified service . Connect the unit to the mains via an isolation personnel transformer. May remove the cover, or attempt to service this .
  • Page 6 3.0 Instruction for Use You can download this information from the following websites: http://www.philips.com/support http://www.p4c.philips.com...
  • Page 7 4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS The following guidelines show how to dismantle the player. Step1: Remove 3 screws around the Top Cover, and then remove the Top Cover Step2: Dismantling Front Panel,the CD door should be removed first, then gently pull the Panel out from the set. use an acuate press the reset hole to release the disc tray;...
  • Page 8 Trouble shooting chart No display , and buttons do not work No display on LED DISPLAY, and buttons do not work Check every supply voltage on main board is Refer to Power supply board part normal Check +5V,+12V, voltage on the power Fix the power board board Check the signals of the PU4's...
  • Page 9 Trouble shooting chart Remote control does not work Remote control does not work Check whether the remote Replace the battery for remote controller’s battery controller exhausted or not. Check the Power supply board part Check the IR1 power supply is OK Check whether bad solder exits on IR1'pins Fix the connection Replace IR1...
  • Page 10 Trouble shooting chart Can’t read disc or can’t open the disk door Can’t read disc or can’t open the disk door Check whether Check the connection of the 16PIN cable DVD loader running is from PJ1 on the Power Board. normal Check 40pin and 8pin cable Fix the connection...
  • Page 11 Block Diagram DLAN +5V(FROM PSU) BL1117-ADJ 3.3VSTBY DDR3 FP9012 3.3V SDRAM MOTOR 384M MT8560 DRIVER 64Mx16DDR3 G5725ADJT11U 1.5V 128Mx16DDR3 TPIC2050G4 AT1526P11U 1.2V NAND FLASH 128M 12V(From PSU) BL1117-ADJ 9.5V POWER PCB&DISPLAY PCB POWER SM1628C DRIVER VFD Driver TNY178PN Transformer LED DISPLAY SENSOR GREEN LIGHT...
  • Page 12 MAIN BOARD FOR POWER 1.5V G5725ADJT11U G5725ADJT11U 2.2uH/1.5A 2.2uH/1.5A 15K/1% 15K/1% DC_EN 220uF/6.3V 220uF/6.3V 22uF/6.3V/X5R/NC 22uF/6.3V/X5R/NC C288 C288 10uF/10V/X5R 10uF/10V/X5R 0.1uF 0.1uF 10K/1% 10K/1% 0.1uF 0.1uF VCC_32014805 10/0603 10/0603 AT1526P11U AT1526P11U 1.2V C3 10uF/10V/X5R C3 10uF/10V/X5R 0.1uF 0.1uF 2.2uH/2.5A 2.2uH/2.5A 0.1uF 0.1uF DC_EN...
  • Page 13 MAIN BOARD FOR DDR3 1.5V 1.5V 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 4.7uF/10V/X5R 4.7uF/10V/X5R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R RDQ2 RDQ10 DDRVCCIO RDQ0 RDQ6 RDQ12 DDRVCCIO RDQ0 RDQ1 RDQ3 RDQ7 DDRVCCIO RDQ1 RDQ2 RDQ4 RDQ2 DDRVCCIO RDQ2 1.5V RDQ3 RDQ0 DDRVCCIO RDQ3 RDQ4 RDQ7 RDQS1 DDRVCCIO...
  • Page 14 MAIN BOARD FOR DDR3 1.2V 1.2V 1.2V DVCC12_K DVCC12_K AC12 RDQ0_B RDQ3_B RA0_B 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 22uF/6.3V/X5R 22uF/6.3V/X5R DVCC12_K RDQ0_B AC13 RDQ1_B RDQ7_B RA1_B DVCC12_K RDQ1_B AD13 RDQ2_B RDQ2_B RA2_B DVCC12_K RDQ2_B AE13 RDQ3_B...
  • Page 15 MAIN BOARD FOR VIDEO AVDD33_VDAC 3.3V AVDD33_VDAC AOLRCK_R TP61 TP61 AOLRCK 0.1uF/16V/X7R 0.1uF/16V/X7R AOSDATA0_R CH2_P F_TX2+ TP30 TP30 AOSDATA0 AOSDATA1_R TP32 TP32 AVSS33_VDAC AOSDATA1 AOSDATA2_R CH2_M F_TX2- TP64 TP64 AOSDATA2 AOSDATA3_R TP33 TP33 AOSDATA3 AOSDATA4_R TP29 TP29 AOSDATA4 AVDD33_VDAC_R F_TX1- 3.3V AVDD33_VDAC_R CH1_P...
  • Page 16 MAIN BOARD FOR USB 3.3V 3.3V AVDD33_USB 10K/NC 10K/NC 10K/NC 10K/NC 10K/NC 10K/NC 10K/NC 10K/NC 10K/NC 10K/NC 3.3V DVCC33_IO AVDD33_USB DVCC33_IO C103 C103 C104 C104 DVCC33_IO 1uF/16V/X7R 1uF/16V/X7R 10uF/10V/X5R 10uF/10V/X5R AMUTE NFD7 AMUTE DVCC33_IO I/O7 NFCEN NFD6 DVCC33_IO AVSS33_USB I/O6 NFWEN NFD5 NFRBN...
  • Page 17 MAIN BOARD FOR LED&IR 3.3V 3.3V_STBY GPIO0 TP58 TP58 DVCC33_IO_STB GPIO0 DVCC33_IO_STB GPIO1 TP59 TP59 DVCC33_IO_STB GPIO1 3.3V_STBY C122 C122 UARXD UARXD UATXD 3.3V_STBY 0.1uF/16V/X7R 0.1uF/16V/X7R UATXD 3.3V_STBY VCLK VCLK VSTB 10K/NC 10K/NC TRST# TP69 TP69 VSTB VSTB VSTB AVDD33_LDO VDATA VOUTD3 VDATA...
  • Page 18 MAIN BOARD FOR OPU TRINA TRINA TRINA V14REF TRINB TRINB TRINB TRINC TRINC TRINC NC18 NC18 TRIND TRIND TRIND C143 C143 2.2uF/10V/X5R 2.2uF/10V/X5R A1.2V NC17 NC17 V14REF AVDD12_1 3.3V AVDD12_1 FVREF FVREF AVDD12_2 HAVC C130 C130 C131 C131 HAVC HAVC TRINA 0.1uF/16V/X7R 0.1uF/16V/X7R...
  • Page 19 MAIN BOARD FOR PSU MOTOR DRIVER TI2050G4 MVCC_T TPIC_TR+ TPIC_TR+ M12V_T U409 U409 TPIC_TR- TPIC_TR- TPIC_A+ TPIC_TL- TPIC_TL- SLED1_P P5V_2 TPIC_A- TPIC_CO_B- TPIC_TL+ TPIC_TL+ SLED1_N STP2_N TPIC_CO_B+ C757 C757 C758 C758 R1359 R1359 1/0603 1/0603 TPIC_FR- P12V_3 STP2_P TPIC_FR- TPIC_B+ TPIC_CO_A- 0.1uF 0.1uF...
  • Page 20 MAIN BOTTOM PCB...
  • Page 21 MAIN TOP PCB 7-10...
  • Page 22 PSU TOP PCB 7-11...
  • Page 23 PSU TOP SILK SCREEN 7-12...
  • Page 24 Exploded View Diagram...
  • Page 25 9.0 REVISION LIST Version 1.0 Initial release...

This manual is also suitable for:

Bdp2980/12Bdp2980/98Bdp2980/05
