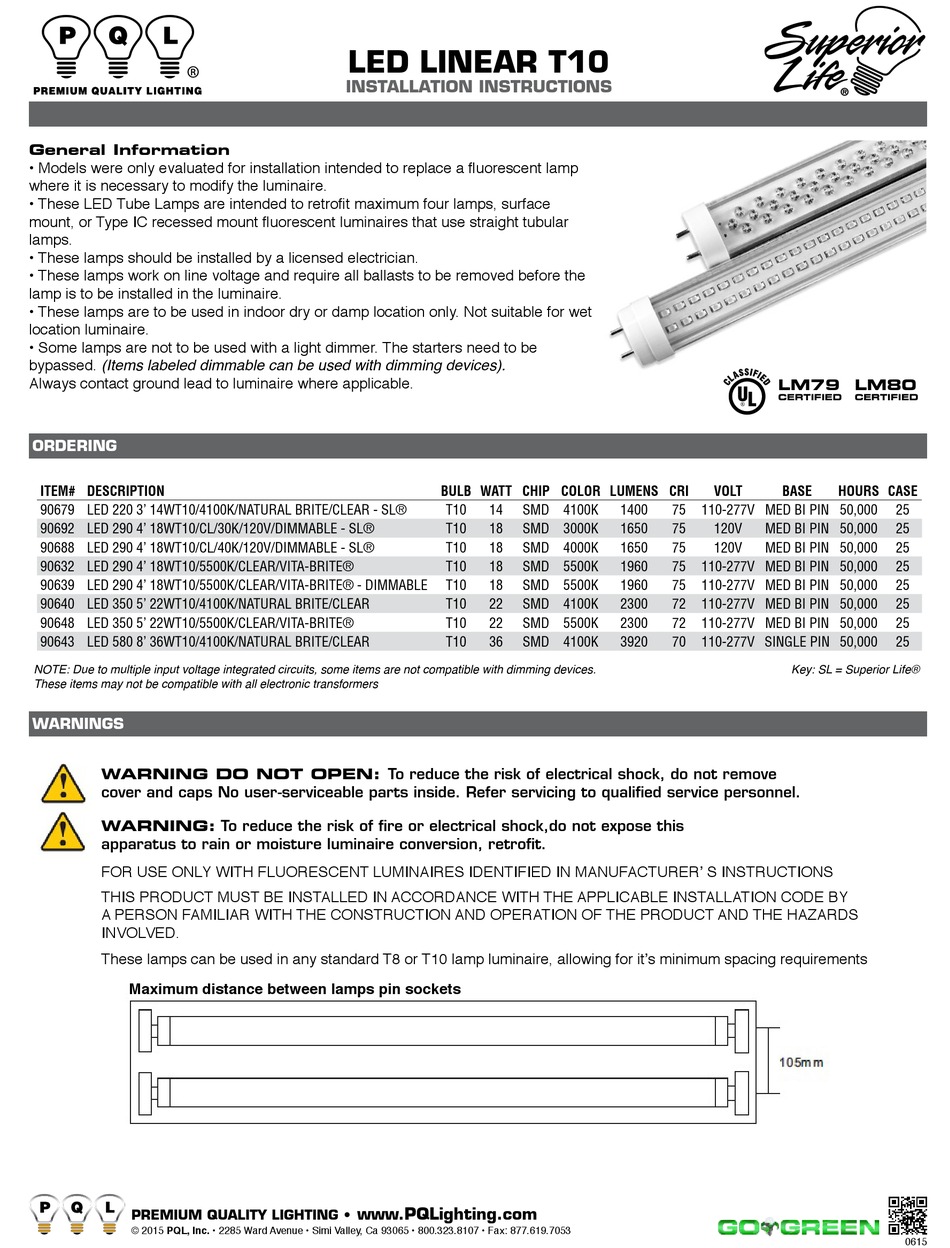

Superior Life T10 Installation Instructions

General Information

• Models were only evaluated for installation intended to replace a fluorescent lamp
where it is necessary to modify the luminaire.
• These LED Tube Lamps are intended to retrofit maximum four lamps, surface
mount, or Type IC recessed mount fluorescent luminaires that use straight tubular
lamps.
• These lamps should be installed by a licensed electrician.
• These lamps work on line voltage and require all ballasts to be removed before the
lamp is to be installed in the luminaire.
• These lamps are to be used in indoor dry or damp location only. Not suitable for wet
location luminaire.
• Some lamps are not to be used with a light dimmer. The starters need to be
bypassed. (Items labeled dimmable can be used with dimming devices).
Always contact ground lead to luminaire where applicable.
ORDERING
ITEM# DESCRIPTION
90679 LED 220 3' 14WT10/4100K/NATURAL BRITE/CLEAR - SL®
90692 LED 290 4' 18WT10/CL/30K/120V/DIMMABLE - SL®
90688 LED 290 4' 18WT10/CL/40K/120V/DIMMABLE - SL®
90632 LED 290 4' 18WT10/5500K/CLEAR/VITA-BRITE®
90639 LED 290 4' 18WT10/5500K/CLEAR/VITA-BRITE® - DIMMABLE
90640 LED 350 5' 22WT10/4100K/NATURAL BRITE/CLEAR
90648 LED 350 5' 22WT10/5500K/CLEAR/VITA-BRITE®
90643 LED 580 8' 36WT10/4100K/NATURAL BRITE/CLEAR
NOTE: Due to multiple input voltage integrated circuits, some items are not compatible with dimming devices.
These items may not be compatible with all electronic transformers
WARNINGS
WARNING DO NOT OPEN: To reduce the risk of electrical shock, do not remove
cover and caps No user-serviceable parts inside. Refer servicing to qualified service personnel.
WARNING: To reduce the risk of fire or electrical shock,do not expose this
apparatus to rain or moisture luminaire conversion, retrofit.
FOR USE ONLY WITH FLUORESCENT LUMINAIRES IDENTIFIED IN MANUFACTURER' S INSTRUCTIONS
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED.
These lamps can be used in any standard T8 or T10 lamp luminaire, allowing for it's minimum spacing requirements
Maximum distance between lamps pin sockets
PREMIUM QUALITY LIGHTING •
© 2015 PQL, Inc. • 2285 Ward Avenue • Simi Valley, Ca 93065 • 800.323.8107 • Fax: 877.619.7053
LED LINEAR T10

INSTALLATION INSTRUCTIONS

BULB WATT CHIP COLOR LUMENS CRI
T10 14 SMD 4100K
T10 18 SMD 3000K
T10 18 SMD 4000K
T10 18 SMD 5500K
T10 18 SMD 5500K
T10 22 SMD 4100K
T10 22 SMD 5500K
T10 36 SMD 4100K
www.PQLighting.com
LM79
CERTIFIED
VOLT BASE
1400 75 110-277V MED BI PIN 50,000
1650 75 120V MED BI PIN 50,000
1650 75 120V MED BI PIN 50,000
1960 75 110-277V MED BI PIN 50,000
1960 75 110-277V MED BI PIN 50,000
2300 72 110-277V MED BI PIN 50,000
2300 72 110-277V MED BI PIN 50,000
3920 70 110-277V SINGLE PIN 50,000
Key: SL = Superior Life®
LM80
CERTIFIED
HOURS CASE
25
25
25
25
25
25
25
25
0615
