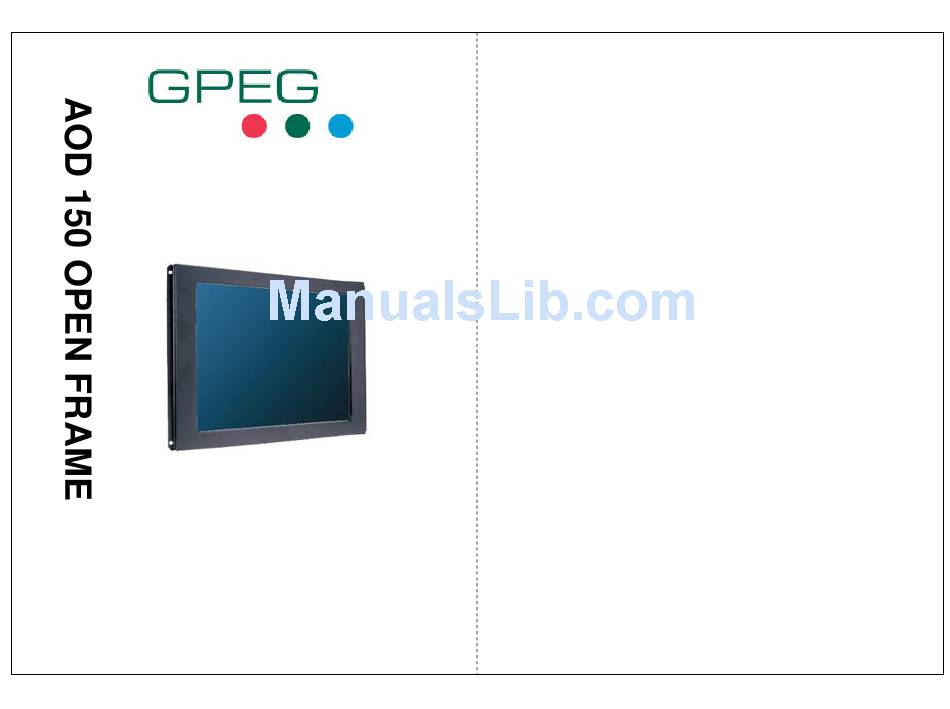

GPEG AOD 150 User Manual

Open frame
Hide thumbs
Table of Contents

Advertisement

Quick Links

TABLE OF CONTENTS

USER'S MANUAL
9 Gunnery Terrace, Duke of Wellington Avenue
Royal Arsenal, Woolwich, London. SE18 6SW
United Kingdom
Tel : +44 208 325 1062 Fax: +44208 181 6751
www.gpegint.com
sales@gpegint.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AOD 150 and is the answer not in the manual?

Questions and answers

Related Manuals for GPEG AOD 150

Summary of Contents for GPEG AOD 150

  • Page 1: Table Of Contents

    TABLE OF CONTENTS 0. Connection To the Monitor USER’S MANUAL 1. Installation 2. Features 3. Plug and Play Function 4. Safety Precaution 5. OSD (On-Screen-Menu) 6. OSD Menu 7. Specifications 8. Contents Of the Retail Package 9. Troubleshooting 10. Drawing 11.

  • Page 2: Connection To The Monitor

    3. Plug and Play Function 0. Connection To the Monitor AOD150 can be installed and connected automatically to any computer systems without driver CD or software programs. Monitor will recognize the optimized value of video mode by DDC(Display Data Channel) method that makes the graphic card of computer to communicate with the monitor.

  • Page 3: Osd (On-Screen-Menu)

    5. OSD (On-Screen-Menu) 6. OSD Menu OSD Menu Description Remarks Contrast Adjust the contrast of the screen Usable Analog/ Brightness Adjust the brightness of the screen Digital Mode Color Control the intensity of the color of Adjust Green the screen’s image Blue (Usable when Color temperature is menu...
  • Page 4 Auto Adjust Analog Analog signal(RGB) Automatically adjust the Only Signal Usable Source all Mode. Horizontal position, usable on Vertical position, Analog Mode Horizontal size, and Digital DVI digital signal Misc. Phase Window's background or VIDEO Video mode characters should be displayed on your Full S - VIDEO S - video mode...

  • Page 5: Specifications

    7. Specifications Channel Add Control the outline Add the channel Model AOD 150 of the TV Main LM150X08 LTM150X0 Panel Channel Del Delete the channel of the TL01 TL02 Suffix (XGA) (XGA) (XGA) (XGA) 15” Color Active Matrix TFT LCD...

  • Page 6: Contents Of The Retail Package

    8. Contents Of the Retail Package 9. Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The monitor does not respond after you turn on the system. Make sure that the monitor is turned on.

  • Page 7: Drawing

    10. Drawing 11. Resistive touch (Option)

  • Page 8: Saw Touch (Option)

    12. SAW touch (Option)

  • Page 10: Capacitive Touch (Option)

    13. Capacitive Touch (Option) 9 Gunnery Terrace, Duke of Wellington Avenue Royal Arsenal, Woolwich, London. SE18 6SW United Kingdom Tel : +44 208 325 1062 Fax: +44208 181 6751 www.gpegint.com sales@gpegint.com...

Table of Contents
