Summary of Contents for Sirius Satellite Radio COB 100W WW 2IN1

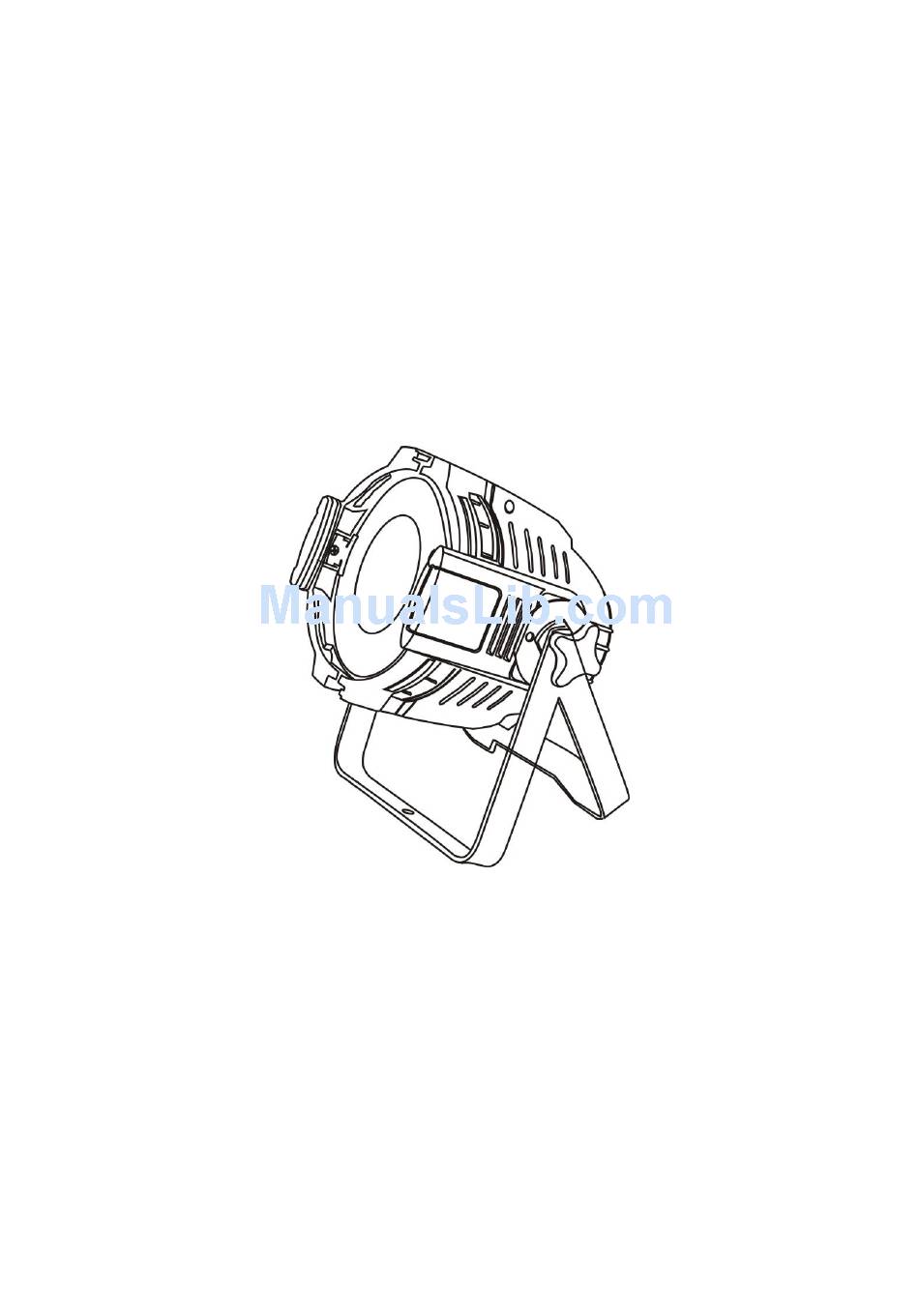

- Page 1 SIRIUS COB 100W WW 2IN1 USER MANUAL User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com...
-
Page 2: Installation
3PIN plug DMX in and out 3 XIN power plug in and out Die-cast aluminium digital display board operation Working indoor temperature -20°C～+40°C DMX channel： 5CHS. Strobe/Colour temperature selection User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com... -
Page 3: Operation
2.The first light’s male plug connect the next light’s female plug, and so on. Operation Control panel Function Button Function MODE Current menu or exit function ENTER current or enter the showed menu DOWN Down User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com... - Page 4 Menu Map [DMX address set up] Press MENU then Up or DOWN until Addr then ENTER By UP and DOWN to change the DMX address User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com...
- Page 5 135-164 4900K 165-194 5600K 195-224 5900K 225-255 6500K Remarks：Channel 5 can use DMX controller to select 8 kinds of color temperature as the above mentioned. User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com...
