STUDIO 3000
OPERATING INSTRUCTIONS
MANUFACTURED
IN THE UK

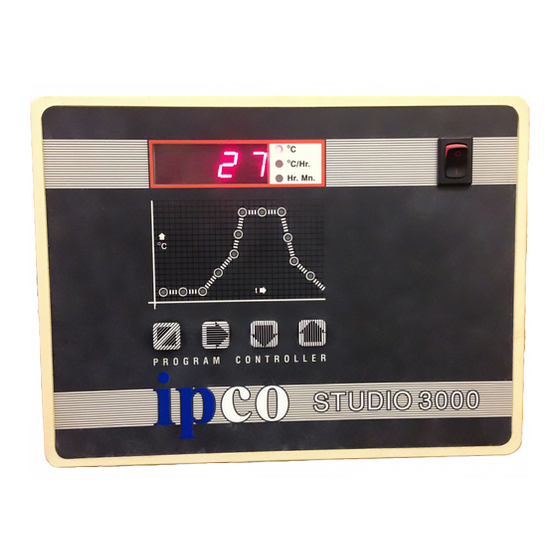

The Studio 3000 is a combined Programmer and Temperature Controller which
has been specifically designed for use with pottery kilns. Control of the entire
firing cycle is fully automatic, to provide simply set, accurate and repeatable
firings. The creation and progress of a firing program can be easily followed using
the Mimic Display.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for IPCO STUDIO 3000
- Page 1 MANUFACTURED IN THE UK The Studio 3000 is a combined Programmer and Temperature Controller which has been specifically designed for use with pottery kilns. Control of the entire firing cycle is fully automatic, to provide simply set, accurate and repeatable firings.
-
Page 2: Table Of Contents
The controls and ‘Running’ a program. This manual describes all aspects of the use of your STUDIO 3000 controller. It is split into three sections. Page one should be read by This will normally show the kiln temperature in ºC. -
Page 3: At Switch On
↓ To Decrease Temperature. is required. Whilst ‘End’ is displayed in program entry press and hold the secret key under the ‘P’ of IPCO. The ↑ / ↓ keys allow a Ln number to be displayed. When the program is run this link number will direct the controller to continue firing - - - - - - - - - - - - - - - - - - Press →... -
Page 4: Security Lock
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Press → to proceed Press and hold down the switch hidden under the “P” of IPco for 10 seconds. -
Page 5: Zone Control
For a three zone control only one output is available for alarm or event. The provision of both is thus not possible. It is Ensure that the Studio 3000 Controller and the Thermocouple are of the same type, otherwise accurate control of temperature recommended that an entirely separate over temperature alarm be fitted in this instance. -
Page 6: Configuration
Configuration Problems The controller operation may be modified to satisfy a variety of situations by amending the parameters. The following list covers the most commonly encountered questions asked by users and some possible causes. This information is given for completeness and should only be modified by experienced personnel. There is no display on the controller To access these parameters first switch the controller OFF. - Page 7 Specifications Size W - 220mm x H - 168mm x D - 80mm Ambient 0 to 50ºC maximum. Supply 230V +/-15% Thermocouple Type R, S, K, or N. (See ‘Configuration’ for change information) Outputs Single pole 3 Amp contacts. All outputs give 230V output via internal link. (See ‘Electrical Connections’...
