Summary of Contents for Daewoo Bus ADK-7330

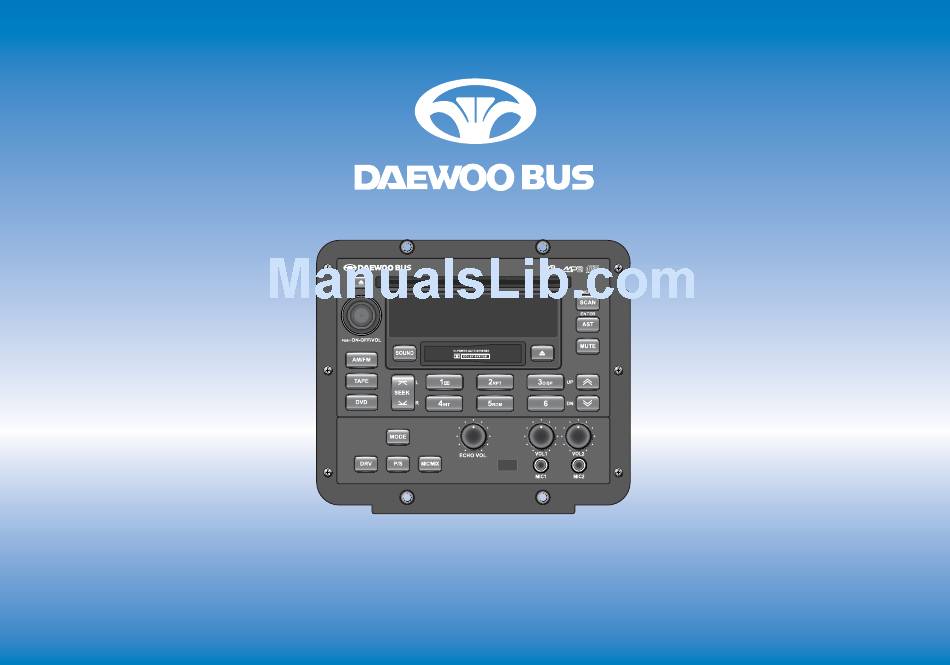

- Page 1 ADK-7330 User Manual ADK-7330...
- Page 2 User Manual ADK-7330...
- Page 3 Please read these instructions carefully before using this product and save ● this manual for future use. The illustrations used in this manual are for you convenience only, and may ● be different from actual objects.
-
Page 4: Table Of Contents
About MP3 ................17 CD section, DVD/Video CD section ........35 DVD/Video CD player Service Information Before DVD/Video CD disc playback ........18 Customer nter-active Center Numbers ......... 36 Playing DVD/Video disc ............19 Controlling the playback ............19 ADK-7330... -
Page 5: Precautions Safety Information
DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. Part 15 of the FCC Rules FCC Warning: Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device. ADK-7330... -
Page 6: Handling Precautions For Safety
This product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°. Note: - The preset memory is cleared to return to the original factory setting when the power connector or battery is disconnected. ADK-7330... -
Page 7: Location Of Controls
To turn on the AM or FM radio. 8. TAPE button To turn on the Cassette tape. 9. DVD button To turn on the CD/MP3 player. SEEK buttons To skip a tracks/fast-forward, reverse a track, find a station manually/select a setting. ADK-7330... - Page 8 To scan the stations and store to each preset buttons automatically. 14. MUTE button Turn on/off the mute. 15. Tape Eject ( ) button To eject the tape. 16. Tune Up/Down( ) buttons To find a station manually, Fast-winding MP3/CD/DVD tacks, titles or chapters. ADK-7330...
-
Page 9: Remote Control For Dvd/Video Cd Player Only
10. ANGLE button Removes numbers (one character at a DVD : Switches the angle of the picture. time) that have been selected and input. 11. SEL/EQ button Selects item or switches the Equalizer. 12. AUDIO button DVD/Video CD mode: Switches audio. ADK-7330... -
Page 10: Display Window
ST lights when a stereo broadcast is received. 7. Playback mode indicator 8. Equalizer indicator [EQ] OFF / CLASSIC / POP / ROCK / JAZZ / VOICE 9. MP3 indicator 10. Function Mode indicator TAPE, CD, DVD, AM/FM or Preset channel number 11. Multi-function display area ADK-7330... -
Page 11: Getting Started
- If you turned off the power while listening to a disc or tape, disc or tape play will start from where adjust each level or balance. playback was stopped previously. - If you turned off the power while listening to the radio, the same radio station will be selected. ADK-7330... -
Page 12: Muting The Sound Quickly
▶ Adjusting volume directly Press MUTE to set mute on. Rotate Power/Volume(ON-OFF/VOL) to increase or to decrease the volume level. The display will show “MUTE”. To restore the sound, press MUTE again. The display will show the volume level (0 to 41). ADK-7330... -
Page 13: Radio
SEEK Start turing for a station. The unit will go to a station, play for a few seconds, and then go to the next station. When the unit tunes in to the desired station, press SEEK to stop scanning. ADK-7330... -
Page 14: Storing Stations Automatically
The unit selects the stations with the strongest signals within the selected ◆ band, and stores them in the order of their frequency. Up to 6 stations can be stored in each of the AMA and FMA band. ◆ ADK-7330... -
Page 15: Cassette Player
Frequent playing and stopping of these tapes may cause them to become entangled in the cassette deck mechanism. Press Cassette Eject[ ] button to eject a cassette. Take the cassette. When cassette is ejected, FM radio function is turn on automatically. Slack ADK-7330... -
Page 16: Fast-Winding The Tape
SEEK ▶ For Dolby B noise reduction tape to fast-winding. When playing the Dolby tape, press the 1 To fast-rewinding : press and hold reduce audible “hiss”. To fast-forwarding : press and hold To cancel fast-winding : press again ADK-7330... -
Page 17: Mp3/Audio Cd Player
Take the disc. Note: Ejecting a disc If the ejected disc is not removed within 15 seconds, the disc is ◆ automatically inserted again into the loading slot to protect it from dust. (Disc will not play this time.) ADK-7330... -
Page 18: Changing The Display Items
“PAUSE” is displayed on the display. To resume normal playback, press it again. Note: For MP3 disc, you can skip tracks within the same folder. ◆ While fast forwarding or reversing an MP3 disc, you can only hear ◆ intermittent sounds. ADK-7330... -
Page 19: Selecting The Playback Modes
- Discs in which labels can be directly printed by an ink jet printer. random sequence. Using these discs under high temperatures or high humidity may cause - RDM DISC; All tracks of disc play in a random malfunctions or damage to the unit. sequence. - RDM OFF; Cancels repeat playback. ADK-7330... -
Page 20: About Mp3
VBR have a discrepancy in elapsed time display, and do not show the actual elapsed time. After performing the search function, this difference becomes noticeable. The unit can recognize a total of 512 files, of 200 folders, and of 8 hierarchies. ADK-7330... -
Page 21: Dvd/Video Cd Player
- Do not put stickers, seals, or tape on the label side of DVD-Rs/DVD- RWs. - Compared to the regular discs, DVD-Rs/DVD-RWs are more affected by heat, moisture, and direct sunlight. If left in a car, etc., damage may occur and it might not play on this unit. ADK-7330... -
Page 22: Playing Dvd/Video Disc
Take the disc. Note: Ejecting a disc If the ejected disc is not removed within 15 seconds, the ◆ disc is automatically inserted again into the loading slot to protect it from dust. (Disc will not play this time.) ADK-7330... -
Page 23: Viewing The Playback Informations
DivX move file must contain proper subtitle or both of them should be in same disc. To cancel zoom playback, press ZOOM to select ◆ You can not change the subtitle during the DivX file playing. the ZOOM OFF. ADK-7330... -
Page 24: Switching The Angle (Dvd Only)
DivX move file must contain proper subtitle or both of them should be in same disc. Insert a DivX disc and close the tray, then playback starts automatically. If you want to control the Playback mode, refer to 15 page “Controlling the playback”. ADK-7330... -
Page 25: Dvd Setup Operation - Using Remote Control Only
To return to previous item or menu press ◀. automatically default to the language you choose if it is available on a given DVD. ◆ Repeat 2 ~ 5 steps to select your desired setting. To finish the setup, press SETUP. ADK-7330... -
Page 26: Setting The Display, Setting The Audio
The Screensaver functions protects the TV screen from imprinting. Last Memory ● ● When you restart playback, playback starts from the location where you stopped playback because the location index is stored in memory. ON : Enable OFF : Disable ADK-7330... -
Page 27: Setting The Speakers
If you didn't set a new password and level, there is no restriction playing discs. When you turn on this unit for the first time, setting the new password is recommended. Default ● ● Change the your settings to defaults. ADK-7330... -
Page 28: A/V Controller
To control the volume of microphone1/2. 4. Driver Mode(DRV) button To switch to on or off the driver’s speaker output. 5. Passenger Earphone Service(P/S) button To control the Passenger Earphone’s output. 6. MIC/MIX button To control the microphone function. ADK-7330... -
Page 29: Selecting The External Input Mode
Car audio speaker output (Radio reception, Cassette VOL.) to control the Microphon’s echo level. or CD playback) or External source via selected external input mode. To turn off the Microphone function press and hold Microphone/Mix(MIC/MIX), then return to the previous mode. ADK-7330... -
Page 30: Auto Announcement System For Guidance
Announcement System is not activated. 8. SD card slot Insert the SD card that announcement for guidance is stored. The Contents or Upgrade of guidance on the SD card inquires to nearest Authorized Service Center or your authorized dealer. ADK-7330... -
Page 31: Announcement For Guidance Automatically
◆ During the External Microphone function, the car audio sound the next announcement. output and Auto Announcement system are cut off. Press the MODE repeatedly to sound first announcement of the next folder on SD card. ADK-7330... -
Page 32: Passenger Earphone Controller
To end, press POWER. 3. Volume ◀ ◀ / / ▶ ▶ button The unit is turned off. To adjust the earphone volume level. 4. Power button To turn on/off the this unit. 5. Earphone jack Plug the Earphone. ADK-7330... - Page 33 6. or the battery lead is not always preset stations again. powered. - Preset stations cannot be - Digital seeking may take some time. - Change to auto seeking, and proceed with seeking again. stored. ADK-7330...
-
Page 34: Troubleshooting Cassette
Troubleshooting ▶ Cassette Symptoms Possible causes Possible remedies - Sound is distorted. -The cassette tape head is contaminated. - Clean the head with a commercially available dry-tape cleaning cassette. ADK-7330... -
Page 35: Mp3/Cd Player
- The unit is tilted at over 30° in the front- - Make the angle 30° or less. to-end direction. - A label is peeled off from the CD in the - Refer repair to the dealer where you purchased the unit. - Disc unejectable unit. ADK-7330... -
Page 36: Dvd/Video Cd Player, Remote Control Unit
- Use the remote control within about 23 ft (7 m). unit. - There is an obstacle in the path of the - Remove the obstacle. remote control and the unit. - The batteries in the remote control are - Replace the batteries with new ones. flat. ADK-7330... -
Page 37: Specifications
Stereo separation FM : 20 dB (1KHz) ▶ Cassette section Tape speed 4.75 Cm/Sec Wow and flutter 0.35 % or less (WRMS) Signal-to-noise ratio 45 dB (Dolby ON) Cross Talk 30 dB Frequency response 63 Hz ~ 12 KHz ADK-7330... -
Page 38: Cd Section, Dvd/Video Cd Section
DVD Video (Single/Dual) DVD±R/DVD±RW Video signal system NTSC / PAL / Auto Frequency response 20 Hz ~ 20 KHz Dynamic Range 85 dB (at 1 KHz) Signal-to-noise ratio 70 dB (at 1 KHz) Total harmonic distortion 0.1 % (at 1 KHz) ADK-7330... -
Page 39: Service Information
Service Information ▶ For consulting and servicing. If you have questions or problems, do not attempt to repair the unit yourself. Return it to the nearest Authorized Service Center or your dealer for servicing. ADK-7330...
