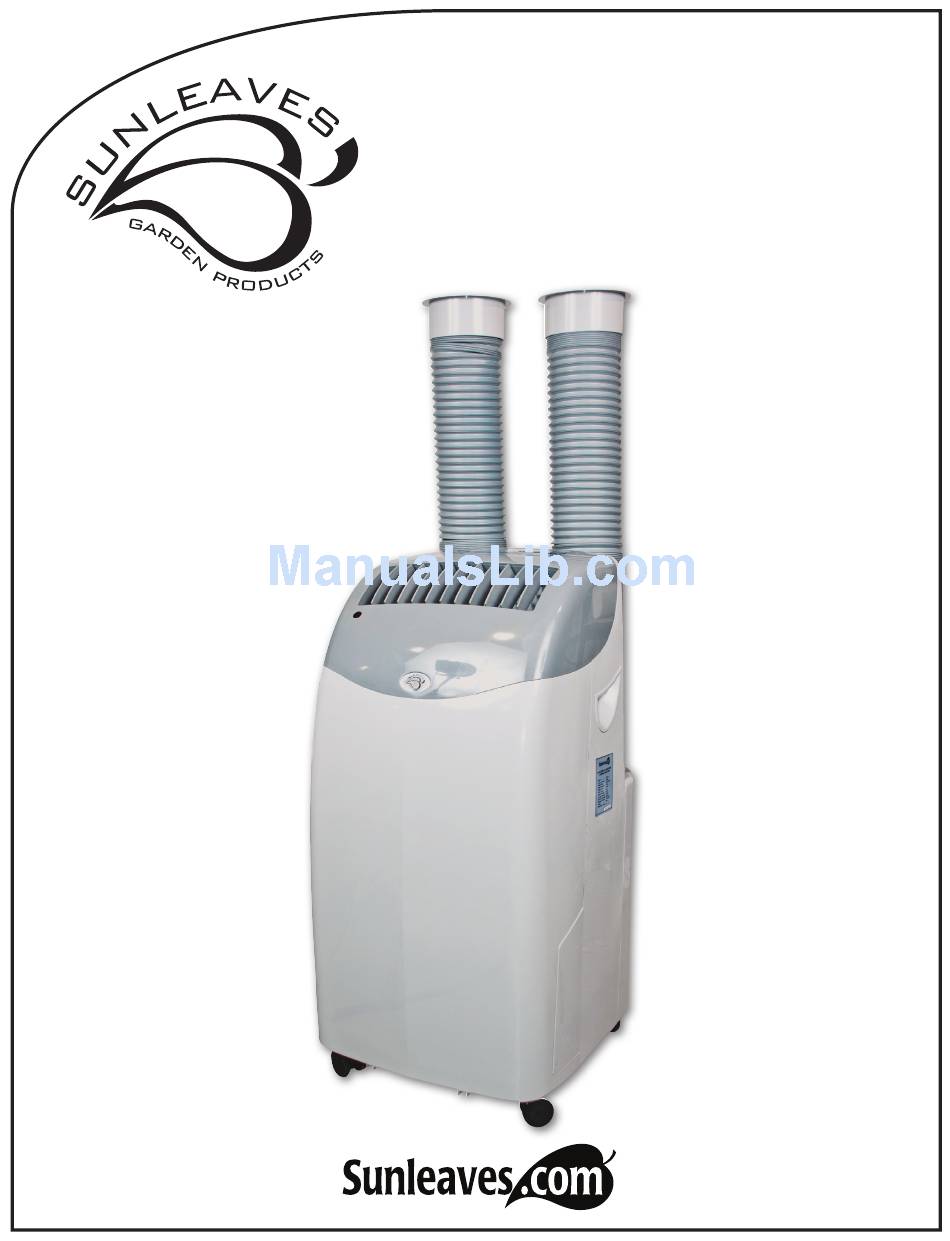

Sunleaves Air Conditioner
Thank you for purchasing this quality Sunleaves Air Conditioner!
Please read through this manual completely, and keep it in
case you need to reference the information in the future.
Any operation of this device beyond that which is described in this
manual, and/or any unapproved attempt to repair this device, will void
the product's warranty and is undertaken at your own risk. Sunleaves
is not responsible for damage caused by inappropriate operation of
this device.
SAC600
REV 092010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Sunleaves SAC600
- Page 1 Sunleaves Air Conditioner Thank you for purchasing this quality Sunleaves Air Conditioner! Please read through this manual completely, and keep it in case you need to reference the information in the future. Any operation of this device beyond that which is described in this manual, and/or any unapproved attempt to repair this device, will void the product’s warranty and is undertaken at your own risk. Sunleaves is not responsible for damage caused by inappropriate operation of this device. SAC600 REV 092010...
-
Page 2: Table Of Contents
Table of Contents Sunleaves Air Conditioner 1. Introduction ............1 2. Technical Specifications ........2 ..........3 Package Contents 4. Operation ............4 5. Maintenance & Trouble Shooting ..12 6. Safety & Special Guidelines ....... 13 7. Warranty Information ........ 15 8. Service ............... 15... -
Page 3: Introduction
Introduction This portable air conditioner is a new generation air conditioner which is ideal for us- ing in your bedroom, study, offi ce, meeting room, warehouse, grow room or any other room that needs air conditioning. It’s fl exibility enables easy adjustments to desired room temperatures and humidity. The built-in fi lter removes dust and purifi es the air to create a healthier environment. It is designed with practicality, portability, and convenience in mind to satisfy the need for convenient, effi cient and mobile air conditioning. It is easy to use, does not need installation and is simple to maintain. The options for remote control or manual control along with an easy to read LCD display makes it effortless to operate. The compact design and multiple functions along with minimal noise and power con- sumption make this unit very competitive with other portable air conditioning units. Our goal is to offer an effi cient air conditioner that will help you control your environ- ment to make it comfortable. This instruction manual is for reference only and does not constitute a contract. We reserve the right to make technical changes without prior notice. SAC600... -
Page 4: Technical Specifications
Technical Specifi cation Model SAC600 Cooling capacity (Btu/h) 12000 Dehumidifying (G/day) 10.5 Power Cooling 1100W Dehumidifying 950W Heating Circulation volume (CFM) Power source (single phase) AC110-120V/60Hz Noise pressure level dB(A) <52 Net weight 103 lbs Dimension Body (inches) 35” x 21” x 20”... -
Page 5: Package Contents
Package Contents 1. Control Panel 2. Air Outlet 3. Handle 4. Caster 5. Interior Air Outlet 6. Exhausted Air Outlet 7. Exterior Air Inlet 8. Electric Cable 9. Duct Connector (2) 10. Flex Tube (2) 11. Remote Control 12. Drain Tray 13. Drain Cap SAC600... -
Page 6: Operation
Operation The operating range for cooling and dehumidifying operation is 59 F-88 F / 15 C-31 * Press the UP and DOWN arrow of the temperature button at the same time to switch between Celcius and Fahrenheit 1. Panel • Display Panel • Operation Panel 2. Power Switch Button Press Power button. Once the power is on, the unit will run at auto mode and the LCD window will display “AUTO”. Press the Power button while the unit is running and the unit turns off, and the timer setting is cancelled, but the other settings (mode, set temperature, fan speed and air fl ow mode) are still set. Press Power button to turn the unit on and the unit starts running with the previous settings but the previous timer setting has been canceled. 3. MODE Button Press the MODE button to choose the settings of: AUTO, COOL, FAN, DEHUMIDIFY and the setting will display in the LCD window. SAC600... - Page 7 F-88 F / 15 C-31 C. When unit is set at AUTO running mode, the default cooling temperature is 73 F / 23 C. Please see Celsius to Fahrenheit conversion table on page 16. 6. TIMER setting button • AUTO OFF TIME SETTING While the unit is on press the TIMER button to set the desired OFF time. The time setting ranges from 0.5 hours to 12 hours in half hour increments. The timer setting will display in the LCD window. • AUTO ON TIME SETTING While the unit is off, press the TIMER button to set the desired ON time. The time setting ranges from 0.5 hours to 12 hours in half hour increments. The timer setting will display in the LCD window. 7. Wind Direction Adjustment Vertical: press the wind adjustment button in control panel or in the remote control, the air vent will swing vertically automatically. Horizontal: adjust the air vent manually to desired wind fl ow direction. SAC600...
-
Page 8: Remote Control
Remote Control • Insert 2 AAA batteries (not included) into the remote control Signal Transmission Indicator: Press once will display informa- tion in LCD window and it will disappear in a few seconds. Wind Button: Press wind button to start or stop air fl ow in a vertical direction Temp Button: Press to increase set room temperature F / 1 Speed Button: Press once to change fan speed to Low, Mid, and High speed. Mode Button: Press to change the unit run mode. POWER Button: Press once to start and press again to stop the unit. Timer Button: Temp Button: Adjust the Auto OFF Press to decrease set setting while the unit room temperature is on and adjust the F / 1 AUTO ON setting while the unit is off. • Please point the remote control to the signal receiver on the unit panel. • LCD window can display AUTO, COOL, FAN, DEHUMIDIFY, SPEED, TEMP etc. SAC600... - Page 9 Operation Remote Control (AUTO mode) Remote Control (WIND button) Wind Button: 1. Insert batteries Choose on or and press POWER off mode. button to turn the system on. • The unit automatically • Please point the remote shuts on or off according control toward the signal to the room temperature. receiver on the unit panel. • After the unit shuts off wait at least 3 minutes before you continue operation. SAC600...
- Page 10 Mode Temp Speed 3. Press TEMP but- ton to set the desired room temperature. 4. Press SPEED but- ton to choose desired fan speed Dehumidify mode: The compres- • When the room temperature sor is running and interior fan is higher than the set temperature, the motor is running at a low speed. compressor will start running. • When the room temperature is lower than the set temperature, the compressor shuts off, and the fan returns to the original speed. SAC600...
- Page 11 0.5 hour incre- ments from 0.5 hour to 12 hours. 6. To cancel ON time press the timer button to 12 hours and press once more to cancel. • The unit must be connected to a • Fan mode: The compressor and power supply to set the auto ON time. outer fan motor stop and the inner fan motor runs at a set speed to circulate the air instead of cooling. SAC600...
- Page 12 Operation Air Exhaust Duct and Air Intake Duct Since the unit is a portable air conditioner, it can move from one room to another easily. You can set up the ducting in the ways listed below to intake outer air and exhaust heated air: 1. Intake outer air and exhaust heated air from a window Air Exhaust Duct Air Intake Duct • Open the window to fi t the plastic ducting outside window and secure them out of the window. 2. Intake outer air and exhaust heated air from the door Air Exhaust Duct Air Intake Duct • Open the door to fi t the plastic ducting and secure them outside of the door. Warning: The air exhaust duct must be placed above the air intake duct • Duct can be placed on the ground safely • When fi nished using the unit, remove the ducts and store them carefully SAC600...
- Page 13 Operation 1. The duct can be extended from 20” to 78” , however, the shorter the exhaust duct, the better the performance. 2. The air exhaust duct must be placed above the air intake duct. 3. Make sure the heat exhaust duct is not kinked or bent, this can cause blockage in the exhaust duct and cause back fl ow, triggering the auto shut-off mechanism. 4. In order to make sure the air intake duct functions properly, please do not put any objects around the duct. Otherwise the air conditioner will fail to remove the hot air and cool the condensor. This will also cause the compressor to auto shut off. 5. Follow all specifi cations, or the unit will not function properly. SAC600...
-
Page 14: Maintenance & Trouble Shooting
Maintenance & Trouble Shooting • Turn off unit before cleaning to prevent electric shock • Unplug power cord to prevent electric shock • Don’t use chemical solvent (like benzene, alcohol) to clean the unit’s surface. Otherwise, the unit’s surface can be easily damaged. • If the air fi lter is blocked, the unit will not function properly. Please clean air fi lter at least once every few weeks to avoid clogs. To open the air fi lter: 1. Open the air fi lter cover and remove air fi lter cover. 2. Remove air fi lter from fi lter cover. To clean the air fi lter Wash the air fi lter by immersing it gently into warm water with a neutral detergent. Fully rinse the fi lter and allow to dry completely before re-inserting. SAC600... - Page 15 fi nished Error code E2 Room temperature sensor failure Change the room temperature sensor Error code E3 Indoor coil sensor failure Change the indoor coil sensor Error code E4 Water tank is full Empty water in water tank SAC600...
-
Page 16: Safety & Special Guidelines
Safety & Special Guidelines • Do not use unit near gas appliances, fires, or near flammable or combustible liquids • Do not incline the unit while moving • Do not mishandle or shake the unit • Keep the unit one yard away from televisions or radios to avoid electromagnetic interference • Do not place air exhaust duct too close to walls to avoid overheating of unit • Do not use unit in crowded areas • Avoid direct sunlight on unit to retain color • Do not use the unit in water or near water to avoid electric shock • If the power cord is damaged, it must be replaced by a certified technician • Do not spray insecticide or other chemicals to avoid damaging the plastic housing • To prolong the life of the unit, please make sure water tank is emptied completely before it is stored • When using the auto-drain for a long period of time, please connect the drainage pipe When there are problems with the unit, please stop using it and ask for advice from your local dealer or manufacturer. After running the unit for an extended period of time, there will be dust in the air intake duct and it could effect the efficiency of the unit. We suggest cleaning the air intake duct and the air filter occasionally or asking for advice from your local dealer. When the unit begins to work inefficiently, is broken, or other problems arise, please turn off and unplug the unit and request service from your local service provider. SAC600... -
Page 17: Warranty Information
Please allow eight to ten weeks for the return in for repairs. of your Portable Air Conditioner. Don’t forget to include the following items if you are returning your Portable Air Conditioner directly to Sunleaves: • Legible copy of your properly dated sales receipt • Return Authorization number on outside of package • This completed form Return Authorization number (required): . -
Page 18: Temperature Conversion Table
Celsius to Fahrenheit Conversion Table Thank you for purchasing this quality Sunleaves Air Conditioner! Celsius Fahrenheit 59.0 60.8 62.6 64.4 66.2 68.0 69.8 71.6 73.4 75.2 77.0 78.8 80.6 82.4 84.2 86.0 87.8 SAC600...
