Summary of Contents for Leicke WD67204

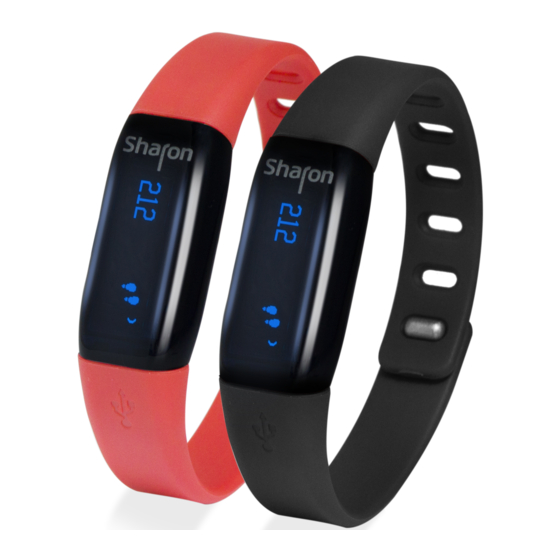

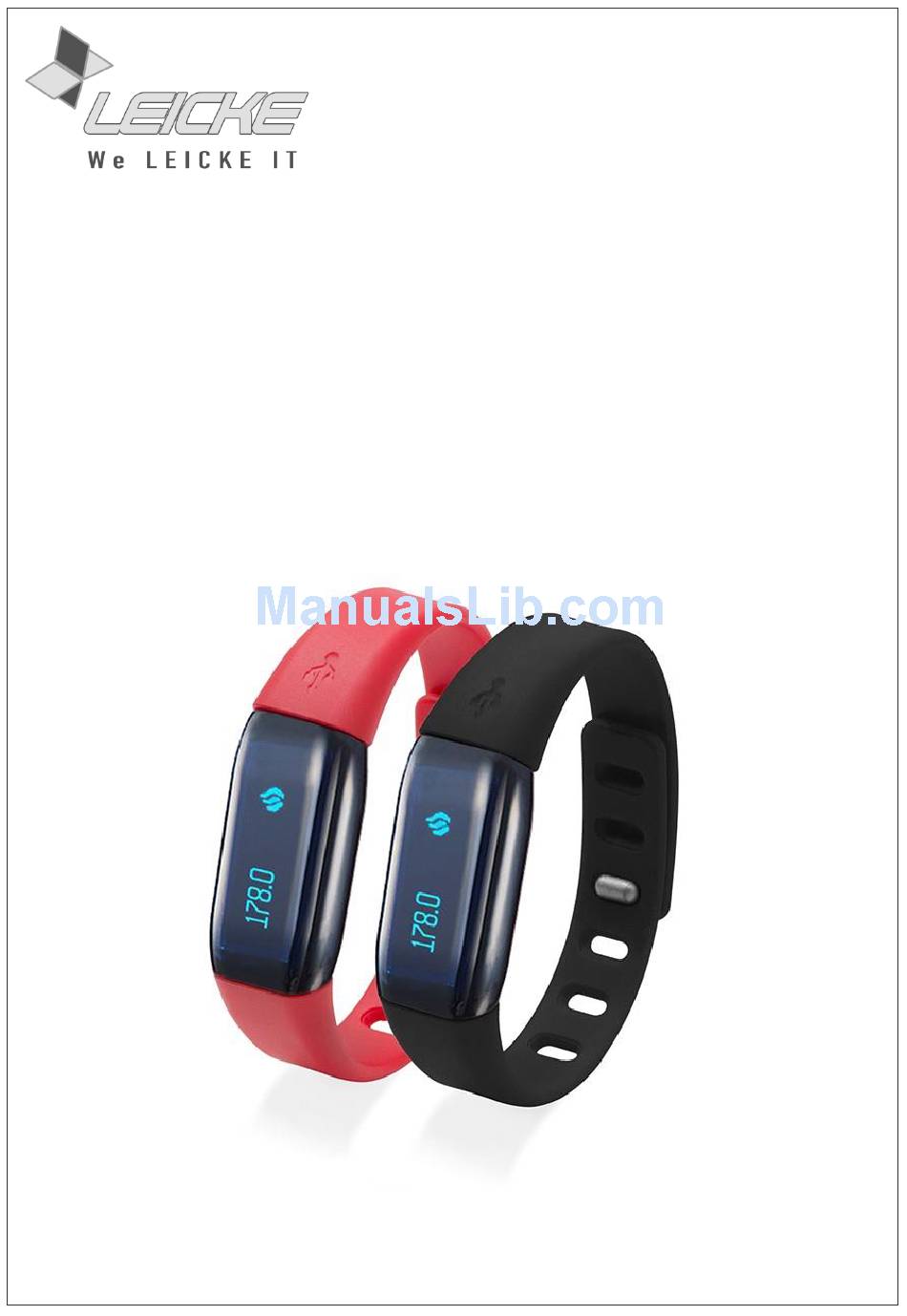

- Page 1 User's Manual LEICKE Sharon ActivityTracker for smartphones with Bluetooth Product number: WD67204...
-
Page 2: Package Contents
To discover more about LEICKE products, or if you have any questions about this product, visit our website www.leicke.com. PACKAGE CONTENTS... -
Page 3: Technical Details
TECHNICAL DETAILS Input voltage USB, 5V Input current 60mA Weight 19 g Steps 0-120.000 steps, unit: 1 step Calories 0-12000.0 kcal, unit: 0.1 kcal Distance 65.36km Step counting accuracy ± 20 steps at 500 steps Data connection Bluetooth 4.0 Display Blue OLED V.A.: 22.4mm x 5.6mm Battery... -
Page 4: Main Functions
MAIN FUNCTIONS Supports Bluetooth 4.0 OLED Display Records the data over 7 days, updates every 5 minutes if something changes. Shows steps, distance, estimated burned calories and the current time Tracks your sleep (this function can be set via the App) OLED DISPLAY Symbol Description... - Page 5 Charging the Band The following symbol shows you should charge your wristband: Connect the wristband to a suitable device via the USB interface: During charging the following symbol flashes: When charging is complete, the symbol looks like this: Notice: The mini USB port is just for charging and cannot transmit any data. Warning: Batteries and built-in batteries must not be exposed to extreme heat or long- lasting sunshine.
- Page 6 Connecting to the smartphone Download the MedM Health App and install on your Bluetooth 4.0 device. Switch on Bluetooth and the App. Both has to be switched on for the pairing process. Hold the button at the tracker for about 12 seconds to start the pairing. Please pay attention to the following symbols to get a successful connection.
- Page 7 Functions of the Tracker When using the device for the first time and the OLED does not illuminate when you press the button shortly, hold the button for about 5 seconds. The wristband will exit shipping mode. Notice: When charging the device while in shipping mode, it will automatically enter normal working mode and you can start tracking.
- Page 8 USAGE Follow the instructions. Tracking can start now! The data will be transmitted after successful pairing to your Bluetooth 4.0 device. Notice: Data will be transmitted every 100 steps to the next paired mobile device. Alternatively press the button at the ActivityTracker to start synchronization with the Appif the band is near the mobile device.
- Page 9 SHOW DATA Press the button shortly. The last setting will be shown (e.g. calorie consumption). Pressing the button again will change the display (e.g. distance after calories). Then steps will be shown. Then time. When the button is not pressed, the OLED switches off after a few seconds. Notice: When battery is low, the battery symbol will be shown first when pressing the button.
-
Page 10: Sleep Tracking
SLEEP TRACKING The ActivityTracker can also track your sleep (duration and movements). Like this, sleep quality can be evaluated (e.g. restless sleep). Therefore, you have to use the App on your mobile device. To start sleep tracking, press the button until you sense a vibration and the moon symbol flashes on the display. - Page 11 Problem Description Possible Cause/Possible Solution Unsuccessful pairing Is Bluetooth on? Is the app installed and on? Are both devices in transmission range? Abnormal tracking Wearing the wristband in a Wear the tracker as described results: wrong way can influence to avoid wrong recordings.
-
Page 12: Safety Notes
SAFETY NOTES Keep the device away from humidity or liquids while charging. This may lead to short-circuit. Do not manipulate the tracker. For example: Do not drop, disassemble, open, crush, excessively bend, stab, microwave, incinerate or paint the device. Do not insert unsuitable objects. -
Page 13: Important Note
FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 14 CONTACT If you have any questions, please feel free to contact us. PRODUCTION & WHOLESALE LEICKE GmbH Dohnanyistr. 28 04103 Leipzig Germany Web: www.leicke.com Mail: info@leicke.com...
