Summary of Contents for Pfeiffer 112535

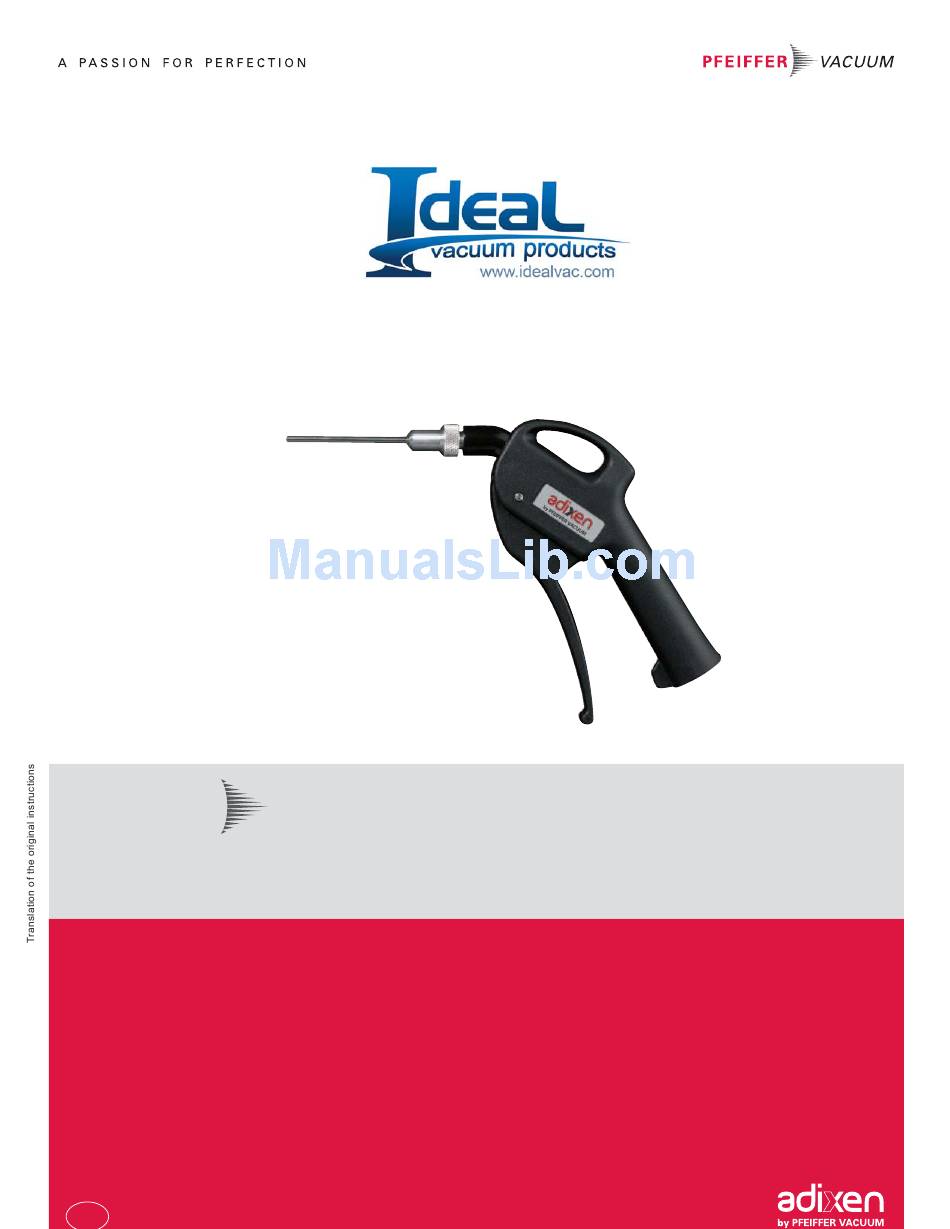

- Page 1 Spray gun Operating Instructions...
-
Page 2: Table Of Contents
Table of contents Table of contents About this manual ..........3 1.1 Validity. -
Page 3: About This Manual
About this manual Validity This operating manual is for customers of Pfeiffer Vacuum. It describes the functioning of the designated product and provides the most important information for safe use of the unit. The description follows applicable EU guidelines. All information provided in this operating manual refers to the current state of the product's development. -
Page 4: Description
Description Description Product identification Made in France : P/N : XXXXXX Ind. : - 98 avenue de Brogny - 74009 Annecy Fig. 1: Identification label P/N Part number Ind. Index Supply limit The spray gun is delivered with its accessories in a compact case. Fig. -
Page 5: Connection
Connection Connection Î if necessary, screw an adaptive connector to the plastic tube. Î Connect the plastic tube to the gas bottle containing a tracer gas. (Bottle and regulator at the customer’s expense). Short nozzle Needle Pressure regulator Flow rate Used Length Rough and fast detection... -
Page 6: Service
Overhaul and repair in the Pfeiffer Vacuum Service Center The following general recommendations will ensure a fast, smooth servicing process: Î Fill out the "Service Request/Product Return" form and send it to your local Pfeiffer Vacuum Service contact. Î Include the confirmation on the service request from Pfeiffer Vacuum with your ship- ment. -
Page 7: Spare Parts
Spare parts Spare parts Spare parts available for sales, classified by functions are listed in this chapter. - Page 8 J001 Needle for LDS Probe - D 0.3 mm 109955 J016 Nozzle, Short Rigid; for He Probe 109956 J017 Nozzle, Long Rigid; for He Probe 109951 J043 "Elite" Helium Spray Probe 112535 J122 Helium Spray Probe Spare parts DB 2013/06...
- Page 9 Vacuum solutions Pfeiffer Vacuum stands for innovative and custom from a single source vacuum solutions worldwide, technological perfection, competent advice and reliable service. Complete range From a single component to complex systems: of products We are the only supplier of vacuum technology that provides a complete product portfolio.
