Summary of Contents for Aoi Electrical AOI0012
-
Page 1: Installation Guide

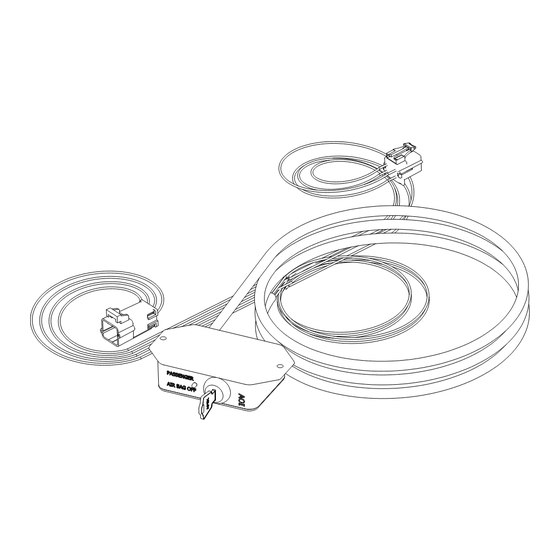

INSTALLATION GUIDE AOI 0011 / AOI 0012 / AOI0014 / AOI 0015 2004- 2009 DODGE DU RANGO 2004- 2012 FORD CR OW N VI C 2004- 2009 FORD F150 2003- 2010 FORD EX PLORE R PLU G I N PLAY aoielectrical.com 800.480.6680... - Page 2 THESE COMPONENTS ARE REQUIRED TO INSTALL THE AOI AIR BAG CONTROL SYSTEM AOI0011/12/14/ 15 I. The following tools will be required to complete the installation. A. Wire Strippers (24 AWG - 18AWG) B. Soldering Iron C. Heat shrink tubing (included) D.
- Page 3 V. Installing the Switch with an In-line Connector A. Locate the In-Line air bag plug for the corresponding air bag, disconnect the factory plug and insert the proper plug ends from the AOI Electrical Switch into the factory air bag plugs. WARNING: At NO TIME, while the air bag circuit is unplugged, should the ignition be turned ON.
- Page 4 Make sure both plugs are connected and completely seated. Double check the rest of the air bag system to sure no other connections have come loose. If these preliminary checks don’t correct the problem, call AOI Electrical, at the toll free number (888) 903-0004, and ask for technical assistance.
- Page 5 VIII. Mounting the AOI Switch Box NOTE: In order to be compliant with federal regulations, the driver side air bag on/off control switch must be mounted in a manner so that the telltale light on the switch box is clearly visible to the driver’s seat position.
- Page 6 aoielectrical.com 800.480.6680...
