HANDLE BAR CONTROL INTERFACE
FOR 1998-2013 HARLEY DAVIDSON

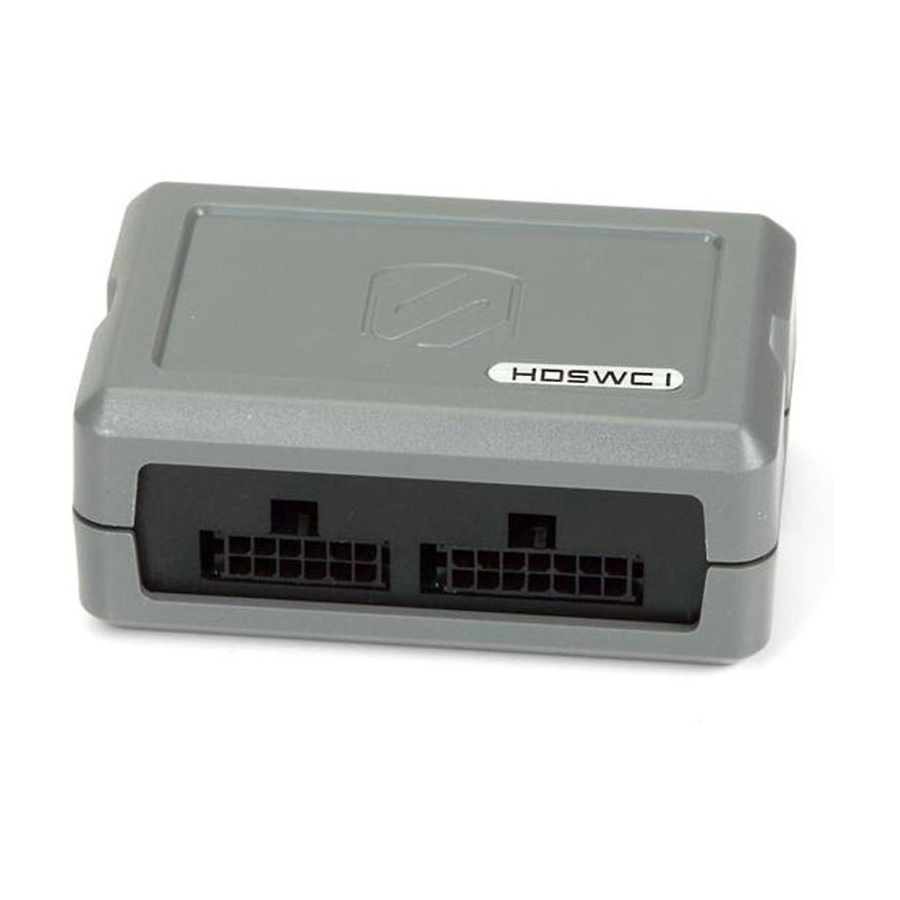

This HDSWC1 interface allows you to replace your factory original Harley Davidson
stereo while retaining handle bar mounted controls (when equipped). The interface is
designed for easy plug and play connection and NO cutting, splicing or adding addtional
resistors is required. The included harness also provides +12V Constant power, +12V
Switched power and Front speaker connections.
HARLEY DAVIDSON:
ROAD GLIDE/FLTR
STREET GLIDE/FLHX/FLHT
-Retains handle bar contol controls (If equipped)
-Retains OEM phone buttons (if aftermarket stereo supports)
This HDSWC1 instruction manual is based on carefully documented data and research. Scosche
Industries Inc. cannot be held responsible for discrepancies/inconsistencies that may occur due
to the vehicle manufacturing changes or options, or damages that may occur in the vehicle during
the installation of components while using this manual.
If you any further questions, call our toll-free techincal help line at: 1-800-621-3695 x3
MOTORCYCLES
APPLICATION GUIDE
FEATURES
LIABILITY DISCLAIMER
© Scosche Ind. Inc. 2014
1
HDSWC1
1998-2013
1998-2013
3000HDSWC1 Rev2 10_2014
Advertisement
Table of Contents
Related Manuals for Scosche HDSWC1
Summary of Contents for Scosche HDSWC1
- Page 1 -Retains OEM phone buttons (if aftermarket stereo supports) LIABILITY DISCLAIMER This HDSWC1 instruction manual is based on carefully documented data and research. Scosche Industries Inc. cannot be held responsible for discrepancies/inconsistencies that may occur due to the vehicle manufacturing changes or options, or damages that may occur in the vehicle during the installation of components while using this manual.
- Page 4 HDSWC1 WIRING DIAGRAM AFTERMARKET RADIO 12-pin Plug only! 14-pin Plug only! Cut Blue AND Green loops /Pioneer...
- Page 5 SWC WIRING DIAGRAM FIGURE 2A Prepare SWC steering wheel connector harness by using the chart below Connect the harness to the interface module. For Alpine, Clarion, JVC, Panasonic and Sony car stereos, connect the 3.5mm male steering plug into the steering wheel input jack at the back of the stereo. For Kenwood and newer JVC stereos, connect the wire from the steering wheel harness to BROWN...
Need help?
Do you have a question about the HDSWC1 and is the answer not in the manual?
Questions and answers

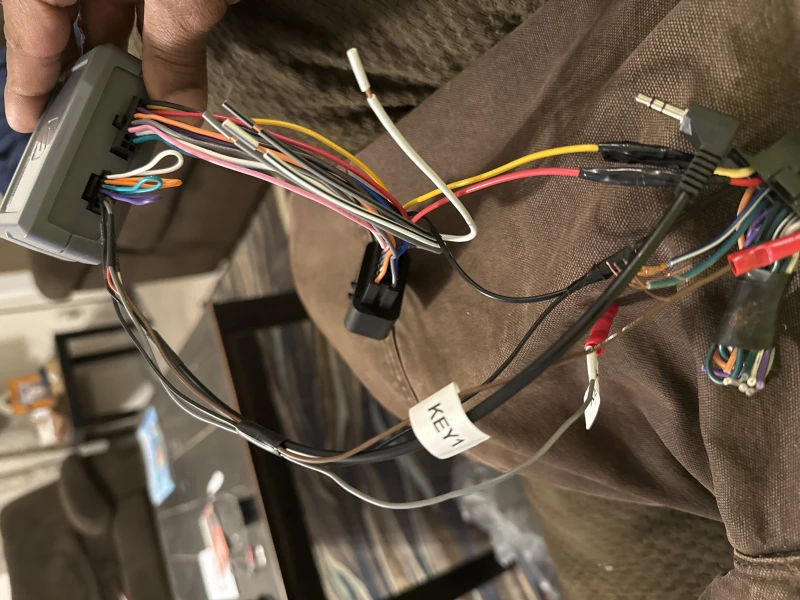

On my hdswc1 there is no blue and yellow wire, only a gray wire that say key 2 and a brown wire that say key 1 connecting to a newer jvc deck.
The Scosche HDSWC1 manual does not mention gray or brown wires labeled as "key 2" or "key 1." However, for newer JVC decks, the manual states that the steering wheel harness wire should connect to the brown "Remote in" wire at the back of the stereo.
